Garage Metal SPD Consumer Unit with RCBOs – WCED 3 Way 6A & 32A Bi-Directional Kit
WCED WME06/SP/G/632

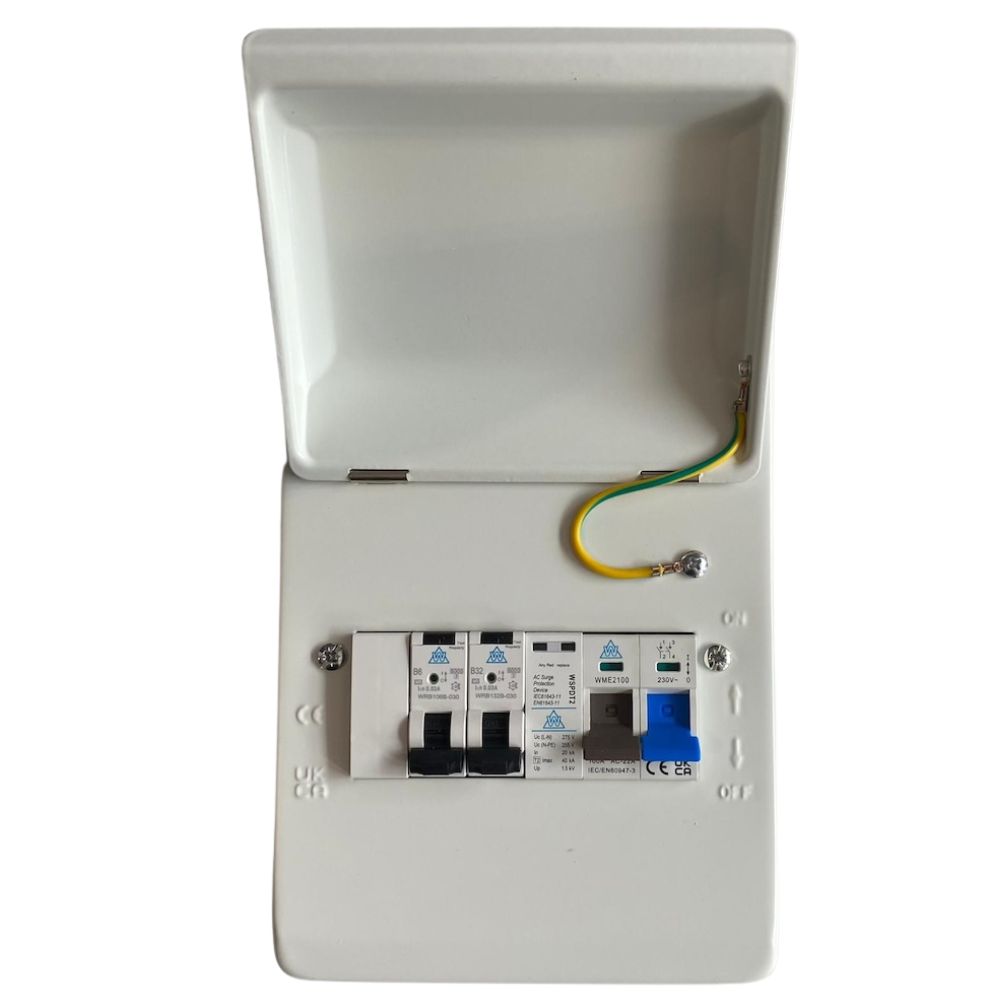

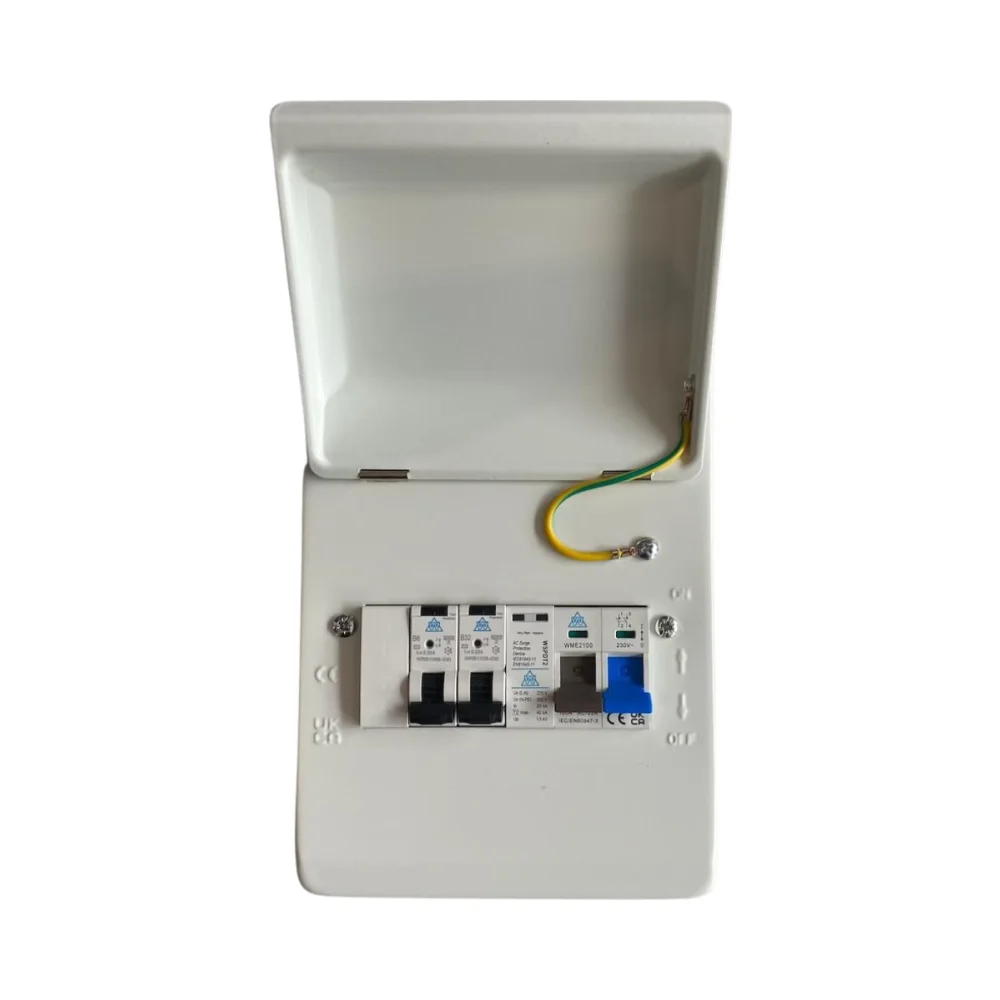

The Garage Metal SPD Consumer Unit with RCBOs is a compact WCED 3 usable way consumer unit supplied with integrated surge protection, a 100A main switch and two Type A Curve B bi-directional RCBOs rated at 6A and 32A. It is designed for garages, outbuildings and smaller installations requiring dedicated circuit and surge protection.
The WCED WME06/SP/G/632 metal enclosure provides multiple cable entry options, including circular knockouts at the top and bottom, 40mm entries at the sides and rear, plus larger rear cable slots for flexible installation. A meter tails cable gland is also included.
Included RCBO Configuration
- 1 × B6A Type A Bi-Directional RCBO
- 1 × B32A Type A Bi-Directional RCBO
Please note: This Garage Metal SPD Consumer Unit with RCBOs is supplied with the fixed RCBO configuration shown above.
What’s Included
- WCED WME06/SP/G/632 Metal Consumer Unit
6 module enclosure with 3 usable ways. - 100A Main Switch
Provides incoming isolation for the consumer unit. - 2 × Type A Curve B Bi-Directional RCBOs
Supplied as 1 × 6A and 1 × 32A. - Integrated Surge Protection
Provides protection against transient overvoltages. - Meter Tails Cable Gland Included
Supplied with a meter tails cable gland for neat and secure incoming cable entry.
Key Features
- 3 usable ways within a compact 6 module enclosure
- Fixed RCBO configuration: 1×6A and 1×32A
- Type A Curve B bi-directional RCBOs
- 100A main switch
- Integrated surge protection
- Metal enclosure
- Multiple circular cable entry knockouts on top and bottom
- 40mm cable entries on the sides and rear
- Larger rear cable entry slots
- Meter tails cable gland included
Technical Specifications
- Model: WME06/SP/G/632
- Brand: WCED
- Total modules: 6
- Usable ways: 3
- Main switch: 100A
- RCBO quantity: 2
- RCBO ratings: 6A and 32A
- RCBO type: Type A, Curve B, bi-directional
- Surge protection: Integrated SPD
- Meter tails cable gland: Included
- Dimensions: 130mm (W) × 240mm (H) × 112mm (D)
Ideal Applications
- Garages
- Outbuildings
- Workshops
- Small domestic distribution boards
- Installations requiring separate lighting and power circuit protection
Why Choose This Garage Metal SPD Consumer Unit with RCBOs?
The Garage Metal SPD Consumer Unit with RCBOs combines a compact WCED metal enclosure, integrated surge protection and two Type A Curve B bi-directional RCBOs in one practical package. The included 6A and 32A RCBOs make it well suited to installations requiring separate lighting and power circuits.
