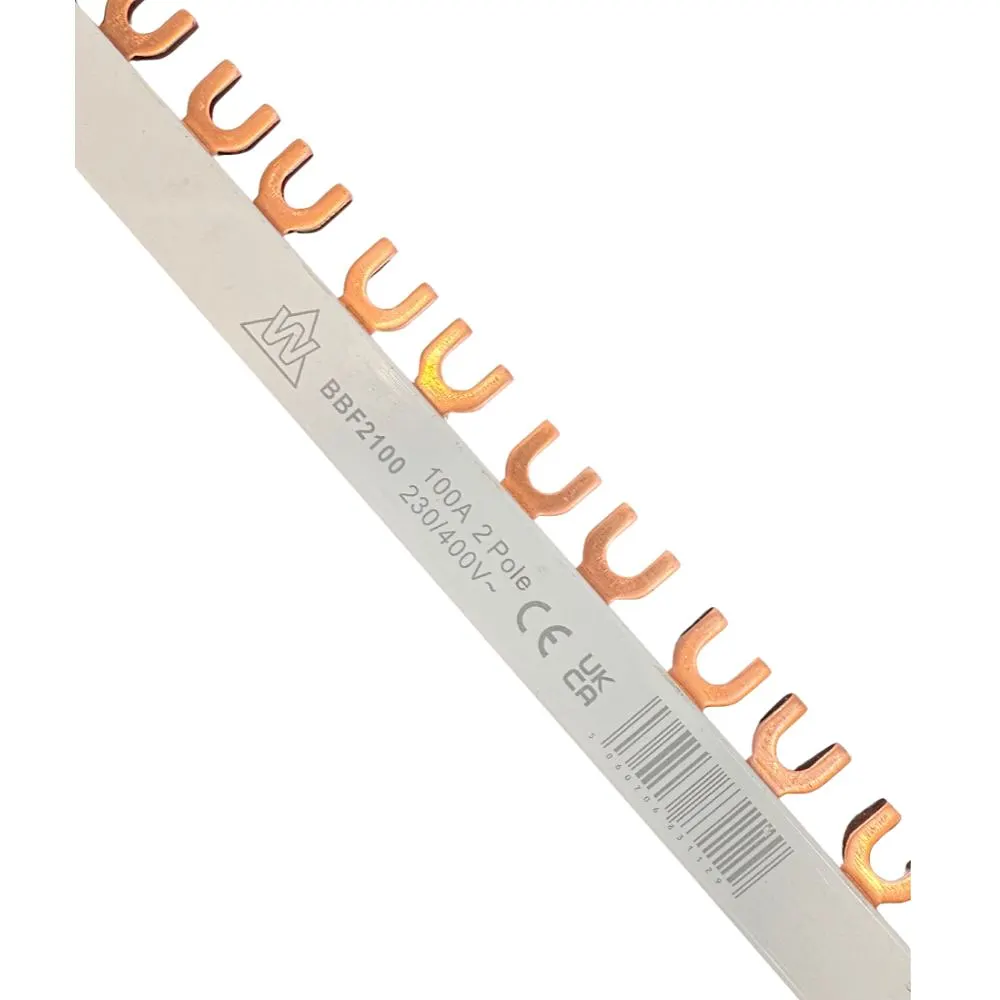

WCED 2P 100A Fork Busbar
WCED 2P 100A Fork Busbar BBF2100 is a two-pole copper busbar designed for distributing power across compatible circuit protection devices within consumer units and distribution equipment.
Rated at 100A, the BBF2100 uses fork-type connections and has an 18mm² copper busbar cross section. The WCED datasheet specifies an operational voltage of 230/400V AC and rated frequency of 50/60Hz.
Key Features
- 2 pole fork busbar configuration
- 100A rated current
- Fork-type connection design
- Copper busbar construction
- 18mm² copper cross section
- 230/400V AC rated operational voltage
- 50/60Hz rated frequency
- Designed for compatible circuit protection and distribution equipment
Technical Data
- Brand: WCED
- Part number: BBF2100
- Product type: Fork copper busbar
- Number of poles: 2
- Rated current: 100A
- Rated operational voltage: 230/400V AC
- Rated frequency: 50/60Hz
- Rated impulse withstand voltage Uimp: 9.5kV
- Busbar cross section: 18mm² Cu
- Pollution degree: 2
- Comparative tracking index: CTI 600
Busbar Dimensions
- A: 2mm
- B: 9mm
- C: 4mm
- D: 17.8mm
- E: 12mm
The WCED datasheet identifies BBF2100 specifically as a 2 Pole 100A Fork Busbar and provides the above electrical ratings and dimensions.
