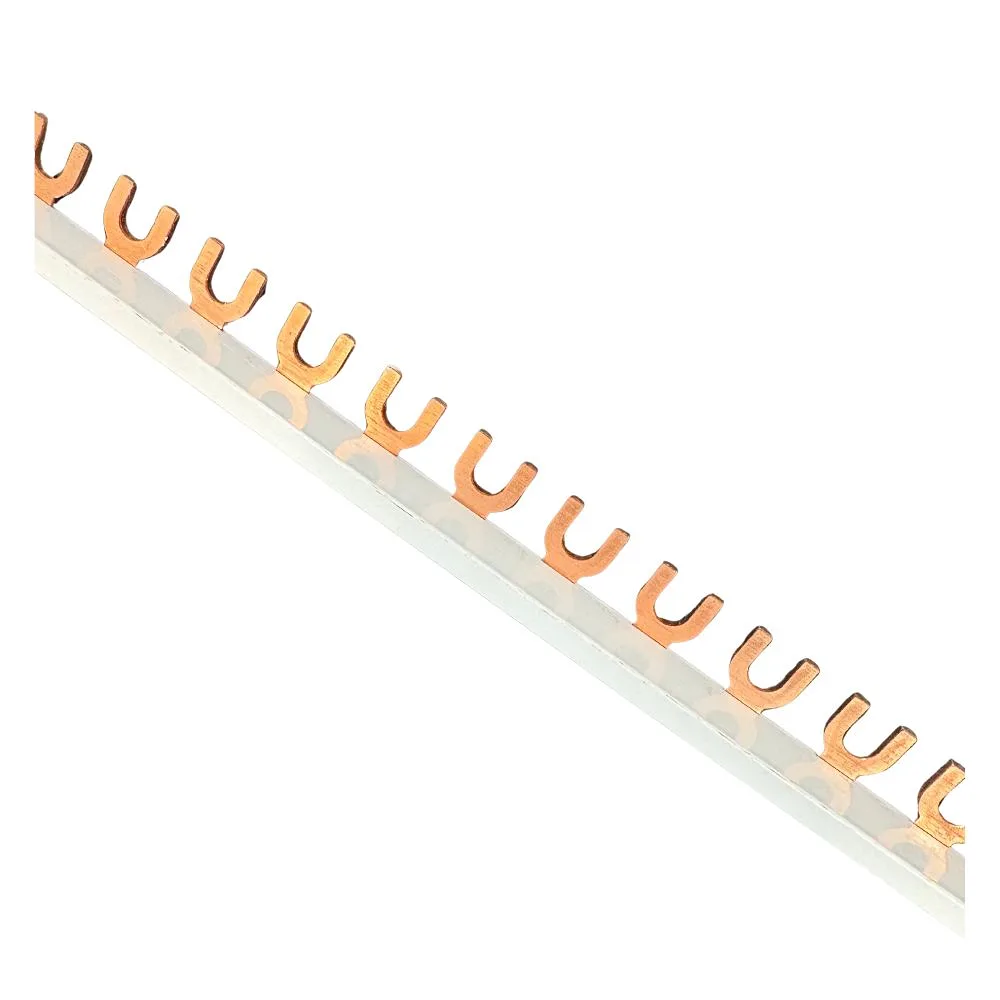

WCED 1P 100A Fork Busbar 1 Metre
WCED 1P 100A Fork Busbar 1 Metre BBF1100 is a single-pole copper fork busbar designed for distributing power across compatible circuit protection devices within consumer units and electrical distribution equipment.
Rated at 100A, the BBF1100 features fork-type connections and an 18mm² copper busbar cross section. It is designed to provide an organised and reliable method of supplying multiple compatible protective devices from a common busbar.
Key Features
- 1 pole fork busbar configuration
- 100A rated current
- 1 metre length
- Fork-type connection design
- Copper busbar construction
- 18mm² copper cross section
- 230/400V AC rated operational voltage
- 50/60Hz rated frequency
- Suitable for compatible circuit protection and distribution equipment
Technical Data
- Brand: WCED
- Part number: BBF1100
- Product type: Fork copper busbar
- Number of poles: 1
- Rated current: 100A
- Length: 1 metre
- Rated operational voltage: 230/400V AC
- Rated frequency: 50/60Hz
- Rated impulse withstand voltage Uimp: 9.5kV
- Busbar cross section: 18mm² Cu
- Pollution degree: 2
- Comparative tracking index: CTI 600
Busbar Dimensions
- A: 2mm
- B: 9mm
- C: 4mm
- D: 17.8mm
- E: 12mm
WCED BBF1100 1 Pole Busbar
The WCED BBF1100 provides a practical solution for power distribution across compatible protective devices. Its single-pole fork arrangement and 100A rating make it suitable for a range of compatible consumer unit and distribution applications.
