PCB Terminal Block – Lever – 6mm²
Pin Spacing 7.5mm – 5-Pole – Push-In Cage Clamp – Grey
WAGO 2606-1105/010-000
The WAGO 2606-1105/010-000 PCB Terminal Block is a 5-pole connector designed for 6mm² conductors, utilizing Push-In Cage Clamp technology for easy and secure connections. With its lever mechanism, this terminal block allows for quick, tool-free wiring, making it highly efficient for both industrial and PCB applications.
Key Features:
- Lever Mechanism: Enables simple, tool-free connection, ensuring efficient installation and removal of conductors.
- Push-In Cage Clamp Technology: Provides a secure, stable connection for both solid and stranded conductors, enhancing safety and reliability.
- Pin Spacing: 7.5mm, allowing for easy integration into various PCB setups while maintaining compactness.
- 5-Pole Design: Accommodates multiple conductors, ideal for complex wiring tasks in industrial and electronic settings.

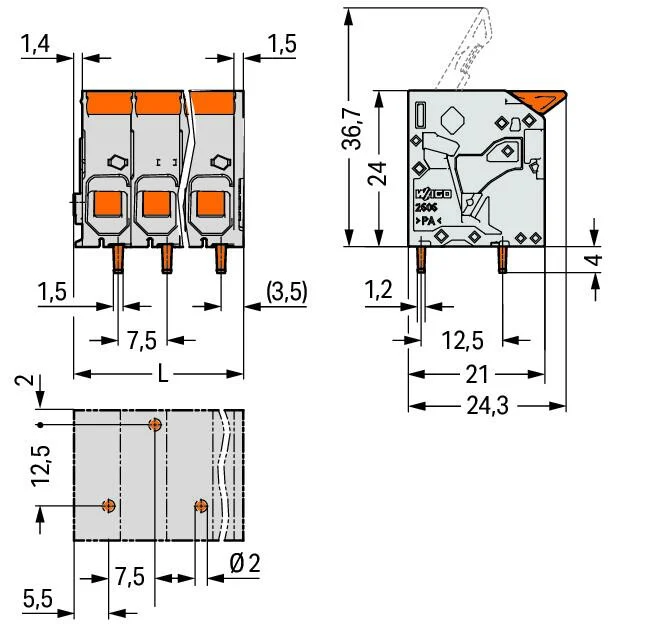

- Dimensions:
- Width: 40.35mm / 1.589 inches
- Height: 28mm / 1.102 inches (overall), 24mm / 0.945 inches (without lever)
- Depth: 24.3mm / 0.957 inches
- Pin Length: 4mm
- Pin Size: 1.5 x 1.2mm
- Contact Length: 2mm (+0.1)
This WAGO PCB terminal block offers superior performance and reliability, making it a trusted solution for secure and efficient PCB connections.
