6A Type A Bi-Directional RCBO B Curve 6kA

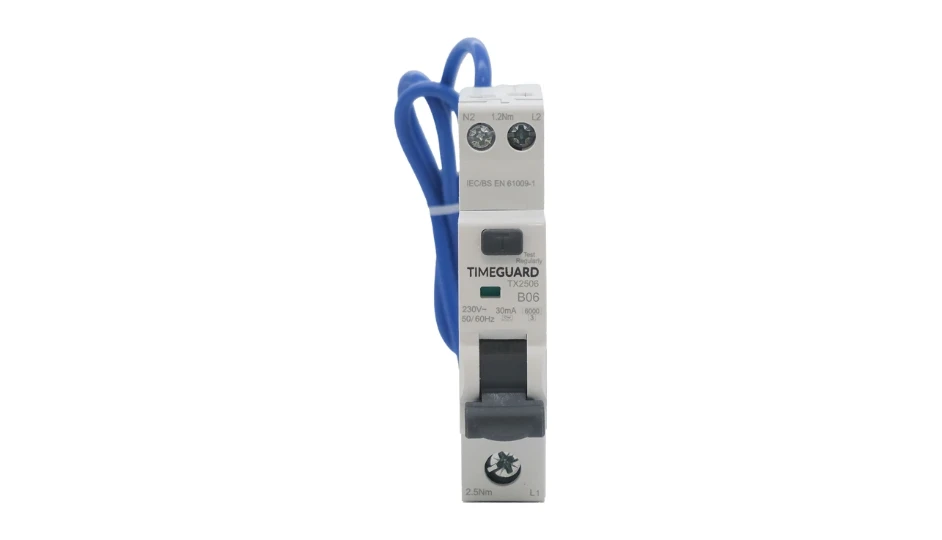

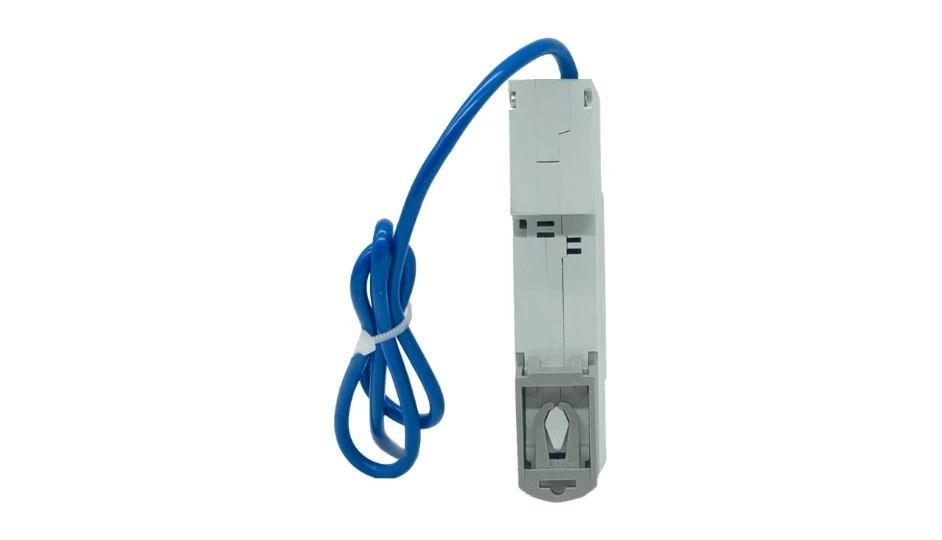

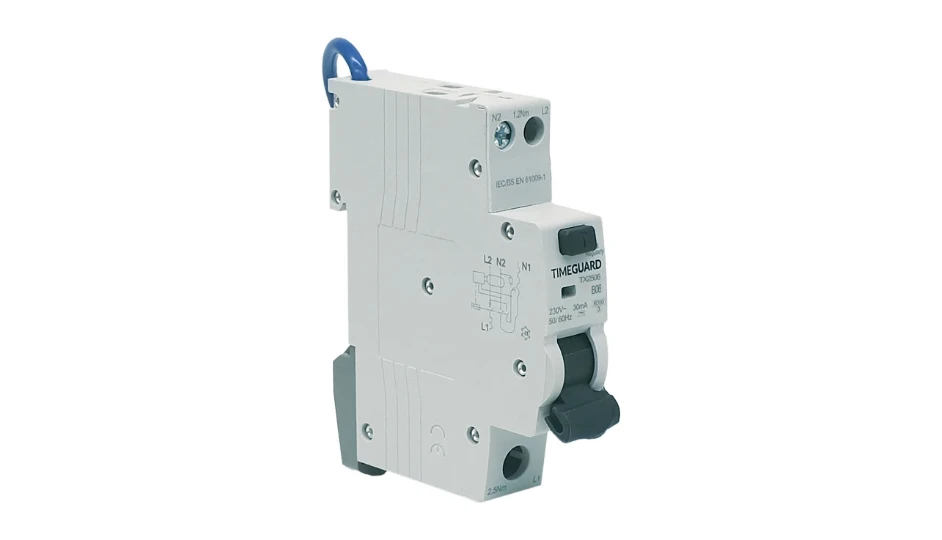

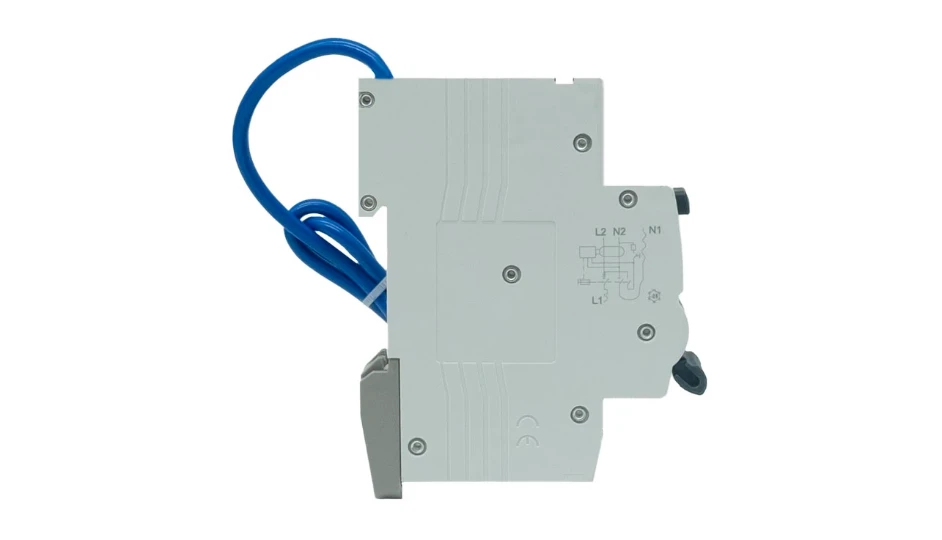

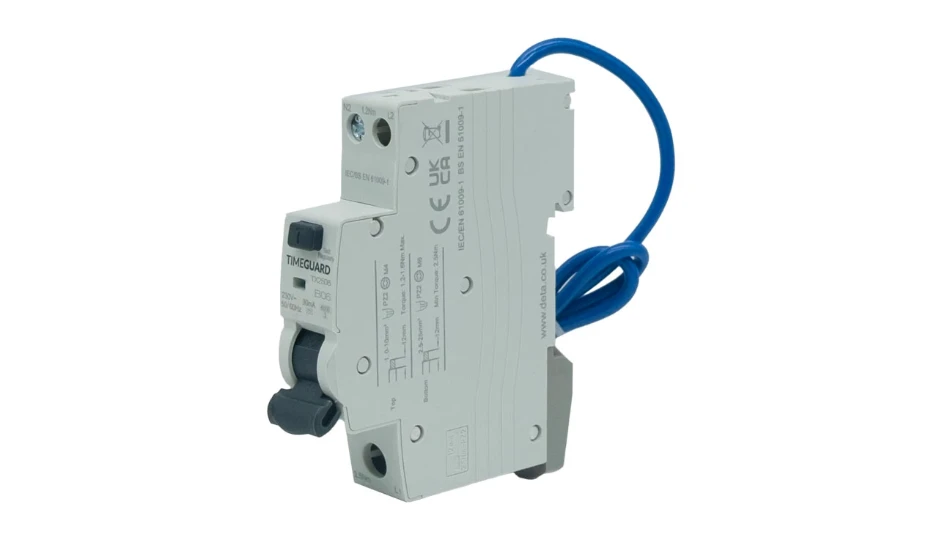

Timeguard TX2506 6A Type A Bi-Directional RCBO B Curve
The Timeguard TX2506 6A Type A Bi-Directional RCBO is a single-module residual current circuit breaker with overcurrent protection, designed for modern electrical installations where electrical energy may flow in both directions, including systems incorporating photovoltaic generation or battery storage.
Rated at 6A with a Type A residual current characteristic and 30mA sensitivity, this RCBO provides protection against AC and pulsating DC residual currents. The B curve tripping characteristic makes it suitable for lighting and other low inrush current circuits in domestic and light commercial installations.
The device features a 1P+N (single pole with switched neutral) design in a single-module width, allowing high circuit density within consumer units. It mounts onto a standard 35mm DIN rail and can be removed without disturbing the busbar, simplifying installation, inspection and future maintenance.
With a 6kA short-circuit breaking capacity, the RCBO includes a test button for routine functional testing and a clear contact position indicator for visual status confirmation. It complies with BS EN 61009-1 and is intended for bi-directional applications in accordance with current wiring regulations.
Key Features – Timeguard TX2506 RCBO
- 6A rated current
- B curve tripping characteristic
- Type A residual current protection
- 30mA sensitivity
- 6kA breaking capacity
- Bi-directional operation
- Single pole + switched neutral (1P+N)
- 35mm DIN rail mounting
- Test button and contact position indicator
Technical Specification – Timeguard TX2506 RCBO
- Rated Current: 6A
- Tripping Curve: B Curve
- RCD Type: Type A
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Voltage: 230–240V AC
- Frequency: 50/60Hz
- Poles: 1P+N
- Module Width: 18mm
- Mounting: DIN rail (35mm)
- Direction: Bi-Directional
- Standard: BS EN 61009-1
About Timeguard
Timeguard is a UK manufacturer of electrical control, timing and circuit protection products, supplying reliable solutions for residential and commercial installations. Timeguard RCBOs are designed to meet current UK wiring regulations, offering consistent performance, installer-friendly features and dependable long-term protection.
