Description
32A Type A RCBO B Curve 6kA Uni-Directional

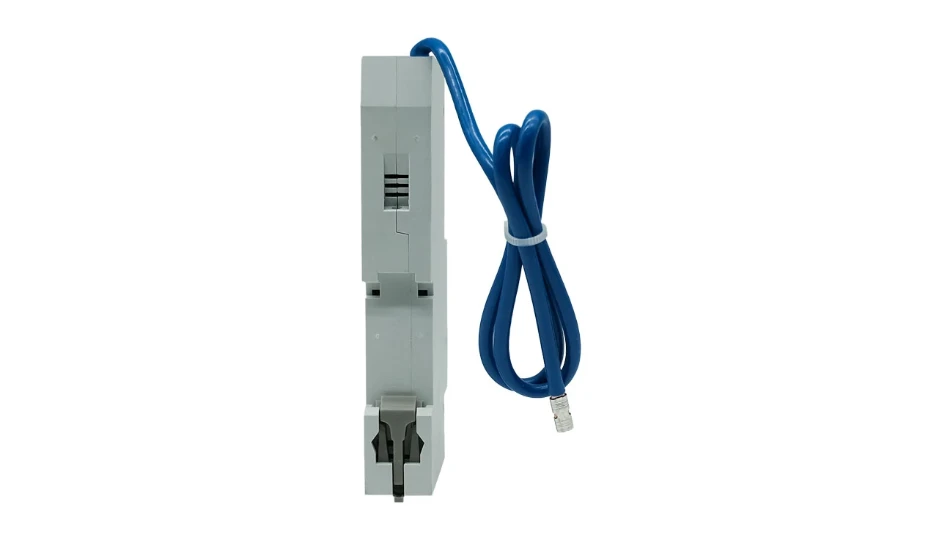

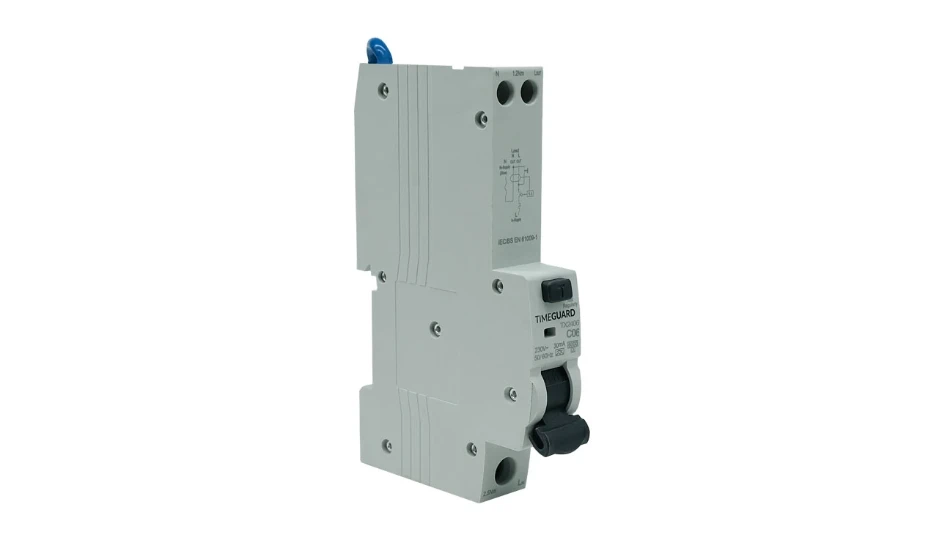

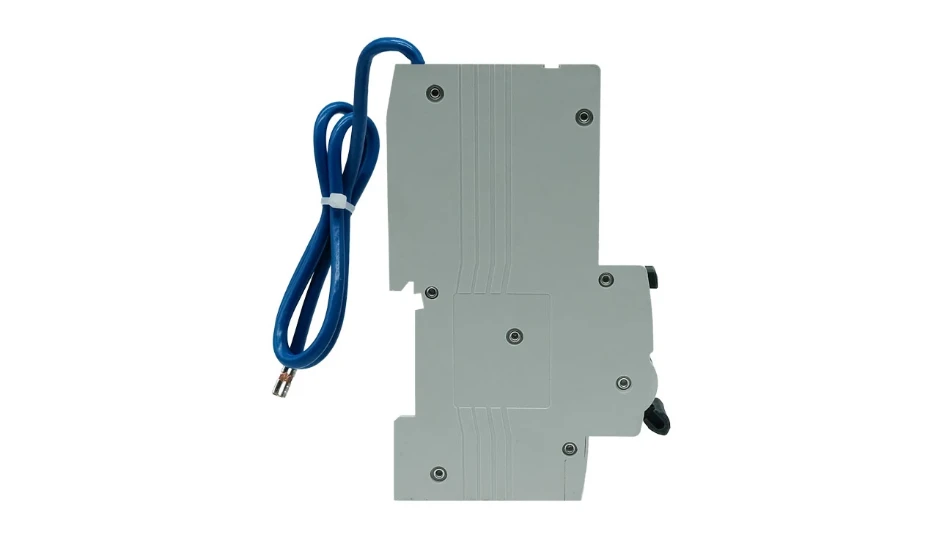

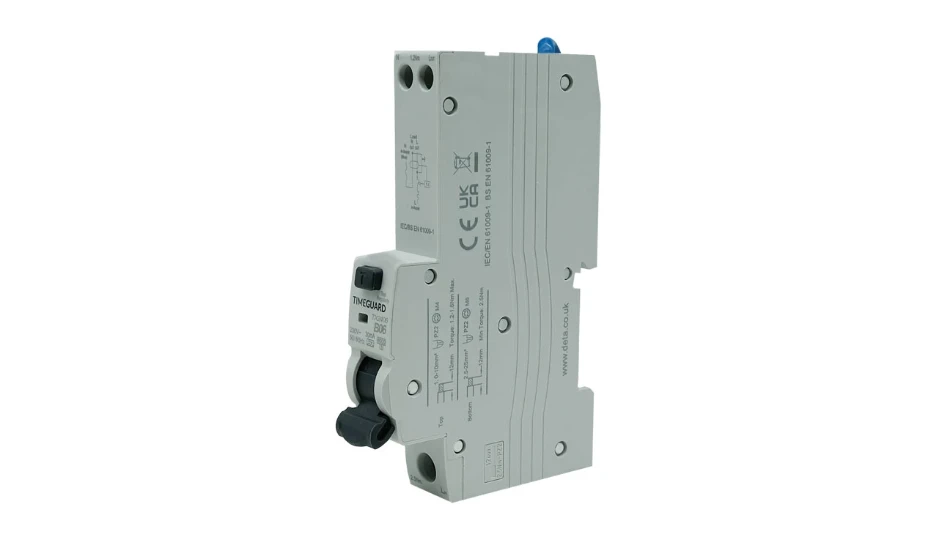

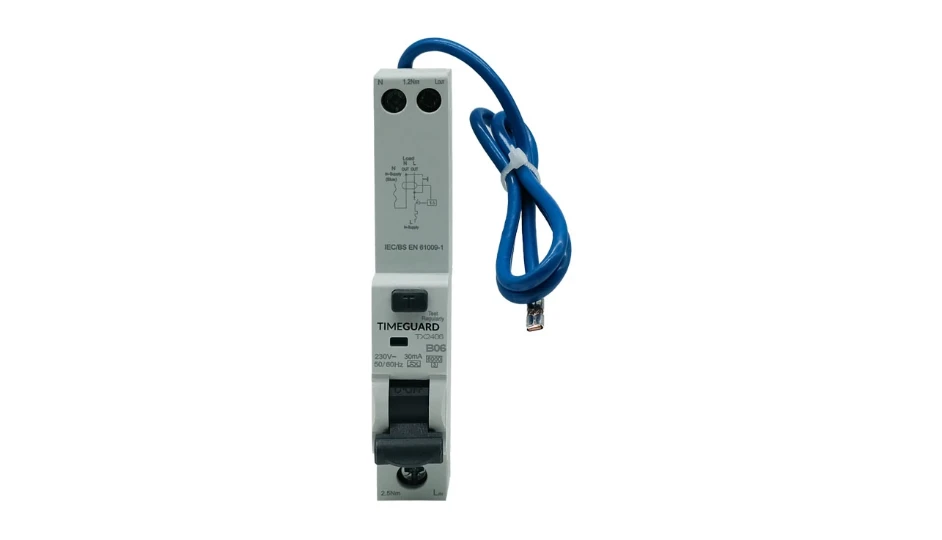

Timeguard TX2432 32A Type A RCBO B Curve
The Timeguard TX2432 32A Type A RCBO B Curve is a single-module, uni-directional residual current circuit breaker with integrated overcurrent protection, intended for installation within Timeguard consumer units and compatible distribution boards. It provides effective protection against overload, short-circuit and earth leakage faults on individual final circuits in domestic electrical installations.
Rated at 32A with a Type A residual current characteristic and 30mA sensitivity, this RCBO protects against AC and pulsating DC residual currents. The B curve tripping characteristic makes it suitable for high-load socket circuits and other applications with low inrush current demands, supporting reliable operation and proper circuit discrimination.
The device incorporates a compact 1P+N (single pole with switched neutral) design within a single-module width, allowing greater circuit density inside consumer units. It mounts securely onto a standard 35mm DIN rail and can be removed without disturbing the busbar, simplifying installation, inspection and ongoing maintenance.
With a 6kA short-circuit breaking capacity, the TX2432 includes a built-in test button for routine functional testing and a clear contact position indicator for immediate visual status confirmation. It complies with BS EN 61009-1 and is designed for uni-directional domestic applications in line with current UK wiring regulations.
Key Features – Timeguard TX2432 RCBO
- 32A rated current
- B curve tripping characteristic
- Type A residual current protection
- 30mA sensitivity
- 6kA breaking capacity
- Single pole + switched neutral (1P+N)
- Single-module width (18mm)
- 35mm DIN rail mounting
- Test button and contact position indicator
- Uni-directional design
Technical Specification – Timeguard TX2432 RCBO
- Rated Current: 32A
- Tripping Curve: B Curve
- RCD Type: Type A
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Voltage: 230–240V AC
- Frequency: 50/60Hz
- Poles: 1P+N
- Module Width: 18mm
- Mounting: DIN rail (35mm)
- Direction: Uni-directional
- Standard: BS EN 61009-1
About Timeguard
Timeguard is a UK manufacturer known for supplying dependable electrical control, timing and circuit protection products for residential and commercial installations. Its RCBOs and consumer units are designed to meet current UK wiring regulations, delivering consistent protection, practical installation features and long-term reliability.
