Description
20A Type A RCBO C Curve 6kA Uni-Directional

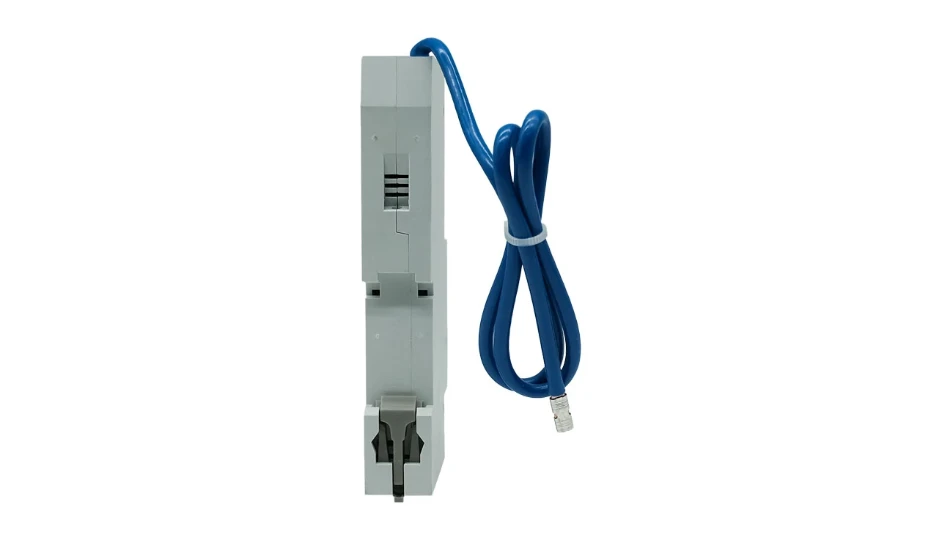

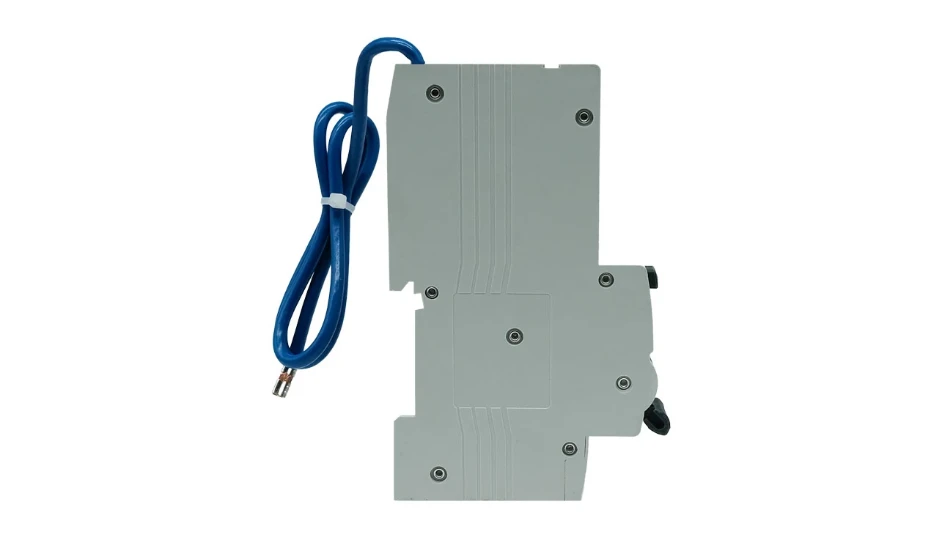

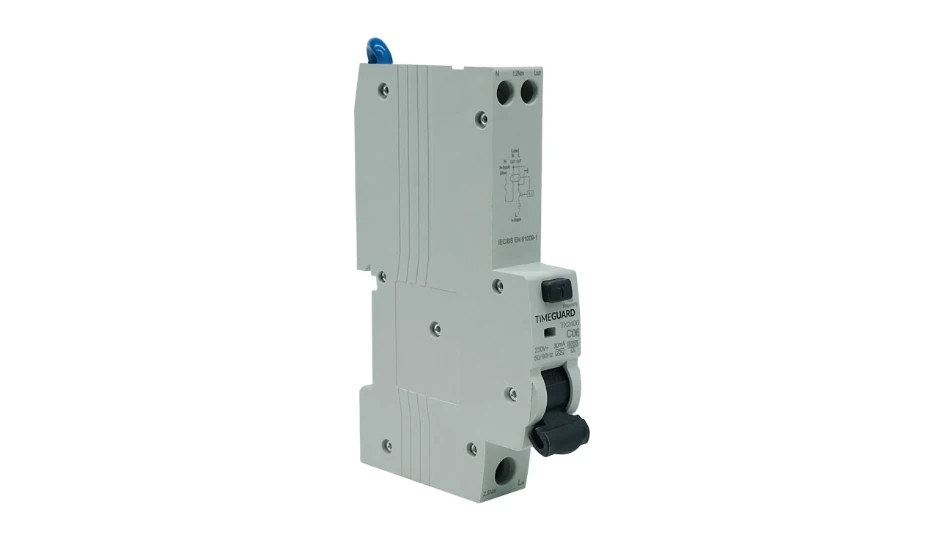

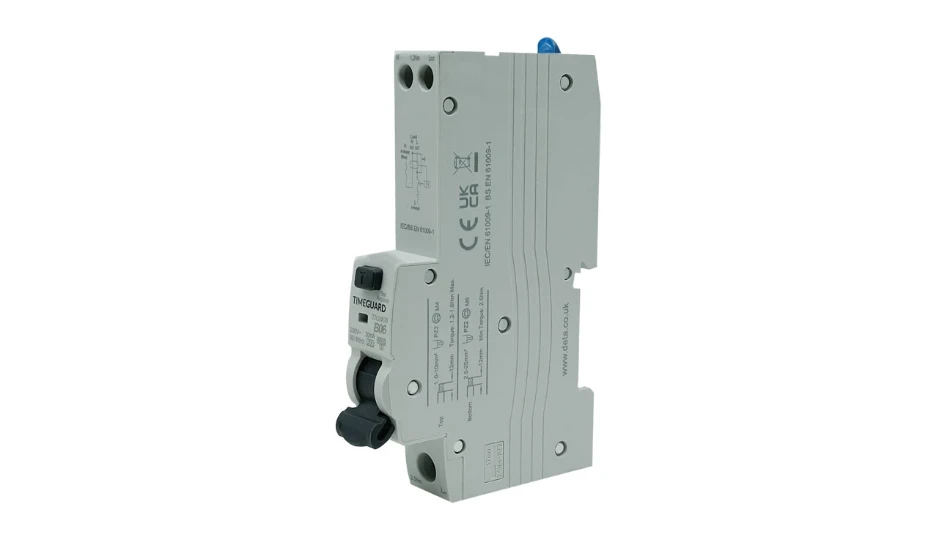

Timeguard TX2420C 20A Type A RCBO C Curve
The Timeguard TX2420C 20A Type A RCBO C Curve is a single-module, uni-directional residual current circuit breaker with integrated overcurrent protection, designed for installation in Timeguard consumer units and compatible distribution boards. It provides combined protection against overload, short-circuit and earth leakage faults for individual final circuits in domestic installations.
Rated at 20A with a Type A residual current characteristic and 30mA sensitivity, this RCBO protects against AC and pulsating DC residual currents. The C curve tripping characteristic makes it suitable for socket circuits and connected equipment with moderate inrush currents, ensuring stable operation and effective circuit discrimination.
The unit features a compact 1P+N (single pole with switched neutral) design within a single-module width, enabling efficient use of space inside consumer units. It mounts onto a standard 35mm DIN rail and can be removed without disturbing the busbar, simplifying installation, inspection and future maintenance.
With a 6kA short-circuit breaking capacity, the TX2520 includes a test button for routine functional testing and a clear contact position indicator for immediate visual status checks. It complies with BS EN 61009-1 and is intended for uni-directional domestic applications in accordance with current UK wiring regulations.
Key Features – Timeguard TX2420C 20A Type A RCBO
- 20A rated current
- C curve tripping characteristic
- Type A residual current protection
- 30mA sensitivity
- 6kA breaking capacity
- Single pole + switched neutral (1P+N)
- Single-module width (18mm)
- 35mm DIN rail mounting
- Test button and contact position indicator
- Uni-directional design
Technical Specification – Timeguard TX2420C 20A Type A RCBO
- Rated Current: 20A
- Tripping Curve: C Curve
- RCD Type: Type A
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Voltage: 230–240V AC
- Frequency: 50/60Hz
- Poles: 1P+N
- Module Width: 18mm
- Mounting: DIN rail (35mm)
- Direction: Uni-directional
- Standard: BS EN 61009-1
