Description
16A Type A RCBO B Curve 6kA Uni-Directional

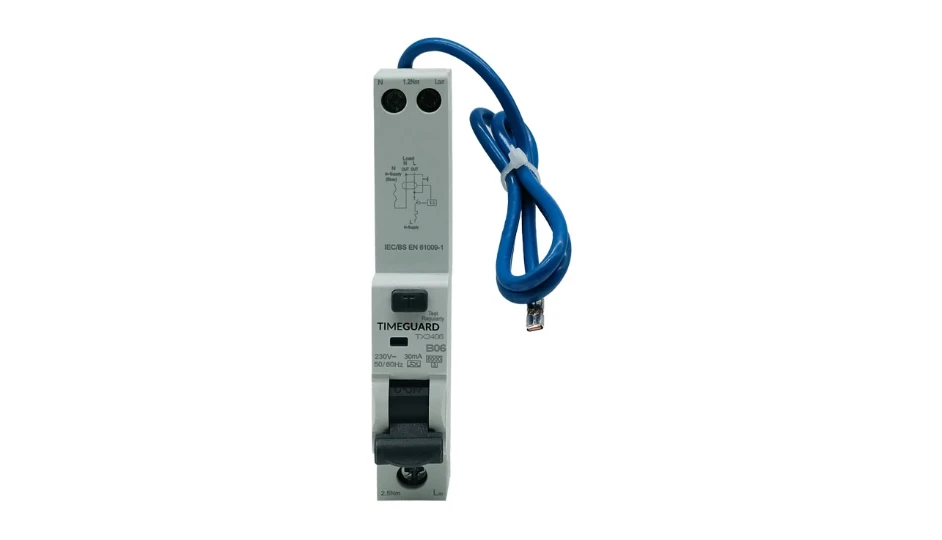

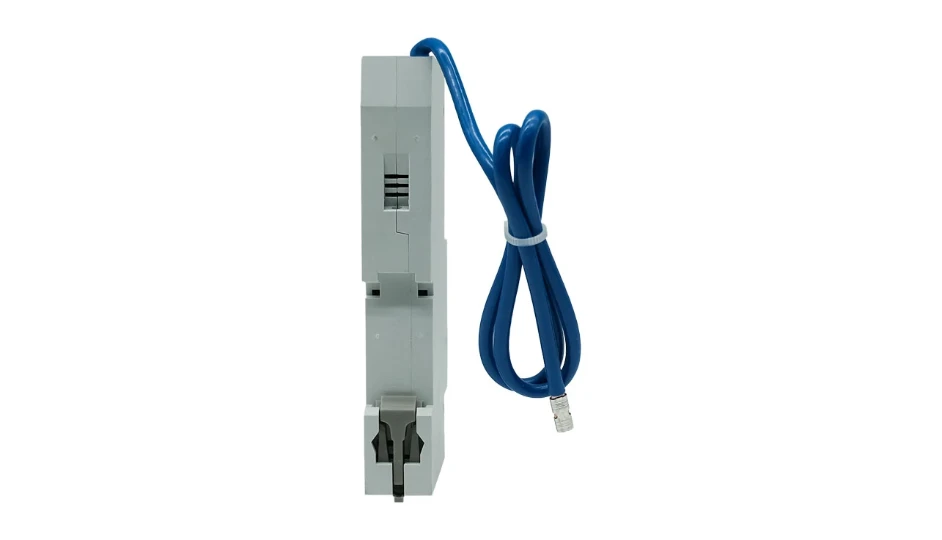

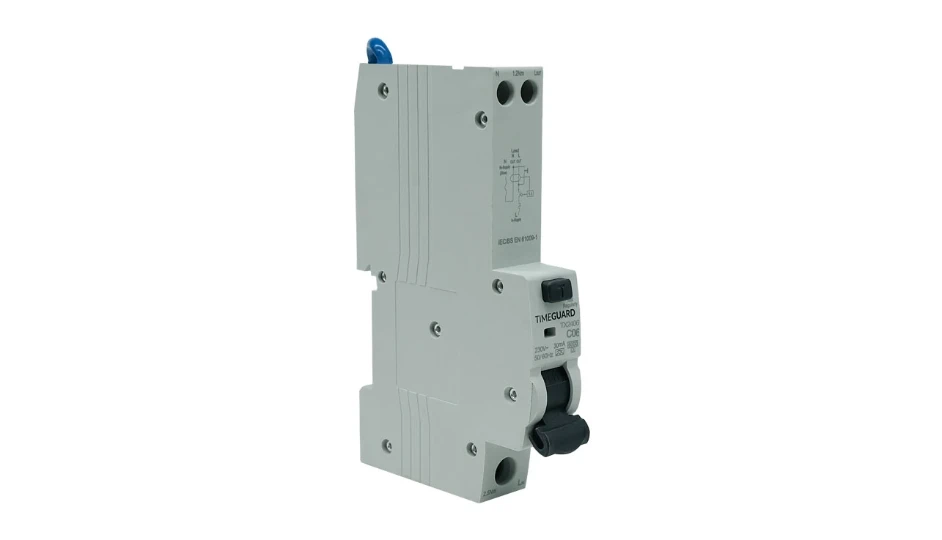

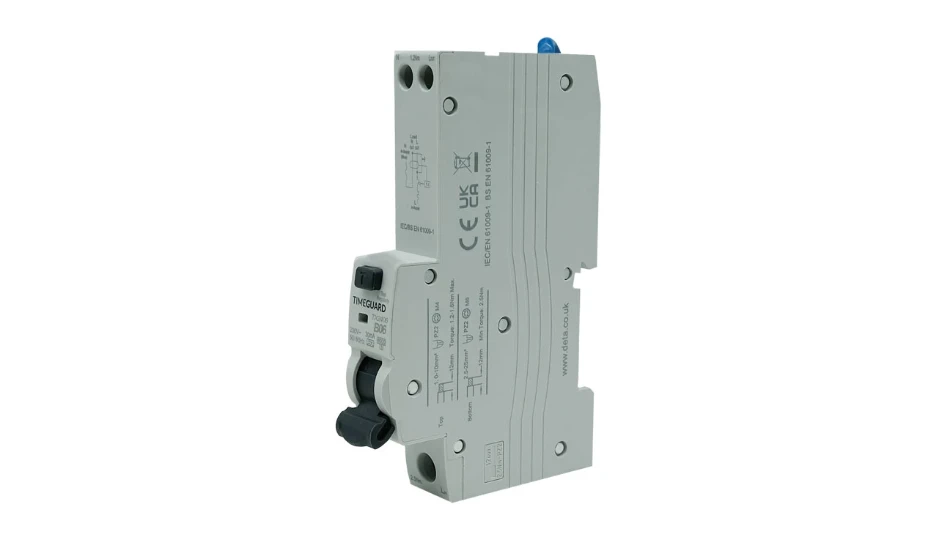

Timeguard TX2416 16A Type A RCBO B Curve
The Timeguard TX2416 16A Type A RCBO B Curve is a single-module, uni-directional residual current circuit breaker with overcurrent protection, designed for use in Timeguard consumer units and compatible distribution boards. It provides combined overload, short-circuit and residual current protection for individual final circuits in domestic installations.
Rated at 16A with a Type A residual current characteristic and 30mA sensitivity, this RCBO protects against AC and pulsating DC residual currents. The B curve tripping characteristic makes it suitable for lighting circuits and general-purpose socket circuits with low inrush currents, ensuring dependable operation and effective circuit discrimination.
The device features a 1P+N (single pole with switched neutral) configuration within a single-module width, allowing high circuit density inside consumer units. It mounts securely onto a standard 35mm DIN rail and can be removed without disturbing the busbar, simplifying installation, inspection and future maintenance.
With a 6kA short-circuit breaking capacity, the TX2416 includes an integrated test button for functional testing and a clear contact position indicator for visual status confirmation. It complies with BS EN 61009-1 and is intended for uni-directional domestic applications in line with current UK wiring regulations.
Key Features – Timeguard TX2416 RCBO
- 16A rated current
- B curve tripping characteristic
- Type A residual current protection
- 30mA sensitivity
- 6kA breaking capacity
- Single pole + switched neutral (1P+N)
- Single-module width (18mm)
- 35mm DIN rail mounting
- Test button and contact position indicator
- Uni-directional design
Technical Specification – Timeguard TX2416 RCBO
- Rated Current: 16A
- Tripping Curve: B Curve
- RCD Type: Type A
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Voltage: 230–240V AC
- Frequency: 50/60Hz
- Poles: 1P+N
- Module Width: 18mm
- Mounting: DIN rail (35mm)
- Direction: Uni-directional
- Standard: BS EN 61009-1
About Timeguard
Timeguard is a UK manufacturer of electrical control, timing and circuit protection products for residential and commercial installations. Its RCBOs and consumer units are designed to comply with current UK wiring regulations, offering reliable protection, practical installer-focused features and consistent long-term performance.
