Description
10A Type A RCBO C Curve 6kA Uni-Directional

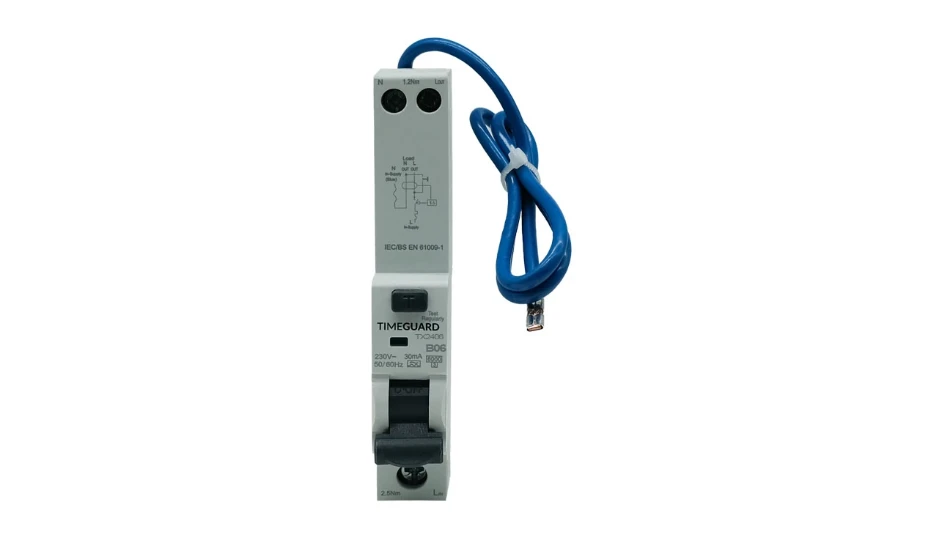

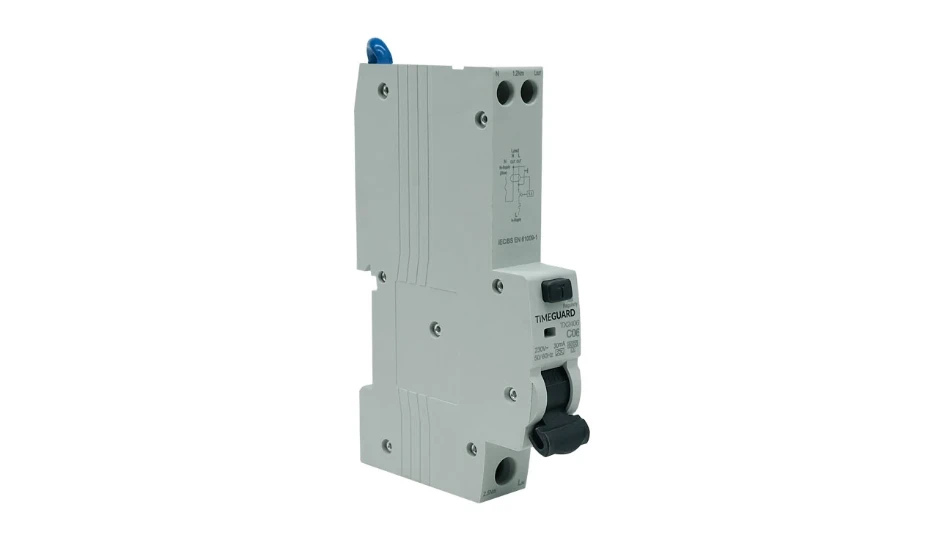

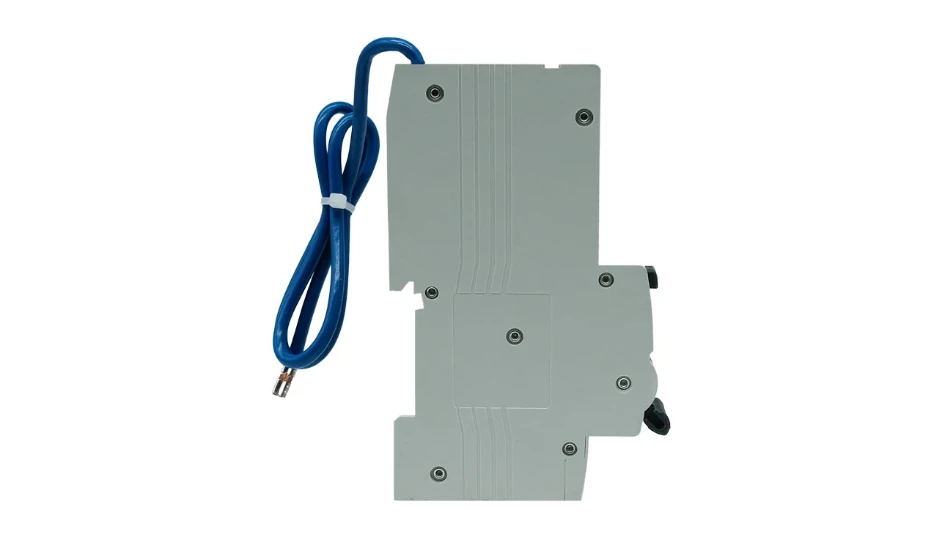

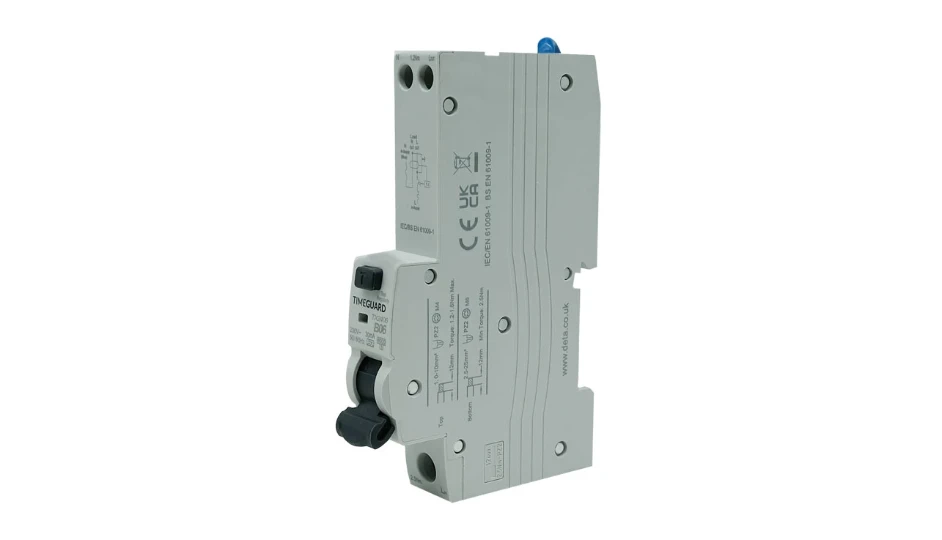

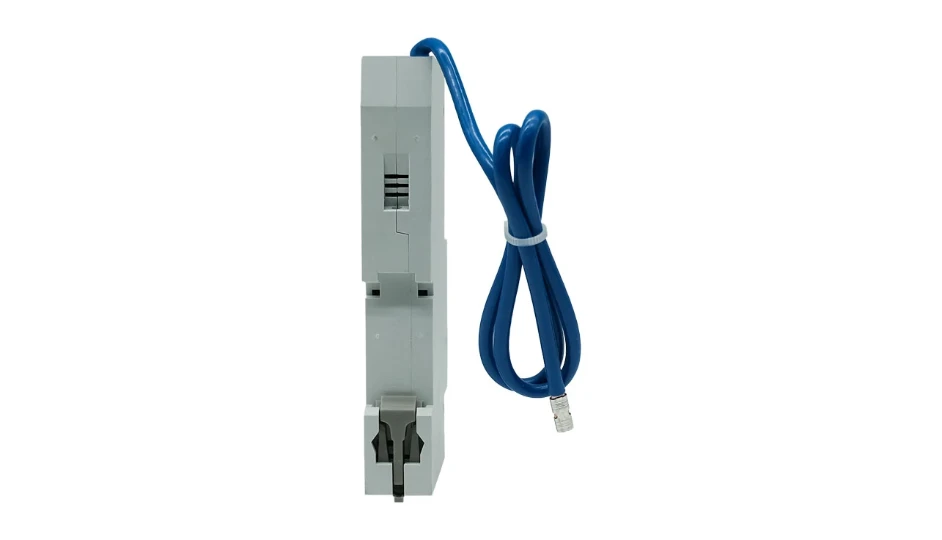

Timeguard TX2410C 10A Type A RCBO C Curve
The Timeguard TX2410C 10A Type A RCBO C Curve is a single-module, uni-directional residual current circuit breaker with integrated overcurrent protection, designed for installation in Timeguard consumer units and compatible distribution boards. It provides combined protection against overload, short-circuit and earth leakage faults for individual final circuits in domestic installations.
Rated at 10A with a Type A residual current characteristic and 30mA sensitivity, this RCBO protects against AC and pulsating DC residual currents. The C curve tripping characteristic makes it suitable for circuits with moderate inrush currents, including control circuits and certain lighting applications where higher start-up currents may be present.
The device features a compact 1P+N (single pole with switched neutral) configuration within a single-module width, enabling efficient use of space within consumer units. It mounts onto a standard 35mm DIN rail and can be removed without disturbing the busbar, simplifying installation, inspection and future maintenance.
With a 6kA short-circuit breaking capacity, the TX2510 includes a test button for functional testing and a clear contact position indicator for visual status confirmation. It complies with BS EN 61009-1 and is intended for uni-directional domestic applications in line with current UK wiring regulations.
Key Features – Timeguard TX2410C 10A Type A RCBO
- 10A rated current
- C curve tripping characteristic
- Type A residual current protection
- 30mA sensitivity
- 6kA breaking capacity
- Single pole + switched neutral (1P+N)
- Single-module width (18mm)
- 35mm DIN rail mounting
- Test button and contact position indicator
- Uni-directional design
Technical Specification – Timeguard TX2410C 10A Type A RCBO
- Rated Current: 10A
- Tripping Curve: C Curve
- RCD Type: Type A
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Voltage: 230–240V AC
- Frequency: 50/60Hz
- Poles: 1P+N
- Module Width: 18mm
- Mounting: DIN rail (35mm)
- Direction: Uni-directional
- Standard: BS EN 61009-1
