Description

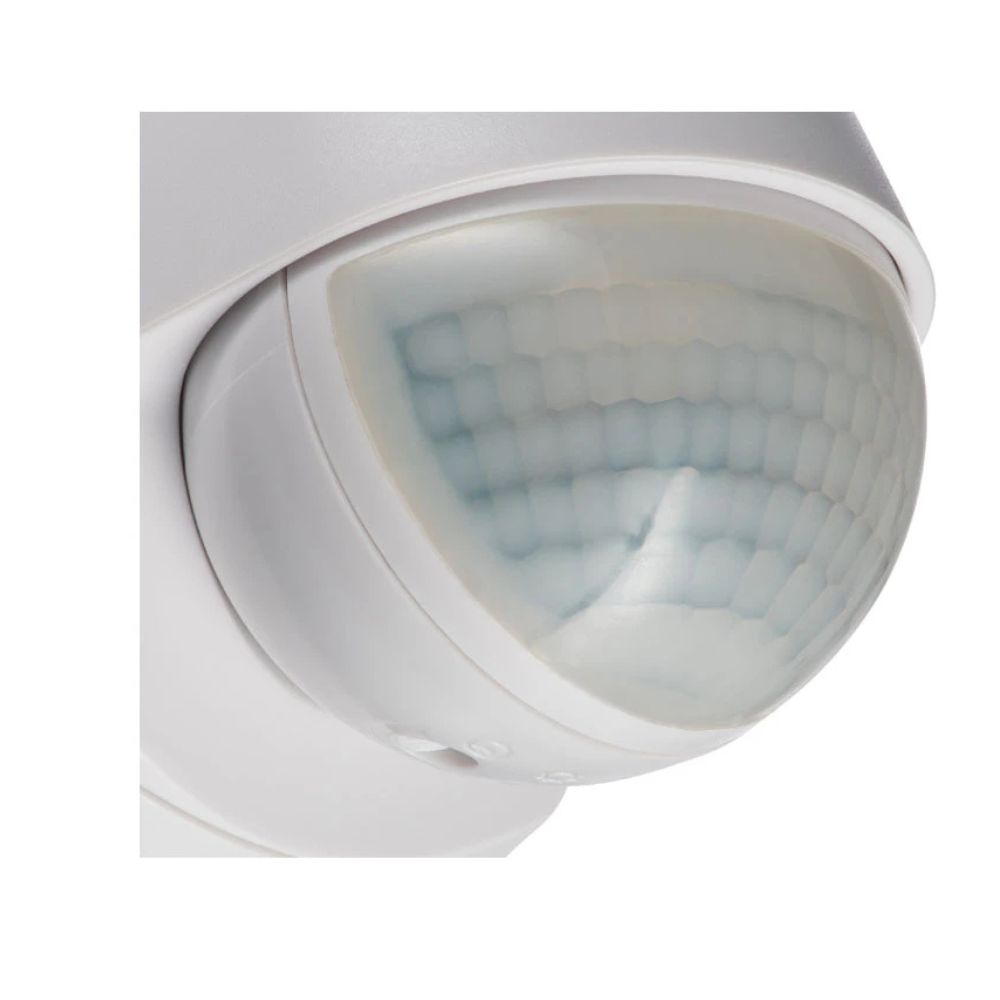

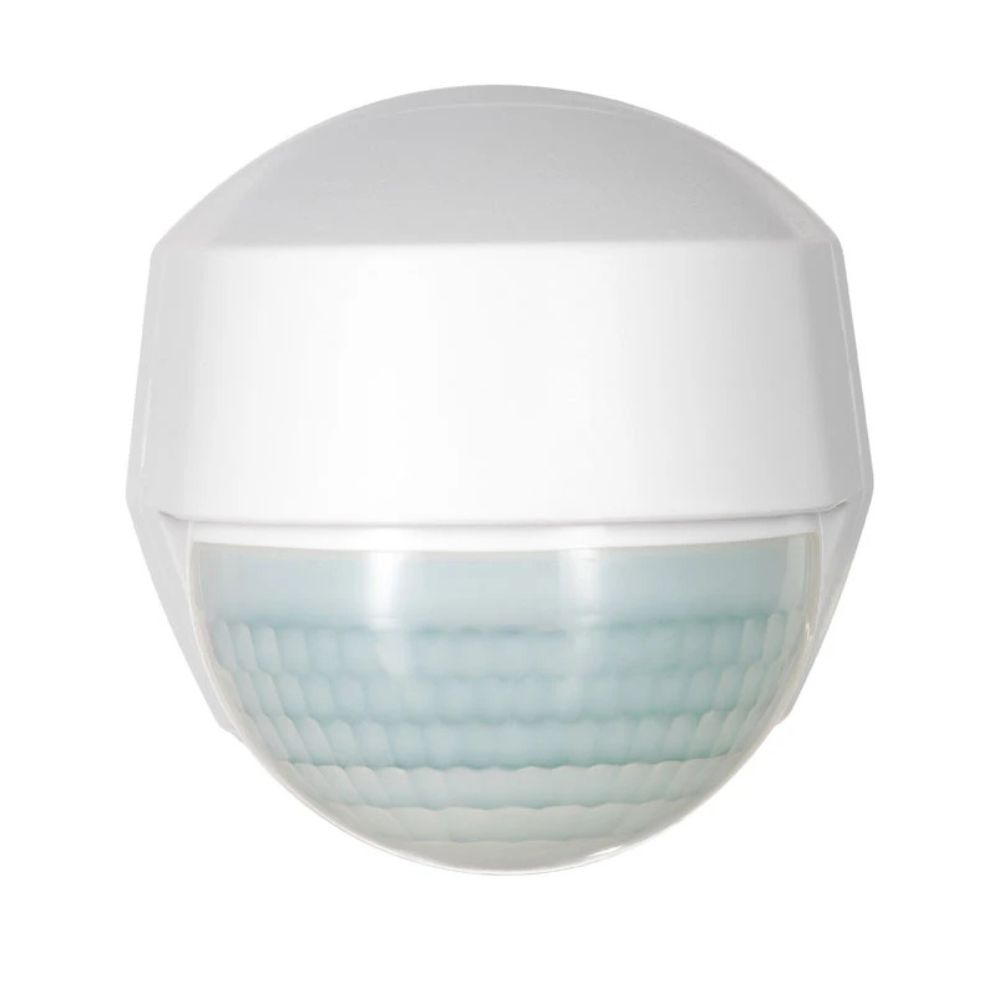

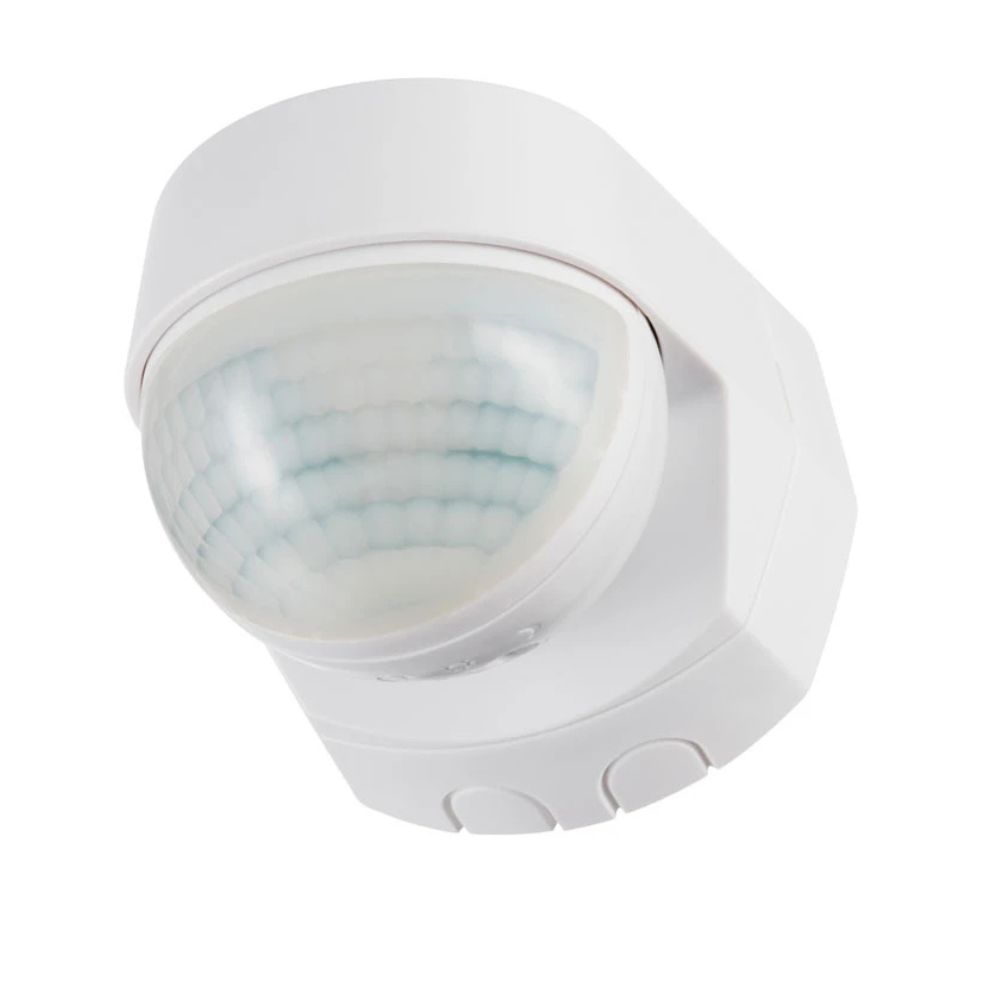

Timeguard STLW1000 White Outdoor PIR Motion Sensor
The Timeguard STLW1000 White Outdoor PIR is a compact and weatherproof motion sensor designed for automatic outdoor lighting control. Suitable for residential and commercial installations, this IP55-rated PIR sensor provides reliable motion detection with adjustable timer and lux settings for customised operation.
Designed for wall mounting, the STLW1000 features a wide 180° detection angle with a detection range of up to 12 metres, making it ideal for driveways, pathways, entrances, gardens and security lighting applications.
Key Features – Timeguard STLW1000 White Outdoor PIR
- IP55 rated for outdoor use
- 180° PIR motion detection
- Detection range up to 8–12 metres
- Adjustable ON time from 3 seconds to 18 minutes
- Adjustable lux level from 10 to 1000 lux
- Manual override function for extended lighting periods
- Suitable for LED, halogen and fluorescent lighting
- Supports up to 5 units wired in parallel

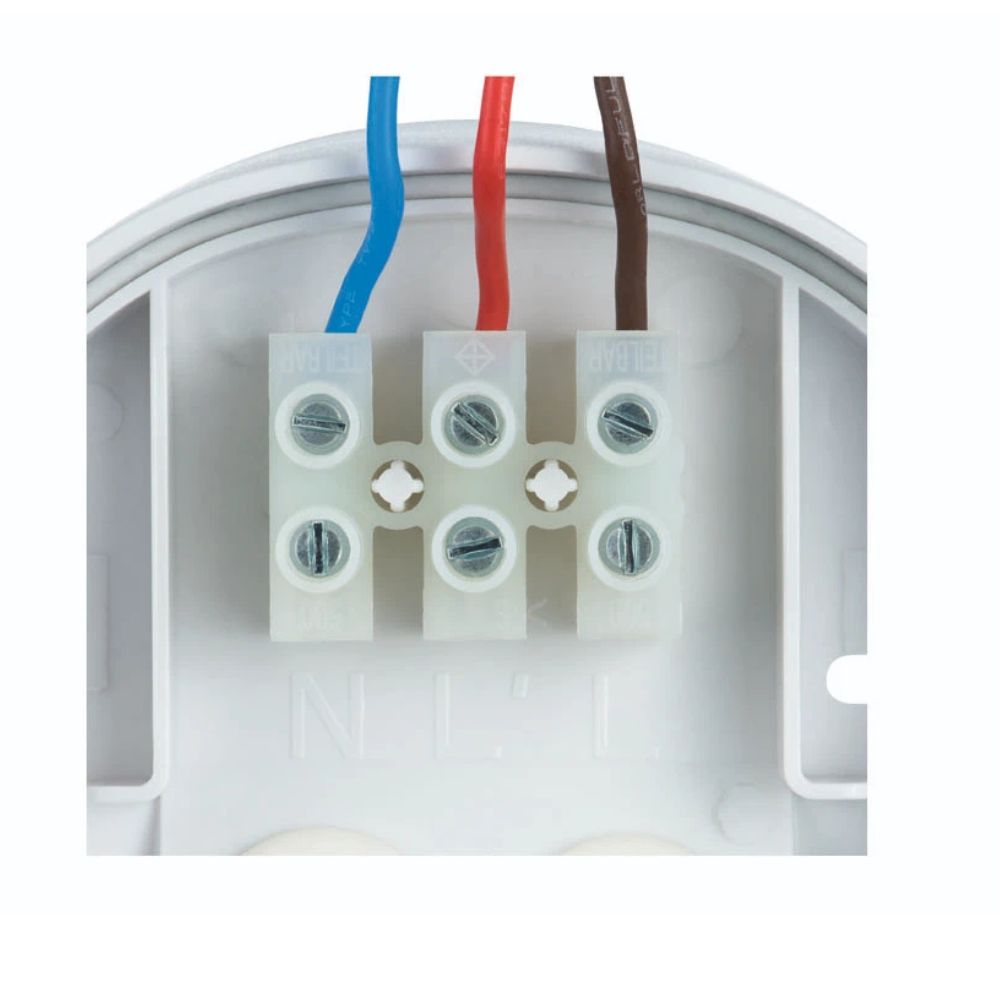

- Surface mounting design with rear and bottom cable entry
- Compact white polycarbonate housing
Applications – Timeguard STLW1000 White Outdoor PIR
The Timeguard STLW1000 is suitable for a wide range of outdoor lighting applications including:
- Security lighting systems
- Driveways and pathways
- Garden and patio lighting
- Commercial outdoor lighting
- Entrance and access areas
- Garage and side access illumination
Technical Specifications – Timeguard STLW1000 White Outdoor PIR
- SKU: STLW1000
- Operating Voltage: 230V AC
- Frequency: 50Hz
- Ingress Protection: IP55
- Detection Angle: 180°
- Detection Range: 8–12m
- Mounting Height: 2.5m recommended
- Switch Rating: 200W LED, 1000W Halogen, 200W Fluorescent
- Time Adjustment: 3 seconds to 18 minutes
- Lux Adjustment: 10–1000 lux
- Construction: Polycarbonate
- Colour: White
- Dimensions: 76mm x 76mm x 87mm
- Class: Class II
The Timeguard STLW1000 Outdoor PIR offers dependable motion-controlled lighting with adjustable settings and robust weather protection, making it an ideal solution for modern outdoor lighting installations.
