Description

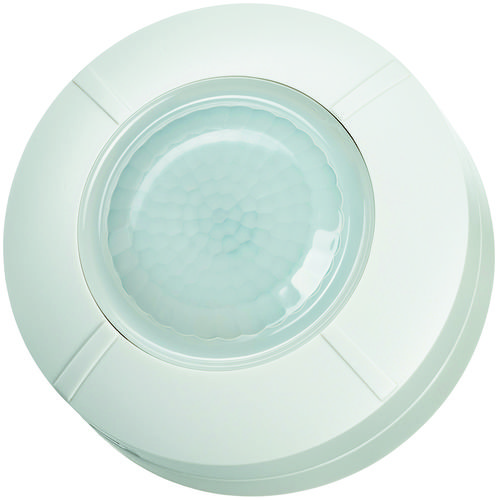

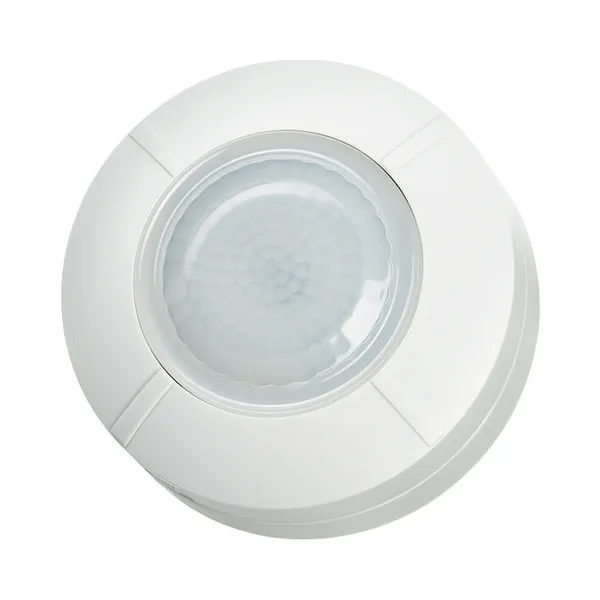

Timeguard PIR Presence Detector – Surface Mount
Timeguard take PIR Presence Detectors to the next level for optimum coverage and control.
- Slimline sensor head design.
- 360° area of detection with up to an 8m detection range for motion and 4m for presence detection at a 3m mounting height.
- IP44 weatherproof rating (internal use only).
- Manual override.
- Adjustable time setting: 3 seconds – 18 minutes.
- Adjustable 1–1000 LUX setting.
- Total PIR switching – 2000W halogen, 500W fluorescent, 250W LED lighting, 75W fan.
| Operating Voltage | 230V AC |
|---|---|
| 1 or 2 Channel | 1 Channel |
| Controls LED Lighting (max.) | 250W |
| 1st Channel Filament/Halogen Loading (W) | 2000 |
| 1st Channel Fluorescent/Low Energy Loading (W) | 500/150 CFL/Low Energy |
| Weatherproof Rating | IP44 |
| Detection (metres max.) | 8m |
| Angle of Detection | 360° |
| Light ON Time after last (seconds min.) | 3 |
| Detection (Adjustable) – (minutes max.) | 18 |
| Permanent ON Facility | Electronic |
| Adjustable light level control | • |
| EC Directives (conforms to latest directives) | • |
| Dimensions (mm – Height x Width x Depth) | 53x103x103 |
