Reliable Motion and Daylight-Controlled Lighting

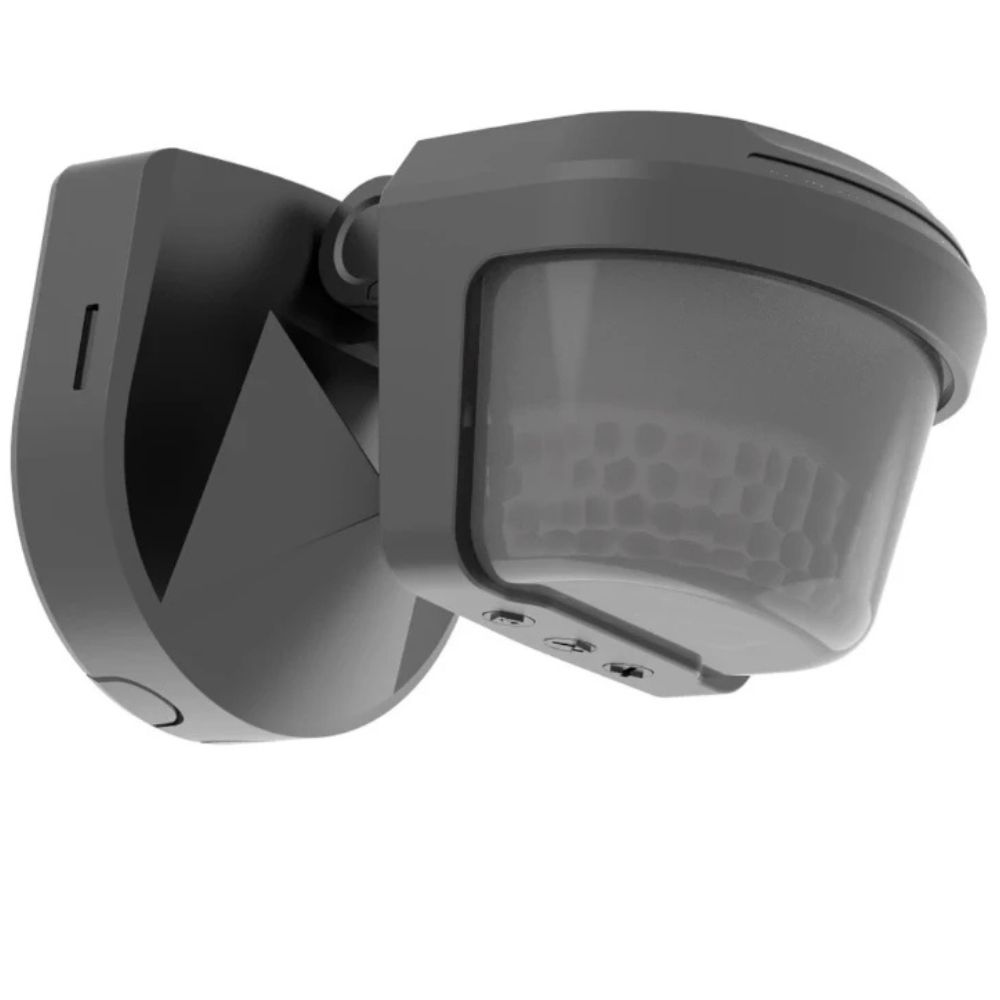

Timeguard SLB2301 PIR Photocell Sensor
The Timeguard SLB2301 PIR Photocell 2kW Standalone Sensor is a powerful motion detection solution designed for both new and existing lighting installations. Combining PIR motion sensing with integrated photocell daylight control, it ensures lighting operates only when movement is detected and ambient light levels are low.
Offering a 180° detection angle with a detection range of up to 12 metres at a mounting height of 2.5m, this Timeguard sensor provides wide and effective coverage. Adjustable time and light level settings allow the unit to be tailored precisely to site requirements.
With an IP65 weatherproof rating, the Timeguard SLB2301 is suitable for exposed outdoor environments. Push-fit terminals enable quick installation, while the robust housing ensures long-term reliability. The sensor is suitable for switching up to 2kW halogen or 400W LED lighting, making it ideal for security and automated lighting applications.
Key Features – Timeguard SLB2301 PIR Photocell Sensor
- PIR & photocell standalone sensor – black
- Suitable for new and existing installations
- 180° detection angle with up to 12m range (at 2.5m mounting height)
- Adjustable light level (photocell): 2–1000 LUX
- Adjustable time delay: 2 seconds to 15 minutes
- Pan and tilt feature to adjust detection zone
- Manual override function
- Adjustable sensitivity settings
- Switching capacity: 2kW halogen or 400W LED
- Push-fit terminals for easy installation
- IP65 weatherproof rating for outdoor use
- Supplied with 3-year guarantee
