Description

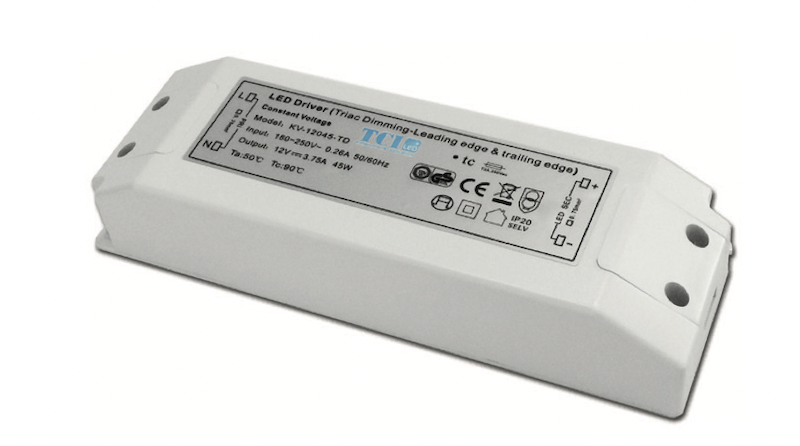

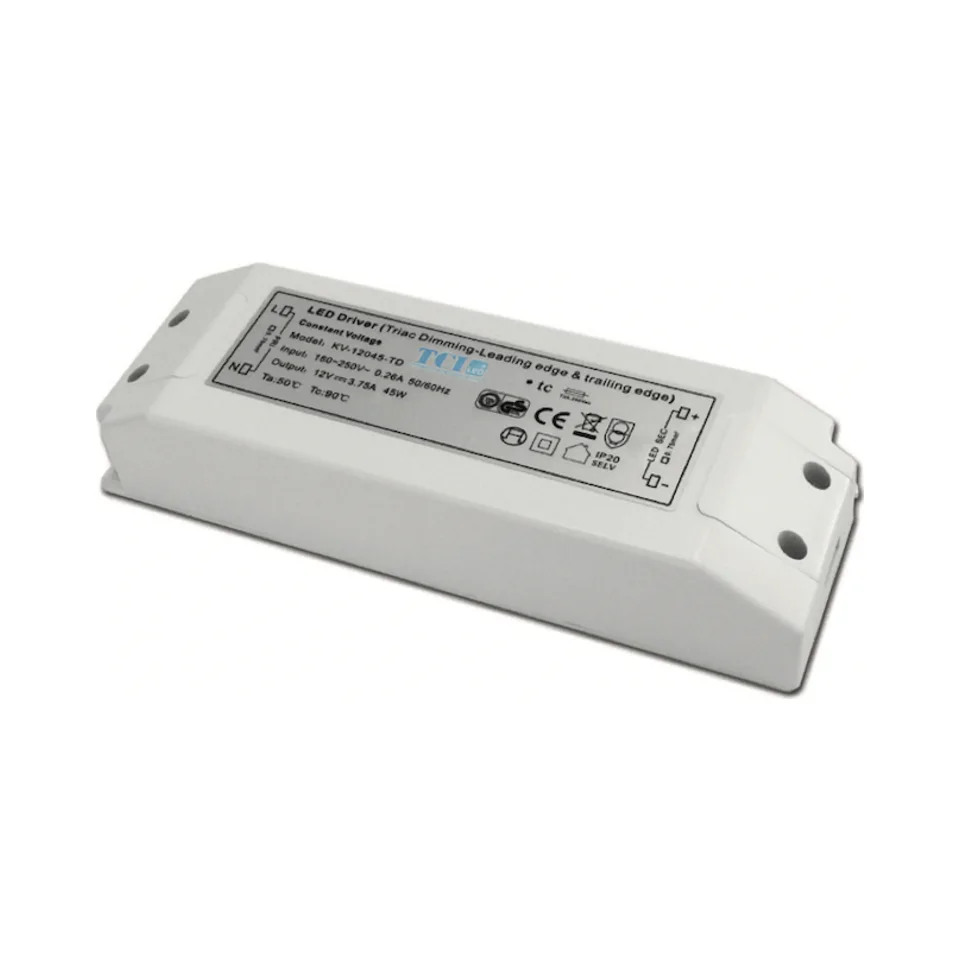

Dimmable 12V 45W Constant Voltage LED Driver
TCI 127912 – High-Quality Italian Craftsmanship
The TCI 127912 Dimmable 12V 45W Constant Voltage LED Driver is a reliable and efficient solution for powering 12V LED modules. Crafted with over 30 years of Italian expertise, this driver delivers smooth dimming capabilities, advanced safety protections, and consistent output for various indoor applications. Its compact design, combined with robust features, makes it an excellent choice for both residential and commercial lighting systems.
Key Features
- Smooth Dimming: Ensures precise control for ambiance customization.
- Constant Voltage Output: Provides 12V DC for stable and reliable performance.
- Indoor Use: IP20-rated design suitable for dry environments.
- Safety Compliance: Class II protection against electric shocks for direct and indirect contact.
- Advanced Protections: Safeguards against overheating, short circuits, overloads, and mains voltage spikes.
- Thermal Protection: C.5.a safeguard ensures operational reliability under challenging conditions.
Technical Specifications
- Input Voltage: 220-240V AC (198-264V operating range)
- Output Voltage: 12V DC
- Output Power: Up to 45W
- Efficiency: Greater than 88%
- Ripple-Free Output: Ensures consistent, flicker-free illumination.
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature:
- Ambient (ta): -25°C to +40°C
- Maximum case temperature (tc): 80°C
- Terminal Blocks:
- Wire cross-section: 0.75 mm² to 4 mm² (AWG18 – AWG11)
- Single terminal block on primary and secondary sides.
- Dimensions: Compact for easy installation in limited spaces.
Additional Features
- User-Friendly Design:
- Input and output terminals are positioned on opposite sides for straightforward wiring.
- Secure clamping ensures stable connections on both primary and secondary circuits.
- Proactive Italian Engineering: Designed by TCI, a leader in LED components with over three decades of expertise in quality and reliability.
- International Standards Compliance:
- EN 61347-1
- EN 61347-2-13
- EN 55015
- EN 61000-3-2
- EN 61547
Applications
The TCI 127912 LED Driver is ideal for:
- Residential Lighting: Perfect for powering LED strips and accent lighting in living rooms, kitchens, and bedrooms.
- Commercial Spaces: Suitable for retail displays, offices, and restaurants.
- Professional Installations: Robust enough for demanding LED setups requiring a constant 12V output.
Benefits
- Smooth Dimming: Customise lighting levels with precise dimming capabilities.
- Stable Voltage: Consistent 12V DC output ensures optimal LED performance.
- Compact Design: Easily integrates into indoor installations with space constraints.
- Enhanced Safety: Comprehensive protections for long-lasting, reliable operation.
- Energy Efficiency: High efficiency reduces energy consumption while maintaining performance.
FAQs
Q: Can this driver be used outdoors?
A: No, the IP20 rating is designed for indoor applications only.
Q: Is this driver compatible with all 12V LED modules?
A: It is suitable for most 12V LED modules. Compatibility should be confirmed with the specific module’s requirements.
Q: What happens if the driver overheats?
A: Thermal protection (C.5.a) ensures the driver shuts down safely in case of overheating.
Upgrade Your LED System with the TCI 127912 Driver
The TCI 127912 LED Driver is a testament to Italian engineering excellence, offering precision dimming, stable voltage output, and robust protections. Ideal for both residential and professional setups, this driver ensures consistent performance and long-term reliability. Explore its features today and transform your lighting projects!
