Description
Fire Rated Dimmable LED Downlight
Shield 109804
The ShieldECO CCT Fire Rated LED Downlight is a compact recessed fitting designed to meet the demands of modern residential and light commercial lighting installations. Supplied with an integrated 5W LED module using SMD 2835 CCT technology, it delivers a light output of 550 lumens with an efficiency of 110 lumens per watt. The CCT selector allows installers to choose between 3000K, 4000K or 6000K from a single fitting, providing flexibility to suit different room types and lighting requirements. With a slim projection of just 3mm and a discreet matt white finish, the downlight blends seamlessly into ceilings.
Designed for use in moisture-prone areas, the ShieldECO CCT Fire Rated LED Downlight is IP65 rated and suitable for bathroom zone 2 as standard. It can also be installed in bathroom zones 1 and 2 when used in conjunction with a 30mA RCD, making it suitable for a wide range of domestic bathroom applications. Fire rated to 30, 60 and 90 minutes, the fitting helps maintain ceiling fire integrity. Installation is straightforward thanks to the integrated tool-less push-fit connection box, while the compact dimensions and a 57mm cut-out diameter make it ideal for shallow ceiling voids.
Bulk Savings Available
This ShieldECO CCT Fire Rated LED Downlight is available to purchase as a single unit. For larger installations, you can benefit from better value per fitting by purchasing the multi-pack-option (Pack of 10). Buying in packs helps reduce overall project cost while ensuring consistent lighting across multiple rooms.
Key Features – ShieldECO CCT Fire Rated LED Downlight
- Fire rated LED downlight (30, 60 & 90 minutes)
- IP65 rated – suitable for bathroom use
- Suitable for bathroom zones 1 & 2 when used with a 30mA RCD
- Integrated 5W LED module (SMD 2835 CCT)

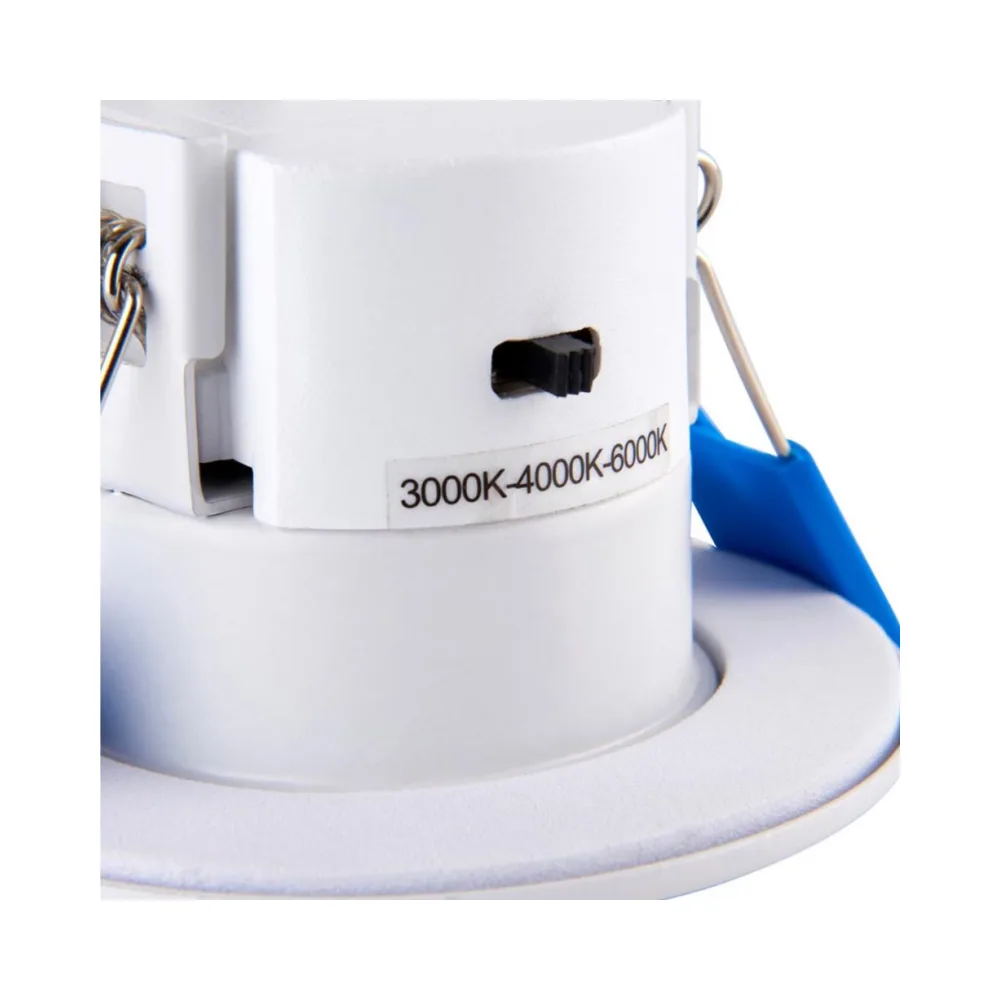

- CCT selectable: 3000K / 4000K / 6000K
- Fully dimmable
- Slim profile with 3mm projection
- Tool-less push-fit connection box
- Matt white finish
Technical Specifications – ShieldECO CCT Fire Rated LED Downlight
- Light Source: Integrated LED module
- LED Type: SMD 2835 CCT
- Wattage: 5W
- Luminous Output: 550 lumens
- Efficacy: 110 lm/W
- Colour Temperature: 3000K / 4000K / 6000K
- Dimmable: Yes
- IP Rating: IP65
- Bathroom Zones: Zone 2 standard; Zone 1 & 2 with 30mA RCD
- Fire Rating: 30 / 60 / 90 minutes
- Projection: 3 mm
- Height: 49 mm
- Diameter: 82 mm
- Cut-Out Diameter: 57 mm
- Electrical Class: Class II
