Saxby 94431 IkonPRO CCT 35mm Single Head
0.75W IP67 Additional Head for the IkonPRO CCT 35mm System

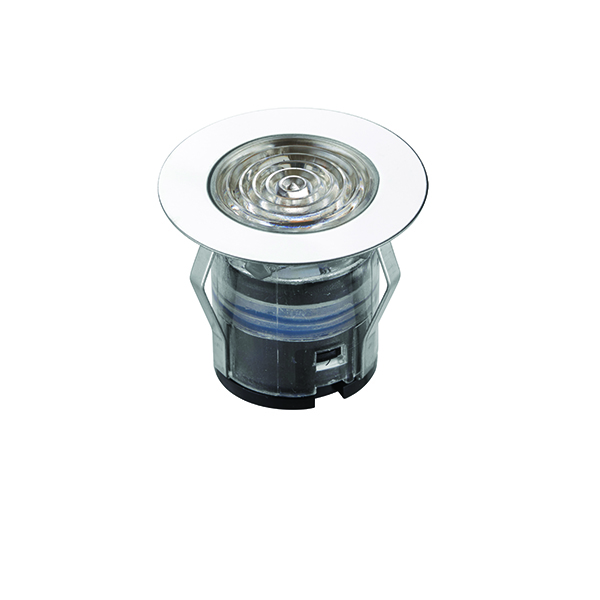

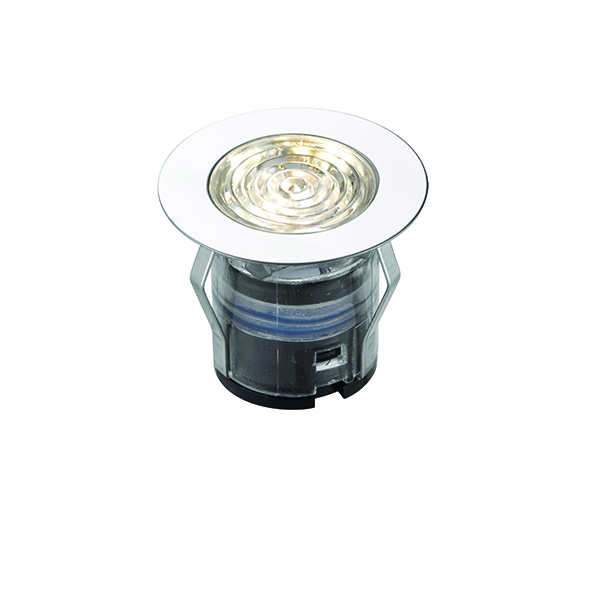

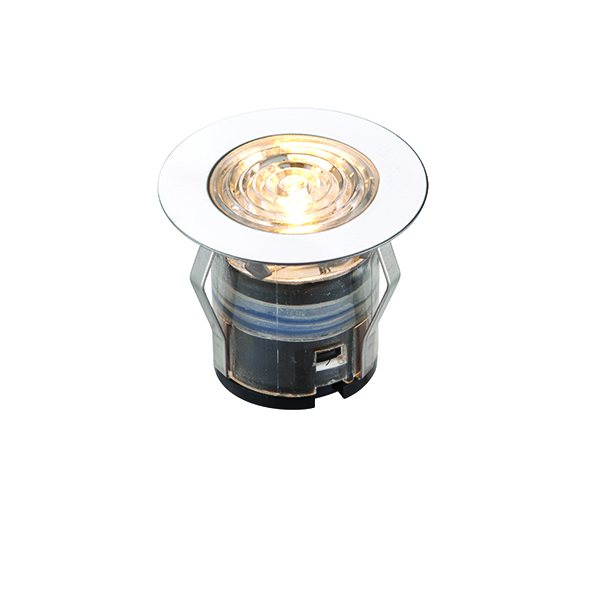

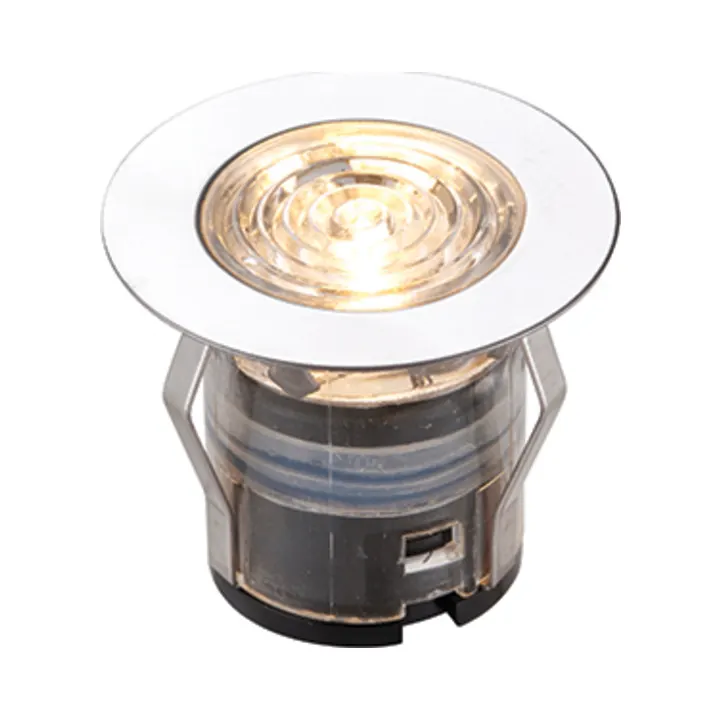

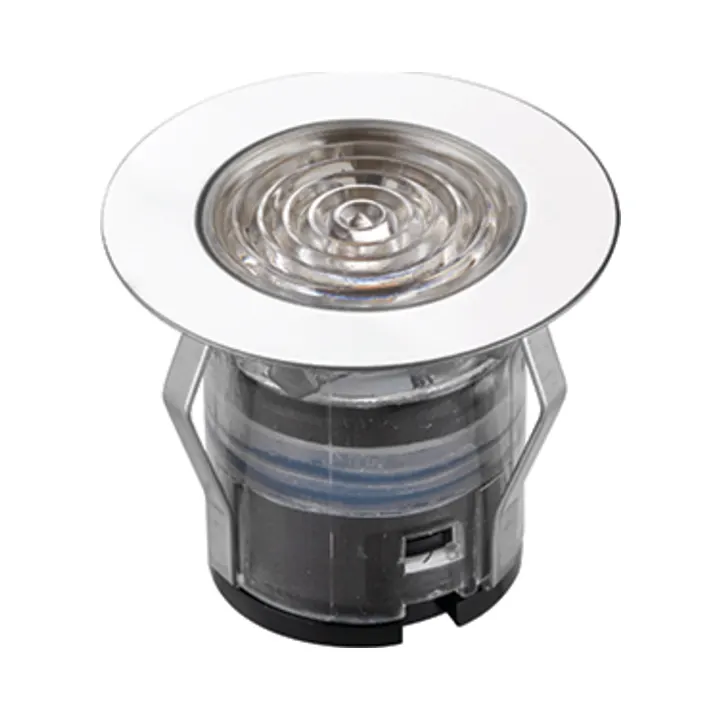

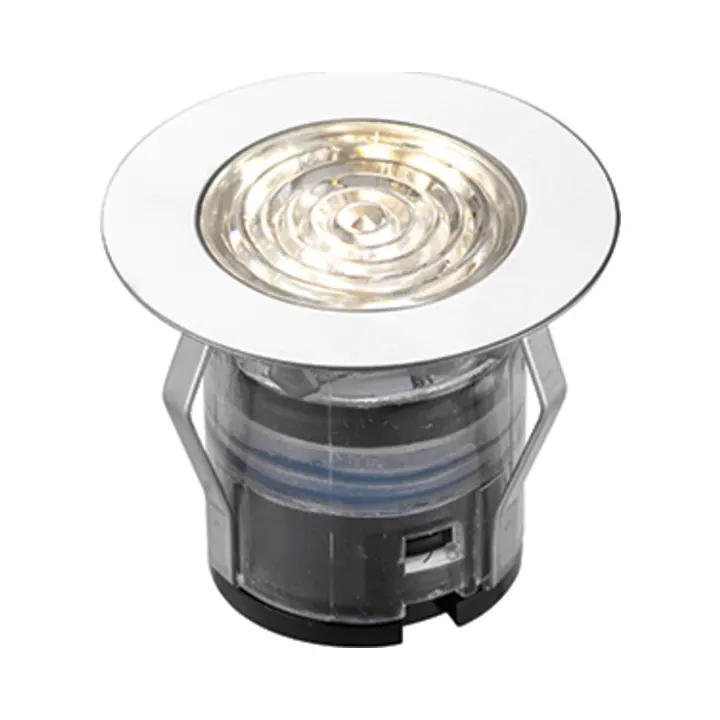

The Saxby 94431 IkonPRO CCT 35mm Single Head is an additional recessed LED head designed for use with the Saxby 73348 IkonPRO CCT 35mm Kit. It allows an existing compatible installation to be extended with additional lighting points without purchasing another complete kit.
Rated at 0.75W and operating at 12V DC, the head provides selectable 3000K warm white or 4000K neutral white illumination. Its polished 304 stainless steel and clear polycarbonate construction provides a clean contemporary appearance, while the IP67 rating makes it suitable for outdoor decking, pathways and other suitable recessed applications.
Designed for the Saxby 73348 IkonPRO CCT Kit

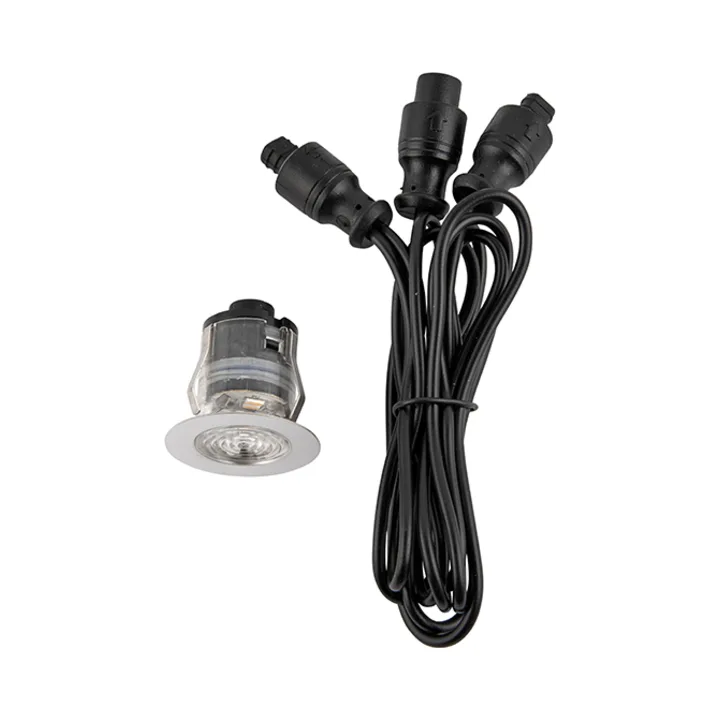

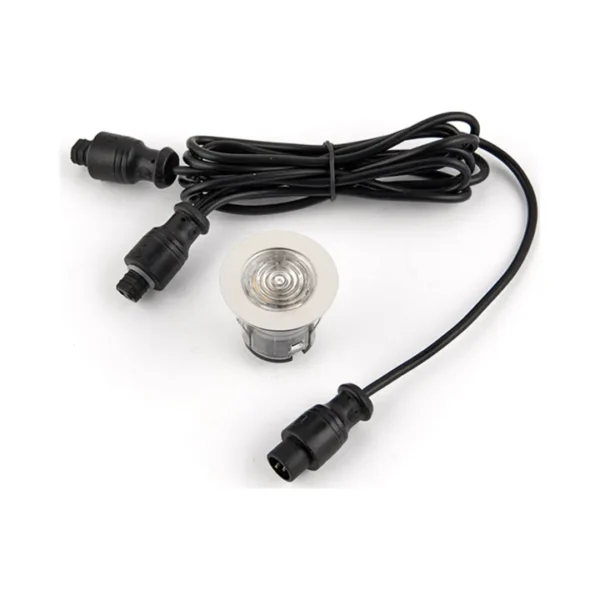

The Saxby 94431 connects in-line with the 73348 IkonPRO CCT 35mm system. Each add-on head is supplied with 1.5m of DC cable, arranged as approximately 0.75m on either side of the light head for connection into the system.
Up to 10 additional heads can be added to a compatible kit, providing a maximum of 20 heads per kit when installed in accordance with Saxby’s instructions.
Key Features
- Additional IkonPRO CCT 35mm LED head
- Designed for use with Saxby 73348 IkonPRO CCT 35mm Kit
- 0.75W LED power
- Selectable 3000K / 4000K colour temperature
- IP67 rated
- 120° beam angle
- Non-dimmable
- CRI 80
- 25,000-hour rated lifetime
- 12V DC operation
- Polished stainless steel and clear polycarbonate finish
- Constructed from 304 stainless steel and polycarbonate
- Class 3
- 1kV surge protection
- Maximum 10 add-on heads
- Maximum 20 heads per compatible kit
Installation Specifications
- Head diameter: 35mm
- Cut-out diameter: 25mm
- Minimum cavity depth: 80mm
- Total cable length: 1.5m
- Cable arrangement: approximately 0.75m each side of the head
- Cable type: DC cable
- Operating temperature: -20°C to 40°C
- Product weight: 0.09kg
Expand Your IkonPRO CCT Lighting System
The Saxby 94431 IkonPRO CCT 35mm Single Head provides a straightforward way to extend a Saxby 73348 IkonPRO CCT installation across larger decking, pathway or decorative lighting areas. Its compact 35mm stainless steel design, IP67 protection and selectable 3000K/4000K output make it a practical matching add-on for the existing system.
