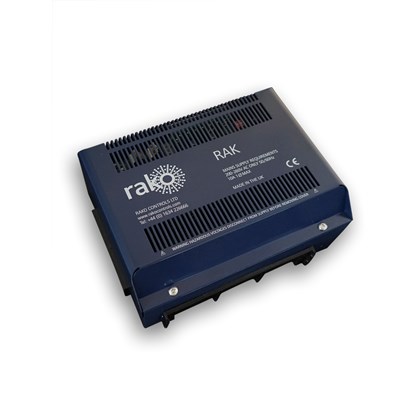

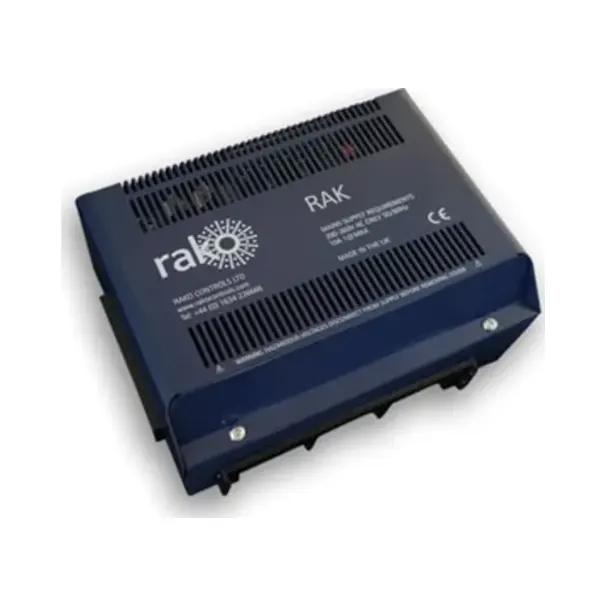

Rako RAK8-MB Dimming Rack
An eight slot motherboard which forms the base of a RAK8 dimmer array. Designed to be wall mounted in an electrical cupboard as a single 8 channel unit or joined together to form multi-way stacks.
An eight channel rack with slots for pluggable modules allowing for greater flexibility during both specification and installation. Individual plug in modules are available for trailing edge, leading edge, 0-10V, DSI, DALI and switching loads as well as curtain, blind and screen control – see individual datasheets for information.
When used with the wireless receiver (RX-Link) up to 16 channels can be used per stack and when used with a wired system (RAKLink) up to 32 channels per stack are available. It is also possible to mix and match RAK4s and RAK8s on the same multi-way stack – the same maximum number of channels per stack applies.
Programmed using RASOFT Pro software, the unit can be used seamlessly with other Rako modules such as RML and RMT in-line dimmers and controlled from RCM & WCM keypads, remotes, tablets and smartphone apps.
