Description
DIN Rail 8 Channel Switching Module
RAKO DIN-8S 8 channel switching module is designed for DIN rail-mounted enclosures and provides eight relay switching outputs for RAKO lighting control and mains switching installations.
The DIN-8S is suitable for non-dimmable loads or other outputs that require mains switching as defined by IEC/EN 60669-2-1. Each output can be configured in Rasoft Pro to be controlled individually or grouped depending on the application.

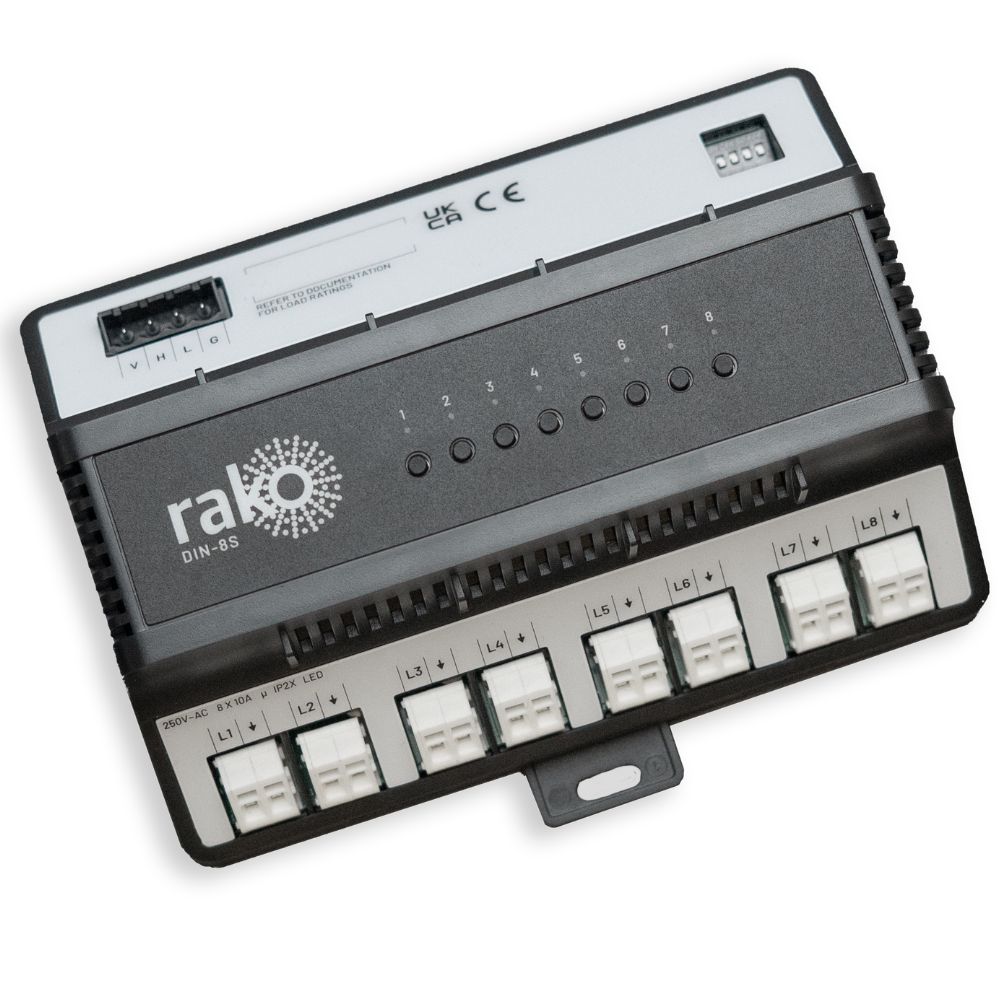

RAKO DIN-8S 8 Channel Switching Module
The DIN-8S is configured using Rasoft Pro. Once configured, it can be used in a RAKO Wired system and controlled via RAKO wired keypads such as the WK-EOS or WCM.
The DIN-8S can also be controlled using RAKO wireless keypads such as the RK-MOD and RNC when used in conjunction with a WK-HUB or WRB100.
Key Features – RAKO DIN-8S 8 Channel Switching Module
- 8-channel relay switching module
- Designed for DIN rail-mounted enclosures
- Width equal to 9 DIN modules
- Suitable for non-dimmable mains switching loads
- Outputs can be individually controlled or grouped in Rasoft Pro
- 230V AC input supply
- Total rated current of 10A
- DIN Bus communication with DPU usage of 8
- Compatible with RAKO Wired systems
- Can be used with selected RAKO wired and wireless keypads
- UKCA, CE and RoHS certified
Technical Specifications – RAKO DIN-8S 8 Channel Switching Module
- Brand: RAKO
- SKU: DIN-8S
- Product type: 8-channel switching module
- Mounting: Top Hat DIN rail to IEC/EN 60715
- Dimensions: W157 x H110 x D59mm
- DIN width: 9 DIN modules
- Weight: 265g
- Vertical clearance: 150mm
- Input supply voltage: 230V AC +10% / -15%
- Total rated current: 10A
- Typical loads: Non-dimmable loads or other outputs requiring mains switching as defined by IEC/EN 60669-2-1
- Maximum mains LED load: 300W
- Maximum incandescent load: 600W
- Maximum transformer load: 300W, cos φ ≥ 0.6
- Maximum motor load: 1A, 1/3 HP fan
- DIN Bus cable size: 0.5–1.5mm²
- Input/load cable size: 1.0–2.5mm²
- DIN Bus terminals: 4-way screw terminal
- Output terminals: Push terminal
- Communication: DIN Bus, DPU usage 8
- Operating temperature: +2°C to +40°C
- Humidity: +5% to 90% non-condensing
- Certification: RoHS, UKCA, CE
- Standard: EN 60669-2-5
Applications – RAKO DIN-8S 8 Channel Switching Module
The RAKO DIN-8S 8 channel switching module is ideal for centrally mounted lighting control and automation installations where multiple non-dimmable loads need to be switched from a DIN rail enclosure. It can be used for professional residential and commercial RAKO control projects.
Important Compatibility Note
The DIN-8S is a switching module, not a dimmer. Load type, switching requirements and total current should always be checked before installation. The DIN-8S should be installed and configured by a competent installer as part of a suitable RAKO control system.
