Description
DIN Rail Curtain Blind Control Module
RAKO DIN-4C 4 channel curtain blind controller module is a DIN rail-mounted relay switching module designed for controlling motorised curtains, screens and blinds.
Each output on the DIN-4C can be configured in Rasoft Pro to be controlled individually or grouped depending on the application. It provides open, stop and close functionality for suitable motorised curtain and blind installations.

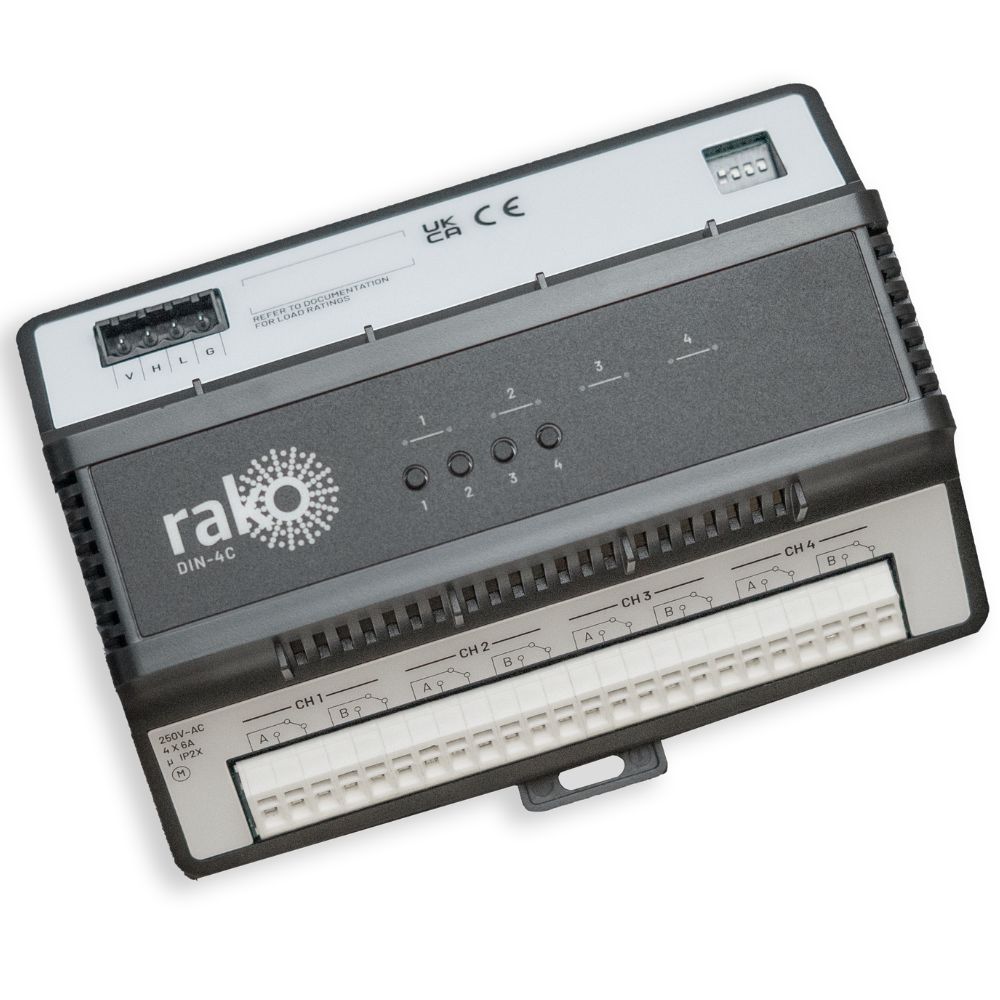

RAKO DIN-4C 4 Channel Curtain Blind Controller Module
Once configured in Rasoft Pro, the DIN-4C is controllable by RAKO wired keypads such as the WK-MOD and WCM.
The DIN-4C can also be controlled using RAKO wireless keypads such as the RK-MOD and RNC when used in conjunction with a WK-HUB or WRB100.
Key Features – RAKO DIN-4C 4 Channel Curtain and Blind Controller Module
- 4-channel relay switching module
- Designed for curtain and blind motor control
- Suitable for motorised curtains, screens and blinds
- Provides open, stop and close functionality
- Outputs can be individually controlled or grouped in Rasoft Pro
- Designed for DIN rail-mounted enclosures
- Width equal to 9 DIN modules
- Maximum load of 1.5A per channel
- DIN Bus communication with DPU usage of 8
- Over temperature protection
- Compatible with selected RAKO wired and wireless keypads
- UKCA, CE and RoHS certified
Technical Specifications – RAKO DIN-4C 4 Channel Curtain Blind Controller Module
- Brand: RAKO
- SKU: DIN-4C
- Product type: 4-channel blind controller module
- Mounting: Top Hat DIN rail to IEC/EN 60715
- Dimensions: W157 x H110 x D59mm
- DIN width: 9 DIN modules
- Weight: 275g
- Vertical clearance: 150mm
- DIN Bus cable size: 0.5–1.5mm²
- Input/load cable size: 1.0–2.5mm²
- DIN Bus terminals: 4-way screw terminal
- Relay output terminals: Push terminal
- Typical loads: Motorised curtains, screens and blinds providing open, stop and close functionality as defined by IEC/EN 60669-2-1
- Maximum load: 1.5A per channel
- Protection: Over temperature protection
- Communication: DIN Bus, DPU usage 8
- Operating temperature: +2°C to +40°C
- Humidity: +5% to 90% non-condensing
- Certification: RoHS, UKCA, CE
- Standard: EN 60669-2-5
Applications – RAKO DIN-4C 4 Channel Curtain Blind Controller Module
The RAKO DIN-4C 4 channel curtain and blind controller module is ideal for centrally mounted smart control installations where multiple curtain, screen or blind motors need to be controlled from a DIN rail enclosure.
Important Compatibility Note
The DIN-4C is designed for motorised curtain, screen and blind control. Motor type, load rating, wiring method and control requirements should always be checked before installation. The DIN-4C should be installed and configured by a competent installer as part of a suitable RAKO control system.
