Description

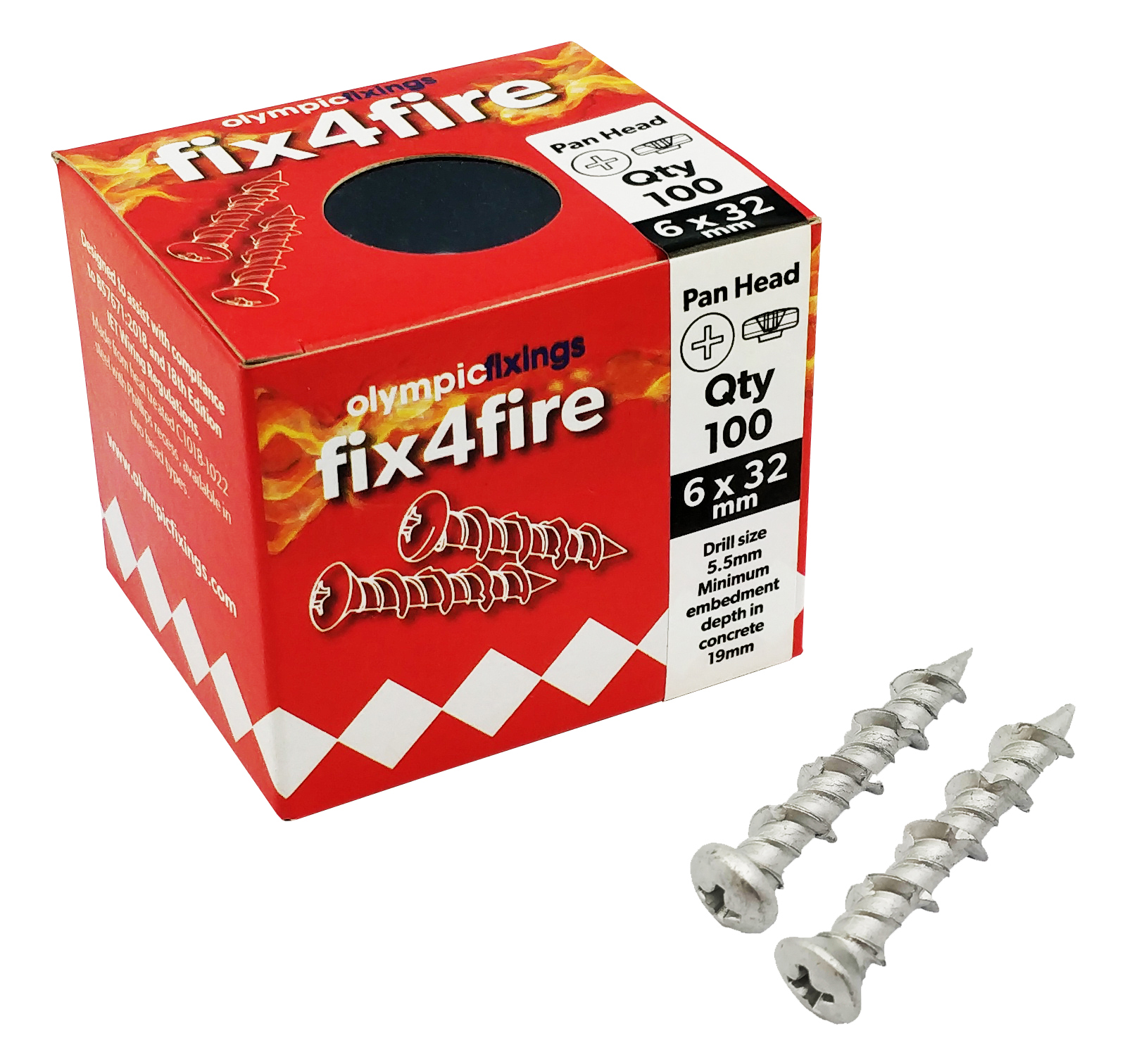

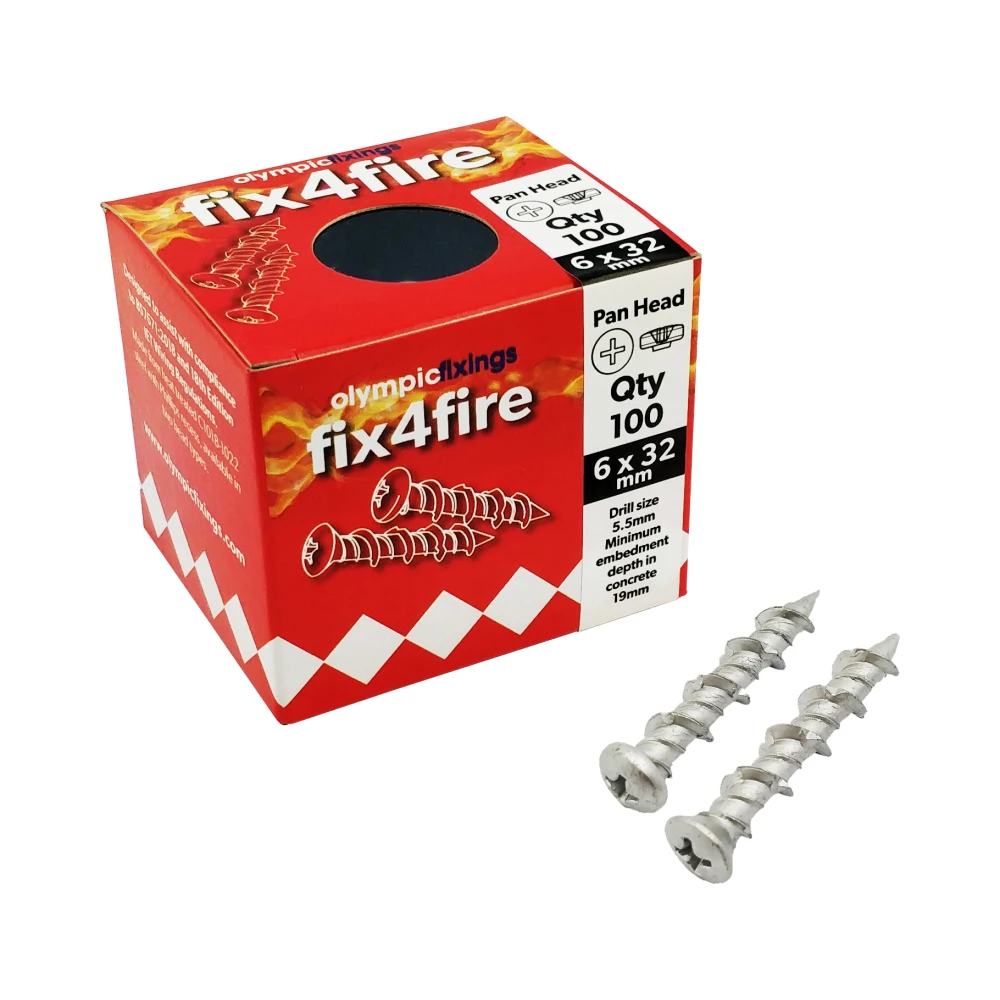

Olympic Fixings Fix4Fire Multi-Purpose Fire Resistant Screws 6×32 mm Pan Head – 100 Pieces
- Made from heat treated C1018 – 1022 steel, 9.8 grade, with a Phillips recess
- Melting point of the material is circa 1500°C
- Tested to 975°C for a full 2 hours and retains its physical integrity
- Silver Ruspert® coated to 1000 hour salt spray specification for high corrosion resistance
- Resistant to fire, corrosion, solvents and chemicals
Applications
- All steel screw fixing for direct fastening into many common building substrates
- Suitable for light to medium duty anchoring
- Will fix into wood and plasterboard without pre-drilling
- Can be directly screwed into sandstone, concrete, brick and stone with a pre-drilled pilot hole of 5.5mm. In softer substrates, 5mm may be more appropriate
- Designed to assist with compliance to BS 7671 amendment 3 and the Wiring Regulations 18th Edition
- Ideal for fixing fire resistant clips, consumer units, back boxes, conduit, cable trunking, smoke alarms etc.
- Remove the need to use plastic wall plugs – which typically melt at circa 160°C
| Size | 6×32 mm |
|---|---|
| Head Type | Pan |
| Drill Diameter – Hard Substrates | 5.5 mm |
| Drill Diameter – Softer Substrates | 5 mm |
| Minimum Screw Embedment | 19 mm |
