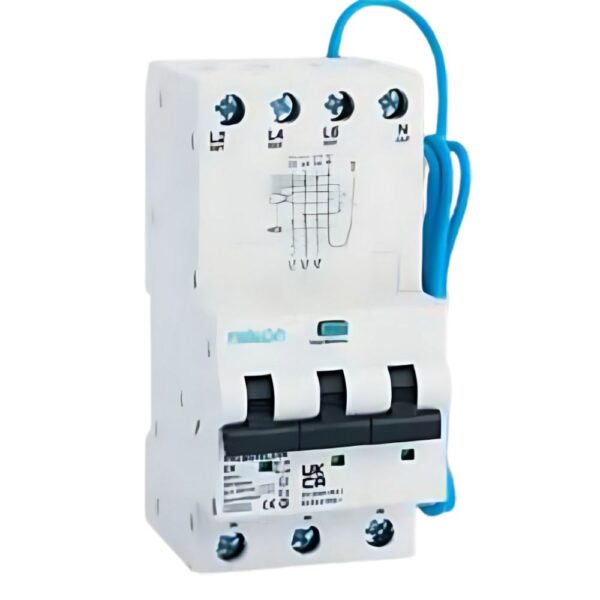

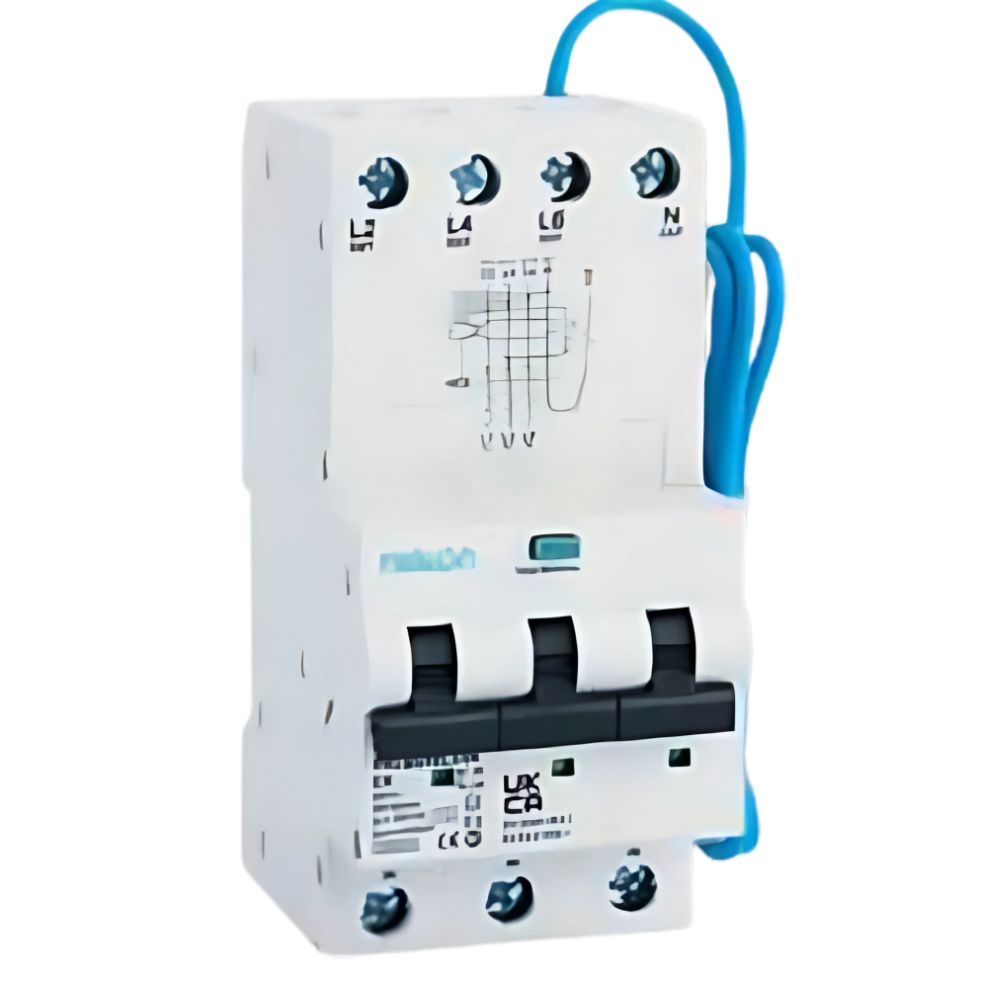

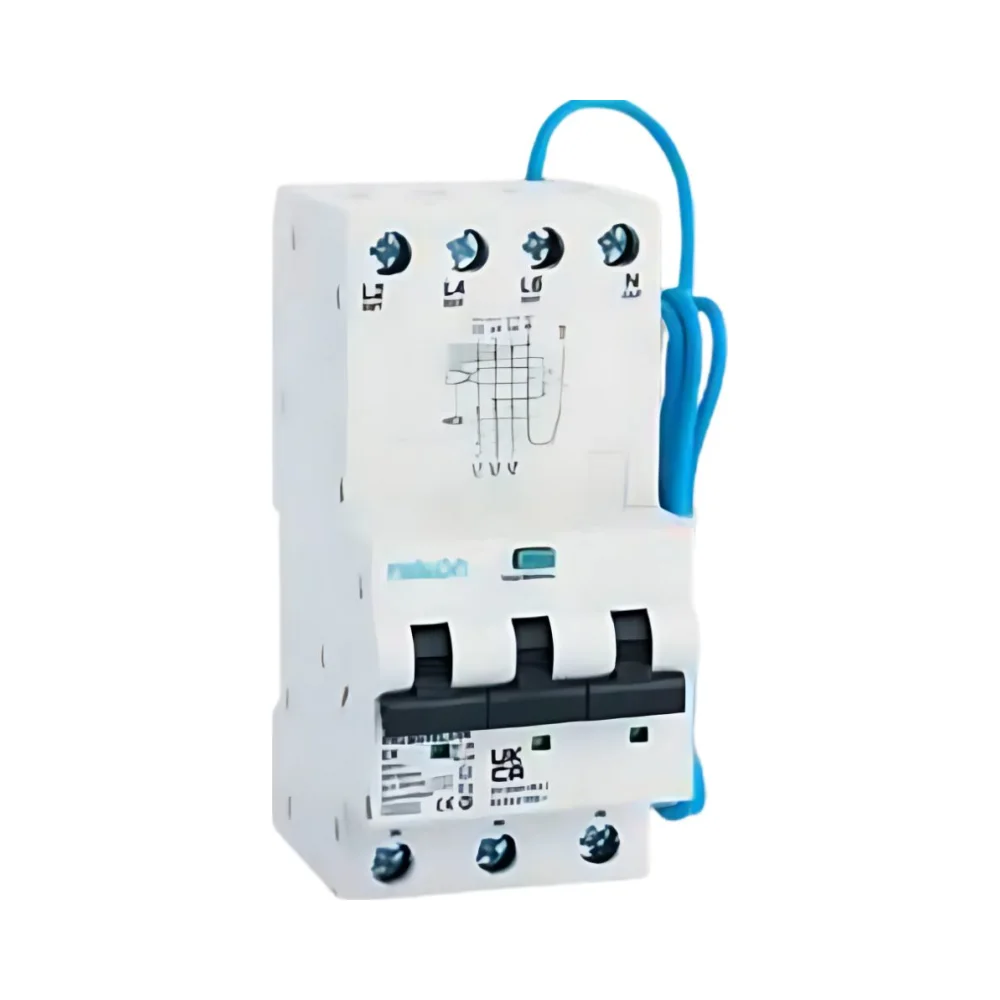

⚡ 3 Phase RCBO for Protego 125 Three Phase Distribution Boards – Niglon B20A 3 Phase RCBO
Safe & Compact 10kA RCBO with Type A RCD Functionality
this RCBO – model PRCBO10B3-20 – allows electricians to provide three-phase RCD protection directly within the Niglon Protego 125 TP&N Distribution Board. Previously, a separate RCD enclosure was needed. Not anymore!
The this RCBO delivers combined overload, short-circuit, and residual current protection in one compact device. Designed to save space and simplify compliance with BS 7671 regulations.
Included
- 1 × PRCBO10B3-20 3 Phase RCBO
Key Features of the this RCBO
- Type A RCBO – 3 Pole + Neutral
- Current Rating: 20A
- Trip Curve: Curve B
- 10kA breaking capacity
- 30mA residual current sensitivity
- Fits directly into Niglon Niglon Protego 125 TP&N Distribution Boards
- Complies with BS EN 61009-1
✅ Why Choose This RCBO?
- Eliminates need for separate RCD enclosures
- Simplifies wiring in 3-phase circuits
- Compact and installer-friendly
- Trusted Niglon quality and performance
Summary
The this RCBO (SKU: PRCBO10B3-20) makes RCD protection for three-phase systems easier and neater than ever. It’s a 10kA Type A RCBO that installs directly into the Protego 125 board—no extra enclosure needed.
