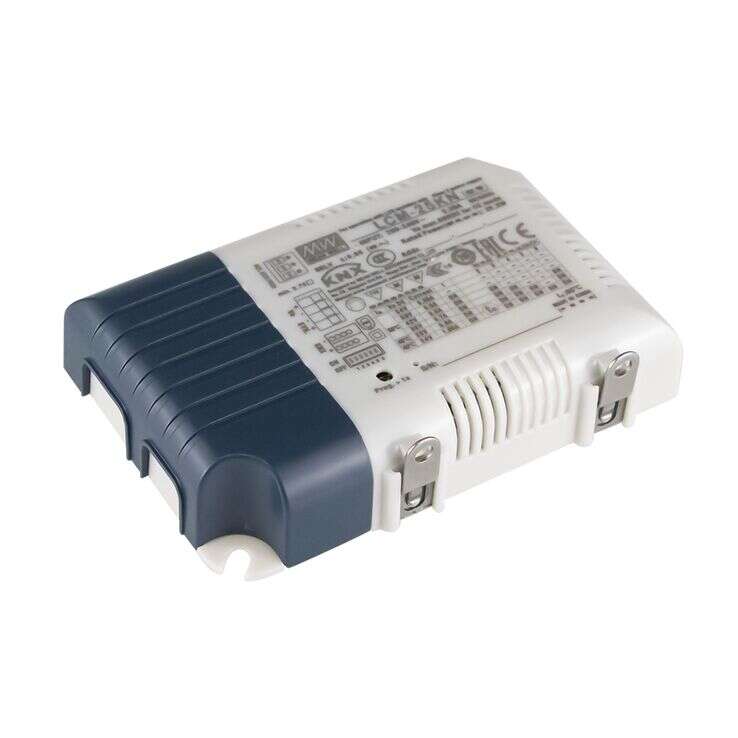

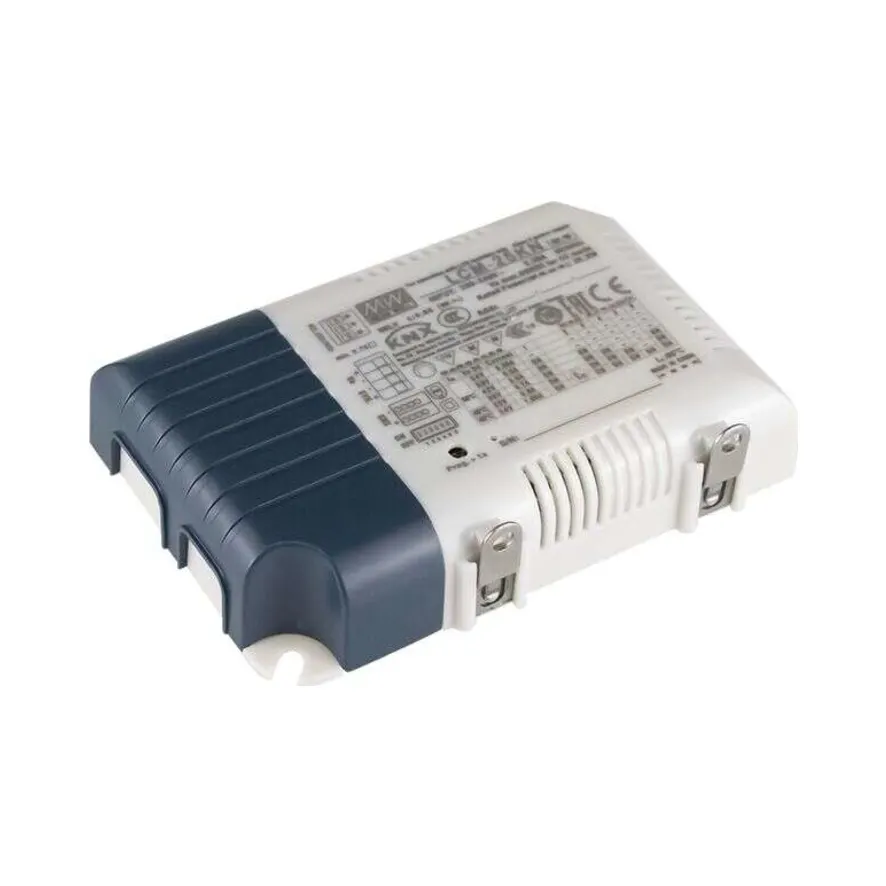

Mean Well 25W Multiple-Stage Constant Current Mode KNX LED Driver

SKU: LCM-25KN

Dispatch Usually 7-14 Days

Built-in push dimming function

Output current level selectable by DIP Switch

KNX / EIB protocol

Suitable for LED lighting applications

Power supplies synchronization function up to 10 units

Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

£59.99 + VAT

(incl. VAT £71.99)

Category: Tag:

Description

Mean Well 25W Multiple-Stage Constant Current Mode KNX LED Driver

  • Built-in push dimming function
  • Constant Current mode output with multiple levels selectable by dip switch
  • Built-in active PFC function
  • KNX/EIB protocol
  • Flicker free design
  • Support emergency lighting
  • Integrated constant light output
  • Integrated KNX push button interface
  • Synchronization up to 10 units
  • Functions:
    • Manual dim
    • Operation hours
    • Power consumption feedback
    • Log/linear curve selection

Protections:

  • Short circuit
  • Over voltage
  • Over temperature

Other features:

  • 180~295VAC input only
  • Cooling by free air convection
  • Temperature compensation function by external NTC
  • No load power consumption <1.2W@AC always on
  • Fully isolated plastic case
  • Class power unit, no FG
  • Built-in 12V/50mA auxiliary output
  • Suitable for LED lighting applications
  • 3 years warranty

Additional information

Brand

Mean Well

Wattage

25W

Supply

350mA, 600mA, 900mA, 500mA, 700mA, 1050mA

Dimming Control

KNX, Push

Device Type

Drivers
