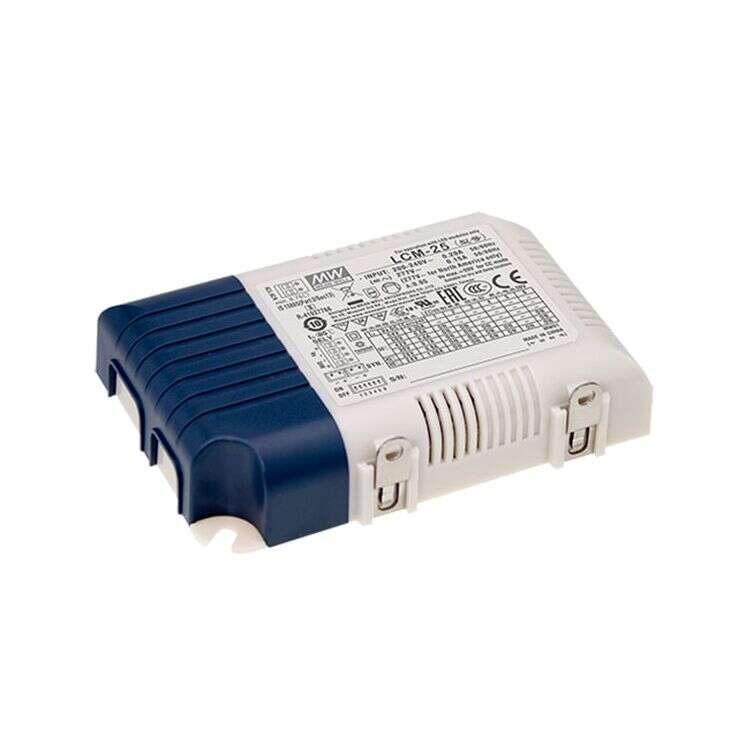

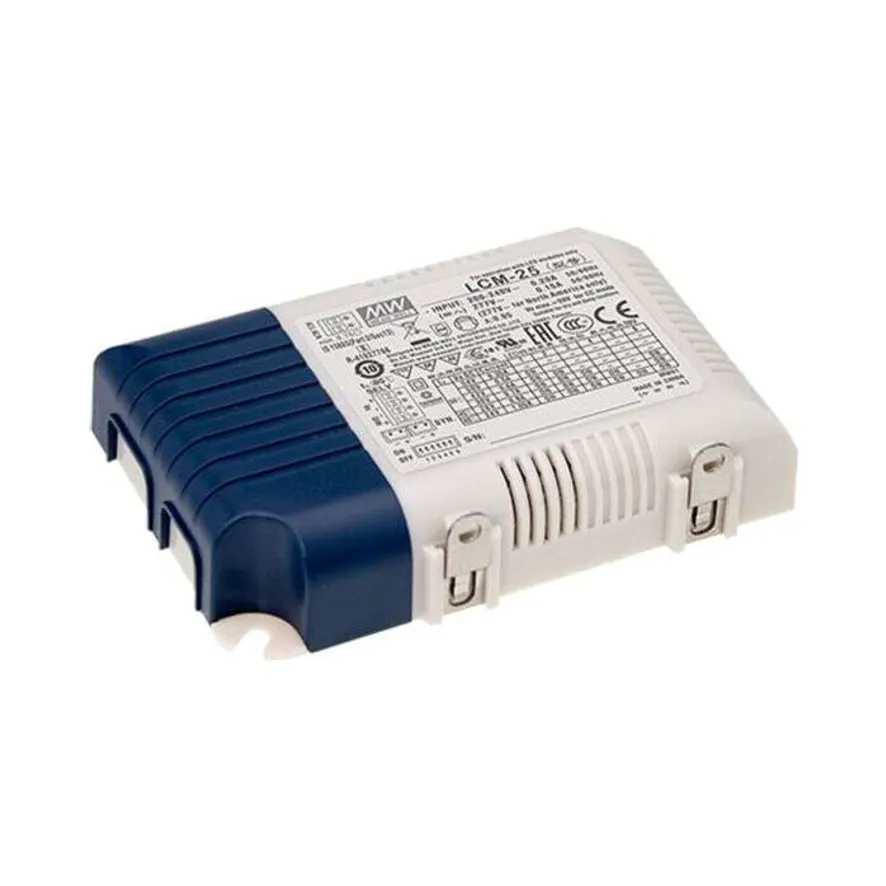

Mean Well 25W 0-10V Dimmable Constant Current LED Driver

SKU: LCM-25

Dispatch 3-5 Days

Built-in and push dimming function

Output current level selectable by DIP Switch

0-10V Dimmable

Suitable for LED lighting applications

Power supplies synchronization function up to 10 units

Dispatch Info
This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

£34.90 + VAT

(incl. VAT £41.88)

Description

Mean Well 25W 0-10V Dimmable Constant Current LED Driver

  • Built-in push dimming function
  • Constant Current mode output with multiple levels selectable by dip switch
  • Built-in active PFC function
  • Plastic housing with class II design
  • Standby power consumption <0.5W
  • Functions:
    • 3 in 1 dimming (dim-to-off)
    • Synchronization up to 10 units

Protections:

  • Short circuit
  • Over voltage
  • Over temperature

Other features:

  • 180~295VAC input only
  • Cooling by free air convection
  • Temperature compensation function by external NTC
  • No load power consumption <1.2W@AC always on
  • Fully isolated plastic case
  • Class power unit, no FG
  • Built-in 12V/50mA auxiliary output
  • Suitable for LED lighting applications
  • 3 years warranty

Additional information

Brand

Mean Well

Wattage

25W

Supply

350mA, 600mA, 900mA, 500mA, 700mA, 1050mA

Dimming Control

Push, 0/1-10

Device Type

Drivers
