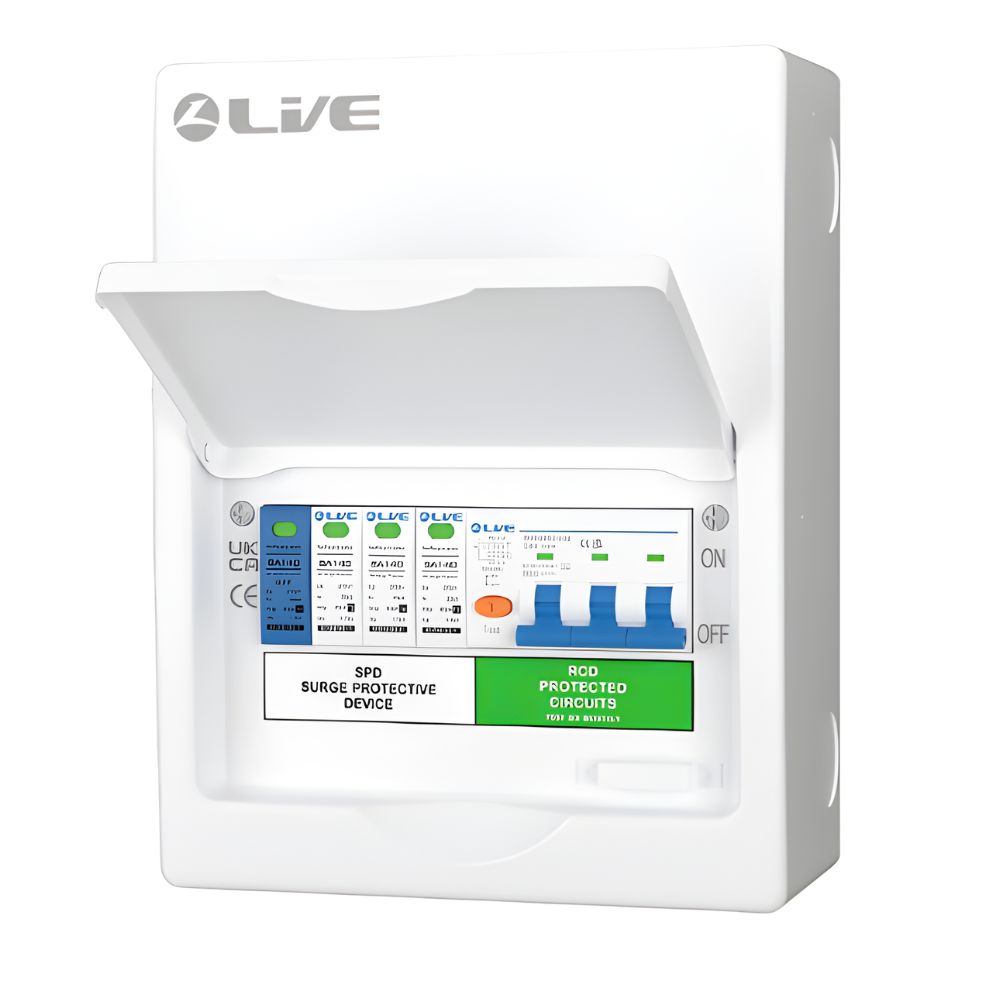

LSMC840SP-P 3 Phase EV Charger Consumer Unit C Curve
8 Way Metal Consumer Unit with C40A Type A RCBO and SPD
The LSMC840SP-P 3 Phase EV Charger Consumer Unit C Curve is designed specifically for electric vehicle charging installations, providing reliable circuit protection and efficient power distribution in commercial and residential environments.
IMPORTANT STOCK NOTICE: This C40A version is being replaced by a new version incorporating a B40A Type A RCBO. If this product is showing as out of stock on our website, the C40A version has sold out. The new B40A version is expected to be available in approximately 2 weeks.
Our C32A version is currently available to order. View the available C32A 3 Phase EV Charger Consumer Unit here.
Looking for the replacement 40A model? View the new B40A version here.
This 8 way metal consumer unit is supplied complete with neutral cable, busbar, neutral and earth terminals, DIN rail and cable gland, helping provide a straightforward installation solution for three phase EV charging applications.
The current version is fitted with a C40A Type A RCBO together with a 20/40kA Type 2 surge protective device. The RCBO provides residual current and overcurrent protection, while the SPD helps protect connected equipment against transient overvoltages.
The C curve RCBO characteristics make this version suitable for installations where C curve circuit protection is specified.
Manufactured with a durable metal enclosure and rated to IP40, the LSMC840SP-P provides a compact and practical solution for indoor EV charging installations.
Key Features – LSMC840SP-P 3 Phase EV Charger Consumer Unit C Curve
- 8 way 3 phase EV charger consumer unit
- C40A Type A RCBO included
- C curve circuit protection
- 20/40kA Type 2 surge protective device (SPD)
- Supplied with busbar and neutral cable
- Earth and neutral terminals included
- DIN rail and cable gland included
- 3P+N configuration
- Durable metal enclosure
- IP40 rated for indoor installations
Technical Specifications
- Brand: Live Electrical
- Model: LSMC840SP-P
- Type: 3 Phase EV Charger Consumer Unit
- Ways: 8 Way
- Protection: Type A RCBO
- RCBO Curve: C Curve
- RCBO Rating: C40A
- SPD: Type 2 (20/40kA)
- Configuration: 3P+N
- IP Rating: IP40
- Material: Metal enclosure

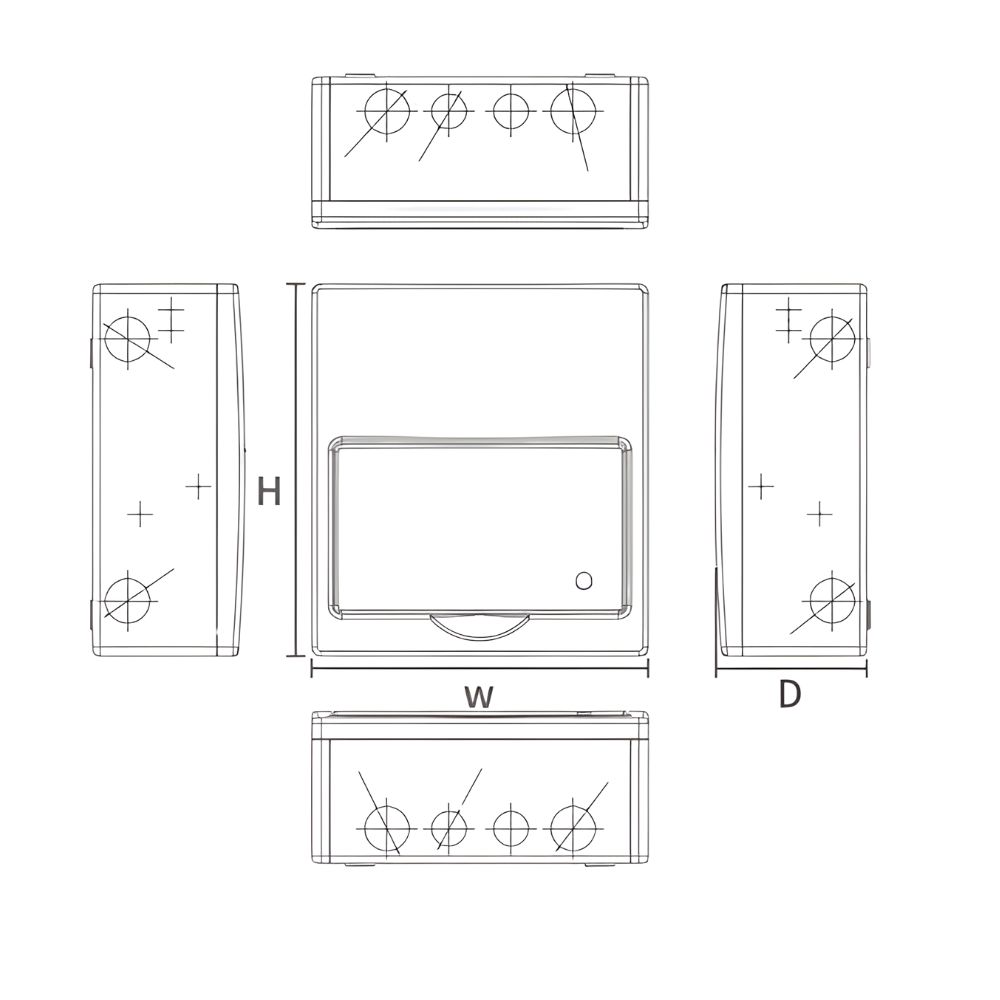

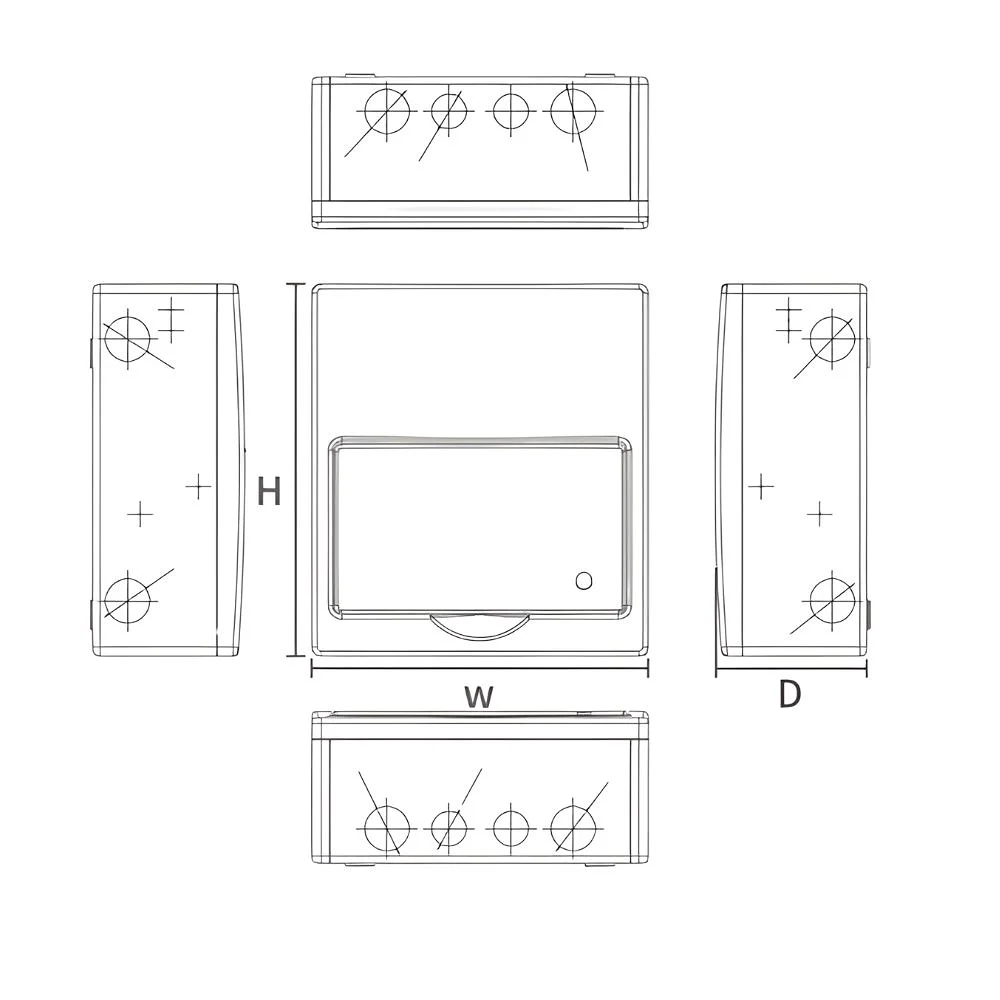

- Width: 208mm
- Height: 270mm
- Depth: 110mm
