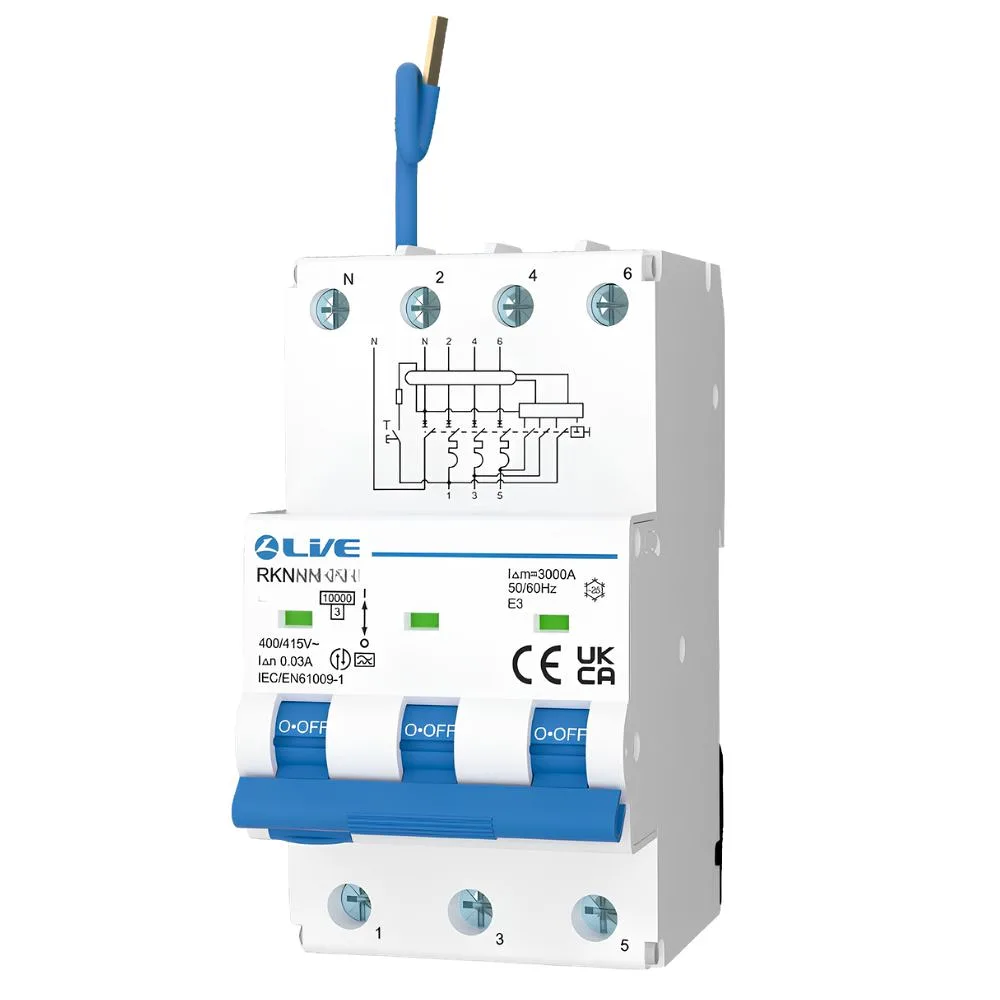

Live Electrical RKN320B-030 Bi-Directional RCBO
The Live Electrical RKN320B-030 Bi-Directional RCBO provides combined residual current and overcurrent protection for 400/415V AC three-phase circuits. This 20A, 3P+N device uses a Type A 30mA residual current element and is rated at 10kA breaking capacity. Featuring a Curve B trip characteristic (3–5 × rated current), this 20A device is suited to appropriately designed circuits where a lower magnetic trip threshold is required.
Key Features
- Manufacturer: Live Electrical; product code: RKN320B-030
- Rated current: 20A; Curve B
- 3P+N, bi-directional operation with switched neutral
- Type A residual current protection, 30mA sensitivity
- 10kA rated breaking capacity; energy limiting class 3
- 400/415V AC, 50/60Hz
- IEC/EN 61009-1; 35mm DIN rail mounting; IP20
Application and Selection
Its Curve B characteristic should be selected to suit the expected inrush current and fault-loop conditions. The Live Electrical RKN320B-030 Bi-Directional RCBO is intended for compatible three-phase distribution arrangements. Confirm enclosure compatibility, cable sizing and protective device coordination before installation.
Technical Information
Rated impulse withstand voltage: 4kV. Operating ambient temperature: -25°C to +40°C. The device incorporates a contact position indicator. Installation and connections must follow the manufacturer’s instructions.
Related Live Electrical Distribution Boards
Explore Live Electrical TPN distribution boards and Live Electrical SPD TPN distribution boards. Check RCBO compatibility with the selected board before ordering.
