Compact Bi-Directional RCBO for Three Phase Distribution Boards

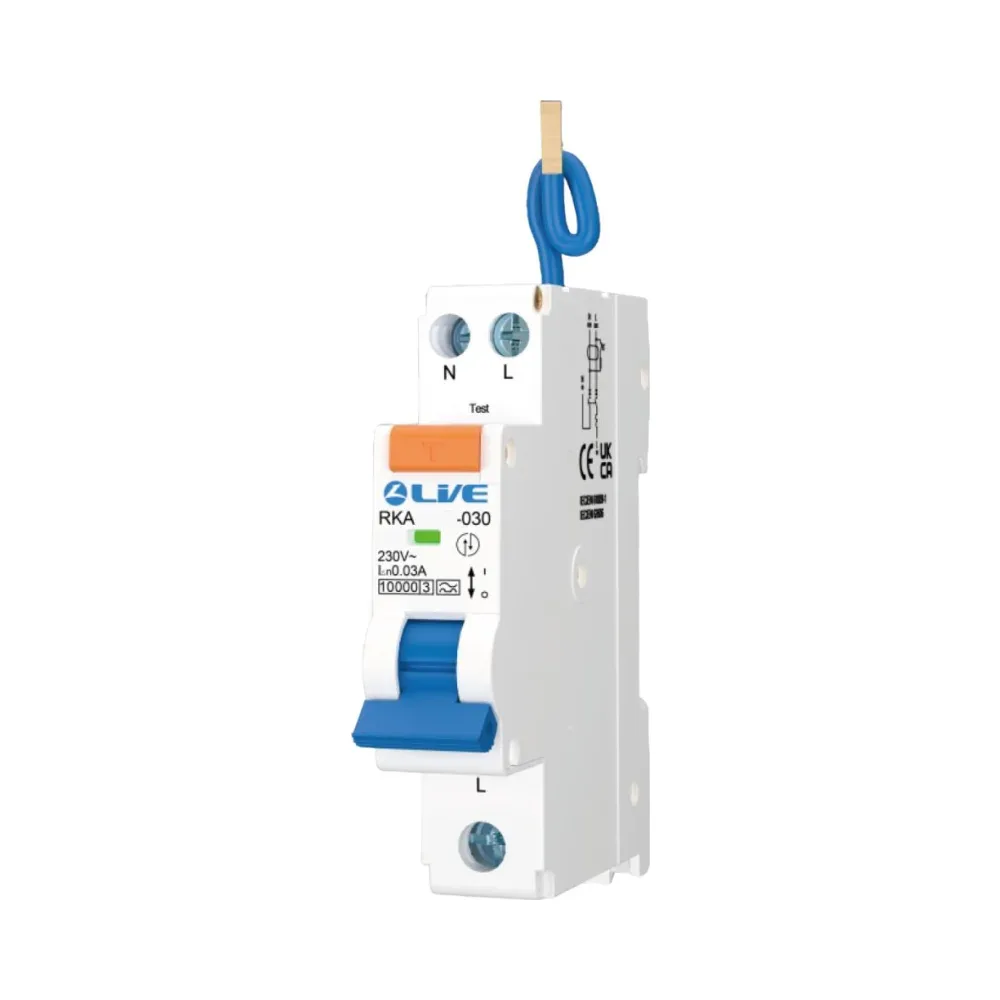

RKA110C-030 – 10A 10kA C Curve RCBO from Live Electrical
The Live Electrical 10A 10kA Compact Bi-Directional RCBO C Curve provides advanced protection in a slim, single‑module design. It is engineered for use with Live Electrical TPN distribution boards, ensuring safety against overload, short‑circuit, as well as earth leakage faults.
Because it uses Type A technology, it detects both AC and pulsating DC residual currents. In addition, the built‑in switched neutral ensures that only faulty circuits disconnect, while healthy ones remain active. Consequently, downtime reduces and safety improves.
Furthermore, the RCBO’s 10kA breaking capacity makes it reliable in demanding installations. Therefore, it is ideal for residential, commercial, and light industrial systems where dependable protection is critical.
✨ Key Features – Live Electrical 10A 10kA Compact Bi-Directional RCBO C Curve
- Single-module MCB-sized RCBO (1P+N)
- 10kA short-circuit breaking capacity
- Type A detection of AC & pulsating DC
- C Curve tripping characteristics
- 30mA residual current sensitivity
- Switched neutral for improved safety
- Bi-directional design for flexible installation
- Compatible with Live Electrical TPN distribution boards
Technical Overview
- Rated current: 10A
- Rated sensitivity: 30mA
- Poles: 1P+N
- Tripping curves: C
- Rated breaking capacity: 10kA
- Operating voltage: 230/240V~
- Impulse withstand voltage: 4kV
- Electrical endurance: 10,000 cycles
- Mechanical endurance: 20,000 cycles
- Standards: IEC/EN 61009-1
- Ambient temperature: -25°C to +40°C
- IP20 protection rating
Included
- 1 x Live Electrical RKA110C-030 Type A RCBO
✅ Why Choose This Product?
Choose the RKA110C-030 for reliable and, therefore, high‑performance protection. It is compact as well as versatile, and fully compatible with Live Electrical TPN distribution boards, ensuring compliance and safety in every installation.
️ Guarantee & Compliance
Compliant with IEC/EN 61009-1 standards and backed by Live Electrical’s trusted quality assurance, ensuring long‑lasting reliability as well as safe operation.
