30mA Type A 6A 6kA B Curve Bi-Directional RCBO
Superior Protection for 6A Circuits – Ideal for Domestic and Light Commercial Use – Live Electrical AMR106B-030 Bi-Directional RCBO

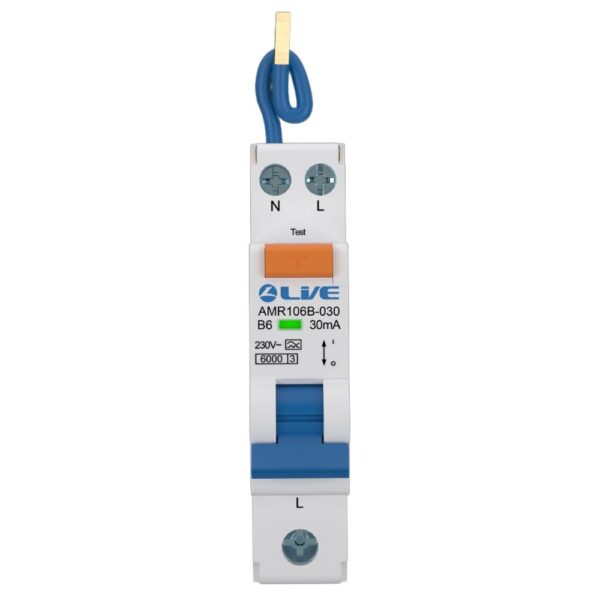

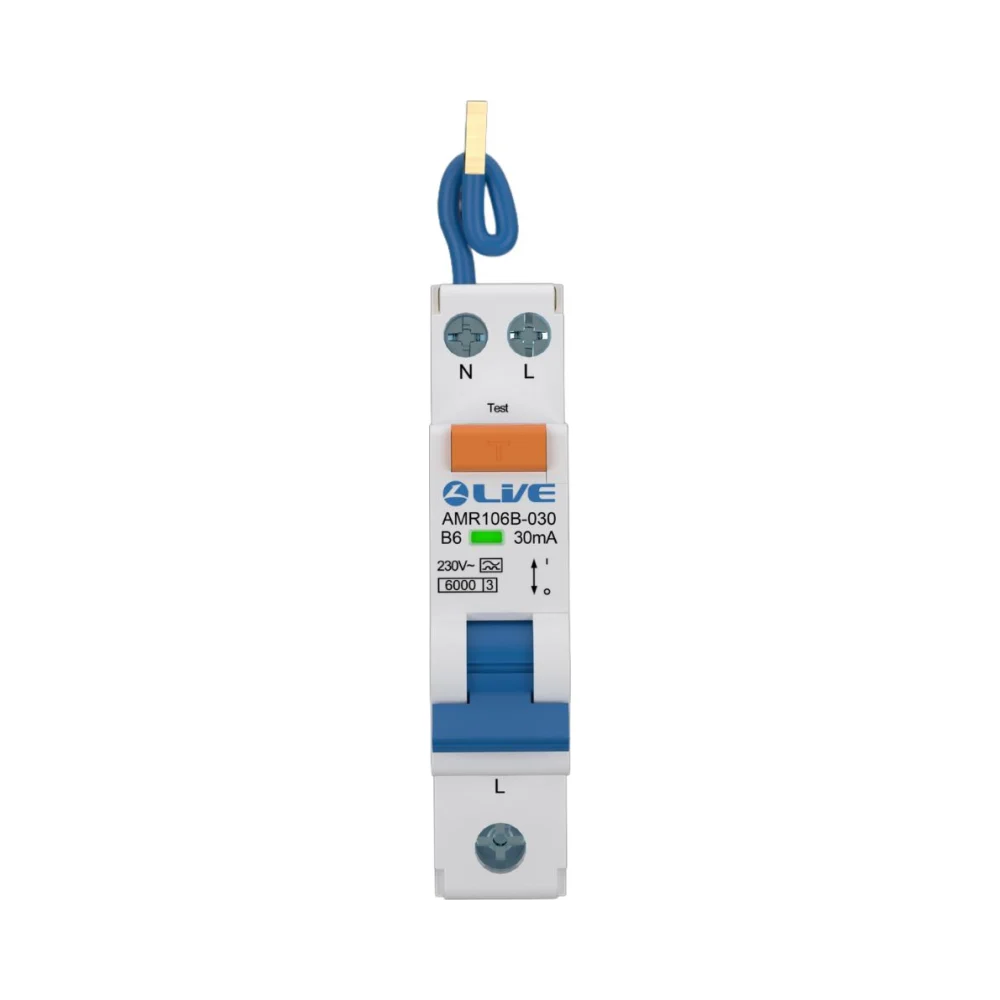

Live Electrical AMR106B-030 Bi-Directional RCBO
The Live Electrical 30mA Type A 6A RCBO delivers reliable and comprehensive circuit protection in a compact, single-module format. Rated for 230V AC applications, it features Curve B tripping, 6kA breaking capacity, and a switched neutral. Its bi-directional design makes it suitable for use in circuits where power may flow in both directions—especially important for solar PV installations.
Whether you’re safeguarding lighting circuits or dedicated power supplies, this RCBO provides robust protection and ease of installation.
Key Features of the Live Electrical AMR106B-030 Bi-Directional RCBO
- 6A rated current, ideal for low-load circuits
- Type A residual current protection (30mA) detects both AC and pulsating DC faults
- B Curve tripping characteristic for standard domestic circuits
- Bi-directional design allows flexible installation
- Switched neutral ensures only faulty circuits disconnect, saving time and improving testing efficiency
- 6kA breaking capacity (Icn) for robust protection
- Compact single-module design
- Electrical endurance: 4,000 cycles | Mechanical endurance: 100,000 cycles
- Fully compliant with BS EN 61009-1
- Other Current Ratings available: 10, 16, 20, 32, 40
Why Choose Live Electrical AMR106B-030?
This Live Electrical AMR106B-030 Bi-Directional RCBO is perfect for installations where space is limited but safety and compliance are critical. Its bi-directional capability ensures safe operation in renewable energy circuits, such as those connected to PV panels. With a switched neutral, this RCBO reduces testing time and improves isolation, making it a smart choice for modern electrical systems.
About Live Electrical
Live Electrical specialises in reliable, regulation-compliant products built for modern electrical installations. Their RCBOs combine robust protection with user-focused features to simplify installation, reduce downtime, and maximise safety.
Why Buy From Electrical4Less?
Electrical4Less offers unbeatable value on genuine Live Electrical RCBOs and a wide selection of circuit protection solutions. Shop with us for:
- Competitive pricing
- Fast UK-wide delivery
- Exceptional customer service
- Trusted electrical supplies from leading brands
Summary of the Live Electrical AMR106B-030
The Live Electrical AMR106B-030 Bi-Directional RCBO is a compact, high-performance protective device designed for domestic, commercial, and solar applications. With its bi-directional functionality, switched neutral, and 6kA breaking capacity, this RCBO ensures full protection against overloads, short circuits, and earth leakage faults. It is essential for use on circuits connected to PV solar panels, providing safe and regulation-compliant performance.
