5 Way SPD Metal Consumer Unit Kit with 4 Bi-Directional RCBOs

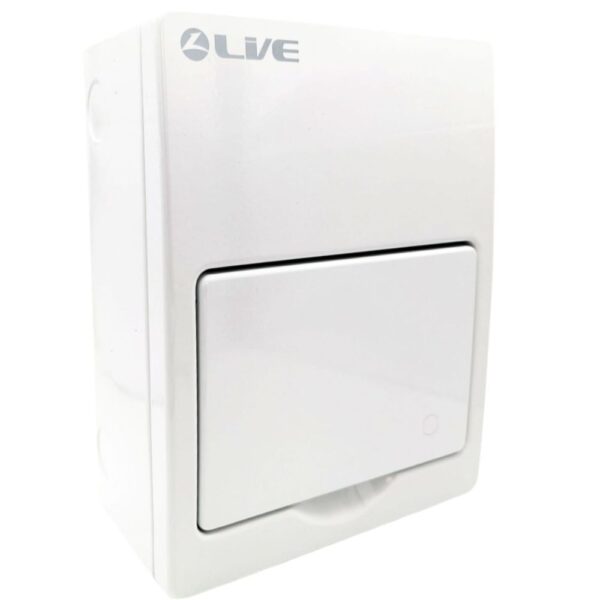

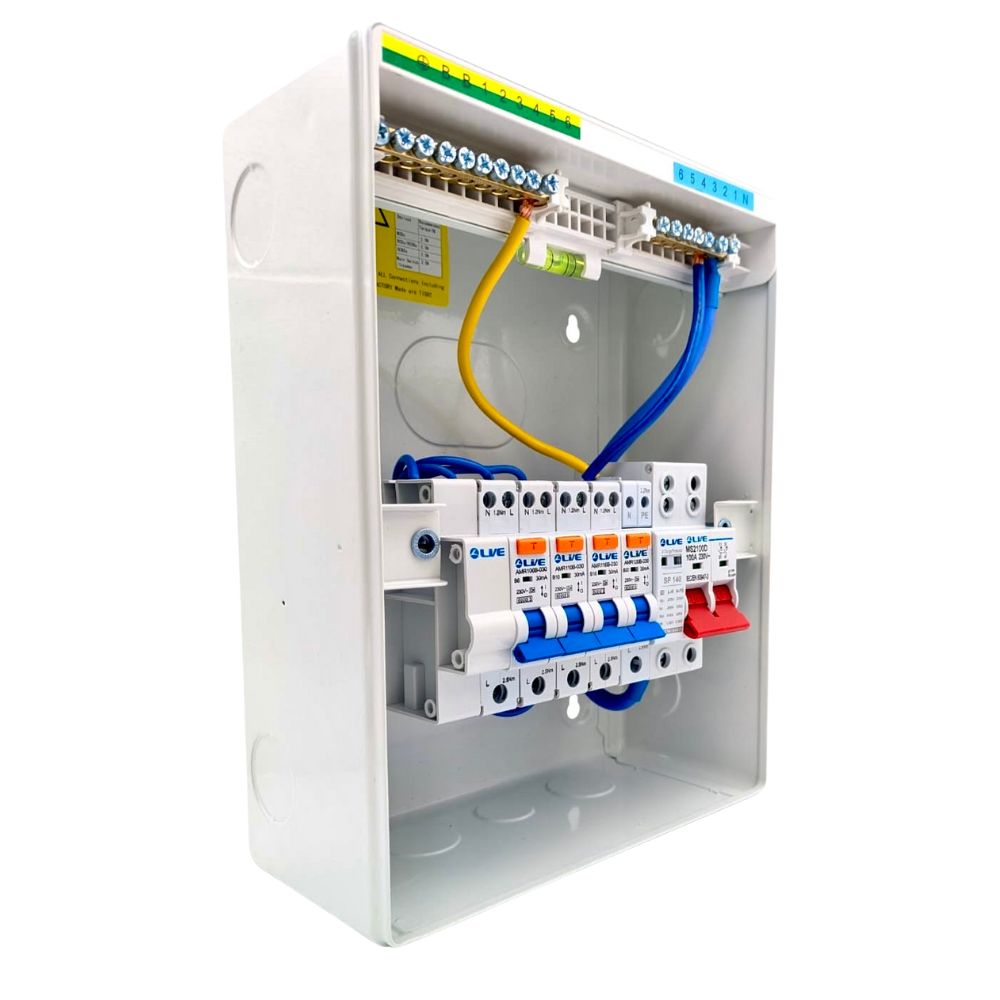

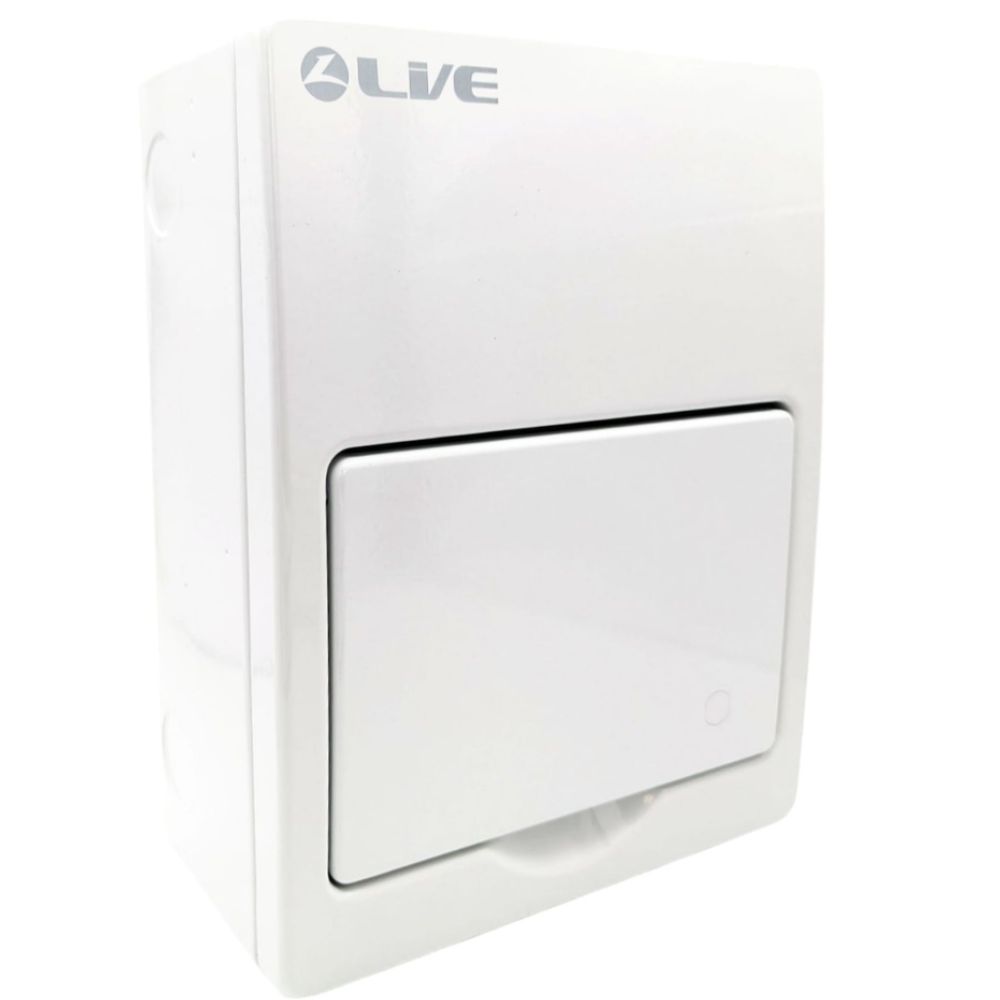

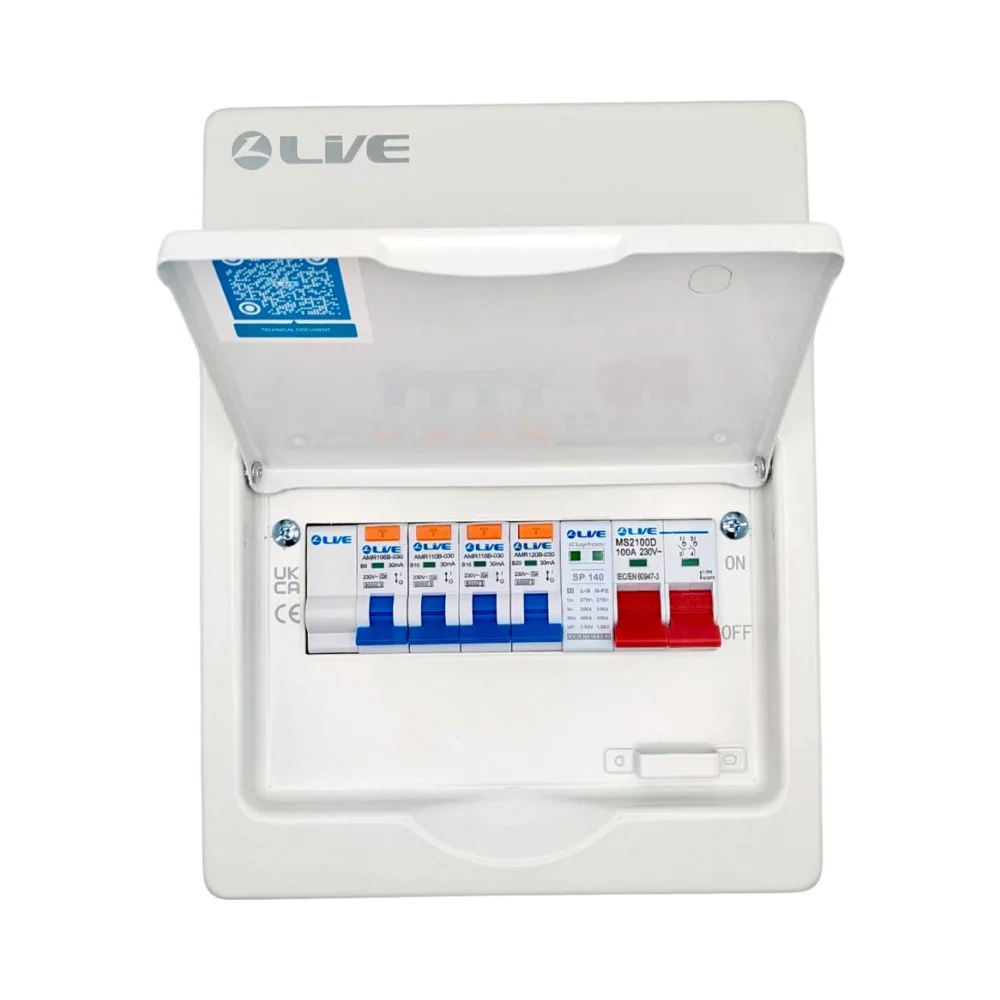

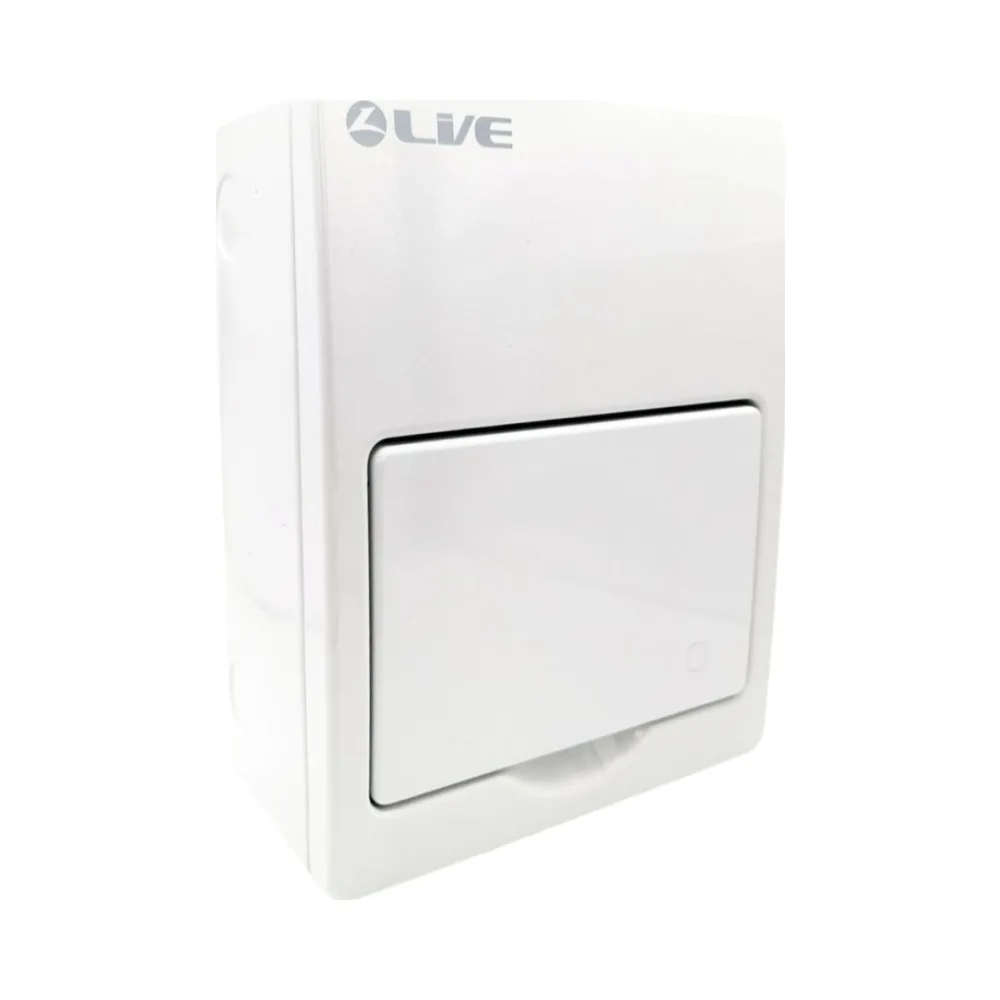

Live Electrical LSMC8M-SP/4RCBO 5 Way SPD Metal Consumer Unit Kit
Boost your electrical efficiency with the Live Electrical 5 Way SPD Metal Consumer Unit Kit. This compact yet robust unit is designed for residential and light commercial installations, offering a blend of safety, functionality, and modern design. With its 5-way configuration, the unit efficiently distributes power across multiple circuits, ensuring reliable performance and advanced protection.
4 RCBO Units of Your Choice – Please specify amperage (6,10,16,20,32,40A) when placing your order at the checkout.
Included in the Kit / Bundle

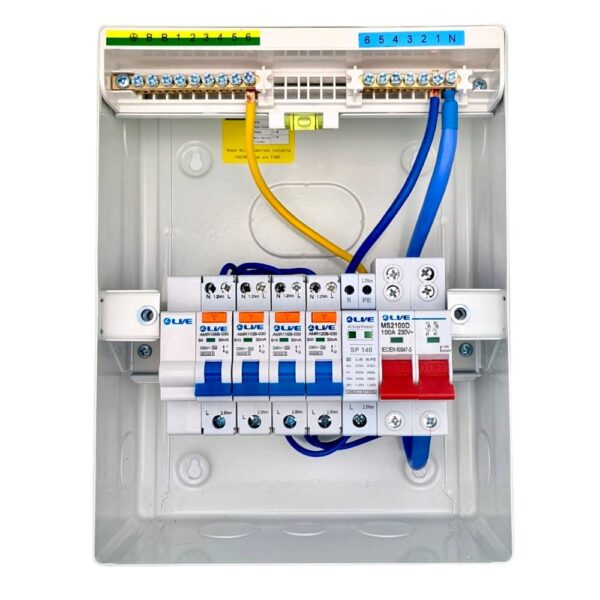

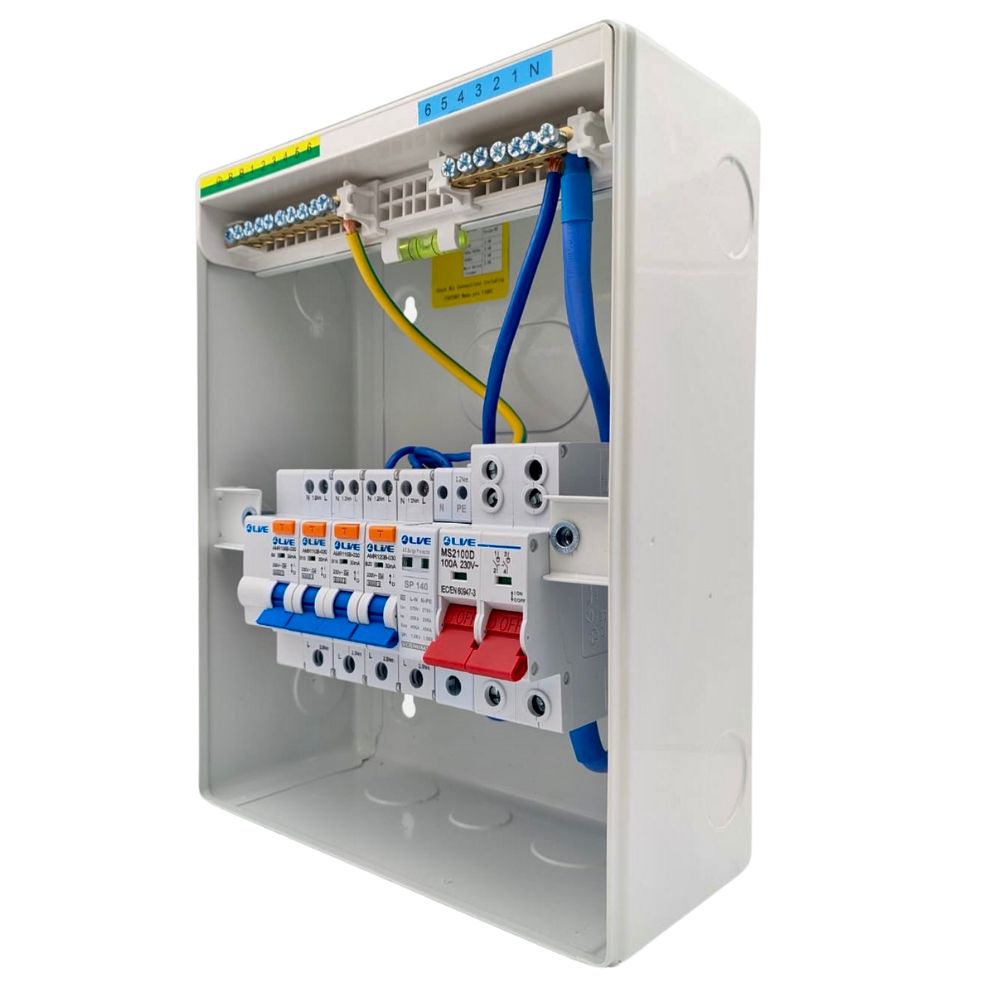

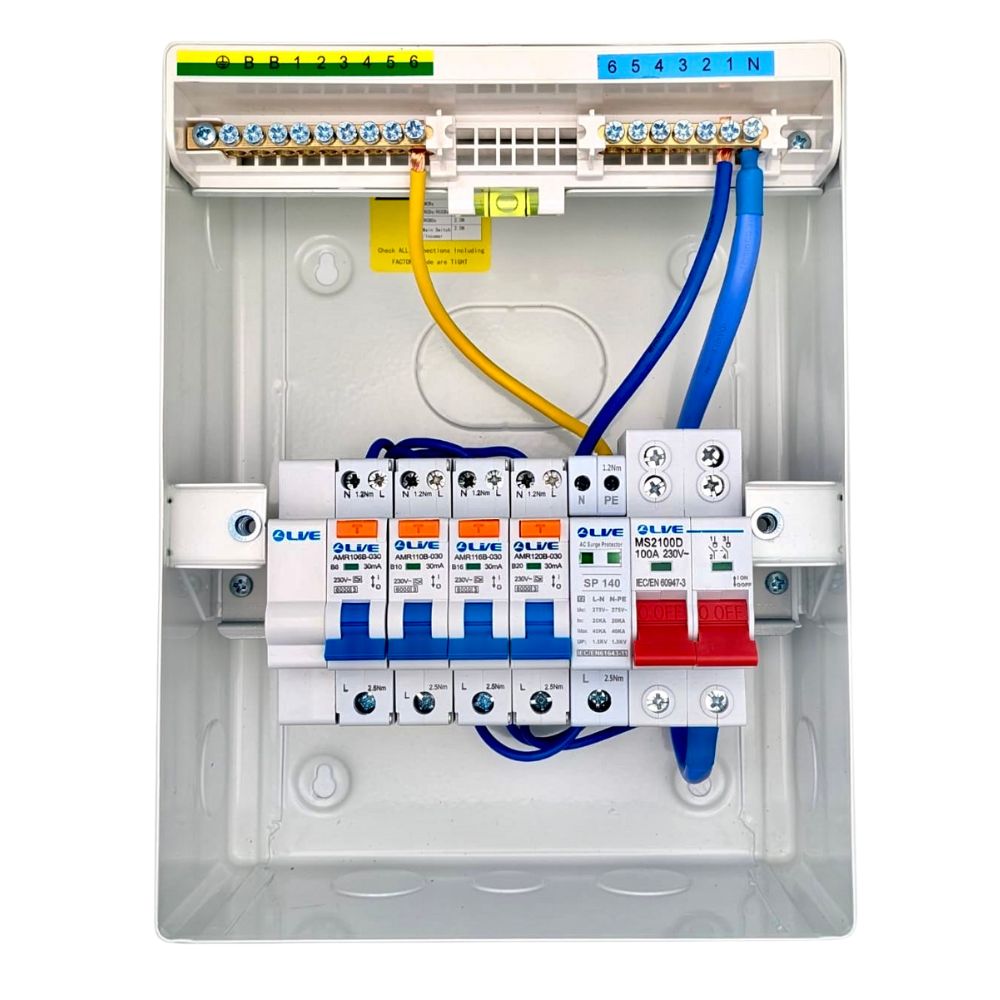

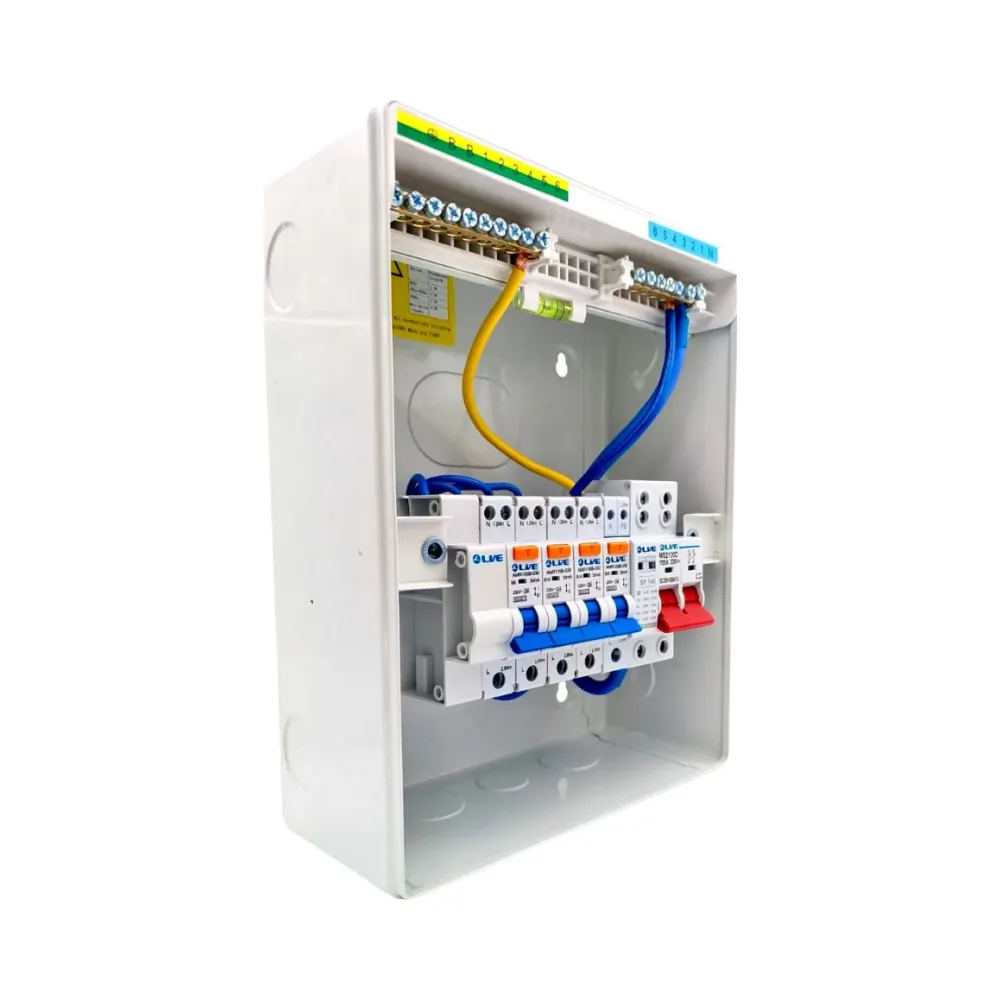

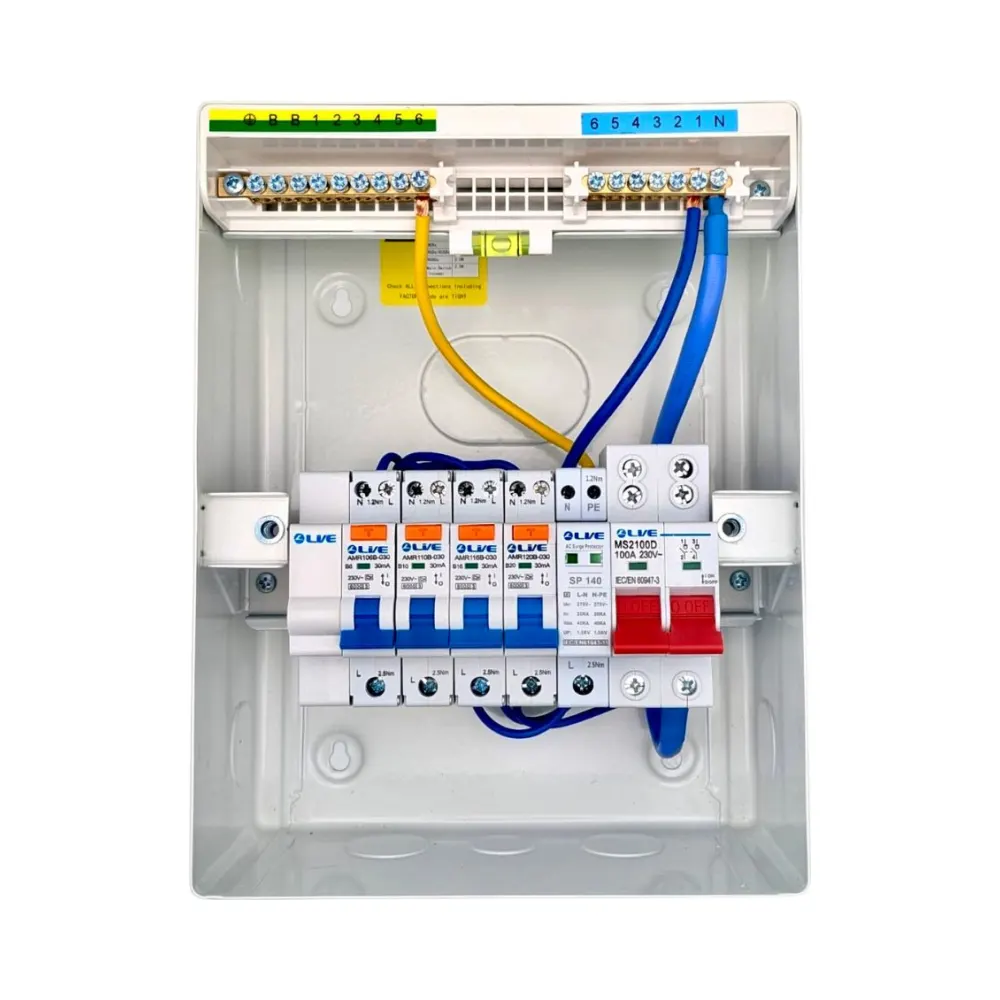

- Live Electrical 5 Way SPD Metal Consumer Unit ( LSMC8M-SP )
- 2 Blanks: Allows for custom configuration and future expansion.

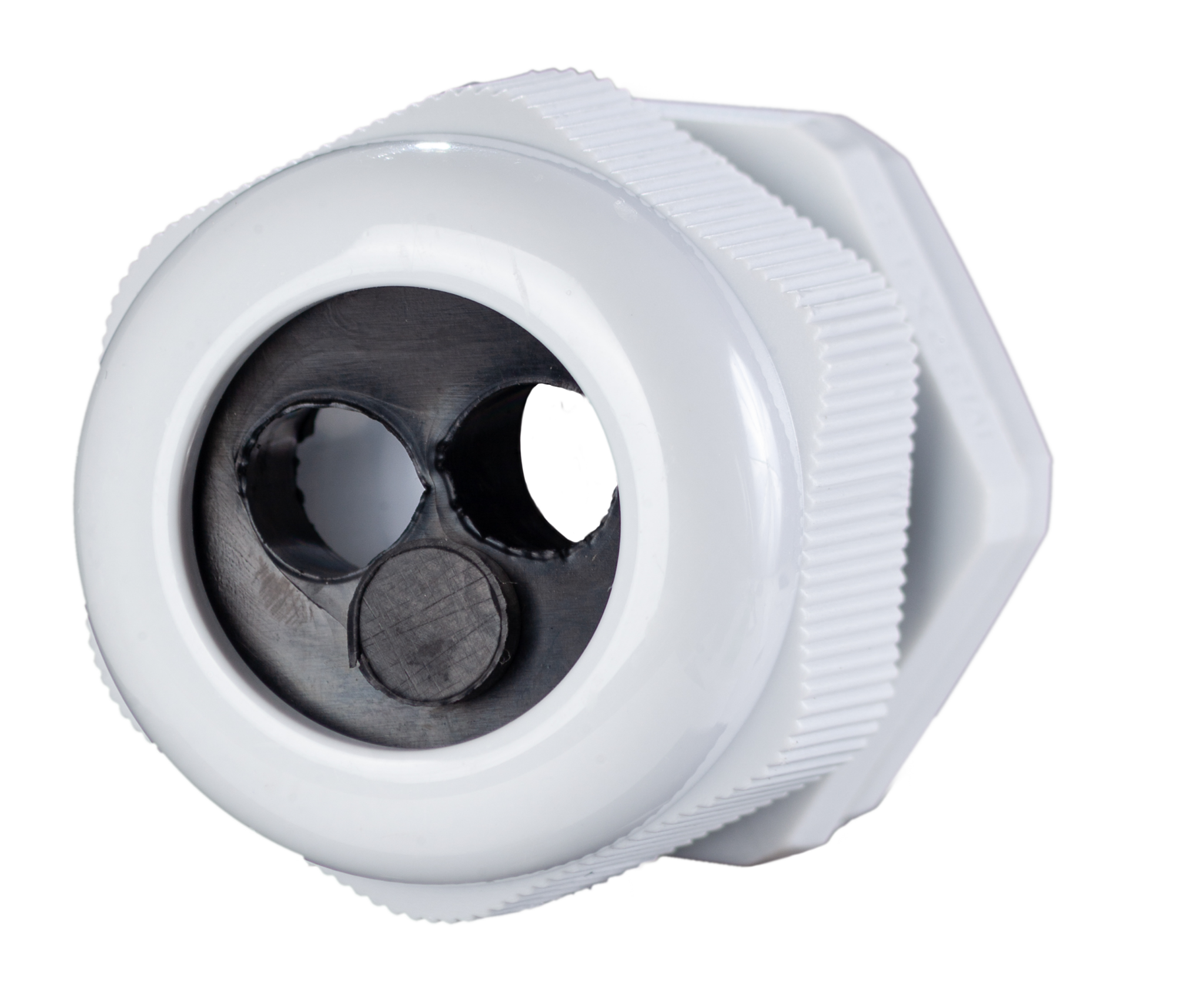

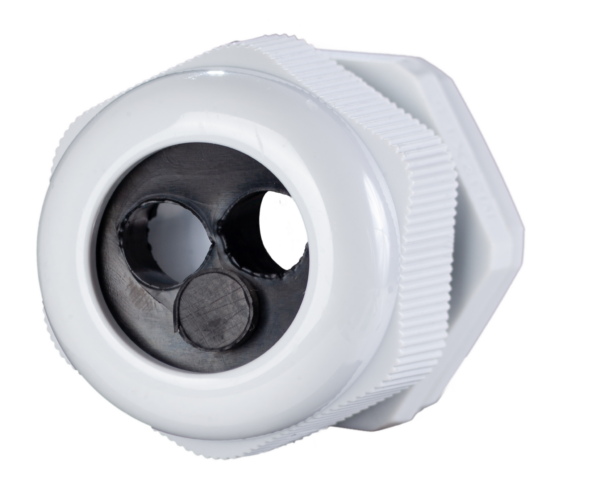

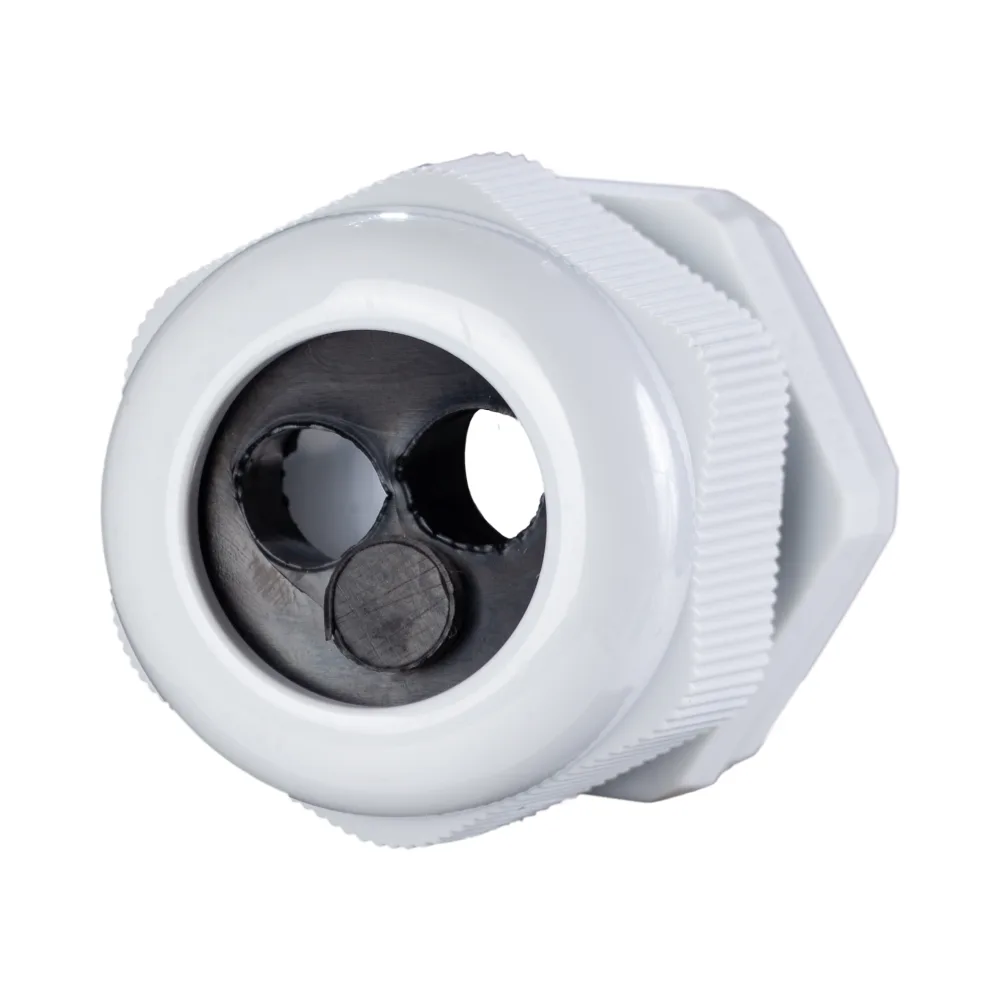

- Free Meter Tails Gland (32mm): Provides a secure and reliable connection to your metering equipment.

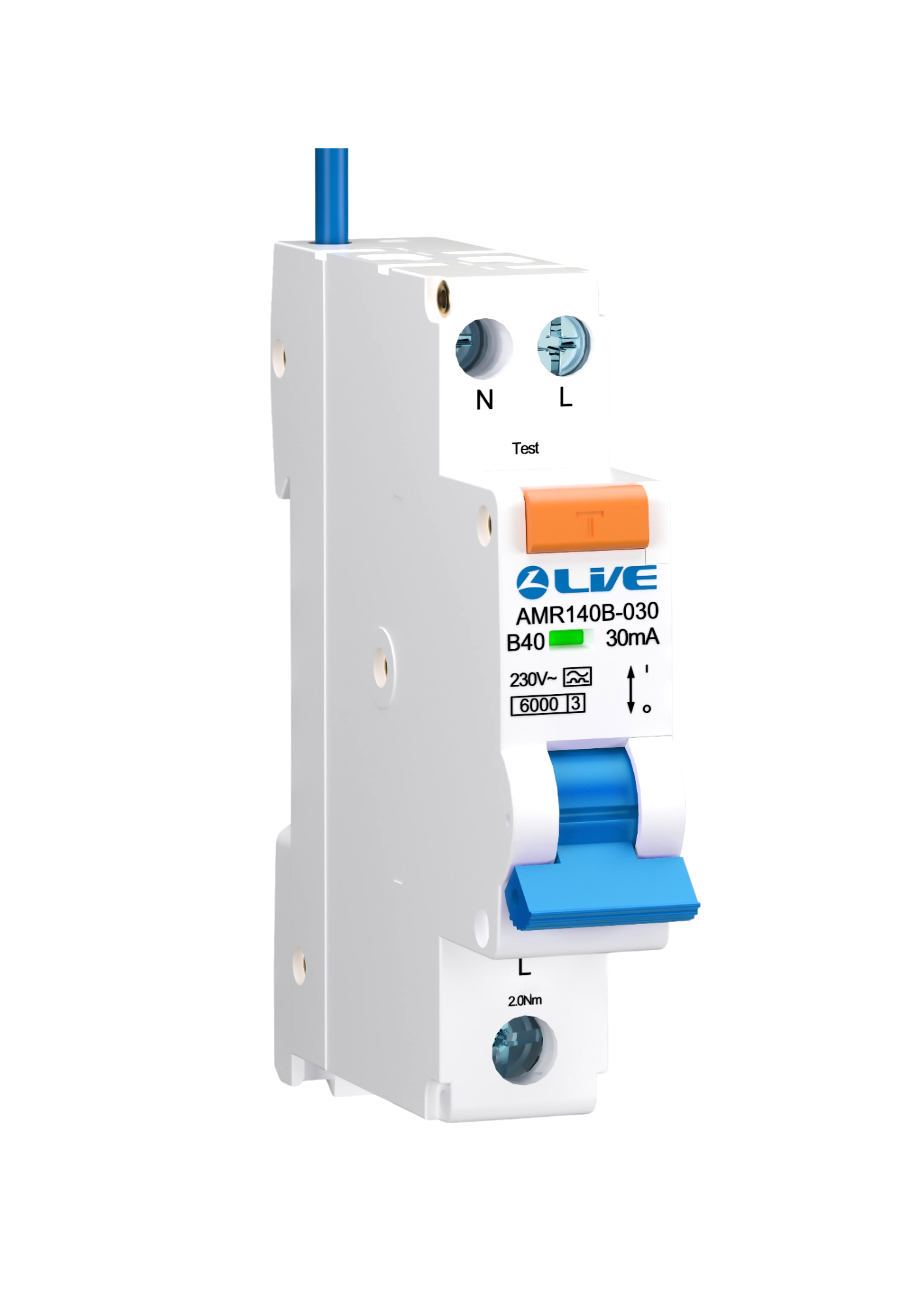

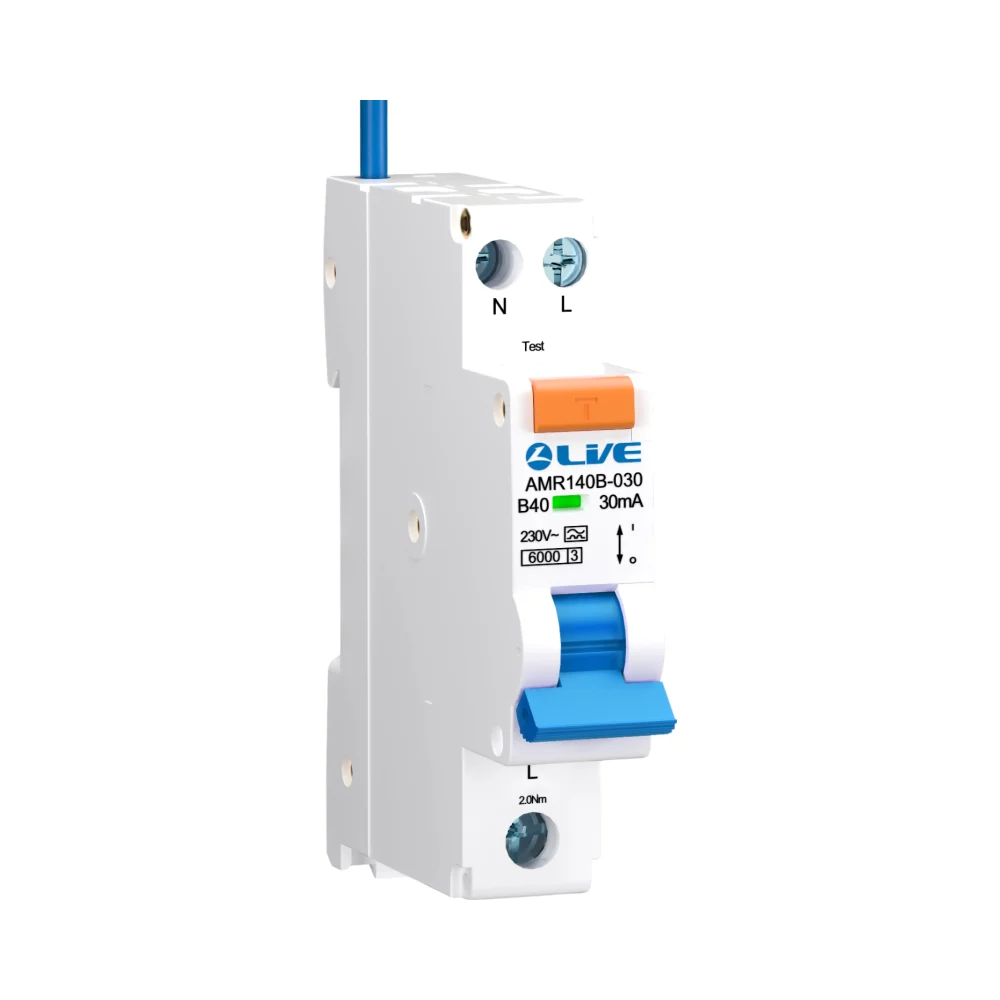

- 4 Bi-Directional Type A, Curve B RCBOs: Specially designed for solar PV installations, these RCBOs are sensitive in both directions to detect and interrupt fault currents effectively, ensuring safety in diverse electrical environments. Customers can choose the amperage that best suits their needs at checkout, allowing for personalised protection levels. These RCBOs are compliant with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring up-to-date safety and performance standards.
Customisable RCBO Options
The kit includes 4 Bi-Directional Type A RCBOs that are specifically designed for solar PV installations. These RCBOs detect fault currents in both directions, providing enhanced safety for a variety of electrical environments. Customers can choose their preferred amperage (6, 10, 16, 20, 32, or 40A) at checkout to ensure personalised protection for each circuit.
These RCBOs comply with Amendment 3 BS 7671:2018+A3:2024 of the wiring regulations, ensuring they meet modern safety standards.
Key Features:
- 5-Way Capacity: Ideal for small residential or light commercial properties, managing multiple circuits efficiently.
- 4 Bi-Directional Type A RCBOs: Customisable amperage to protect each circuit, especially suited for solar PV systems.
- 100A Main Switch: Provides reliable control over your entire electrical system.
- Surge Protection Device (SPD): Built-in SPD (20/40kA DP SPD) protects against power surges, ensuring safety for connected equipment.
- Compliant with BS 7671: Fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, guaranteeing modern safety standards.
- Future Expansion: Includes 2 blank slots for future circuit additions or configurations.
Product Benefits:
- Perfect for Homes and Light Commercial Applications: This kit ensures safe and efficient electrical distribution while maintaining compact size.
- Fire and Surge Protection: The fully enclosed metal construction improves fire resistance, while the built-in SPD prevents potential damage from power surges.
- Customisable Circuit Protection: Tailor the RCBO amperage for each circuit, ensuring optimal performance and protection.
Certifications and Compliance
This consumer unit is fully compliant with the 18th Edition Wiring Regulations (BS 7671) and Amendment 3 BS 7671:2018+A3:2024, ensuring the highest safety standards for modern installations. The fully enclosed metal enclosure also complies with Amendment 3 fire safety regulations, offering superior protection compared to plastic alternatives.
Technical Specifications:
- Model: Live Electrical 5 Way SPD Metal Consumer Unit (LSMC8M-SP)
- Dimensions (W x H x D): 208 x 270 x 110 mm
- Standards: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230V/50Hz
- Protection Degree: IP40

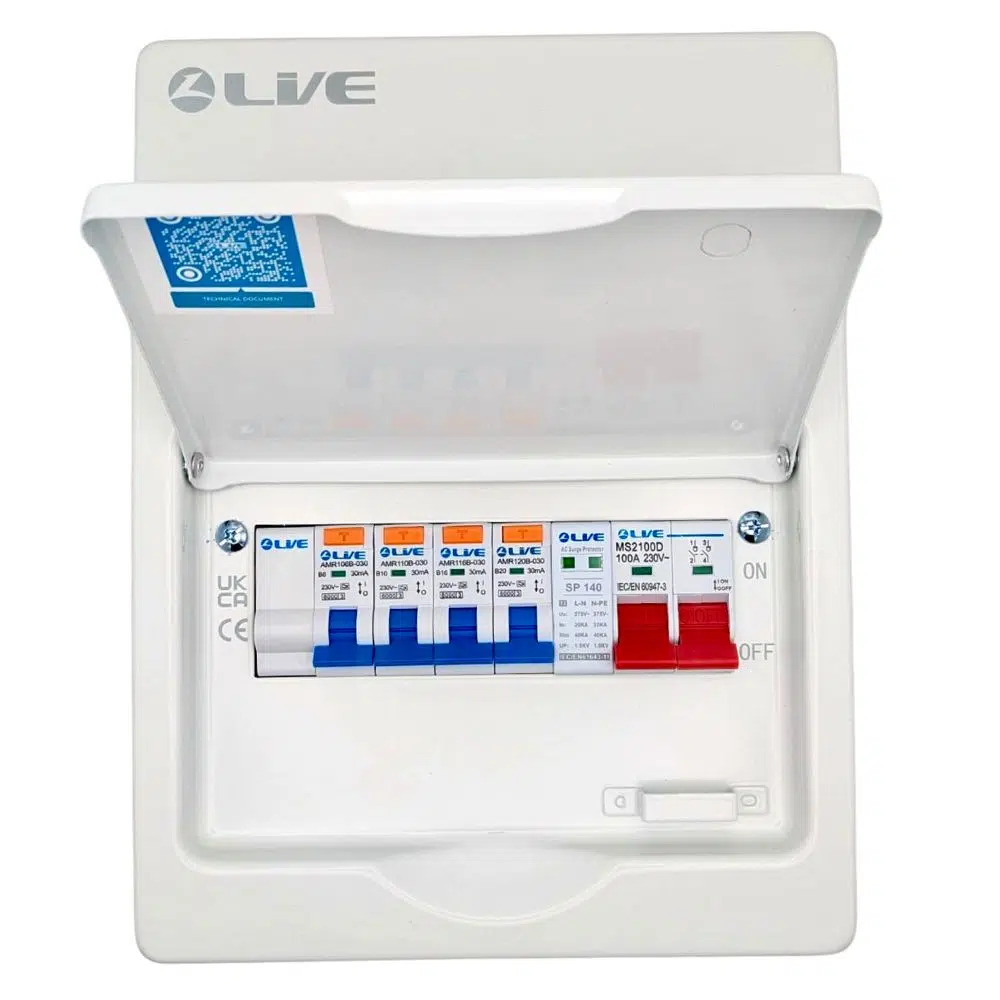

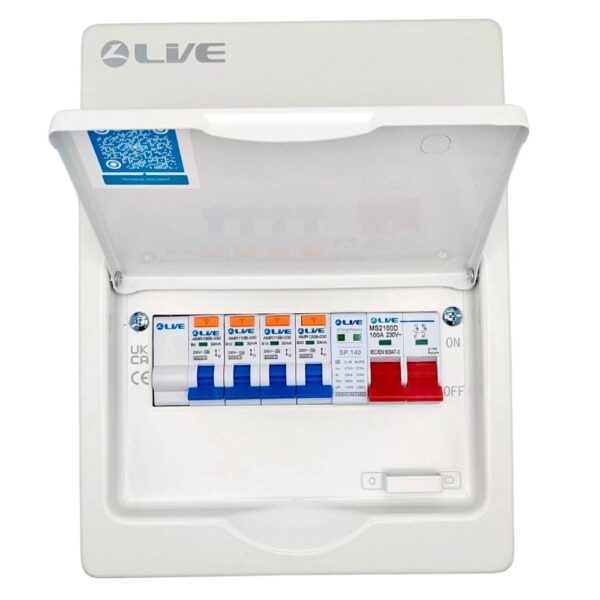

- Construction: Built from robust steel with a drop-down metal lid for added protection and accessibility.
- Surge Protection: Fitted with a 20/40kA DP SPD (SP140 1P+N/1)
- Main Switch: Equipped with a 100A DP Main Switch

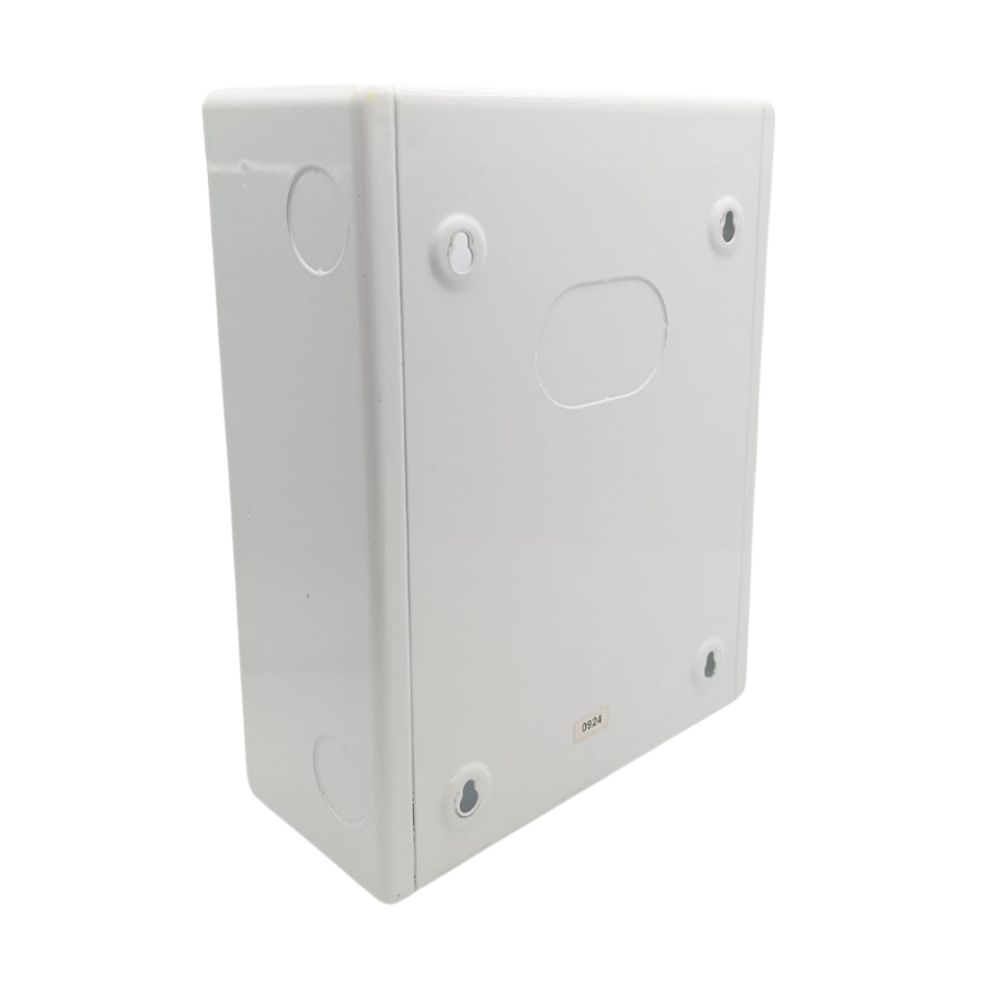

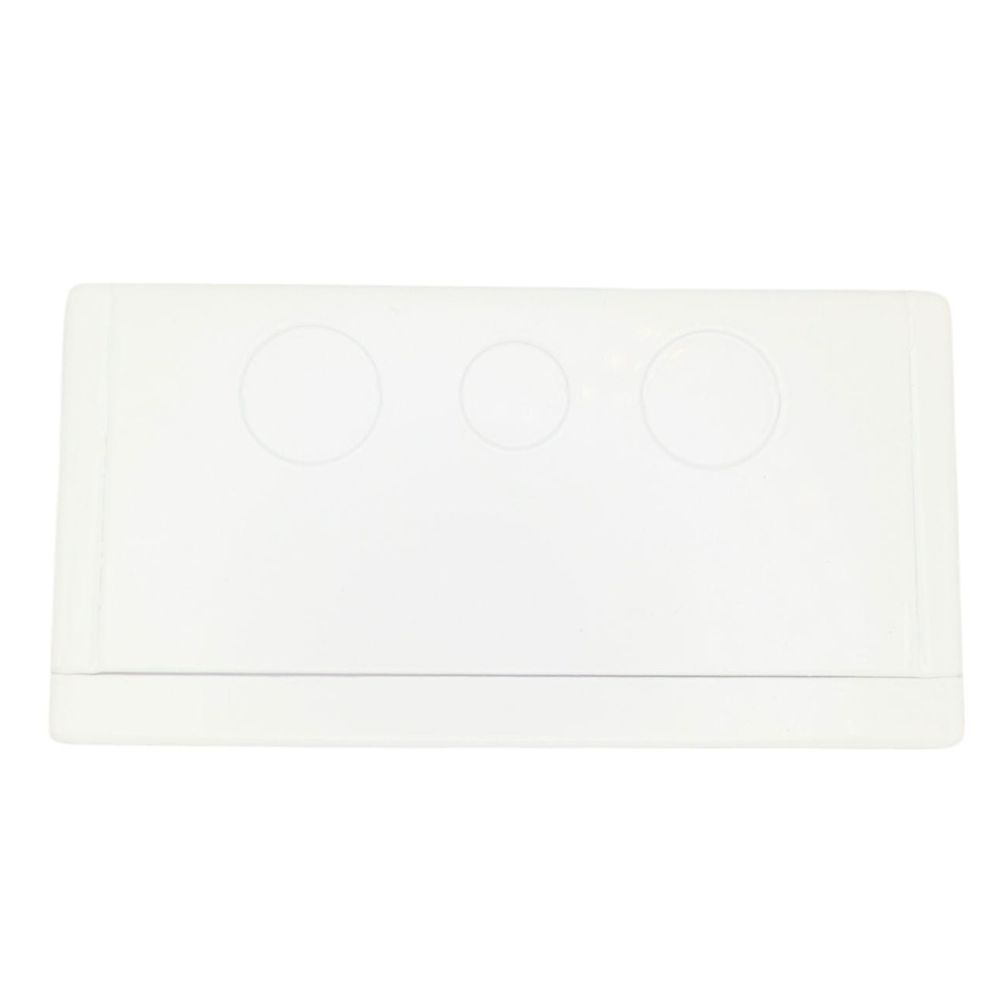

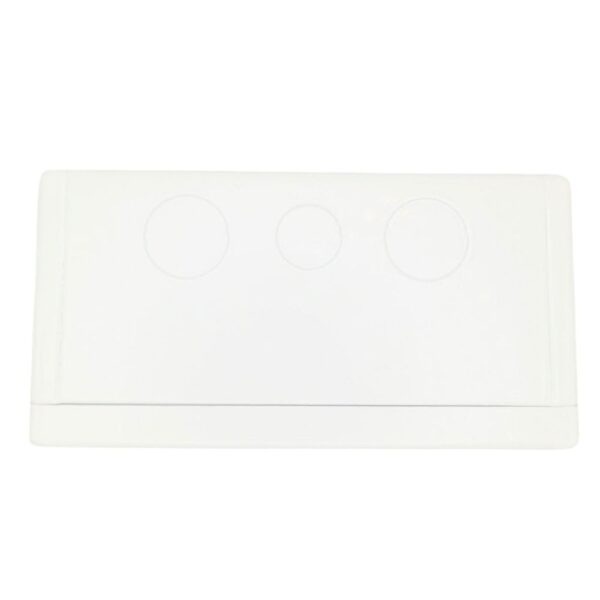

- Cable Entries: Multiple circular knock-outs (25mm & 32mm) on the top and bottom, 32mm on the sides, and larger rear slots for flexible cable management.

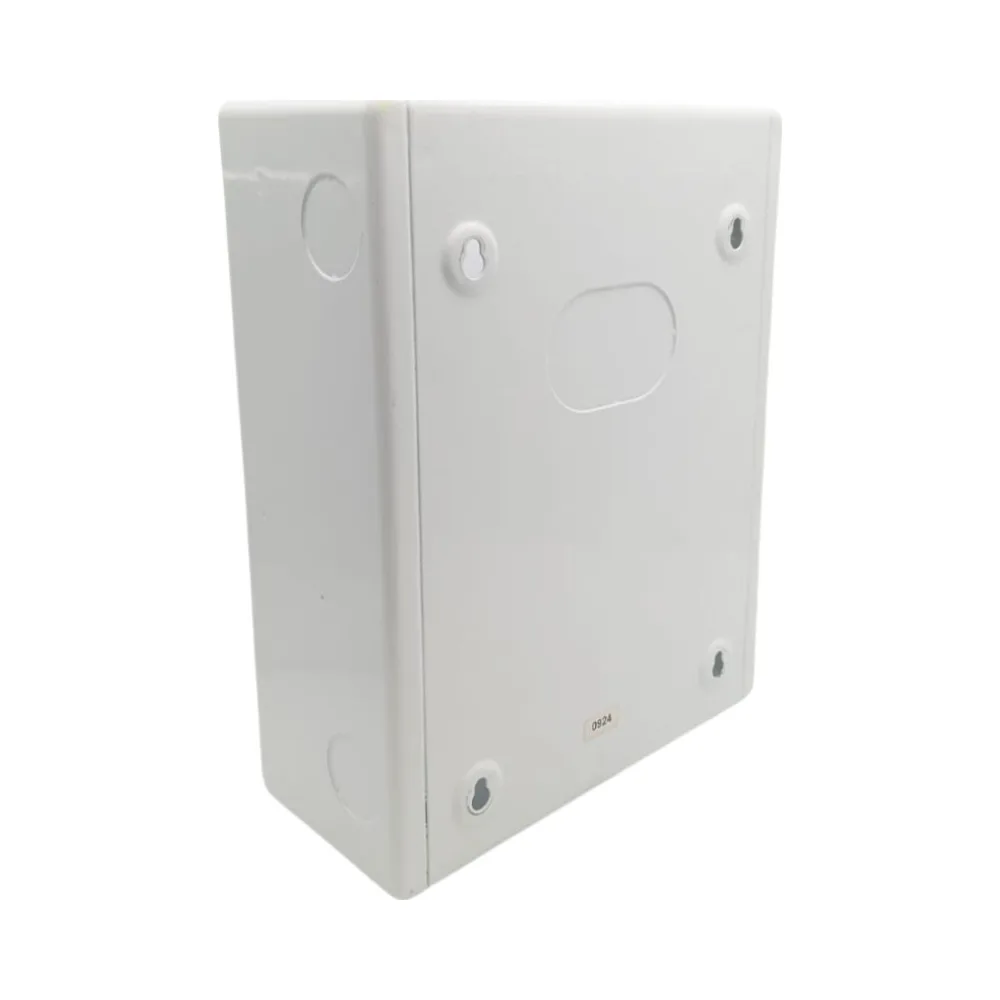

- Installation: Raised key holes for secure, easy installation, and a raised DIN rail to improve cable routing.
- Finish: Finished in white polyester powder coating (RAL9010) for a modern, sleek appearance.

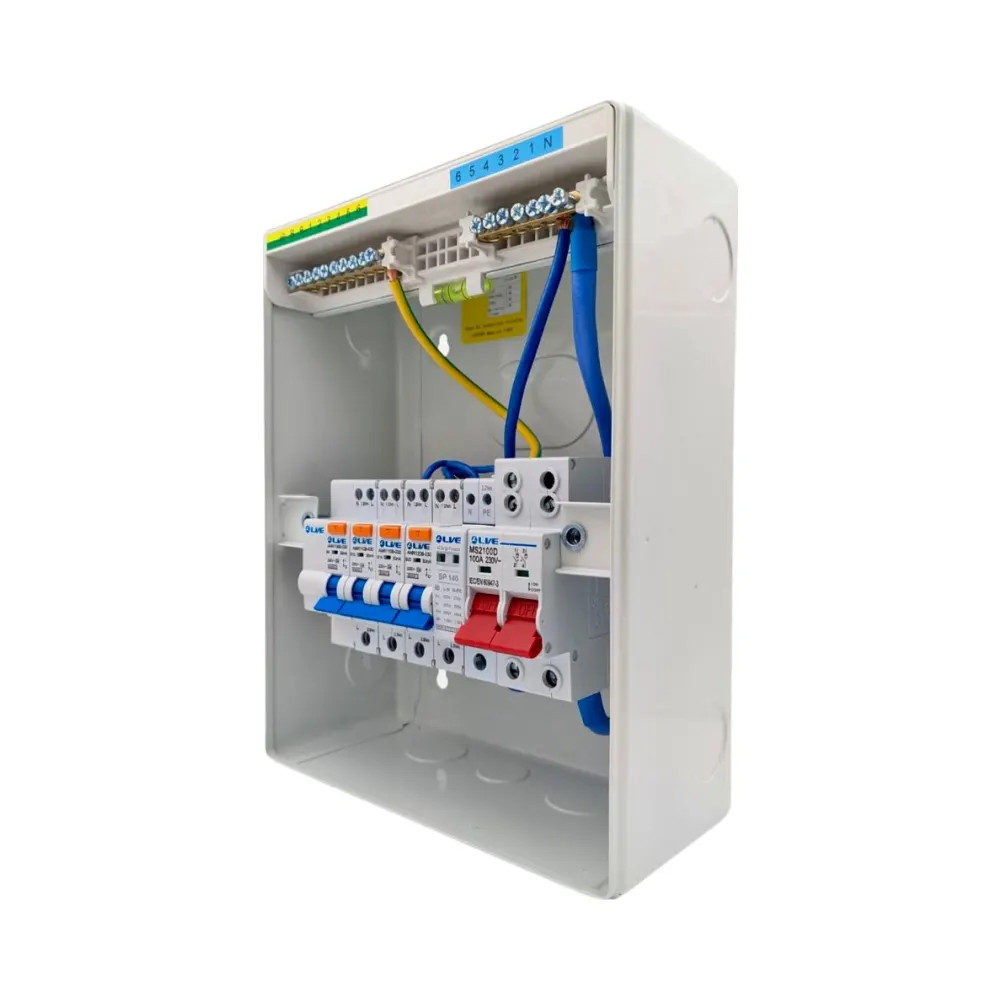

- Wiring Space: Spacious area with extra room for RCBOs, ensuring efficient and organised wiring.
- Free Meter Tails Gland: Includes a 32mm meter tails gland for a secure connection to your metering equipment.
