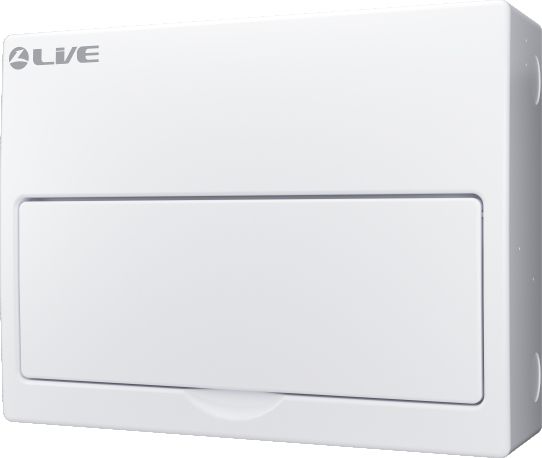

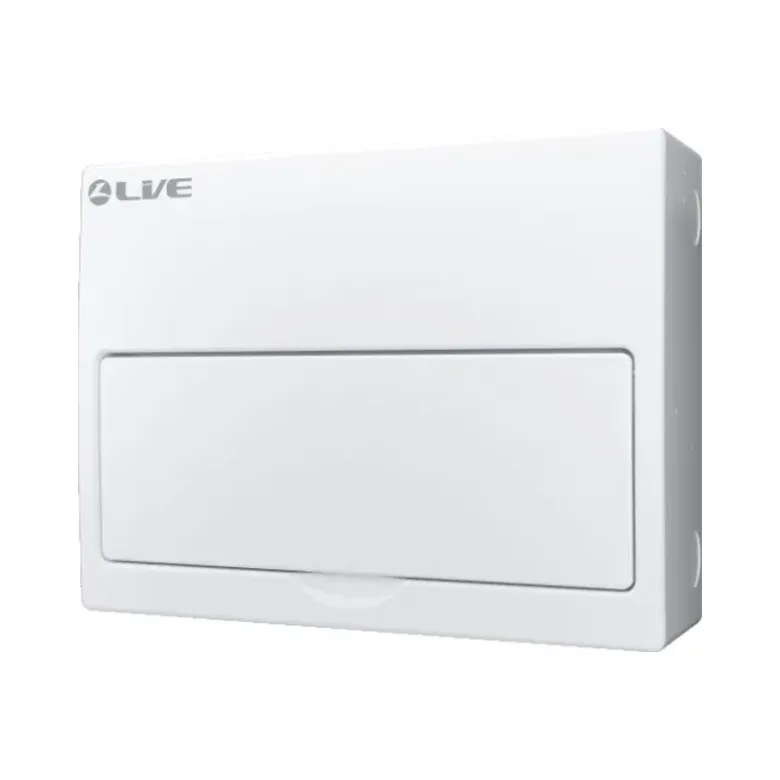

Live Electrical 5 Way SPD Metal Consumer Unit
LSMC8M-SP – 5 Way SPD Metal Consumer Unit
The Live Electrical 5 Way SPD Metal Consumer Unit is a compact and versatile solution for residential and light commercial electrical installations. With 5 usable ways, the LSMC8M-SP provides practical circuit capacity while allowing flexibility for additional circuits where required.
Supplied with a 20/40kA double pole Surge Protection Device (SPD) and a DP 100A Main Switch, this consumer unit combines incoming isolation and surge protection within a durable steel enclosure. Its raised DIN rail, multiple cable entry points and practical internal layout help make installation and wiring straightforward.
Key Features – Live Electrical 5 Way SPD Metal Consumer Unit
- 5 usable ways for residential and light commercial installations
- 20/40kA DP Surge Protection Device – SP140 1P+N/1
- DP 100A Main Switch
- Supplied with neutral cable and busbar
- Neutral and earth terminal bars included
- Raised DIN rail for improved wiring space
- Multiple cable entry points on the top, bottom, sides and rear
- Raised keyholes for secure mounting
- Fully enclosed steel construction
- Drop-down lid for convenient access
- IP40 protection rating
- Operating voltage: 230V / 50Hz
- Dimensions: 208 x 270 x 110mm
- White polyester powder-coated finish – RAL9010
- Compliant with BS EN 61008, BS EN 60898 and BS EN 61439-3
Surge Protection & Main Switch
The integrated 20/40kA Surge Protection Device helps protect connected circuits and electrical equipment against transient overvoltages. A 100A double pole main switch provides convenient isolation of the incoming supply.
These components are housed within a robust metal enclosure designed to provide a practical and professional consumer unit solution for modern electrical installations.
Designed for Easier Installation
The LSMC8M-SP features multiple cable entry points across the top, bottom, sides and rear of the enclosure, giving installers greater flexibility when routing cables. The raised DIN rail also provides additional working space for cable management and termination.
Its compact 208 x 270 x 110mm dimensions make the unit suitable for installations where space is limited while still providing 5 usable ways for circuit protection devices.
Live Electrical AMR RCBOs
This consumer unit is designed to be used with the Live Electrical AMR RCBOs range. These RCBOs are designed specifically for the Live Electrical LSMC metal consumer unit range, providing the circuit protection required to complete the installation.
Why Choose the Live Electrical LSMC8M-SP?
The Live Electrical 5 Way SPD Metal Consumer Unit combines 5 usable ways, surge protection and a 100A main switch in a durable steel enclosure. Its compact dimensions, flexible cable entry options and raised DIN rail make it a practical choice for electricians working on residential and light commercial installations.
