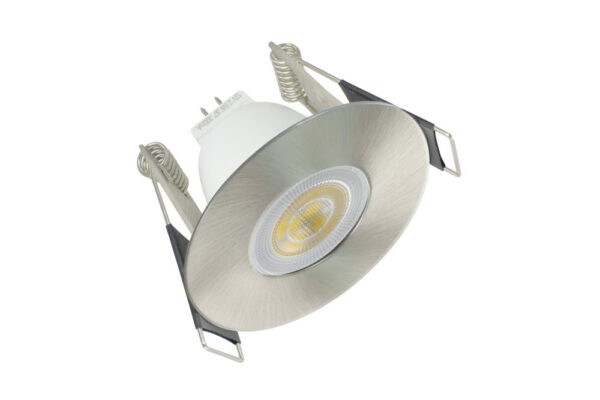

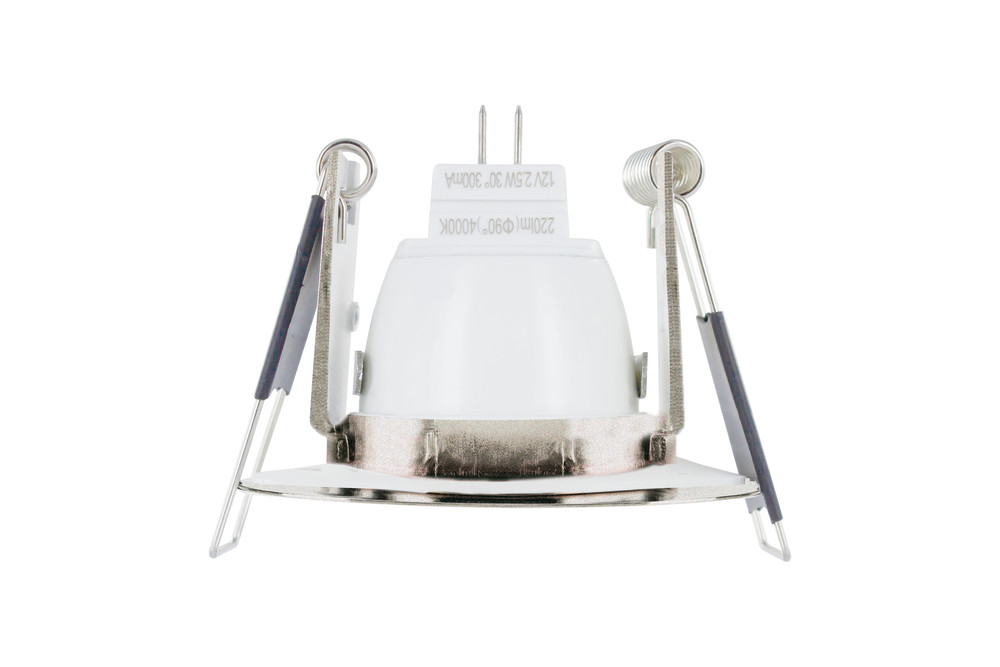

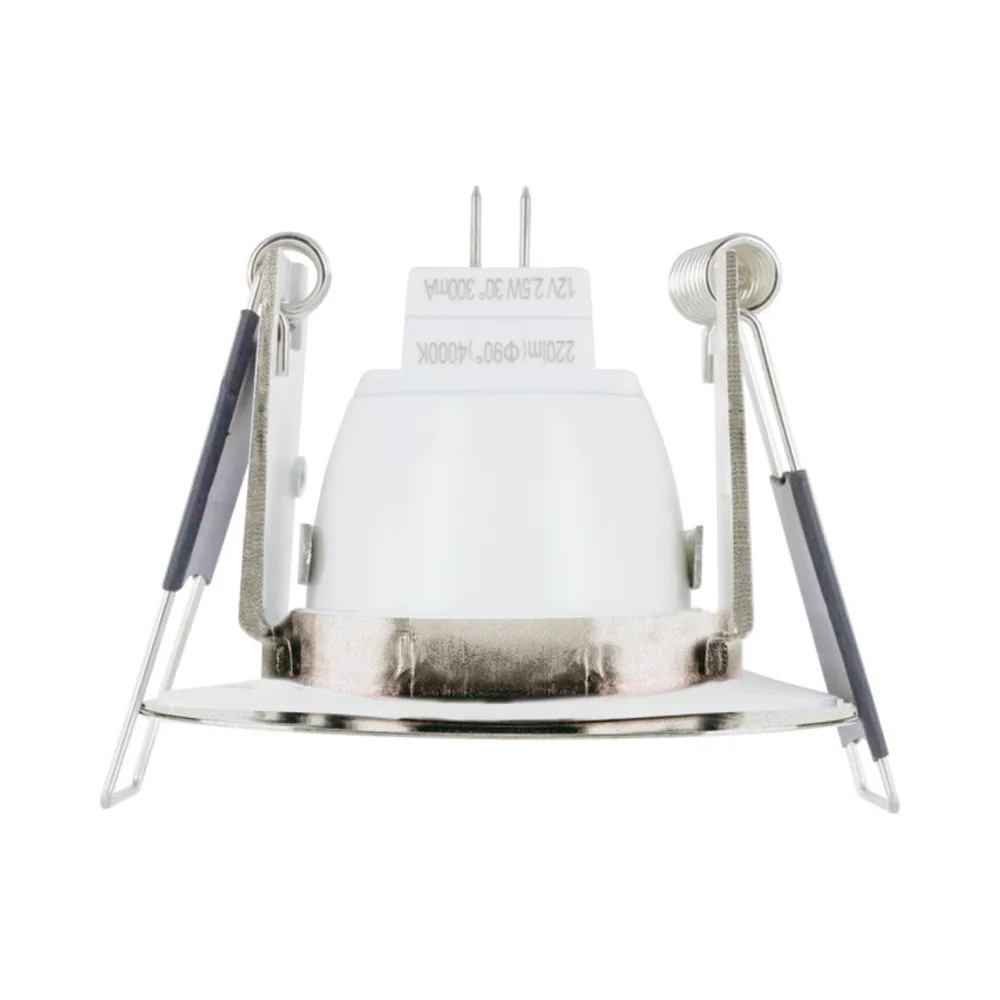

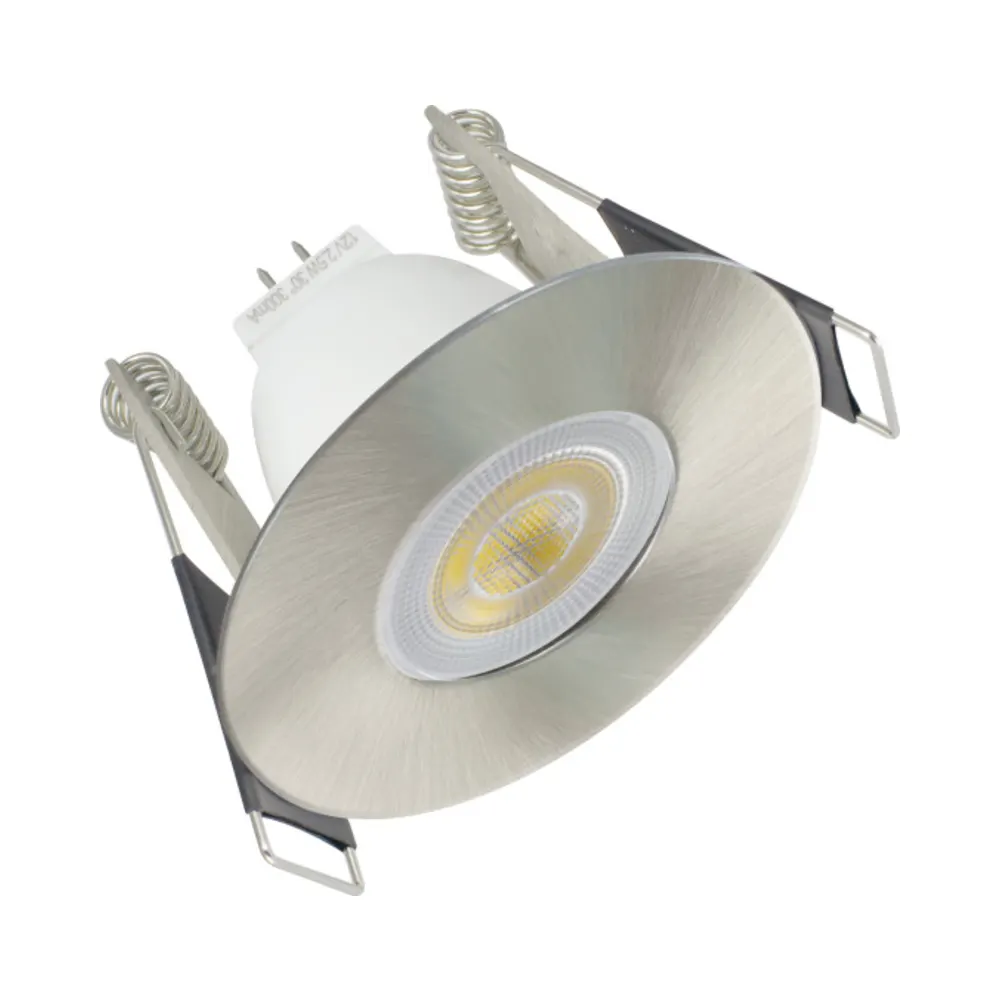

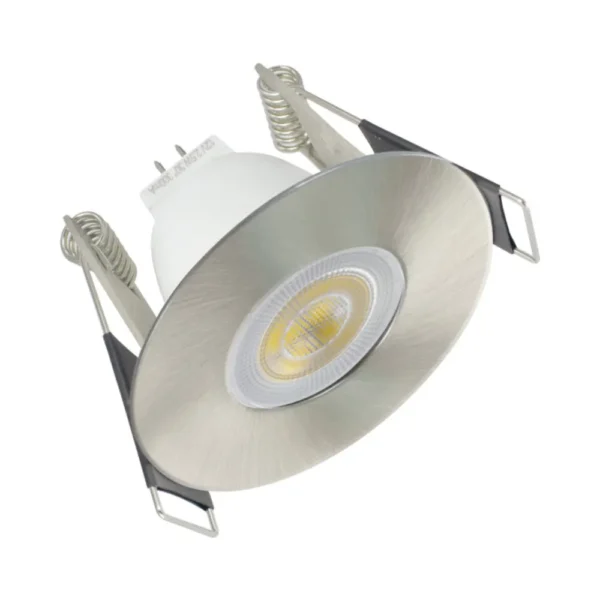

Integral ILDLFR45D038 Evofire Mini MR11 IP65 Satin Nickel Fire Rated Downlight
The Integral ILDLFR45D038 is a compact Evofire Mini fire-rated downlight featuring an elegant satin nickel finish, IP65 protection and an exceptionally small 45mm ceiling cut-out. With a 64mm overall diameter and shallow 38.5mm profile, this miniature recessed fitting provides an attractive lighting solution for modern homes, bathrooms, kitchens and commercial interiors.
Designed for compatible MR11 12V GU4 or MR11 240V GU10 LED lamps, the Integral ILDLFR45D038 combines a slim 1mm bezel with a ventilated design and tested 30, 60 and 90-minute fire resistance. Its satin nickel appearance is particularly suitable for interiors featuring brushed-metal electrical accessories, door furniture and bathroom fittings.
Satin Nickel Finish for Contemporary Interiors
The satin nickel Evofire Mini offers a subtle metallic appearance that complements contemporary and traditional interior designs without the highly reflective effect of polished chrome.
Its understated finish is particularly attractive alongside brushed nickel taps, stainless steel kitchen appliances, decorative switches and matching lighting accessories.
The ultra-thin 1mm blend-in bezel sits almost flush against the ceiling, creating a neat appearance while retaining the distinctive satin nickel finish.
With an overall diameter of just 64mm, this compact downlight is ideal for discreet recessed lighting arrangements where larger fittings would be visually intrusive.
Miniature 45mm Ceiling Cut-Out
One of the key advantages of the Integral ILDLFR45D038 is its small 45mm circular ceiling cut-out, allowing miniature recessed lighting to be incorporated into carefully planned interior designs.
Compared with conventional GU10 downlights, which frequently require larger ceiling openings, the Evofire Mini provides a more compact alternative for suitable MR11 lamps.
- 45mm circular ceiling cut-out
- 64mm overall fitting diameter
- 38.5mm shallow fitting profile
- Ultra-slim 1mm bezel
- Fixed recessed ceiling installation
These dimensions make the Evofire Mini particularly useful for decorative lighting, narrow hallways, smaller rooms and architectural features requiring unobtrusive illumination.
Shallow 38.5mm Profile for Limited Ceiling Space
The Integral Evofire Mini is designed with a shallow 38.5mm fitting profile, helping reduce the space occupied by the downlight body itself.
Its open construction avoids the bulky metal enclosure typically associated with traditional fire-rated downlights, making the fitting suitable for consideration in installations where ceiling space is restricted.
Additional clearance may be necessary for the selected MR11 lamp, lamp holder, wiring connections and ventilation. Always verify the complete installation depth before fitting.
MR11 GU10 and MR11 GU4 Lamp Compatibility
The Integral ILDLFR45D038 is designed for suitable miniature MR11 LED lamps using one of two lamp-holder arrangements.
- MR11 12V GU4 LED lamps require a compatible GU4 lamp holder and suitable 12V LED power supply.
- MR11 240V GU10 LED lamps require a compatible mains-voltage GU10 lamp holder and appropriate electrical connections.
This versatility allows the installer to choose an appropriate lamp and electrical configuration for the installation.
Please note that the downlight is supplied without a lamp or lamp holder. These components must be purchased separately.
Standard MR16 GU5.3 lamps and full-size 50mm GU10 lamps are not suitable substitutes for the miniature MR11 format.
Recommended Integral MR11 GU10 LED Lamp
For an appropriate mains-voltage GU10 installation, we recommend considering the Integral ILMR11DC011 MR11 GU10 LED Lamp, available separately from Electrical4Less.
This compact LED spotlight provides warm, focused illumination while consuming only 3.2W, making it suitable for decorative and accent lighting.
- Manufacturer Part Number: ILMR11DC011
- Lamp Type: MR11 LED Spotlight
- Cap Type: GU10
- Power Consumption: 3.2W
- Light Output: 330 Lumens
- Colour Temperature: 2700K Very Warm White
- Beam Angle: 36 Degrees
- Operating Voltage: 220-240V
- Dimmable: Yes, with a compatible LED dimmer
The 2700K warm white light is particularly suited to bedrooms, living rooms, hallways, feature areas and hospitality interiors where a welcoming atmosphere is preferred.
When using the ILMR11DC011 with the Integral ILDLFR45D038, a suitable compatible MR11 GU10 lamp holder must also be purchased separately.
View the Integral ILMR11DC011 MR11 GU10 LED Lamp.
Fire-Rated Evofire Mini Construction
The Integral ILDLFR45D038 incorporates Evofire intumescent fire protection technology, designed to help maintain the fire resistance of appropriately specified ceiling constructions.
The downlight is fire rated for 30, 60 and 90 minutes, with testing in accordance with BS 476 Part 21:1987.
Its pressed steel and glass construction provides a compact alternative to traditional enclosed fire-rated downlights, while allowing ventilation around suitable LED lamps.
The applicable fire rating depends on the tested ceiling construction, selected compatible components and correct installation in accordance with Integral LED’s instructions.
IP65 Protection for Bathrooms and Kitchens
The Integral Evofire Mini satin nickel downlight features IP65 protection when correctly assembled and installed with suitable components.
This makes it suitable for appropriately specified indoor locations where resistance to moisture is required, including certain bathroom and kitchen lighting installations.
Its compact diameter is particularly useful for smaller bathrooms or decorative lighting arrangements where a miniature recessed fitting is preferred.
Always follow the relevant bathroom-zone requirements, current wiring regulations and manufacturer’s installation guidance.
Improved Airflow for LED Lamp Cooling
The Evofire Mini uses an open design that allows heat generated by compatible MR11 LED lamps to dissipate more effectively than in traditional enclosed fire-rated fittings.
Improved ventilation can help reduce thermal stress on LED components and support longer lamp life.
The final operating temperature will depend on the selected lamp, electrical arrangement and installation conditions.
Fast-Fit Installation Features
The Evofire Mini range incorporates a Fast-Fit loop-in/loop-out junction box arrangement designed to simplify electrical installation.
The connection design allows tool-free assembly of the specified connections, helping installers work efficiently when fitting multiple recessed downlights.
The selected MR11 lamp holder and any necessary low-voltage power supply must be provided separately.
Key Features
- Integral LED Evofire Mini range
- Compact fire-rated recessed downlight
- Satin nickel finish
- 45mm circular ceiling cut-out
- 64mm overall diameter
- Shallow 38.5mm fitting depth
- Ultra-slim 1mm blend-in bezel
- IP65 protection
- 30, 60 and 90-minute fire rating
- Intumescent fire protection technology
- Open construction for improved LED lamp ventilation
- Compatible with suitable MR11 12V GU4 lamps
- Compatible with suitable MR11 240V GU10 lamps
- Fast-Fit loop-in/loop-out junction box arrangement
- Durable pressed steel and glass construction
- Suitable for domestic and commercial interiors
- MR11 lamp holder not included
- MR11 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Mini
- Manufacturer Part Number: ILDLFR45D038
- Product Type: Miniature Fire-Rated Recessed Downlight
- Configuration: Fixed
- Shape: Round
- Finish: Satin Nickel
- Material: Steel and Glass
- Construction: Pressed Steel and Glass
- Overall Diameter: 64mm
- Ceiling Cut-Out: 45mm
- Product Depth: 38.5mm
- Bezel Thickness: 1mm
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes (Subject to Tested Ceiling Construction)
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Compatible Lamp Format: MR11
- Compatible Lamp Bases: GU4 12V or GU10 240V
- Lamp Holder Included: No
- LED Lamp Included: No
- Luminaire Fixing: Recessed
- Application: Indoor General Lighting
Important Installation and Lamp Information
The Integral ILDLFR45D038 is supplied as a fire-rated downlight fitting without a lamp or lamp holder.
For a mains-voltage installation using the Integral ILMR11DC011 MR11 GU10 LED lamp, purchase a compatible MR11 GU10 holder separately.
For a 12V MR11 GU4 installation, a suitable GU4 holder and compatible 12V LED power supply are required.
Do not confuse the MR11 lamp format with standard MR16 GU5.3 lamps. Always check the cap type, lamp dimensions and electrical requirements.
Follow Integral LED’s instructions for minimum installation clearances and ceiling insulation arrangements. Do not cover the fitting with insulation unless the manufacturer’s instructions expressly permit the arrangement.
Ideal Applications
- Contemporary bathrooms and kitchens
- Interiors featuring satin nickel accessories
- Compact recessed lighting arrangements
- Hallways and narrow corridors
- Living rooms and bedrooms
- Decorative alcoves and feature lighting
- Architectural accent lighting
- New-build residential properties
- Hotels and hospitality interiors
- Offices and commercial refurbishment projects
Why Choose the Satin Nickel Evofire Mini?
The Integral ILDLFR45D038 combines a refined satin nickel finish with the compact dimensions of the Evofire Mini range.
Its 45mm ceiling cut-out, shallow 38.5mm profile and ultra-slim bezel make it an attractive choice for smaller recessed lighting installations where a conventional downlight would appear oversized.
The ability to use compatible MR11 GU4 or GU10 LED lamps provides installation flexibility, while the IP65 rating and tested fire protection support suitably specified lighting projects.
Order Integral Evofire Mini Downlights from Electrical4Less
Choose the Integral ILDLFR45D038 Evofire Mini for compact satin nickel recessed lighting requiring a 45mm cut-out and fire-rated construction.
Complete your installation with the Integral ILMR11DC011 MR11 GU10 LED Lamp and a suitable compatible lamp holder, both available separately.
