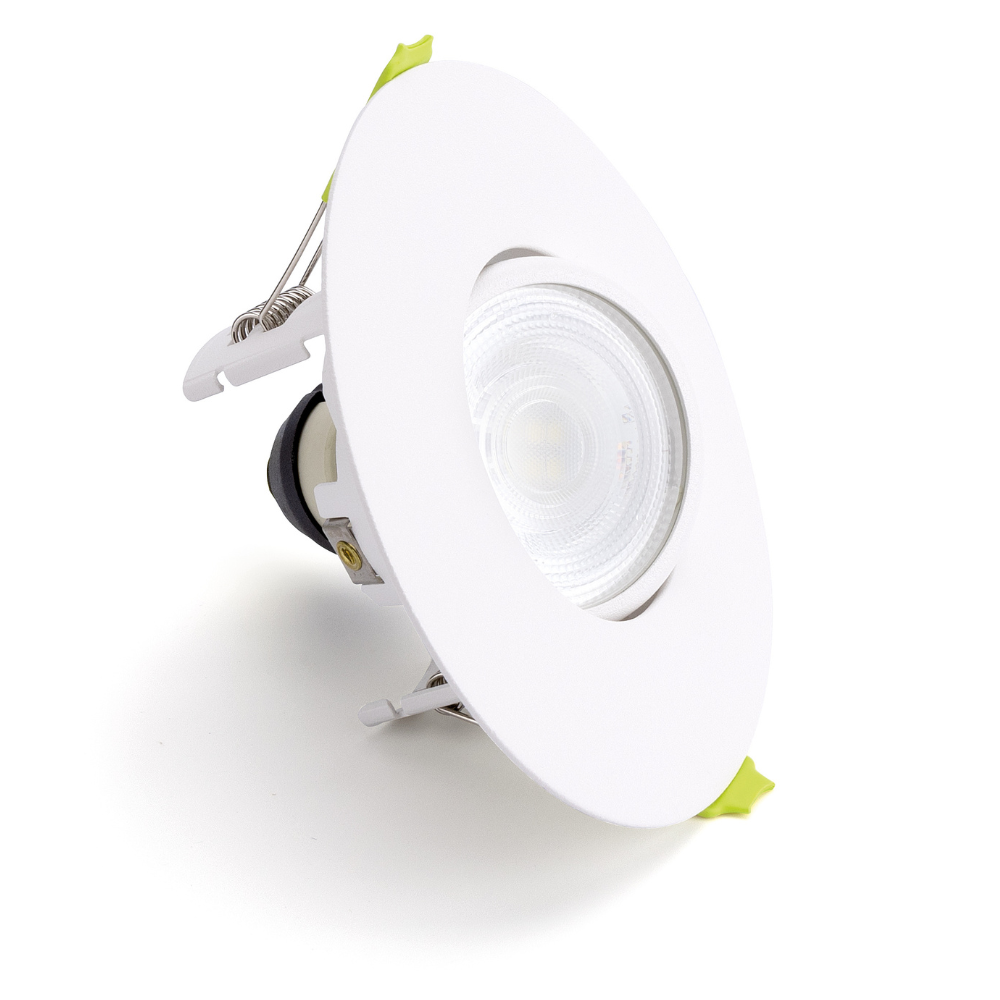

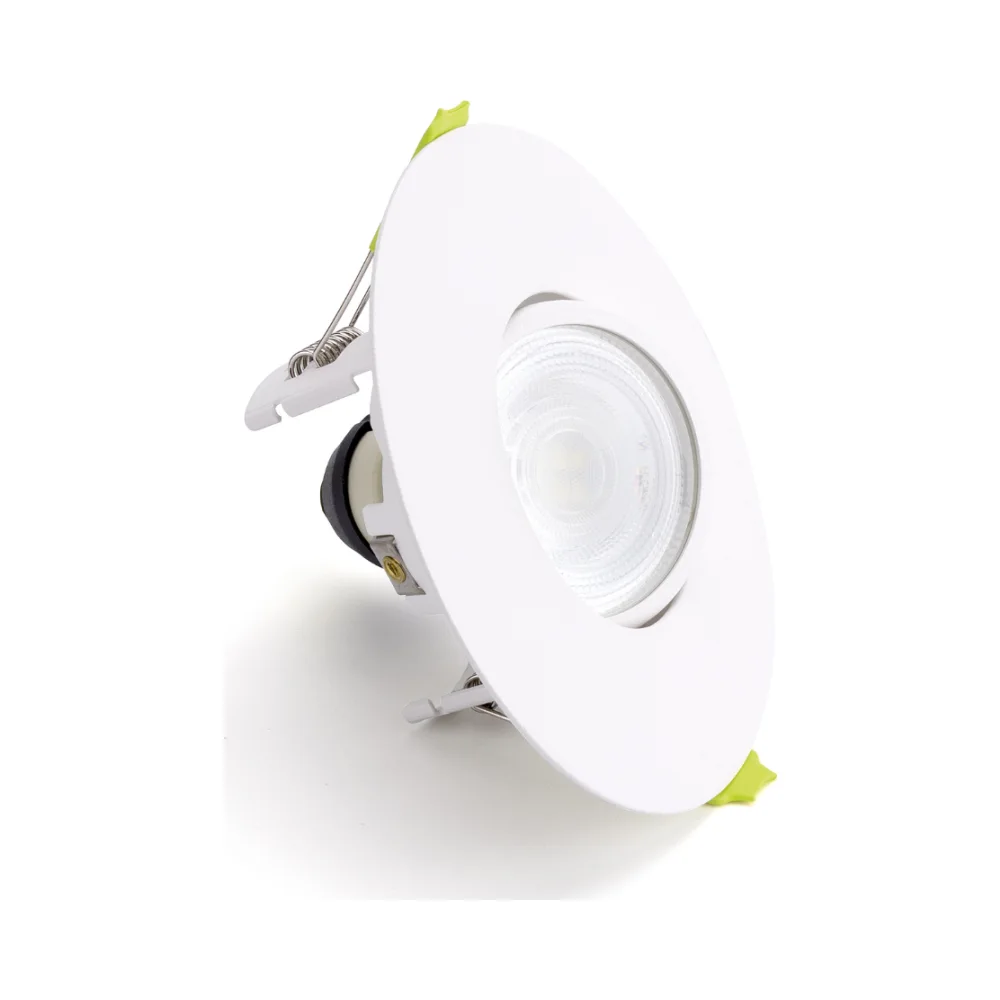

Integral ILDLFR70K182 Evofire Maxi 110 Tiltable Fire Rated GU10 Downlight
The Integral ILDLFR70K182 Evofire Maxi 110 is a white, fire-rated tiltable GU10 downlight designed for ceiling cut-outs between 70mm and 100mm. Featuring a generous 110mm diameter bezel, 20° directional adjustment and IP20 protection, this fitting is ideal for replacing older recessed downlights or creating flexible lighting arrangements in modern interiors.
Part of the Integral LED Evofire range, this Maxi downlight combines a slim 1mm bezel with innovative canless fire-rated construction. Its open design improves airflow around the GU10 LED lamp, while the adjustable mechanism allows light to be directed towards walls, displays and other features.
Evofire Maxi 110 – Ideal for 70-100mm Ceiling Cut-Outs
One of the main advantages of the Integral ILDLFR70K182 is its ability to accommodate a wider range of ceiling openings than conventional fixed-size downlights.
The 110mm outer bezel provides coverage for ceiling cut-outs from 70mm up to 100mm, making it a practical choice for refurbishment projects where existing openings may be larger than the standard 70mm size.
- 70-100mm compatible ceiling cut-out
- 110mm overall bezel diameter
- Ideal for replacing larger recessed downlights
- Ultra-slim 1mm white bezel
- Suitable for residential and commercial refurbishments
Always ensure the ceiling opening and supporting structure are suitable for secure installation.
20° Tiltable Design for Directional Lighting
The Evofire Maxi 110 features a 20° tilting mechanism, allowing the GU10 lamp to be angled towards specific areas rather than directing all illumination vertically downwards.
This makes the fitting particularly useful for accent lighting, illuminating artwork, highlighting feature walls and directing light towards shelves or displays.
The combination of an adjustable lamp position and a wide trim also makes the ILDLFR70K182 a versatile choice when replacing older directional recessed lighting.
Canless Fire-Rated Construction
Unlike traditional fire-rated downlights that use bulky metal enclosures, the Integral Evofire range incorporates intumescent fire protection within a ventilated, open-back construction.
The ILDLFR70K182 has been tested for fire resistance under BS 476 Part 21 in specified ceiling constructions:
- 30, 60 and 90 minutes – specified solid timber joist ceilings
- 30 and 60 minutes – specified i-Joist ceiling constructions
Fire performance depends on the ceiling construction and correct installation. Always refer to the Integral LED installation instructions for the applicable requirements.
Improved GU10 LED Lamp Cooling
The open Evofire design allows heat generated by the GU10 LED lamp to dissipate more effectively than with a conventional enclosed downlight.
According to Integral LED, lamps fitted within Evofire downlights can operate up to 10°C cooler than in traditional can-style fire-rated fittings.
Improved ventilation helps reduce thermal stress on compatible LED lamps and can contribute to longer operational life.
Ultra-Slim 1mm White Bezel
Despite its larger 110mm diameter, the Evofire Maxi maintains a discreet ceiling appearance thanks to its exceptionally thin 1mm blend-in bezel.
The white finish complements light-coloured ceilings, while the round shape provides a clean appearance suitable for living rooms, bedrooms, corridors and commercial interiors.
IP20 Rating for Indoor Applications
The Integral ILDLFR70K182 has an IP20 ingress protection rating and is intended for suitable dry indoor locations.
It is an excellent option for general room lighting and directional illumination where additional moisture protection is not required.
For bathrooms or other locations requiring greater water resistance, select an appropriately rated IP65 downlight instead.
Compatible GU10 LED Lamps
The Integral ILDLFR70K182 Evofire Maxi is supplied with a GU10 lamp holder, allowing the colour temperature and dimming characteristics to be selected according to the installation.
The GU10 LED lamp is not included and must be purchased separately. Electrical4Less offers the following Integral GU10 lamp options:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – ideal for creating a warm atmosphere in bedrooms, lounges and dining areas.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – suitable for general lighting in hallways, kitchens and living rooms.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for task lighting, offices and modern interiors.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – creates a warmer light appearance as brightness is reduced.
Check lamp wattage, physical dimensions and fitting compatibility before installation. Use a suitable LED dimmer when dimming is required.
Optional Clip-In Insulation Guard
The Integral ILDLFR70K182 does not include an insulation guard as standard. However, it is compatible with an optional clip-in insulation guard, available separately.
The compatible Integral ILDLFR55K270 accessory is designed for the Evofire Maxi 70-100mm cut-out range.
If the downlight is being installed beneath ceiling insulation, follow the manufacturer’s instructions regarding the guard, suitable insulation materials and required clearances.
Key Features – Integral ILDLFR70K182
- Integral LED Evofire Maxi 110 range
- Tiltable GU10 downlight with 20° adjustment
- 70-100mm compatible ceiling cut-out
- 110mm overall bezel diameter
- Ultra-slim 1mm blend-in bezel
- White finish
- IP20 ingress protection
- Fire rated for 30, 60 and 90 minutes in specified ceiling constructions
- Canless fire-rated construction
- Open-back design for improved lamp ventilation
- Pressed steel and glass construction
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- Optional clip-in insulation guard available separately
- GU10 LED lamp sold separately
Technical Specifications – Integral ILDLFR70K182
- Brand: Integral LED
- Range: Evofire Maxi 110 Tiltable
- Manufacturer Part Number: ILDLFR70K182
- Barcode: 5055788296430
- Product Type: Fire-Rated Tiltable Recessed Downlight
- Finish: White
- Shape: Round
- Construction: Pressed Steel and Glass
- Tilt Angle: 20°
- Overall Diameter: 110mm
- Ceiling Cut-Out: 70-100mm
- Fitting Depth: 48.5mm
- Bezel Thickness: 1mm
- Product Weight: 180g
- IP Rating: IP20
- Fire Rating: 30/60/90 Minutes, Subject to Ceiling Construction
- Fire Test Standard: BS 476 Part 21
- Air Tightness: Part C and Part L
- Resistance to Sound: Part E
- Lamp Holder: GU10
- Maximum LED Lamp Wattage: 10W
- Mounting: Recessed Ceiling
- Insulation Guard: Optional Accessory ILDLFR55K270
- GU10 Lamp Included: No
Ideal Applications
The Integral ILDLFR70K182 Evofire Maxi 110 is particularly useful where a larger ceiling cut-out or directional lighting is required.
- Replacement of older recessed downlights
- Ceiling openings between 70mm and 100mm
- Living rooms and dining rooms
- Bedrooms and hallways
- Feature walls and artwork illumination
- Retail displays and shop interiors
- Offices and meeting rooms
- Hotels and hospitality environments
- Residential and commercial refurbishments
Why Choose the Evofire Maxi 110 Tiltable Downlight?
The Integral ILDLFR70K182 offers two important installation advantages: a wide 70-100mm cut-out compatibility range and 20° directional adjustment.
These features make it particularly useful for replacing existing downlights without unnecessarily enlarging or repairing ceiling openings, provided the original cut-out is within the specified range.
Combined with Evofire’s fire-rated construction, thin bezel and improved lamp ventilation, this fitting provides a practical lighting solution for professional electricians and refurbishment projects.
