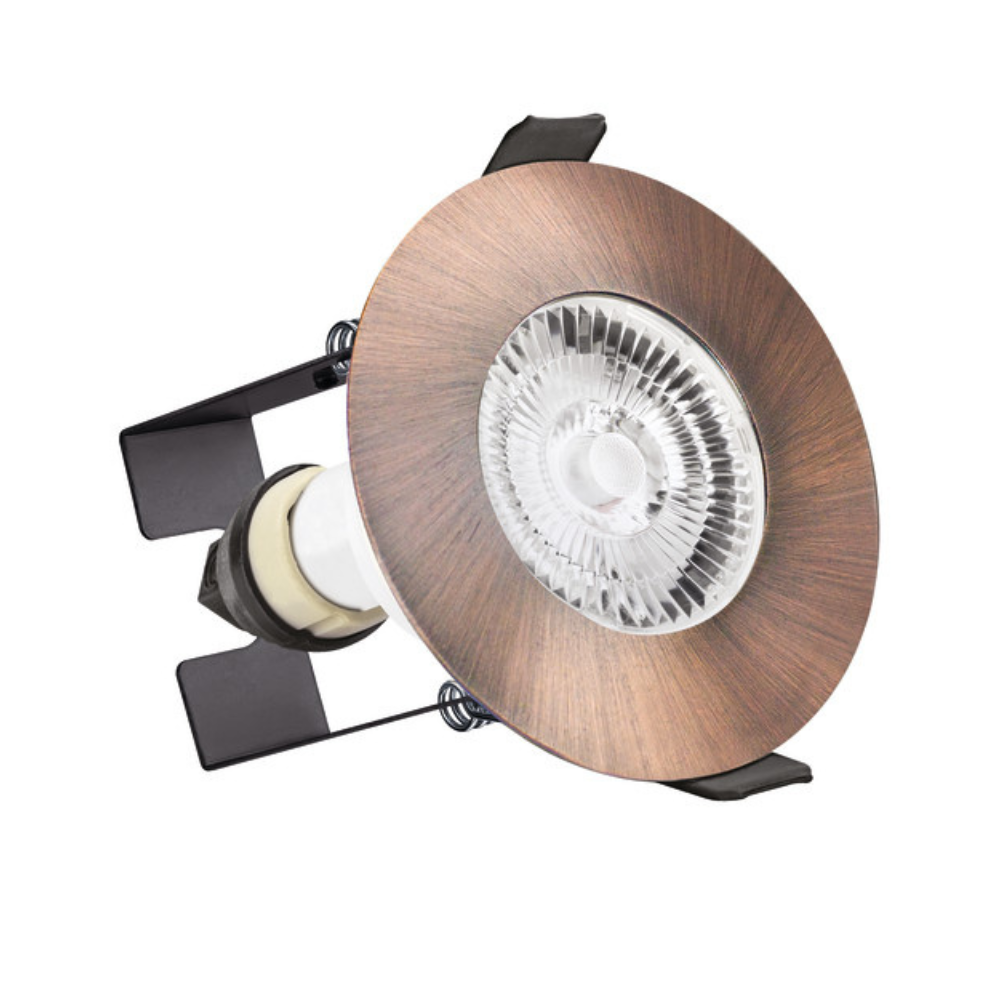

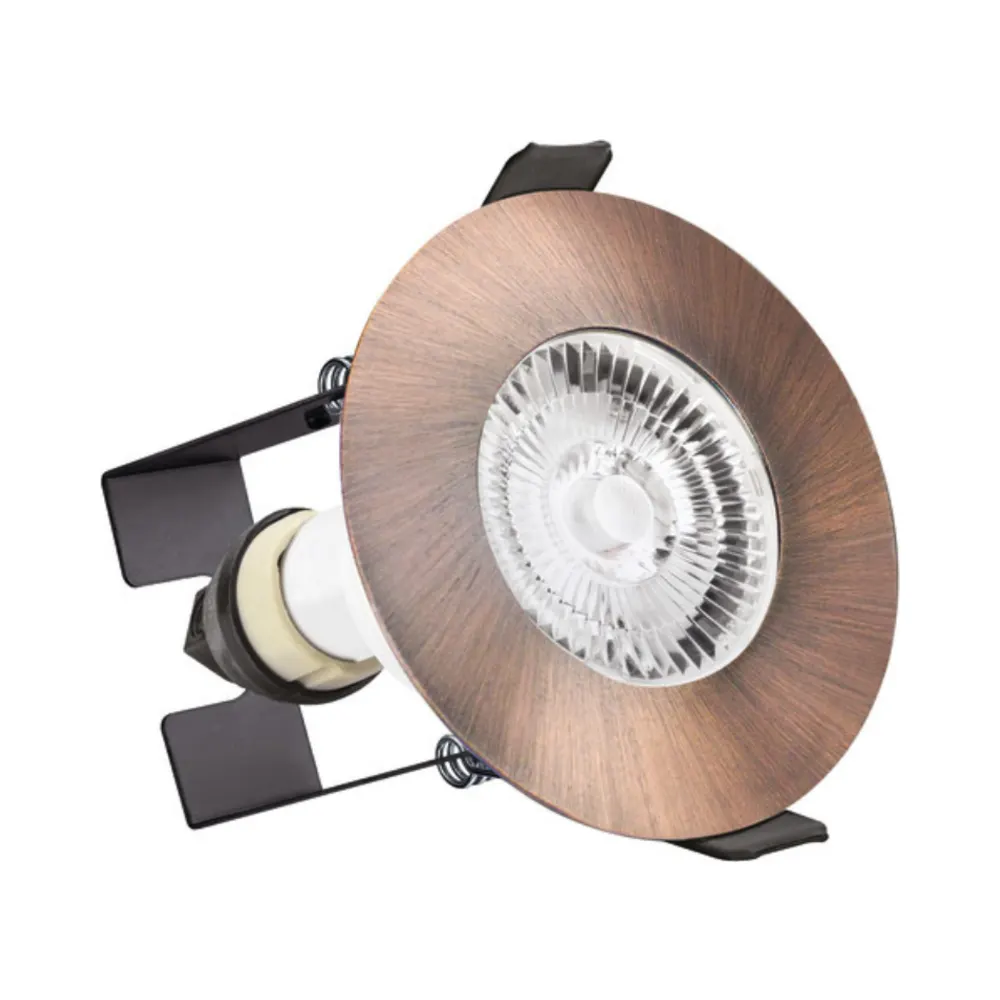

Integral ILDLFR70D048 Evofire 85 Copper IP65 GU10 Downlight with Insulation Guard
The Integral ILDLFR70D048 is a copper-finish, fire-rated GU10 downlight from the Evofire 85 range. Combining an integrated insulation guard, IP65 front protection and a distinctive metallic finish, this fitting is designed for recessed lighting installations where ceiling insulation and decorative appearance are both important.
Featuring an 85mm overall diameter, 70mm ceiling cut-out and ultra-slim 1mm bezel, the Integral ILDLFR70D048 offers a neat finish for domestic and commercial interiors. Its fixed, canless construction provides tested fire resistance while allowing improved ventilation around compatible LED lamps.
Integrated Insulation Guard for Insulated Ceilings

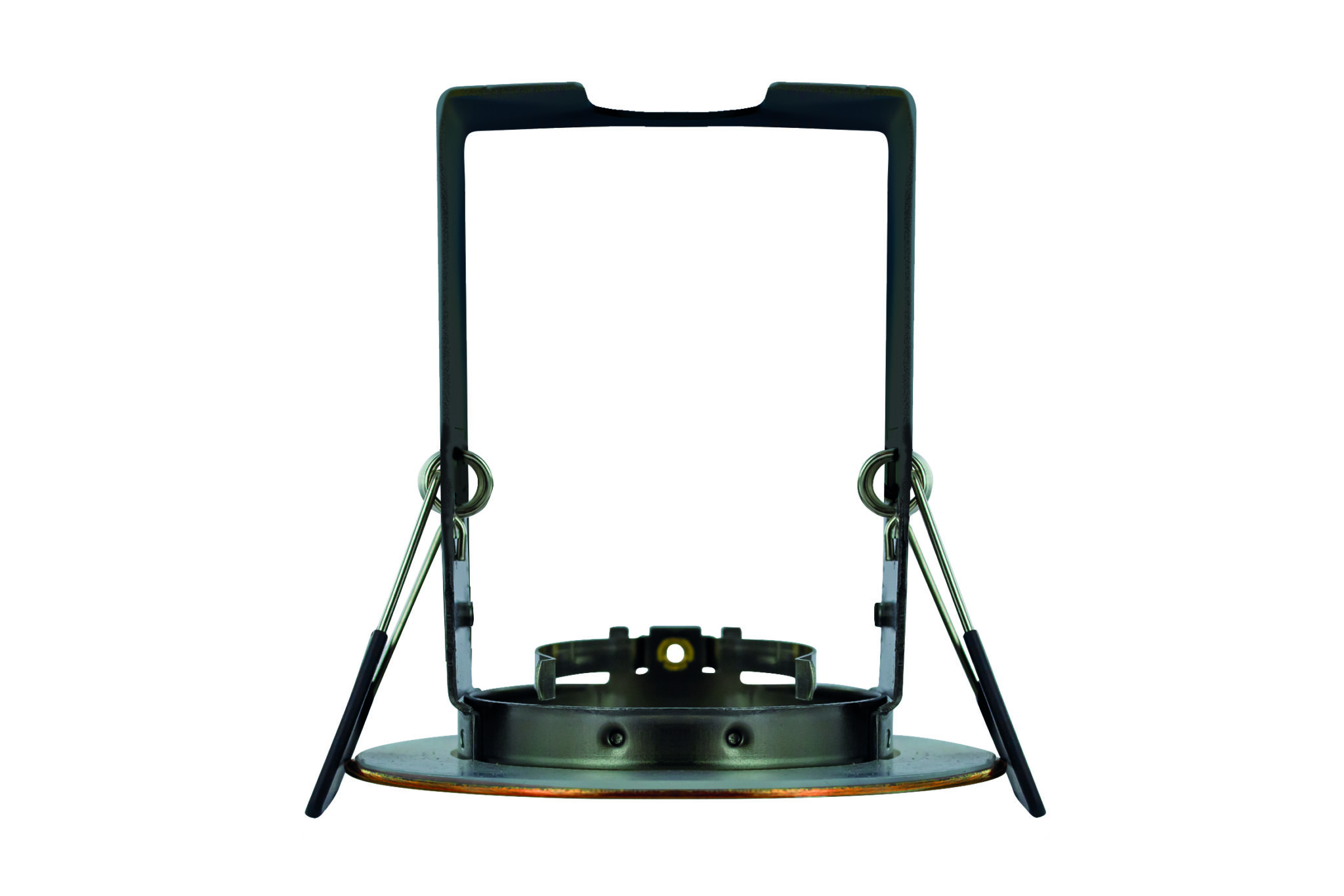

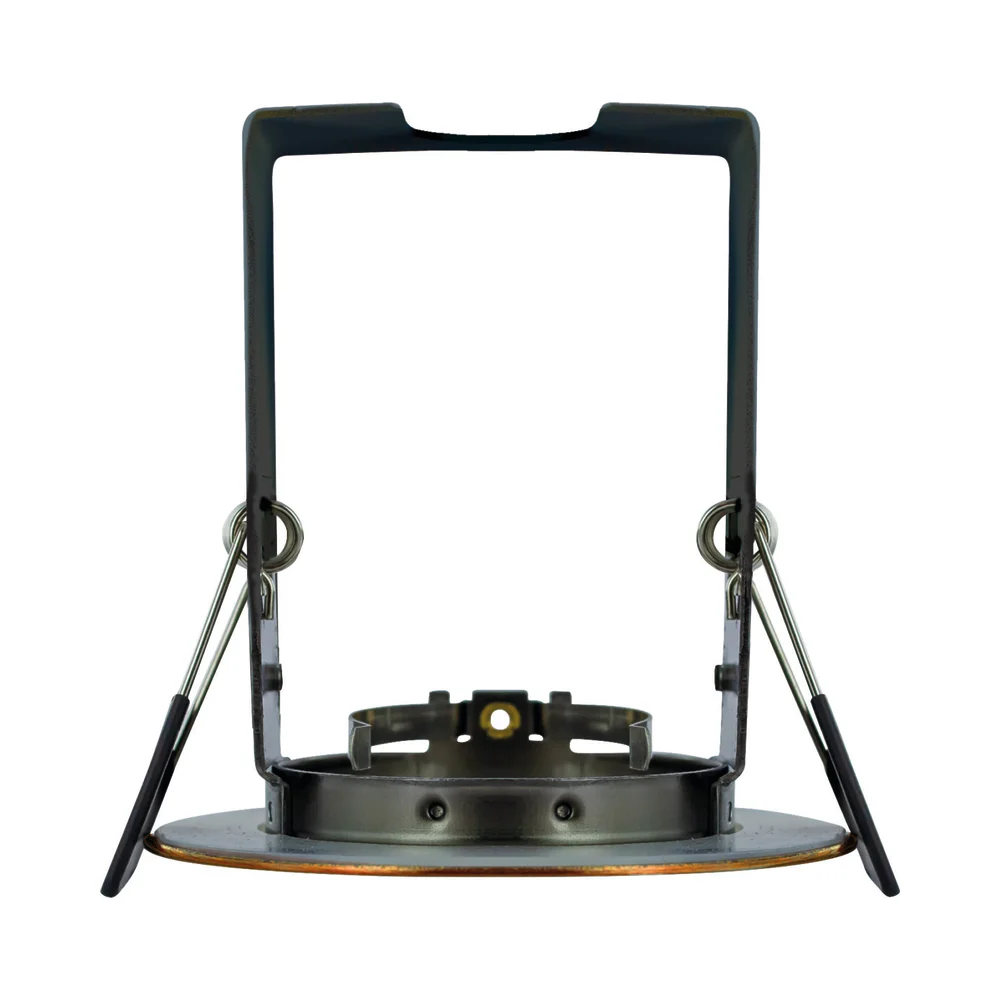

One of the main benefits of this Evofire copper downlight is its built-in insulation guard. The guard is integrated into the fitting, providing protection around the GU10 lamp when suitable ceiling insulation is installed above it.
This is particularly useful in loft conversions, residential extensions and energy-efficient properties where thermal insulation needs to be accommodated alongside recessed lighting.
- Factory-integrated insulation guard
- Designed for suitable insulated ceiling installations
- Allows compatible loft insulation to be laid over the fitting
- Maintains ventilation around the LED lamp
- No separate insulation guard required
The fitting has an overall depth of 83mm, including the insulation guard. Always check the available ceiling void and follow Integral LED’s installation instructions regarding insulation materials, lamp compatibility and required clearances.
Decorative Copper Finish with 1mm Slimline Bezel
The copper powder-coated finish gives this Evofire downlight a warm metallic appearance, making it a distinctive choice for contemporary kitchens, traditional interiors and decorative lighting schemes.
It can complement copper handles, taps, pendant lights and other warm-toned metal fittings, helping create a coordinated interior finish.
The ultra-thin 1mm blend-in bezel sits discreetly against the ceiling, providing a refined appearance without the bulk of traditional recessed fire-rated downlights.
70mm Cut-Out and 85mm Overall Diameter
The Integral ILDLFR70D048 is designed for a standard 70mm ceiling cut-out and has an overall bezel diameter of 85mm.
This makes it suitable for new recessed lighting installations and replacement projects where the existing ceiling opening is compatible.
For larger ceiling openings between 70mm and 100mm, Integral also offers the ILDLFR70D050 copper adapter ring for selected compatible Evofire downlights.
Canless Fire-Rated Evofire Technology
The Integral Evofire range uses intumescent fire protection instead of enclosing the GU10 lamp within a large traditional metal canister.
The ILDLFR70D048 offers 30, 60 and 90-minute fire resistance in specified ceiling constructions, helping maintain the fire performance of appropriately installed ceilings.
Its pressed steel and glass construction provides durability, while the innovative fire protection design supports improved airflow around the replaceable LED lamp.
Always check the manufacturer’s fire test documentation and installation instructions for the applicable ceiling construction.
IP65 Front Protection for Bathrooms and Kitchens
The Integral ILDLFR70D048 features IP65 protection at the exposed front of the fitting, offering protection against dust ingress and water jets when correctly installed.
Its copper finish makes it particularly attractive for bathrooms, kitchens and other interiors featuring matching metallic accessories.
The recessed side is rated IP20. Installation must comply with the relevant bathroom-zone requirements, wiring regulations and manufacturer’s instructions.
Improved Airflow and GU10 Lamp Cooling
Evofire’s canless construction allows heat generated by the GU10 LED lamp to dissipate more effectively than in traditional enclosed fire-rated downlights.
Integral LED states that compatible lamps installed in Evofire fittings can operate up to 10°C cooler than in conventional can-style alternatives.
Lower operating temperatures can reduce thermal stress on LED components and contribute to improved lamp longevity.
Compatible GU10 LED Lamps
The Integral ILDLFR70D048 is supplied with a GU10 lamp holder, but the LED lamp must be purchased separately. This allows customers to choose the appropriate brightness, colour temperature and dimming characteristics for their installation.
Explore these Integral GU10 LED lamp options from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates a warm, welcoming atmosphere in bedrooms, living rooms and dining spaces.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile choice for kitchens, hallways and general domestic lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides crisp white illumination for workspaces, bathrooms and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – produces warmer light as brightness is reduced, ideal for relaxing evening lighting.
Before choosing a GU10 lamp, check its maximum permitted wattage, dimensions and compatibility with the integrated insulation guard. Use a suitable LED dimmer where dimming is required.
Key Features
- Integral LED Evofire 85 range
- Fixed fire-rated recessed GU10 downlight
- Decorative copper powder-coated finish
- Integrated insulation guard included
- Ultra-slim 1mm blend-in bezel
- 85mm overall diameter
- 70mm ceiling cut-out
- 83mm fitting depth
- IP65 front protection
- IP20 recessed-side rating
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Open construction for improved LED lamp cooling
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D048
- EAN: 5055788268154
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Copper
- Construction: Pressed Steel and Glass
- Shape: Round
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Product Depth: 83mm
- Product Weight: 491g
- Bezel Thickness: 1mm
- Front IP Rating: IP65
- Back/Recessed Side IP Rating: IP20
- Fire Rating: 30, 60 and 90 Minutes
- Insulation Guard: Integrated
- Lamp Holder: GU10 Included
- Mounting: Recessed Ceiling
- Application: Indoor Residential and Commercial Lighting
- CE and RoHS: Yes
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
83mm Fitting Depth – Installation Considerations
The Integral ILDLFR70D048 has an overall depth of 83mm due to its integrated insulation guard.
Installers should confirm that sufficient space is available above the ceiling, particularly where joists, cables, pipes or other obstructions may restrict installation.
For installations where an integrated insulation guard is not required, the Integral ILDLFR70D047 offers a shallower 39mm copper alternative with the same 70mm cut-out and 85mm bezel diameter.
Suitable Applications
The copper Evofire downlight combines practical installation features with a distinctive decorative finish, making it suitable for a variety of lighting projects.
- Bathrooms and shower rooms, subject to installation requirements
- Kitchens featuring copper accessories
- Living rooms and dining areas
- Insulated ceiling voids
- Loft conversions and residential extensions
- Traditional and contemporary interiors
- Hotels, restaurants and hospitality spaces
- Domestic and commercial lighting refurbishments
Why Choose the Integral Evofire Copper Downlight?
The Integral ILDLFR70D048 combines a distinctive copper finish with integrated insulation protection and a slimline recessed design.
Its IP65 front rating, tested fire resistance and replaceable GU10 lamp arrangement provide practical benefits for professional electricians, while the warm metallic finish offers an alternative to more conventional white, chrome and satin nickel downlights.
Order Integral Evofire Downlights from Electrical4Less
Choose the Integral ILDLFR70D048 Evofire 85 for fire-rated GU10 lighting installations requiring a copper finish and built-in insulation guard.
Order online from Electrical4Less and select a compatible Integral GU10 LED lamp separately to complete your installation.
