Integral ILDLFR70D029 Evofire 85 Black IP65 GU10 Downlight with Insulation Guard
The Integral ILDLFR70D029 is a black fire-rated GU10 downlight from the Evofire 85 range, combining a contemporary matt black finish with an integrated insulation guard and IP65 front protection. Designed for a 70mm ceiling cut-out, this fixed recessed fitting is particularly suitable for modern lighting installations where a discreet appearance and ceiling insulation compatibility are important.

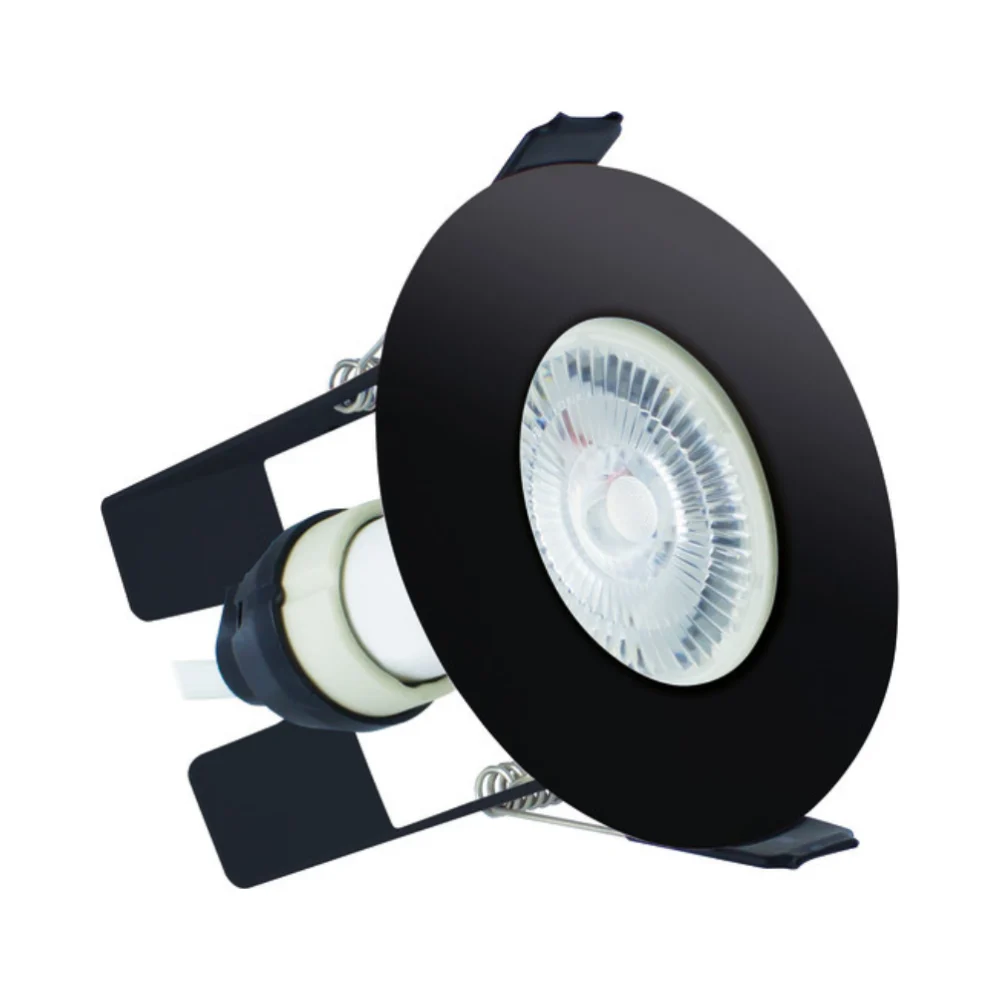

Featuring an 85mm overall diameter and ultra-thin 1mm bezel, the Integral ILDLFR70D029 creates a clean, architectural finish against both dark and light-coloured ceilings. Its 83mm depth incorporates a factory-fitted insulation guard, making it useful for suitably specified insulated ceiling installations.
Matt Black Finish for Contemporary Interiors
The black powder-coated finish gives this Evofire downlight a modern appearance that works particularly well with industrial-style interiors, black switches, dark ceiling details and minimalist lighting schemes.
Unlike conventional white downlights that blend into the ceiling, the black bezel can also be used deliberately as a decorative feature, creating contrast against white plasterboard or coordinating with darker architectural finishes.

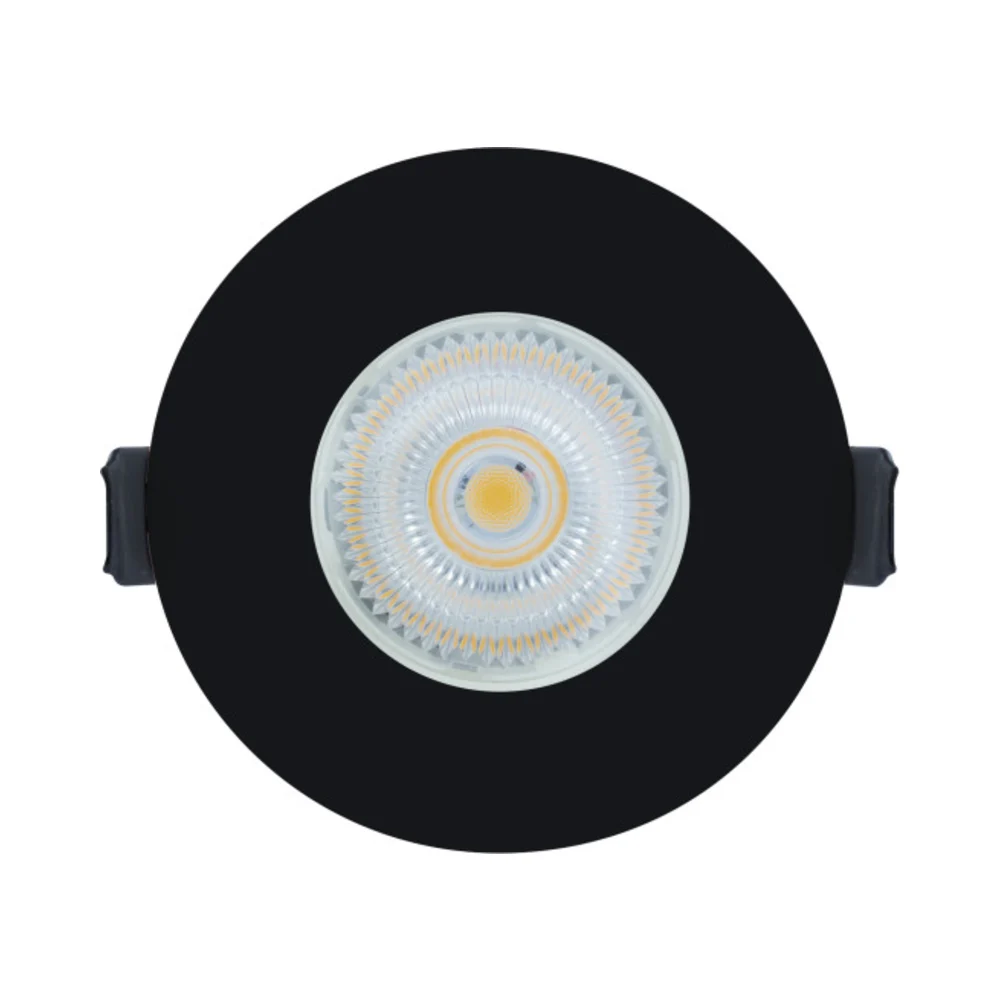

The ultra-slim 1mm blend-in bezel reduces the visible profile of the fitting, providing a neat finish without the appearance of a bulky recessed lighting trim.
Integrated Insulation Guard for Insulated Ceilings

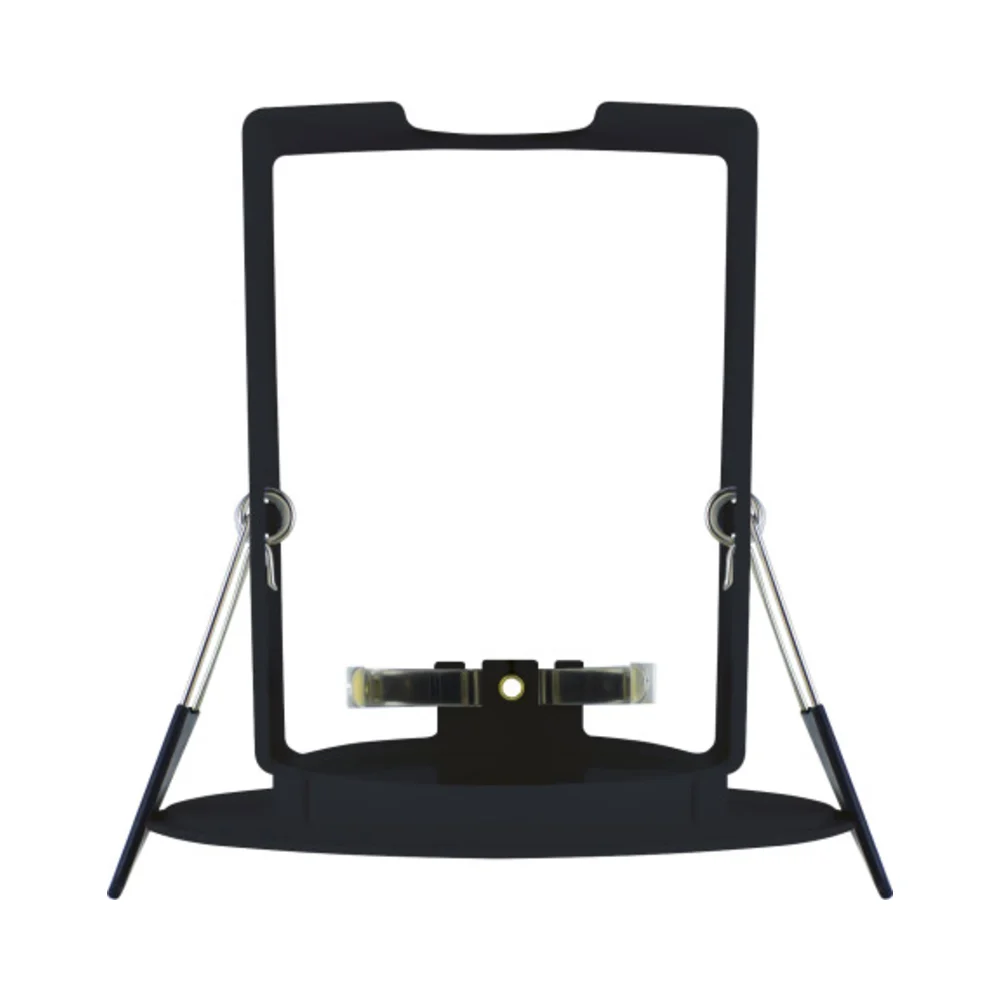

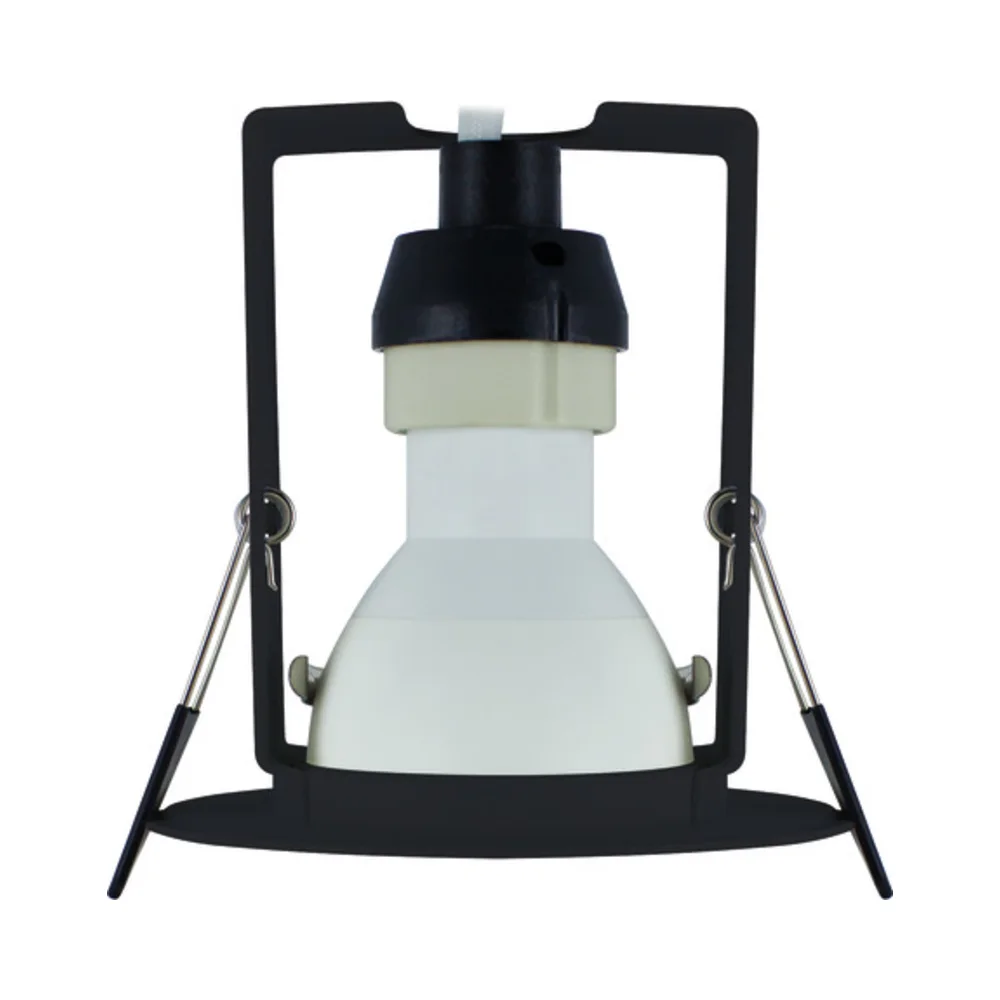

A major advantage of the Integral ILDLFR70D029 is its built-in insulation guard, designed to accommodate suitable loft insulation while maintaining ventilation around the GU10 LED lamp.
Unlike Evofire models without an integrated guard, this version allows compatible thermal insulation to be laid over the fitting when installed in accordance with Integral LED’s instructions.
- Factory-fitted insulation guard included
- Suitable for specified insulated ceiling installations
- Allows compatible loft insulation to cover the fitting
- Maintains airflow around the LED lamp
- No separate insulation guard required
This makes the fitting particularly useful in loft conversions, home extensions, insulated ceiling voids and residential refurbishment projects.
The integrated guard is not suitable for every insulation material, including blown insulation. Always check the manufacturer’s installation instructions before covering the fitting.
83mm Depth and 70mm Ceiling Cut-Out
The Evofire 85 black downlight is designed for a standard 70mm ceiling opening and has an overall diameter of 85mm.
Its 83mm depth includes the insulation guard, so sufficient ceiling void space must be available before installation.
Installers should check the position of joists, cables, pipework and other obstructions, as well as the applicable installation clearances.
Canless Fire-Rated Evofire Technology
The Integral Evofire range uses intumescent fire protection rather than relying on a conventional bulky metal canister.
The ILDLFR70D029 has been tested for 30, 60 and 90-minute fire resistance in specified ceiling constructions under BS 476 Part 21:1987.
This design combines tested fire protection with improved ventilation around the replaceable GU10 LED lamp.
The applicable fire rating depends on the ceiling construction and correct installation in accordance with the manufacturer’s instructions.
IP65 Front Protection for Bathrooms and Kitchens
The Integral ILDLFR70D029 features IP65 protection at the exposed front, providing resistance against dust ingress and water jets when correctly installed.
It is suitable for appropriately specified bathroom locations, kitchens, utility rooms and other indoor environments where moisture protection is required.
The recessed side has an IP20 rating. Installations must comply with the relevant bathroom-zone requirements and current wiring regulations.
Improved Cooling for GU10 LED Lamps
Traditional enclosed fire-rated downlights can restrict airflow around LED lamps. The Evofire design allows heat to dissipate more effectively.
Integral LED states that compatible lamps installed in Evofire fittings can operate up to 10°C cooler than in conventional can-style fire-rated downlights.
Improved ventilation can reduce thermal stress on LED components and support longer lamp life.
Compatible GU10 LED Lamps
The Integral ILDLFR70D029 is supplied with a GU10 lamp holder, but the LED lamp is sold separately. Customers can select their preferred brightness, colour temperature and dimming characteristics to suit the installation.
Explore these Integral GU10 LED lamps available from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates a comfortable, warm atmosphere for bedrooms, lounges and dining areas.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile choice for kitchens, hallways and general domestic lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides crisp white illumination for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – creates a warmer light appearance as brightness is reduced, ideal for relaxing evening lighting.
The maximum permitted GU10 LED lamp wattage is 10W. Always check the selected lamp’s dimensions and suitability for use with the integrated insulation guard. Use a compatible LED dimmer where required.
Optional Black Downlight Adapter Ring
For larger existing ceiling openings, the matching black Evofire adapter ring offers a practical solution for selected compatible downlights.
The Integral ILDLFR70D030 Black Downlight Adapter Ring features a 110mm outer diameter and is designed for compatible Evofire installations with ceiling cut-outs between 70mm and 100mm.
This accessory may be particularly useful when replacing older recessed lighting with larger existing ceiling openings. Confirm compatibility with the ILDLFR70D029 before ordering.
Key Features
- Integral LED Evofire 85 range
- Fixed fire-rated GU10 downlight
- Black powder-coated finish
- Integrated insulation guard included
- Ultra-slim 1mm blend-in bezel
- 85mm overall diameter
- 70mm ceiling cut-out
- 83mm fitting depth
- IP65 front protection
- IP20 recessed-side rating
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Improved airflow around compatible GU10 LED lamps
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D029
- Quick Order Code: 931783
- EAN: 5055788253815
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Black
- Coating: Powder-Coated
- Shape: Round
- Construction: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 83mm
- Product Weight: 173g
- Bezel Thickness: 1mm
- Front IP Rating: IP65
- Back/Recessed Side IP Rating: IP20
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Insulation Guard: Integrated
- Lamp Holder: GU10 Supplied
- Maximum LED Lamp Wattage: 10W
- Mounting: Recessed Ceiling
- CE and RoHS: Yes
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
Important Installation Information
The Integral ILDLFR70D029 has an overall depth of 83mm due to its integrated insulation guard. Confirm sufficient clearance above the ceiling before installation.
The manufacturer’s installation guidance permits suitable thermal insulation over guarded Evofire fittings but excludes blown insulation. Always follow the applicable instructions for insulation materials, lamp wattage and installation clearances.
For projects where an integrated insulation guard is not required, the Integral ILDLFR70D028 offers a shallower 39mm alternative in the same black finish.
Ideal Applications
- Modern bathrooms and shower rooms
- Kitchens with black electrical accessories
- Contemporary living rooms and bedrooms
- Hallways and corridors
- Insulated ceiling installations
- Loft conversions and residential extensions
- Hotels and hospitality interiors
- Offices and commercial premises
- Modern domestic refurbishment projects
Why Choose the Integral Evofire Black Downlight?
The Integral ILDLFR70D029 combines contemporary black styling with practical installation features, including an integrated insulation guard, IP65 front protection and a replaceable GU10 lamp.
Its slimline 1mm bezel provides a discreet ceiling appearance, while the Evofire fire-rated construction and improved ventilation make it suitable for professional recessed lighting installations.
Order Integral Evofire Downlights from Electrical4Less
Choose the Integral ILDLFR70D029 Evofire 85 for fire-rated GU10 lighting installations requiring a black finish and built-in insulation protection.
Order online from Electrical4Less and select a compatible Integral GU10 LED lamp separately to complete your installation.
