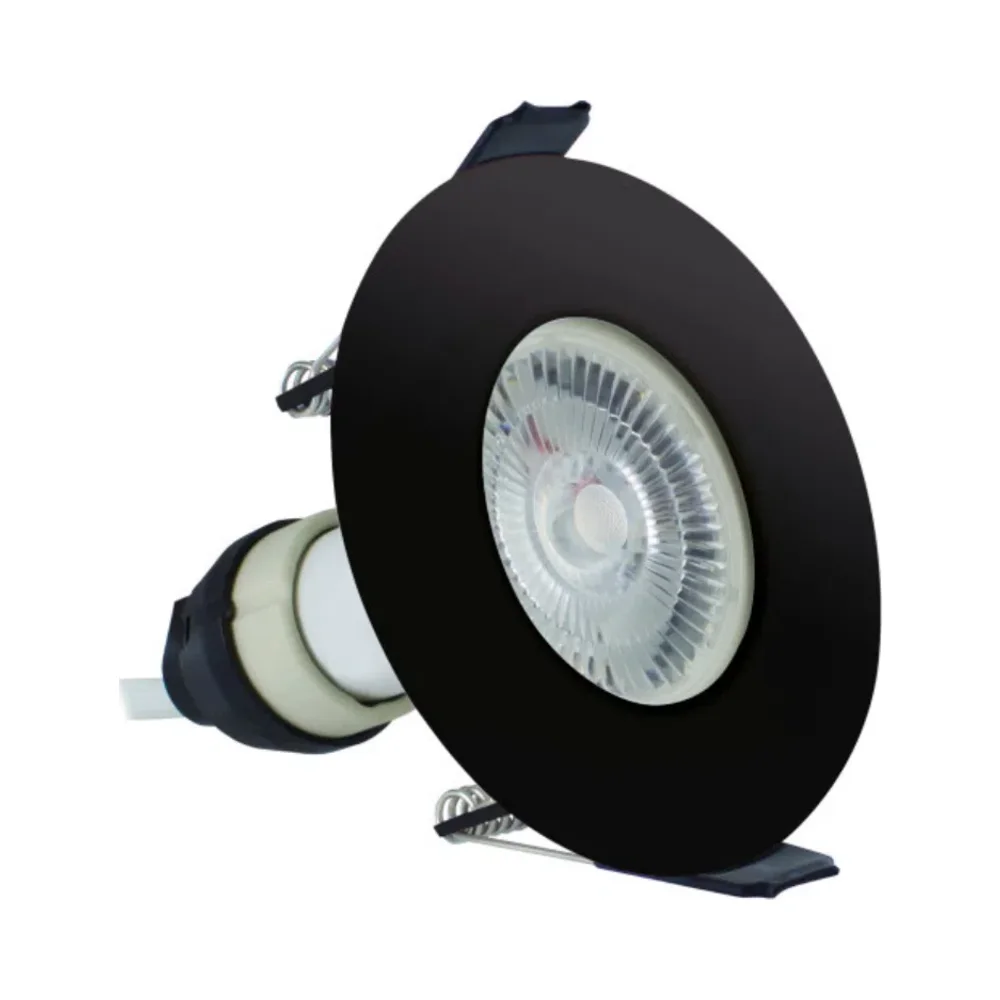

Integral ILDLFR70D028 Evofire 85 Black IP65 Fire Rated GU10 Downlight
The Integral ILDLFR70D028 is a fixed black fire-rated GU10 downlight from the Evofire 85 range, designed for modern recessed lighting installations. Featuring a 1mm ultra-slim bezel, IP65 front protection and a shallow 39mm fitting depth, it combines a minimalist appearance with practical installation benefits.
Designed for a standard 70mm ceiling cut-out, this black Evofire downlight is particularly suitable for contemporary bathrooms, kitchens, living rooms and commercial interiors. Its canless construction helps improve airflow around compatible GU10 LED lamps while maintaining tested fire protection.
Matt Black Finish with Ultra-Slim 1mm Bezel
The Integral ILDLFR70D028 features a black powder-coated finish that complements modern interior designs, dark electrical accessories and architectural lighting schemes.

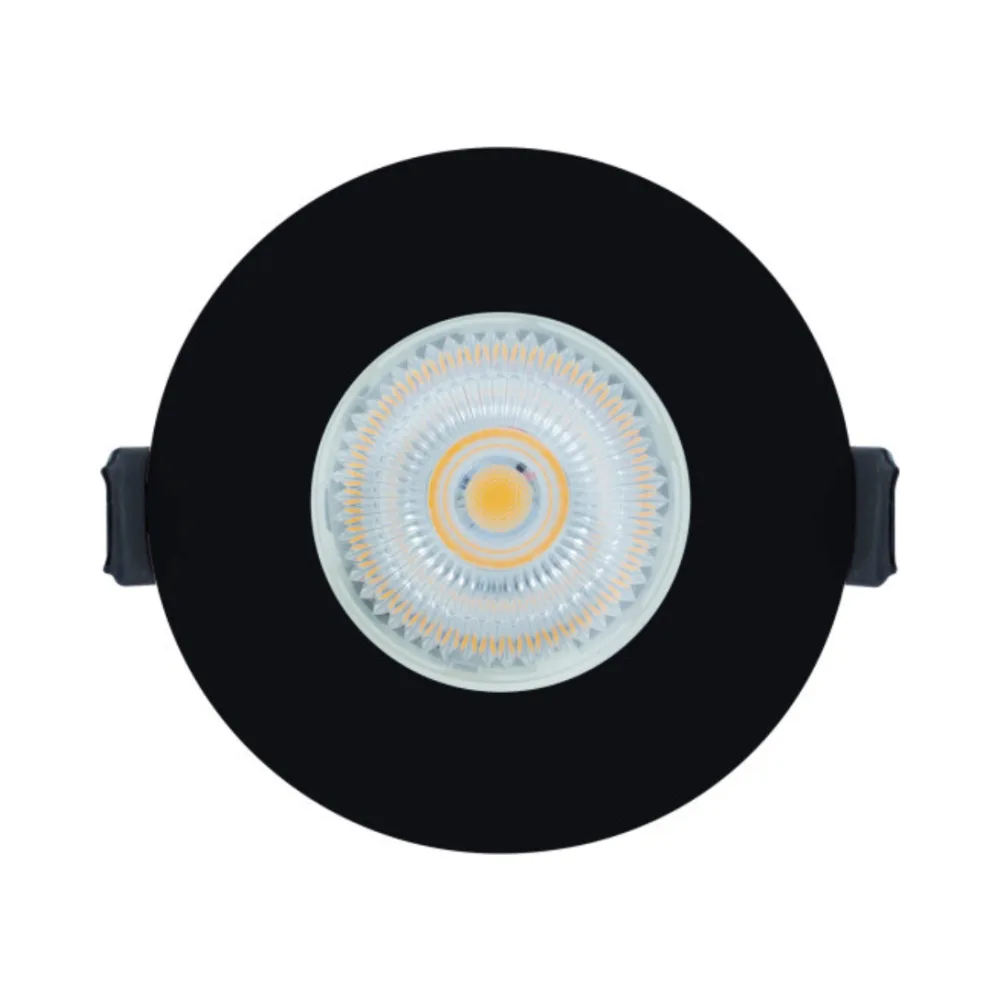

Its ultra-thin 1mm blend-in bezel provides a discreet appearance against the ceiling. The 85mm round diameter makes it suitable for installations where a neat, compact downlight is preferred over larger decorative fittings.
Black recessed downlights can also provide an attractive contrast against white ceilings, particularly in kitchens, corridors and contemporary living areas.
Shallow 39mm Design for Restricted Ceiling Voids
One of the main advantages of the Evofire 85 black downlight is its shallow 39mm fitting depth.

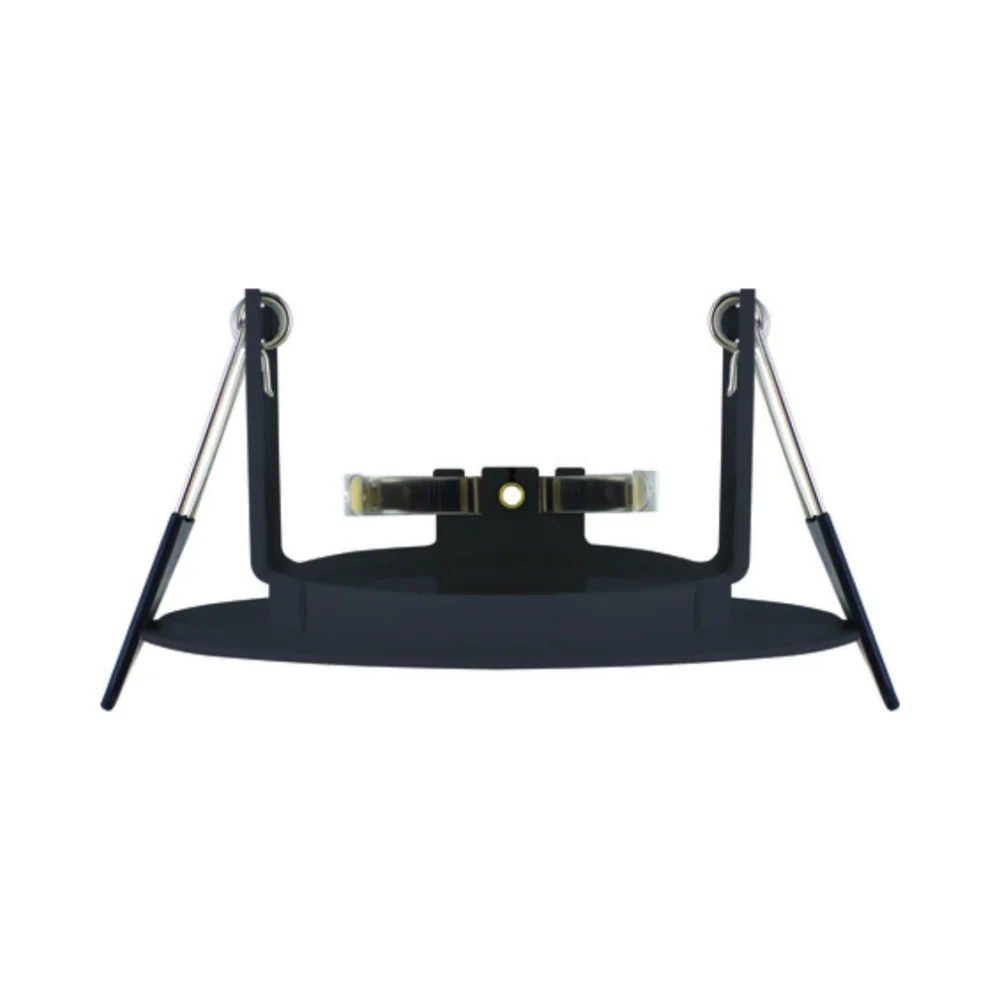

Unlike traditional fire-rated downlights that rely on bulky metal canisters, Evofire uses an innovative open-back construction. This helps reduce the space required for the fitting itself.
- Shallow 39mm fitting depth
- 70mm ceiling cut-out
- 85mm overall diameter
- Ultra-slim 1mm bezel
- Fixed recessed installation
Additional space may be required for the lamp, electrical connections and ventilation. Always follow Integral LED’s installation instructions when working in restricted ceiling spaces.
Canless Fire-Rated Evofire Technology
The Integral ILDLFR70D028 incorporates Evofire’s patented intumescent fire protection system, eliminating the need for a conventional enclosed metal canister.
The downlight provides 30, 60 and 90-minute fire resistance in specified solid timber joist ceiling constructions and 30 and 60 minutes in specified i-joist constructions.
Fire performance has been tested in accordance with BS 476 Part 21:1987. The applicable rating depends on the ceiling construction and correct installation.
Improved Airflow Around GU10 LED Lamps
The fully open Evofire design allows heat generated by the GU10 LED lamp to dissipate more effectively than in traditional enclosed fire-rated downlights.
According to Integral LED, compatible lamps can operate up to 10°C cooler when installed in Evofire fittings compared with typical can-style alternatives.
Improved heat dissipation can help reduce thermal stress on LED components and support longer lamp life.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR70D028 has an IP65-rated front, providing protection against dust ingress and water jets when correctly installed.
This makes it suitable for appropriately specified bathroom locations, kitchens, utility rooms and other indoor environments where moisture resistance is required.
The rear recessed side is rated IP20. Always check the applicable bathroom zones and electrical installation requirements.
Compatible GU10 LED Lamps

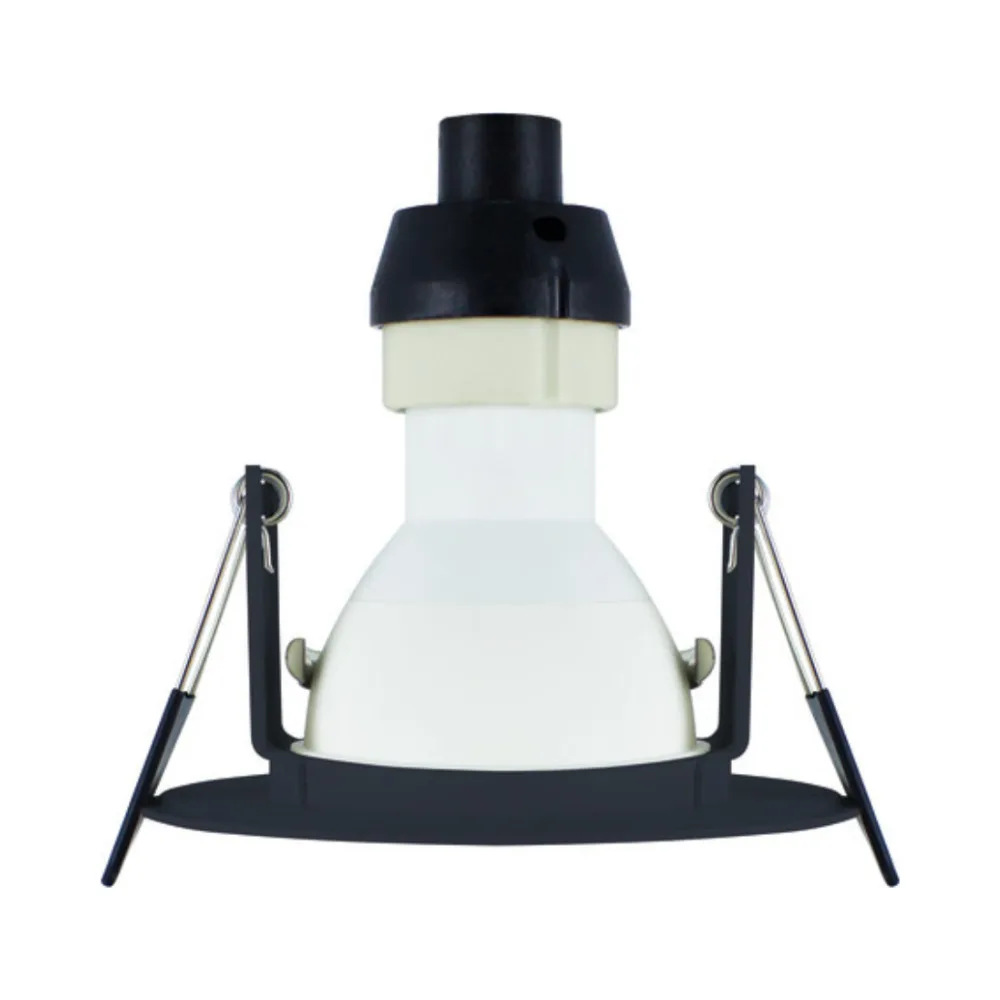

The Integral ILDLFR70D028 is supplied with a GU10 lamp holder, but the LED lamp is sold separately. This allows you to choose the preferred colour temperature, brightness and dimming characteristics for your installation.
Explore these Integral GU10 LED lamps available from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – suitable for warm, comfortable bedroom, lounge and dining room lighting.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile option for kitchens, hallways and everyday interior lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – creates a warmer light appearance as brightness is reduced.
Check the selected lamp’s dimensions, wattage and compatibility before installation. Use a compatible LED dimmer where dimming is required.
Matching Black Downlight Adapter Ring
For larger existing ceiling openings, the Integral ILDLFR70D030 Black Downlight Adapter Ring offers a matching black finish.
This optional accessory is designed for compatible round Evofire downlights and allows installation in suitable ceiling cut-outs between 70mm and 100mm.
It can be particularly useful when replacing older recessed lighting where the original opening is larger than 70mm. Confirm compatibility before ordering.
Key Features
- Integral LED Evofire 85 range
- Fixed fire-rated GU10 downlight
- Black powder-coated finish
- Ultra-slim 1mm blend-in bezel
- 85mm overall diameter
- 70mm ceiling cut-out
- Shallow 39mm fitting depth
- IP65 front protection
- IP20 recessed-side rating
- 30, 60 and 90-minute fire rating in specified ceiling constructions
- Canless intumescent fire protection
- Improved airflow around GU10 LED lamps
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder included
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D028
- Quick Order Code: 434591
- EAN: 5055788253792
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Black
- Coating: Powder-Coated
- Shape: Round
- Construction: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 39mm
- Product Weight: 138g
- Bezel Thickness: 1mm
- Front IP Rating: IP65
- Back/Recessed Side IP Rating: IP20
- Fire Rating: 30, 60 and 90 Minutes (Subject to Ceiling Construction)
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Insulation Guard: Not Included
- Lamp Holder: GU10 Supplied
- Mounting: Recessed Ceiling
- CE and RoHS: Yes
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
Important Ceiling Insulation Information
The Integral ILDLFR70D028 does not include an integrated insulation guard. Do not cover the fitting directly with ceiling insulation unless a suitable manufacturer-approved protection arrangement is used.
Where a built-in insulation guard is required, the Integral ILDLFR70D029 provides an alternative in the same black finish, with an overall depth of 83mm.
Ideal Applications
- Modern bathrooms and shower rooms, subject to installation requirements
- Kitchens featuring black electrical accessories
- Contemporary living rooms and bedrooms
- Hallways and corridors
- Offices and commercial premises
- Hotels and hospitality interiors
- Residential refurbishment projects
- New-build lighting installations
- Ceilings with restricted available depth
Why Choose the Integral Evofire Black Downlight?
The Integral ILDLFR70D028 combines a contemporary black finish with the practical advantages of shallow canless construction, tested fire resistance and IP65 front protection.
Its replaceable GU10 lamp arrangement allows customers to select the most suitable lighting colour and brightness without replacing the complete fitting.
