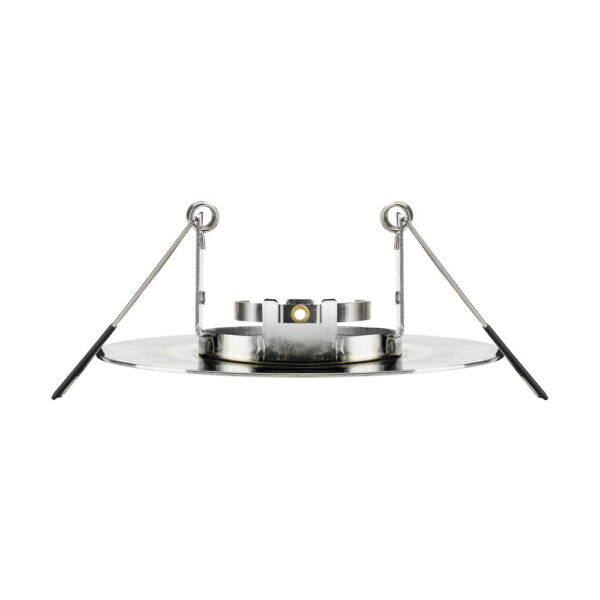

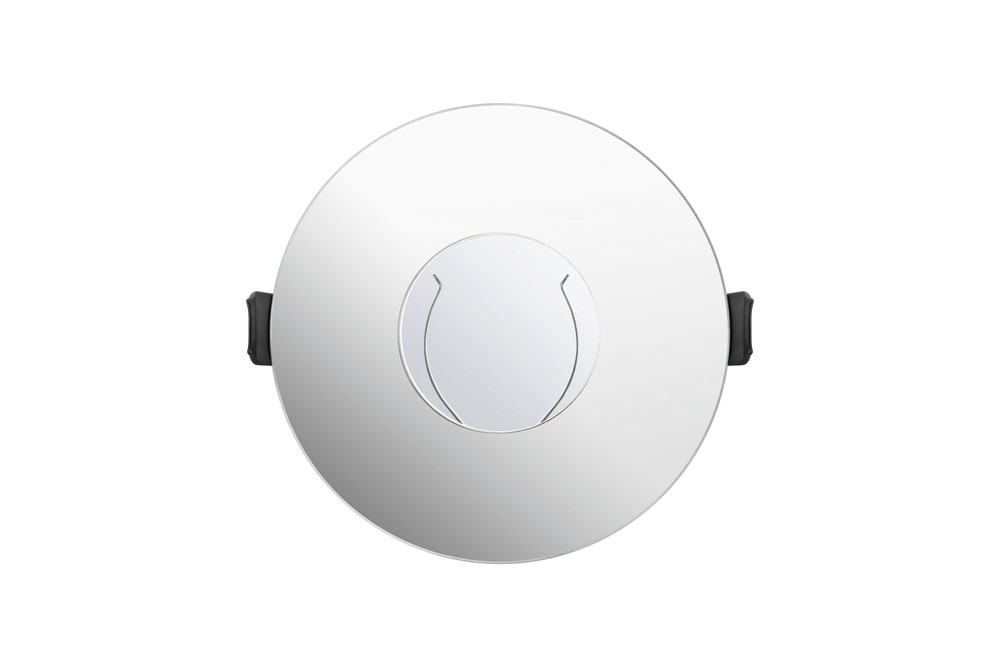

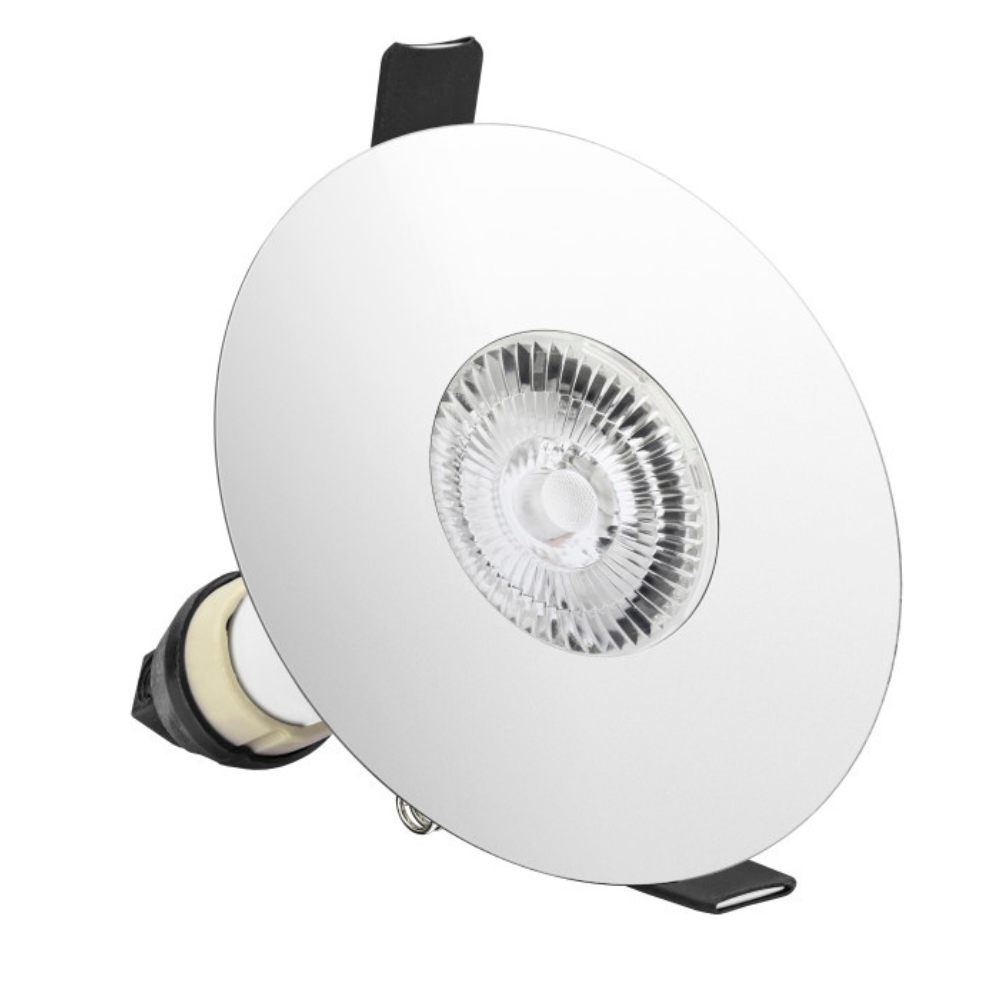

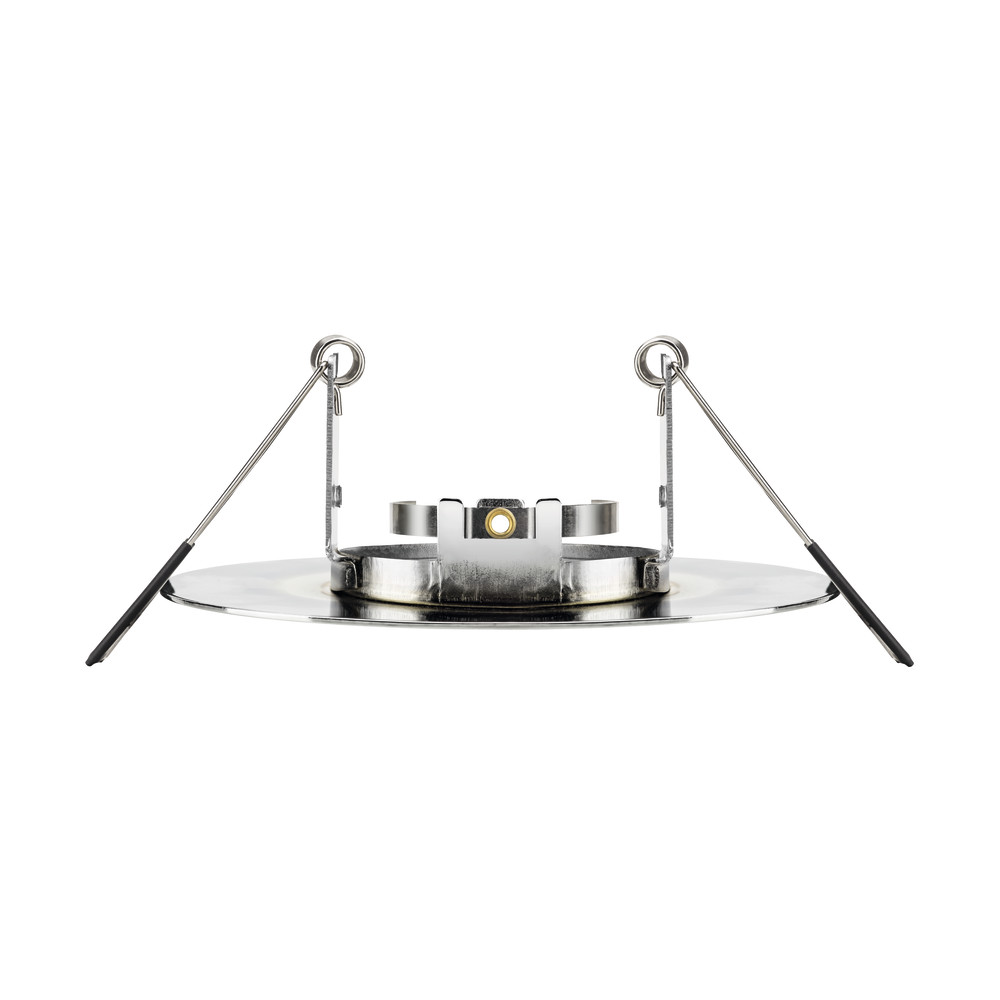

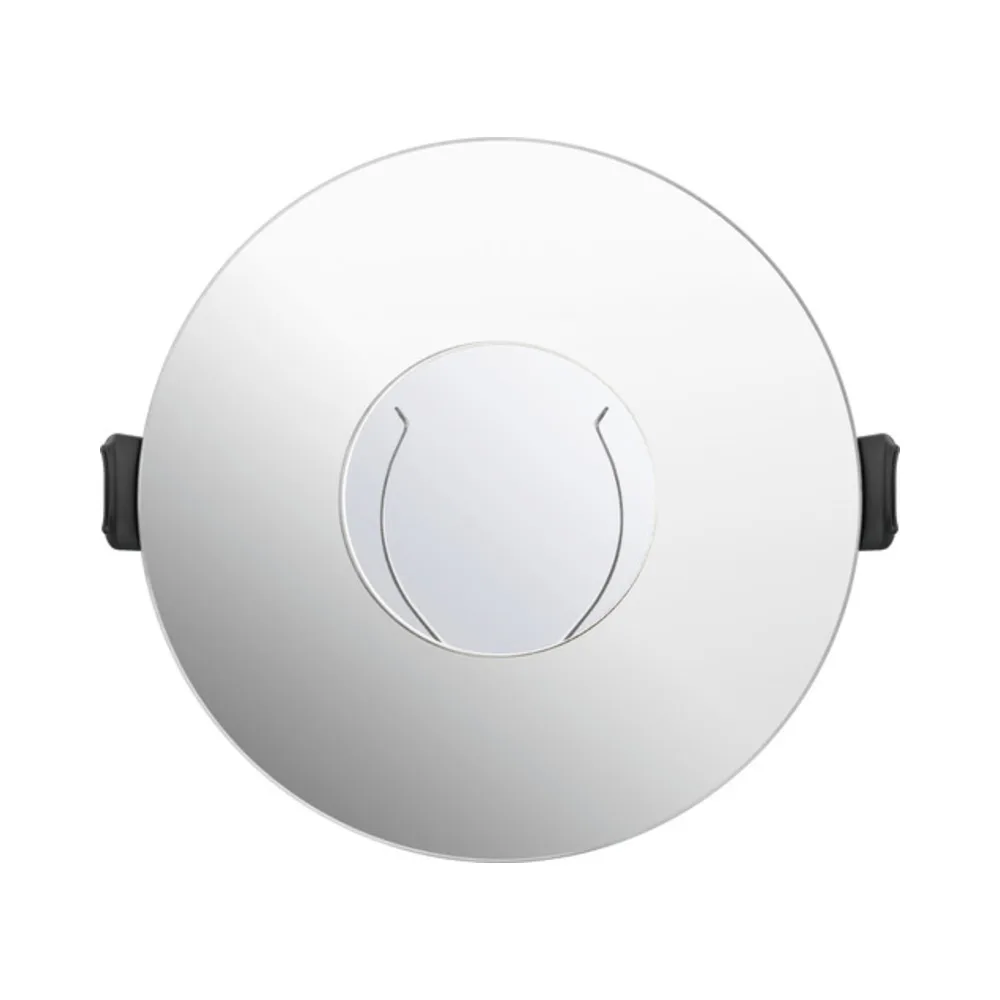

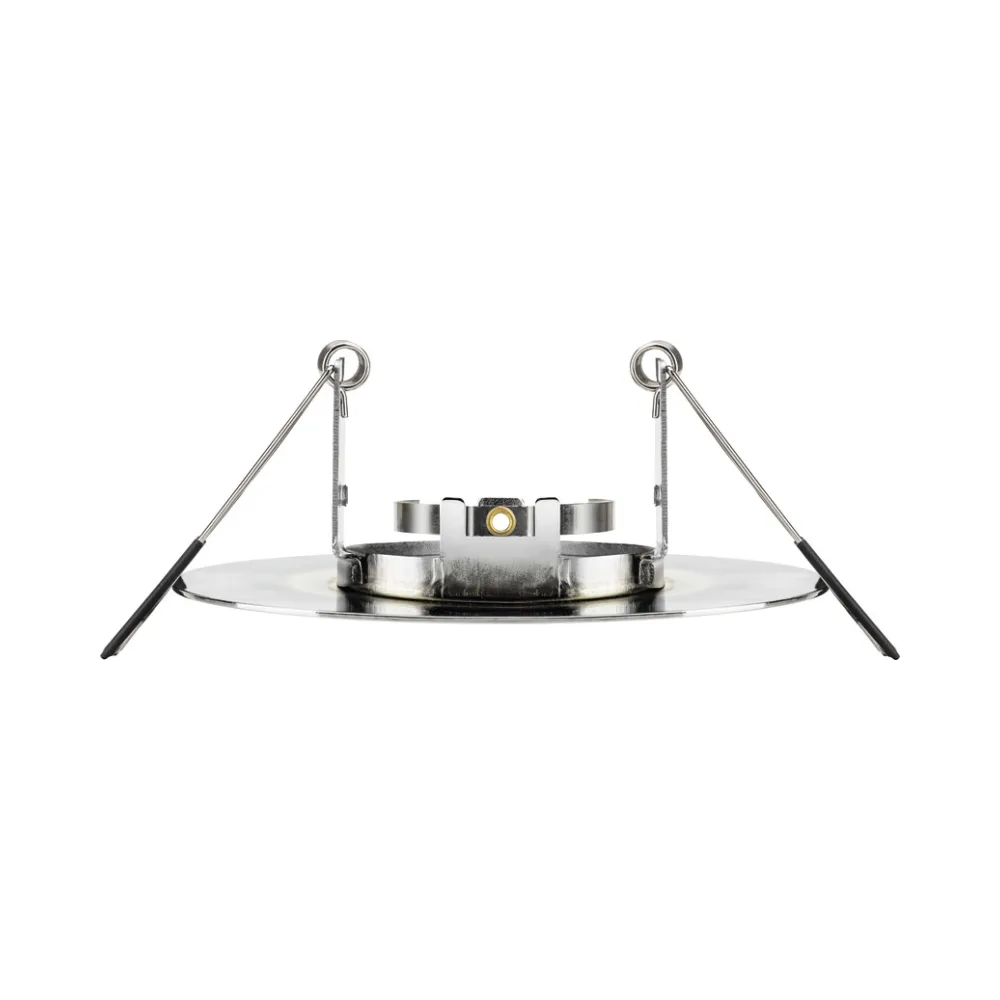

Integral ILDLFR70D021 Evofire Maxi 110 IP65 Polished Chrome GU10 Downlight
The Integral ILDLFR70D021 Evofire Maxi 110 is a fixed, fire-rated GU10 downlight with a polished chrome finish, extra-wide 110mm bezel and IP65 front protection. Designed to accommodate ceiling cut-outs between 70mm and 100mm, it provides a practical solution for replacing older recessed lighting without unnecessarily altering existing ceiling openings.
Its shallow 38mm depth and ultra-thin 1mm bezel make it especially useful for refurbishment projects where ceiling space is limited. The reflective polished chrome finish also complements modern bathroom fittings, kitchen hardware and contemporary interior designs.
Extra-Wide 110mm Bezel for Replacement Downlights
One of the main advantages of the Integral ILDLFR70D021 is its ability to fit a range of existing ceiling openings. Many older downlights leave larger cut-outs that cannot accommodate a conventional 70mm replacement fitting.
The Evofire Maxi 110 addresses this with a wider bezel that covers suitably sized openings from 70mm to 100mm, helping achieve a tidy finish without extensive plastering or ceiling alterations.
- 110mm overall bezel diameter
- Suitable for 70-100mm ceiling cut-outs
- Ideal for replacing older or larger downlights
- Helps conceal suitably sized uneven ceiling openings
- Shallow 38mm fitting depth
This makes it particularly useful in older properties and refurbishment projects where preserving the existing ceiling finish is important. The surrounding ceiling must remain secure enough to support the fitting.
Polished Chrome Finish with Ultra-Slim 1mm Bezel
The polished chrome finish gives this Evofire Maxi downlight a reflective metallic appearance, making it an attractive choice for bathrooms, kitchens and modern interiors featuring chrome accessories.
Although the fitting has a larger 110mm diameter, its ultra-slim 1mm blend-in bezel reduces the visible depth of the trim, providing a neat appearance against the ceiling.
IP65 Front Protection for Bathrooms and Kitchens
The Integral ILDLFR70D021 features IP65 protection at the front, helping protect the fitting against dust ingress and water jets when correctly installed.
It is suitable for appropriately specified bathroom locations, kitchens and other indoor areas where moisture resistance is required.
The recessed side is IP20 rated. Always follow the manufacturer’s installation instructions and relevant bathroom-zone requirements.
Canless Fire-Rated Evofire Technology
Traditional fire-rated downlights often use enclosed metal canisters that restrict airflow around LED lamps. The Evofire range uses a patented intumescent fire protection design without requiring a bulky conventional canister.
The Integral ILDLFR70D021 provides 30, 60 and 90-minute fire resistance in specified ceiling constructions, tested to BS 476 Part 21:1987.
Fire resistance depends on the tested ceiling construction and correct installation.
Improved Ventilation and LED Lamp Cooling
The open-back construction allows heat from compatible GU10 LED lamps to dissipate more effectively.
Integral LED states that lamps installed in Evofire downlights can operate up to 10°C cooler than in conventional can-style fire-rated fittings. This improved airflow can help support lamp performance and longevity.
Compatible GU10 LED Lamps
The Integral ILDLFR70D021 is supplied with a GU10 lamp holder. The LED lamp is sold separately, allowing you to select the preferred colour temperature, brightness and dimming characteristics.
Explore these Integral GU10 LED lamps available from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – ideal for bedrooms, lounges and comfortable ambient lighting.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – suitable for kitchens, hallways and everyday residential lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – produces a warmer light appearance as brightness is reduced.
When selecting a lamp, ensure it is suitable for the fitting, does not exceed the permitted LED wattage and meets the required physical dimensions. Use a compatible LED dimmer where dimming is required.
Key Features – Integral ILDLFR70D021
- Integral LED Evofire Maxi 110 range
- Fixed recessed GU10 downlight
- Polished chrome finish
- 110mm extra-wide bezel
- 70-100mm compatible ceiling cut-out
- Ultra-slim 1mm blend-in bezel
- Shallow 38mm construction
- IP65-rated front
- 30, 60 and 90-minute fire rating
- Canless fire-rated design
- Improved airflow around compatible LED lamps
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder included
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Maxi 110
- Manufacturer Part Number: ILDLFR70D021
- Quick Order Code: 991065
- EAN: 5055788238447
- Product Type: Fire-Rated Recessed Downlight
- Configuration: Fixed
- Finish: Polished Chrome
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 110mm
- Ceiling Cut-Out: 70-100mm
- Product Depth: 38mm
- Product Weight: 166g
- Bezel Thickness: 1mm
- Front IP Rating: IP65
- Back/Recessed Side IP Rating: IP20
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Part C and Part L
- Resistance to Sound: Part E
- Lamp Holder: GU10 Included
- Maximum LED Lamp Wattage: 10W
- Insulation Guard: Not Included
- Mounting: Recessed Ceiling
- Manufacturer Warranty: 7 Years
- LED Lamp Included: No
Important Ceiling Insulation Information
The Integral ILDLFR70D021 does not include an insulation guard. It must not be covered directly by ceiling insulation unless a manufacturer-approved protection arrangement is used.
Always check the required installation clearances and suitability of the ceiling construction before fitting.
Ideal Applications
- Replacing older recessed downlights
- Covering suitably sized larger or uneven cut-outs
- Period property refurbishments
- Bathrooms and shower rooms, subject to installation requirements
- Modern kitchens and utility rooms
- Living rooms and hallways
- Hotels and hospitality interiors
- Commercial lighting upgrades
- Ceilings with restricted installation depth
Why Choose the Evofire Maxi 110 Polished Chrome Downlight?
The Integral ILDLFR70D021 combines practical replacement capabilities with an attractive polished chrome finish. Its 110mm bezel accommodates a wider range of ceiling openings, while its shallow construction makes it useful where installation depth is restricted.
The IP65 front rating, fire-rated Evofire construction and replaceable GU10 lamp design make it a versatile choice for professional electricians carrying out domestic and commercial lighting installations.
