Integral ILDLFR70D020 Evofire Maxi 110 IP65 GU10 Downlight with Insulation Guard
The Integral ILDLFR70D020 Evofire Maxi 110 is a polished chrome fire-rated GU10 downlight designed for larger ceiling openings and insulated ceiling installations. Featuring a 110mm wide bezel, 70-100mm cut-out compatibility and integrated insulation guard, it provides an effective replacement for older recessed lighting fittings.
Its ultra-slim 1mm bezel creates a refined metallic finish, while the IP65-rated front makes it suitable for appropriately specified bathrooms, kitchens and other interior environments. The Integral ILDLFR70D020 also incorporates Evofire’s canless fire protection technology, helping maintain improved airflow around the replaceable GU10 LED lamp.

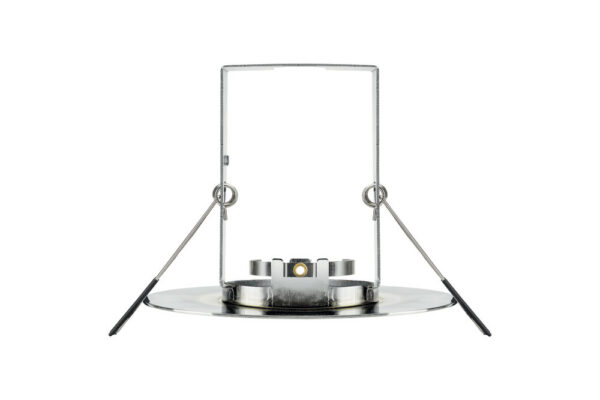

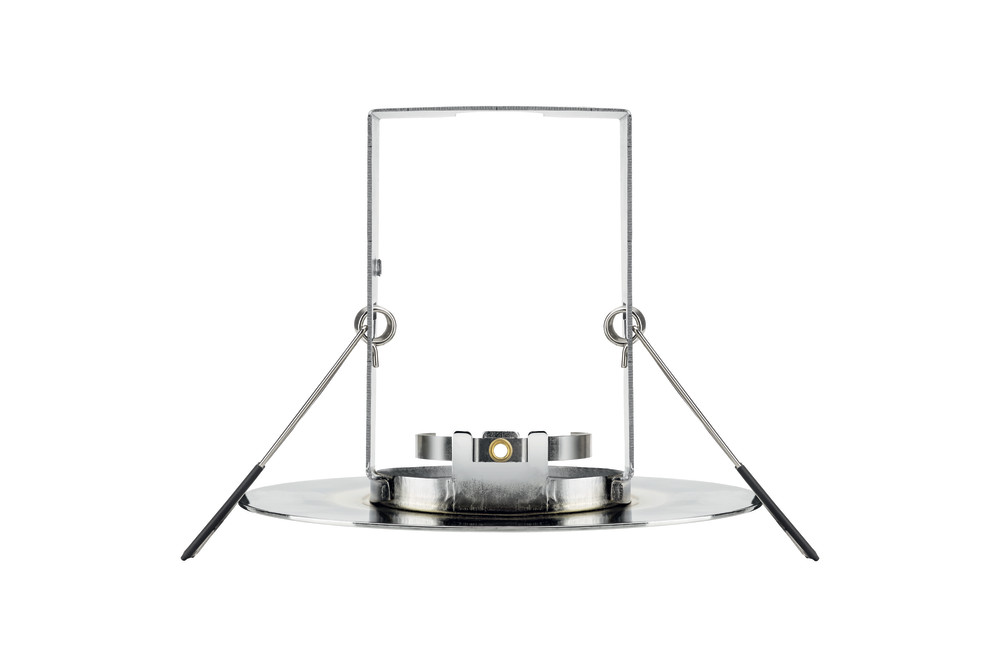

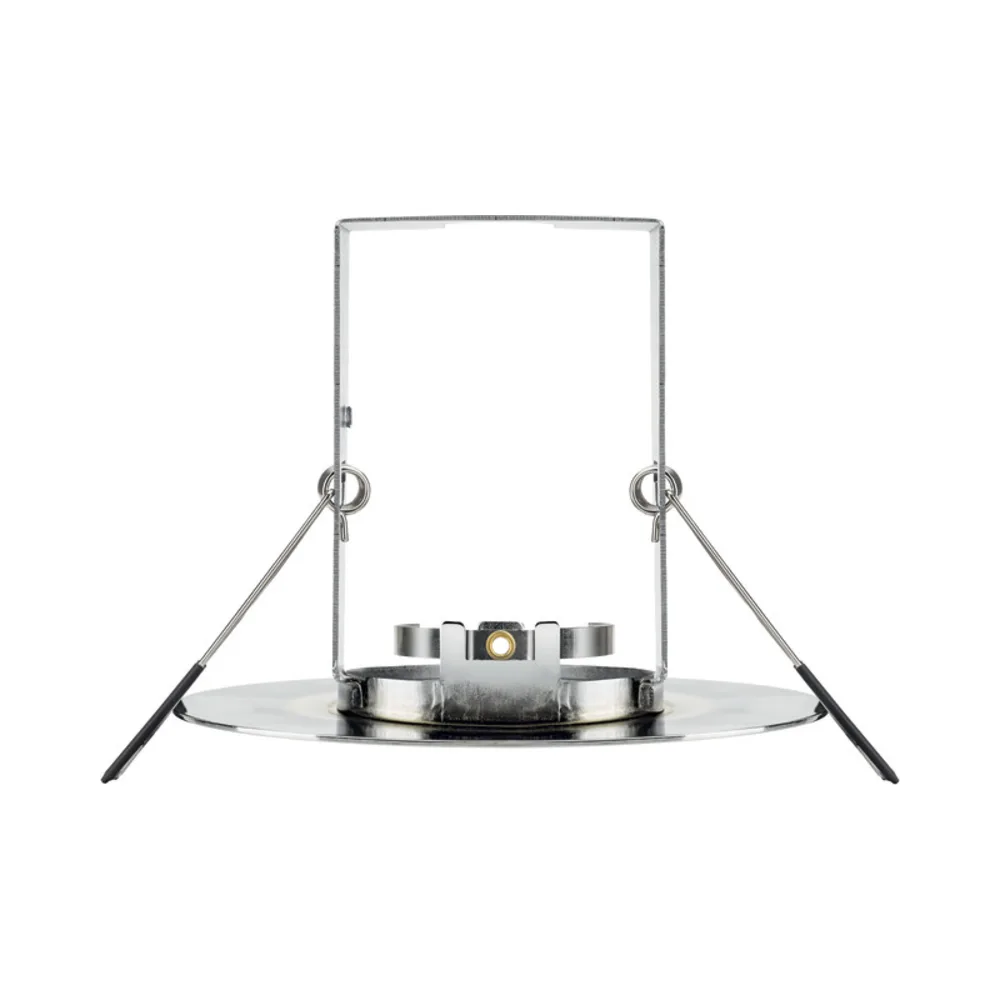

Integrated Insulation Guard for Ceiling Installations
A major advantage of this Evofire Maxi model is its built-in insulation guard. Instead of requiring a separate accessory, the fitting includes an integrated guard designed to protect the lamp area when suitable ceiling insulation is present.
This makes the downlight particularly practical for home extensions, loft conversions and refurbishment projects where ceiling insulation must be accommodated alongside recessed lighting.
- Factory-integrated insulation guard
- Designed for use with suitable ceiling insulation
- Helps maintain appropriate separation around the GU10 lamp
- No separate insulation guard required
- Ideal for insulated ceiling voids and refurbishment projects
Always follow the manufacturer’s installation instructions for permitted insulation materials, lamp wattage and ventilation requirements.
110mm Wide Bezel for 70-100mm Ceiling Cut-Outs
Older recessed downlights frequently leave ceiling openings larger than those required by modern 70mm fittings. The Integral Evofire Maxi 110 provides an alternative with its extra-wide bezel and adaptable mounting arrangement.
Suitable for cut-outs between 70mm and 100mm, this downlight can cover appropriately sized existing openings without unnecessary ceiling enlargement or cosmetic repairs.
The 110mm bezel is particularly useful in renovation projects where maintaining the surrounding ceiling finish is important. The ceiling must still provide secure support for the fitting.

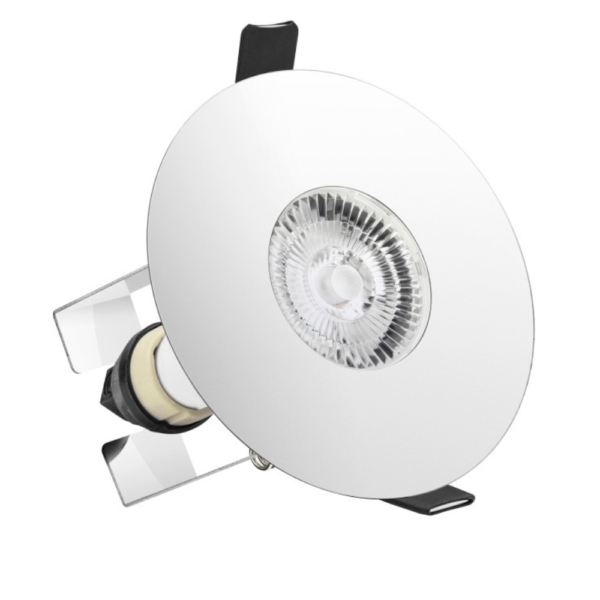

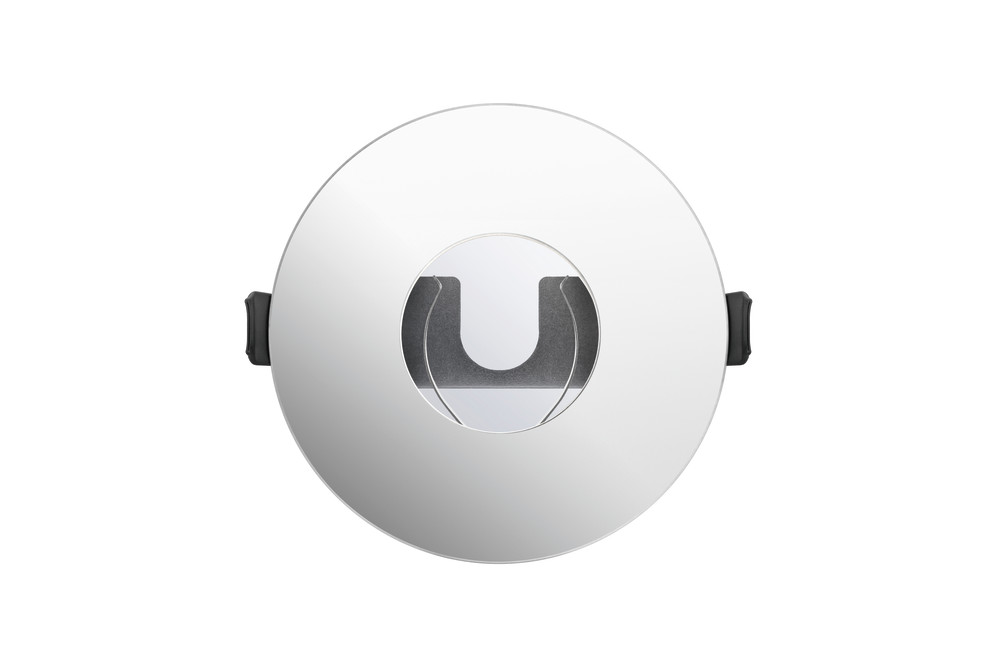

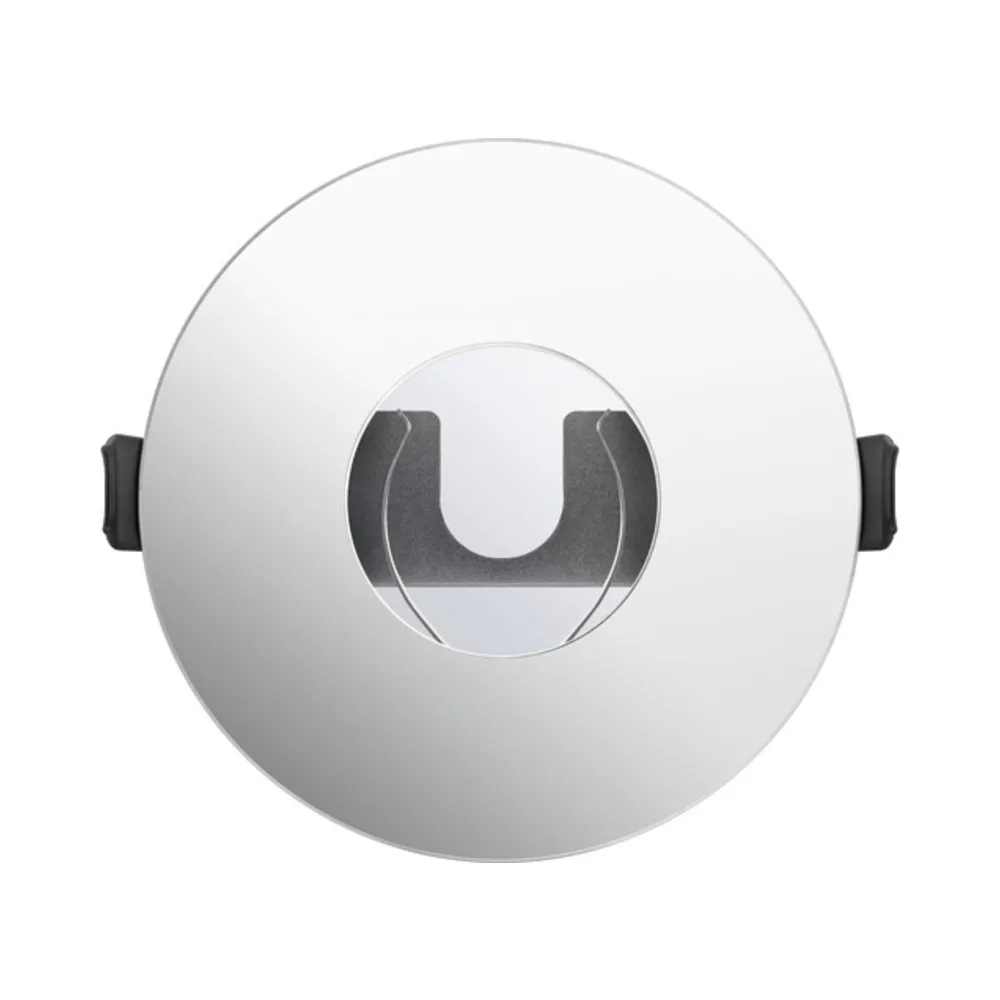

Polished Chrome Finish with 1mm Slimline Bezel
The polished chrome finish offers a bright, reflective appearance that pairs well with chrome taps, handles and decorative metal fittings.
Despite its larger outer diameter, the Evofire Maxi features an exceptionally thin 1mm blend-in bezel. This provides a neat, low-profile appearance suitable for contemporary bathrooms, kitchens and stylish residential interiors.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR70D020 has an IP65-rated front, offering protection against dust and water jets when correctly installed.
It is suitable for appropriately specified bathroom locations, kitchens and other indoor environments where moisture protection is required.
The recessed side is IP20 rated. Always check the applicable bathroom zones, wiring regulations and manufacturer’s installation instructions.
Canless Fire-Rated Evofire Technology
Integral’s Evofire range uses intumescent fire protection rather than a traditional large metal canister. This approach provides tested fire resistance while allowing a more ventilated fitting design.
The ILDLFR70D020 is fire rated for 30, 60 and 90 minutes in specified ceiling constructions, tested in accordance with BS 476 Part 21:1987.
The fitting must be installed in accordance with the manufacturer’s instructions and the requirements of the relevant ceiling construction.
Improved Airflow for GU10 LED Lamps
The Evofire design helps heat generated by the LED lamp dissipate more effectively than with a conventional enclosed fire-rated downlight.
Integral LED reports that compatible lamps installed in Evofire fittings can operate up to 10°C cooler compared with typical can-style fire-rated alternatives.
Improved thermal conditions can support reliable lamp performance and potentially extend LED lamp life.
Compatible GU10 LED Lamps
The Integral ILDLFR70D020 includes a GU10 lamp holder, allowing customers to choose a suitable replaceable LED lamp according to the required colour temperature, brightness and dimming characteristics.
The GU10 lamp is sold separately. Explore these Integral LED lamp options from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates warm, comfortable lighting for bedrooms, living rooms and dining areas.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – ideal for kitchens, hallways and general residential lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides crisp white illumination for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – produces warmer light as brightness is reduced for comfortable evening lighting.
Before selecting a GU10 LED lamp, check its dimensions, wattage and suitability for use with the integrated insulation guard. Use a compatible LED dimmer where dimming is required.
Key Features – Integral ILDLFR70D020
- Integral LED Evofire Maxi 110 range
- Fixed recessed GU10 downlight
- Polished chrome finish
- 110mm extra-wide bezel
- 70-100mm compatible ceiling cut-out
- Integrated insulation guard included
- Ultra-slim 1mm blend-in bezel
- IP65-rated front
- IP20-rated recessed side
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Improved airflow around compatible GU10 LED lamps
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Maxi 110
- Manufacturer Part Number: ILDLFR70D020
- Quick Order Code: 652749
- EAN: 5055788238416
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Polished Chrome
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 110mm
- Ceiling Cut-Out: 70-100mm
- Fitting Depth: 83mm
- Product Weight: 216g
- Bezel Thickness: 1mm
- Front IP Rating: IP65
- Back/Recessed Side IP Rating: IP20
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Part C and Part L
- Resistance to Sound: Part E
- Insulation Guard: Integrated
- Lamp Holder: GU10 Included
- Mounting: Recessed Ceiling
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
83mm Fitting Depth – Important Installation Information
Because this Evofire Maxi model incorporates an integrated insulation guard, its overall depth is 83mm.
Before installation, check that sufficient space is available above the ceiling, especially in older properties where joists, wiring or other building services may restrict clearance.
For installations where an insulation guard is not required, the Integral ILDLFR70D021 provides a shallower 38mm alternative with the same polished chrome finish and 70-100mm cut-out compatibility.
Ideal Applications
- Replacing older recessed downlights
- Insulated ceilings and loft conversions
- Home extensions and residential refurbishments
- Period properties with larger ceiling openings
- Bathrooms and shower rooms, subject to installation requirements
- Kitchens and utility rooms
- Living rooms and hallways
- Hotels and hospitality interiors
- Commercial renovation projects
Why Choose the Integral Evofire Maxi 110 with Insulation Guard?
The Integral ILDLFR70D020 combines a wide 110mm bezel with integrated insulation protection, making it particularly useful in projects where larger existing ceiling openings and loft insulation must both be accommodated.
Its polished chrome finish provides a decorative appearance, while the IP65 front protection, fire-rated construction and replaceable GU10 lamp design offer practical benefits for professional installers.
