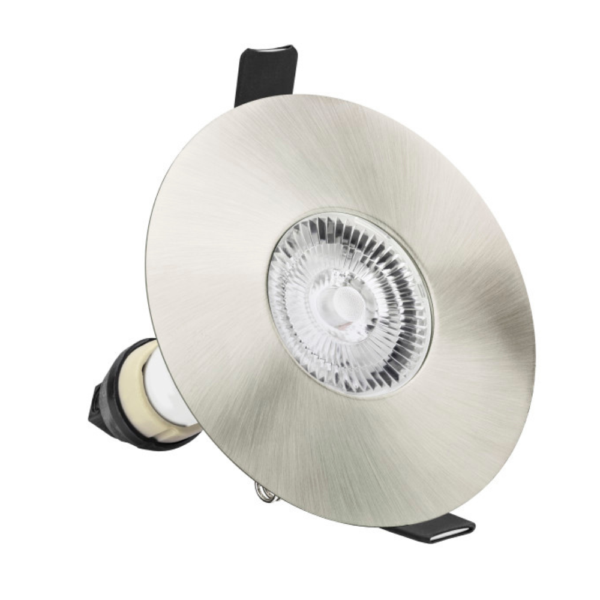

Integral ILDLFR70D016 Evofire Maxi 110 IP65 Satin Nickel GU10 Downlight
The Integral ILDLFR70D016 is a satin nickel fire-rated GU10 downlight from the Evofire Maxi 110 range, designed to accommodate ceiling cut-outs between 70mm and 100mm. Its wide 110mm bezel offers a practical solution for upgrading existing recessed lighting where conventional smaller downlights may not cover the original openings.
Combining a brushed metallic appearance with a slim 1mm trim, the Integral ILDLFR70D016 provides a refined finish for domestic and commercial interiors. Its shallow 38mm construction, IP65 rating and canless fire protection make it a versatile option for lighting refurbishment projects.
Satin Nickel Finish for Contemporary Interiors
Unlike polished chrome, which has a bright reflective surface, satin nickel offers a softer metallic appearance. This makes it particularly suitable for rooms featuring brushed metal accessories, satin-finish switches, door handles and bathroom fittings.
The 1mm blend-in bezel sits discreetly against the ceiling, giving the larger 110mm fitting a neat, low-profile appearance.
110mm Wide Bezel for 70-100mm Ceiling Cut-Outs
The Evofire Maxi 110 is designed to solve a common problem encountered during lighting replacements: existing ceiling openings that are too large for standard modern downlights.
With a 110mm external diameter and support for 70-100mm cut-outs, this model can accommodate a range of existing ceiling openings without unnecessary alteration.
- 110mm wide bezel for increased ceiling coverage
- Compatible with cut-outs between 70mm and 100mm
- Ideal for replacing older recessed downlights
- Helps conceal suitably sized irregular ceiling openings
- Suitable for refurbishment and renovation projects
The surrounding ceiling must remain structurally sound and capable of securely supporting the downlight.
Shallow 38mm Construction
At just 38mm deep, the Integral ILDLFR70D016 offers a compact alternative to conventional enclosed fire-rated downlights.
This shallow construction can be advantageous when working in restricted ceiling voids, particularly during refurbishment work where existing building services limit available space.
Always confirm the necessary lamp, wiring and ventilation clearances before installation.
Canless Fire-Rated Protection
The Integral Evofire range incorporates intumescent fire protection without relying on a bulky conventional metal canister.
The ILDLFR70D016 is rated for 30, 60 and 90-minute fire resistance in specified ceiling constructions, with testing carried out in accordance with BS 476 Part 21:1987.
Its pressed steel and glass construction provides a durable fitting for appropriately specified residential and commercial installations.
Improved Cooling for GU10 LED Lamps
Traditional enclosed fire-rated downlights can restrict airflow around LED lamps. Evofire’s open construction helps heat dissipate more effectively.
Integral LED states that compatible lamps installed in Evofire fittings can operate up to 10°C cooler than in typical can-style fire-rated downlights. Lower operating temperatures can support improved LED lamp longevity.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR70D016 features IP65 protection, making it suitable for appropriately specified bathrooms, kitchens and other indoor areas where protection against moisture is required.
Its satin nickel finish makes it especially attractive in bathrooms featuring brushed nickel taps and accessories.
Installation must comply with applicable bathroom zones, wiring regulations and the manufacturer’s instructions.
Compatible GU10 LED Lamps
The Integral ILDLFR70D016 is supplied with a GU10 lamp holder, allowing the LED lamp to be purchased separately. This gives installers the flexibility to choose the most suitable light colour and dimming performance for each project.
Explore these Integral GU10 LED lamps available from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates relaxing ambient lighting for bedrooms, lounges and dining rooms.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile choice for kitchens, hallways and general household lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – suitable for task lighting, workspaces and modern bathrooms.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – produces a warmer lighting effect as brightness is reduced.
Always check the selected GU10 lamp’s wattage, dimensions and compatibility with the fitting. Use a compatible LED dimmer if dimming is required.
Key Features
- Integral LED Evofire Maxi 110 range
- Fixed fire-rated recessed GU10 downlight
- Satin nickel finish
- 110mm extra-wide bezel
- 70-100mm compatible ceiling cut-out
- Ultra-slim 1mm blend-in trim
- Shallow 38mm fitting depth
- IP65 ingress protection
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Open construction for improved lamp ventilation
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Maxi 110
- Manufacturer Part Number: ILDLFR70D016
- Quick Order Code: 671636
- EAN: 5055788236511
- Product Type: Fire-Rated Recessed Downlight
- Configuration: Fixed
- Finish: Satin Nickel
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 110mm
- Ceiling Cut-Out: 70-100mm
- Fitting Depth: 38mm
- Product Weight: 166g
- Bezel Thickness: 1mm
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Part C and Part L
- Resistance to Sound: Part E
- Lamp Holder: GU10 Supplied
- Insulation Guard: Not Included
- Mounting: Recessed Ceiling
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
Ceiling Insulation Requirements
The Integral ILDLFR70D016 does not include an integrated insulation guard. Where ceiling insulation is present, the installation must maintain the clearances specified by Integral LED.
Do not place insulation directly over the fitting unless an approved protective arrangement is used in accordance with the manufacturer’s installation instructions.
Ideal Applications
- Replacing older recessed downlights
- Refurbishing period properties with existing ceiling openings
- Bathrooms featuring brushed nickel accessories
- Kitchens and utility rooms
- Living rooms, bedrooms and hallways
- Hotels and hospitality interiors
- Offices and commercial premises
- Ceilings with limited available installation depth
Why Choose the Evofire Maxi 110 Satin Nickel Downlight?
The Integral ILDLFR70D016 offers an appealing combination of wide cut-out compatibility, shallow construction and a satin nickel finish. Its 110mm bezel is particularly useful when replacing older lighting fittings, while the 38mm depth helps accommodate installations with restricted ceiling space.
For projects requiring an integrated insulation guard, the related Integral ILDLFR70D014 provides a deeper 83mm alternative in the same satin nickel finish.
Order Integral Evofire Downlights from Electrical4Less
Choose the Integral ILDLFR70D016 Evofire Maxi 110 for fire-rated lighting replacements requiring a wider bezel and satin nickel finish. Order online from Electrical4Less and select a compatible Integral GU10 LED lamp separately.
