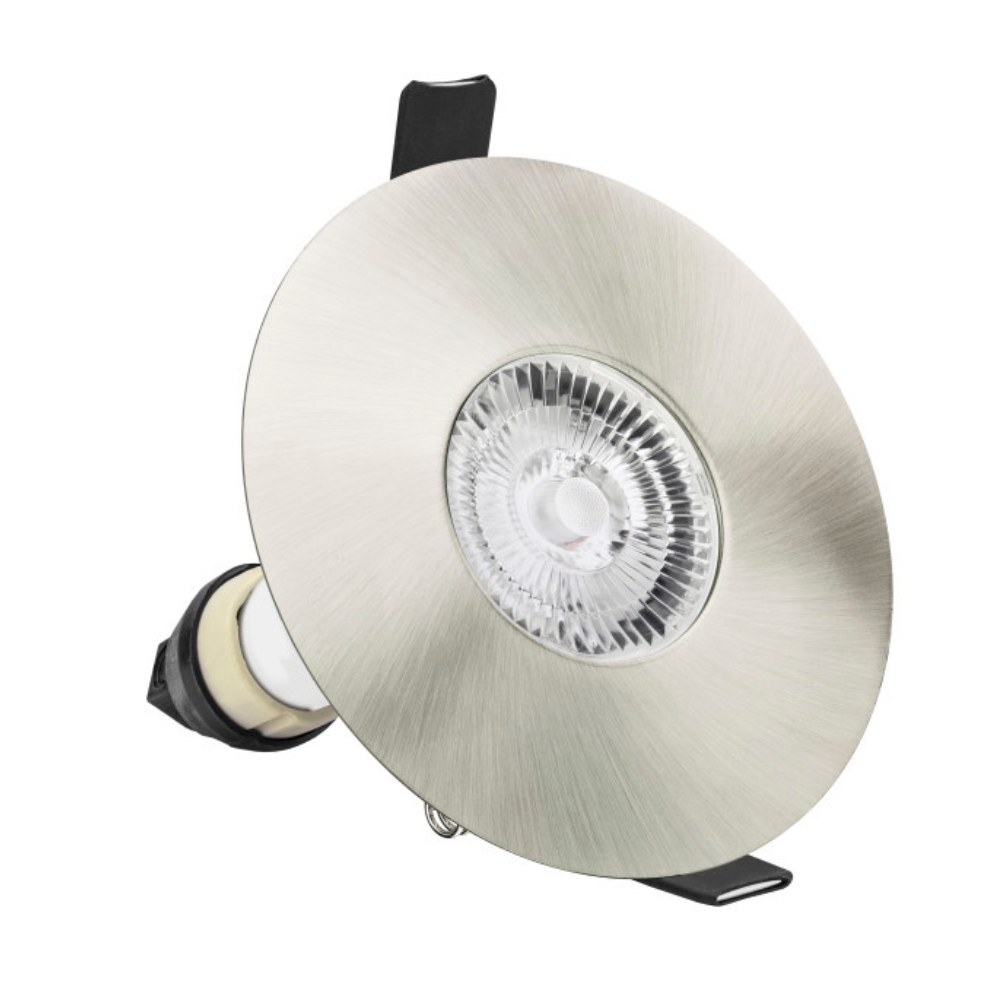

Integral ILDLFR70D014 Evofire Maxi 110 IP65 GU10 Downlight with Insulation Guard
The Integral ILDLFR70D014 Evofire Maxi 110 is a satin nickel, fire-rated GU10 downlight designed for installations requiring a wider ceiling trim and integrated insulation protection. With its 110mm overall diameter and 70-100mm compatible cut-out, it provides a practical option for replacing older recessed downlights without unnecessarily enlarging existing ceiling openings.
Unlike standard Evofire fittings, this version includes a built-in insulation guard, making it particularly useful in insulated ceiling voids. The IP65 rating, slim 1mm bezel and satin nickel finish also make it an attractive choice for bathrooms, kitchens and contemporary residential interiors.
Integrated Insulation Guard for Insulated Ceilings

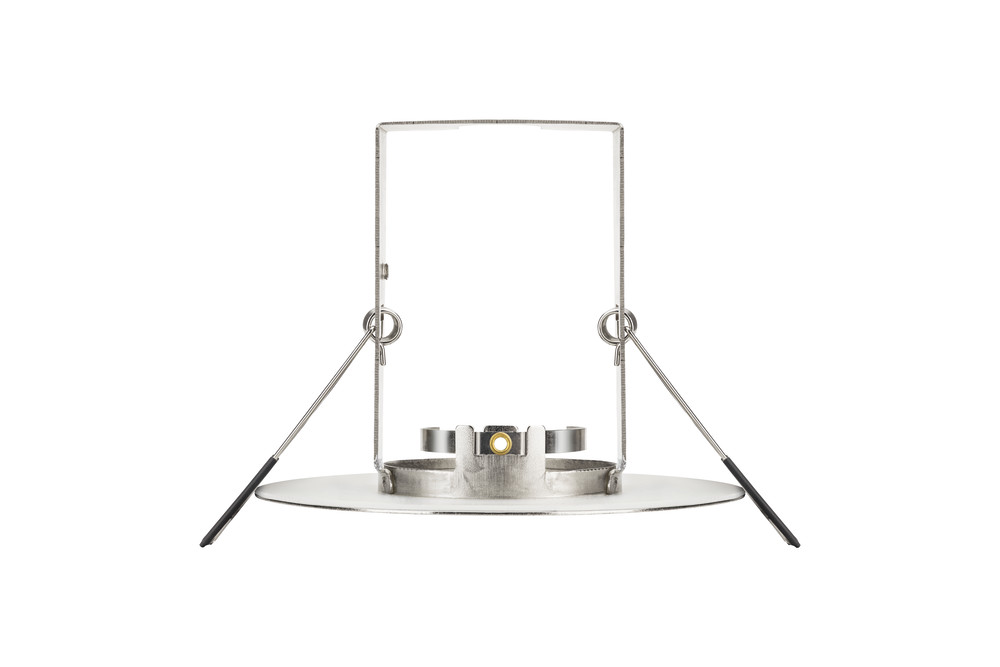

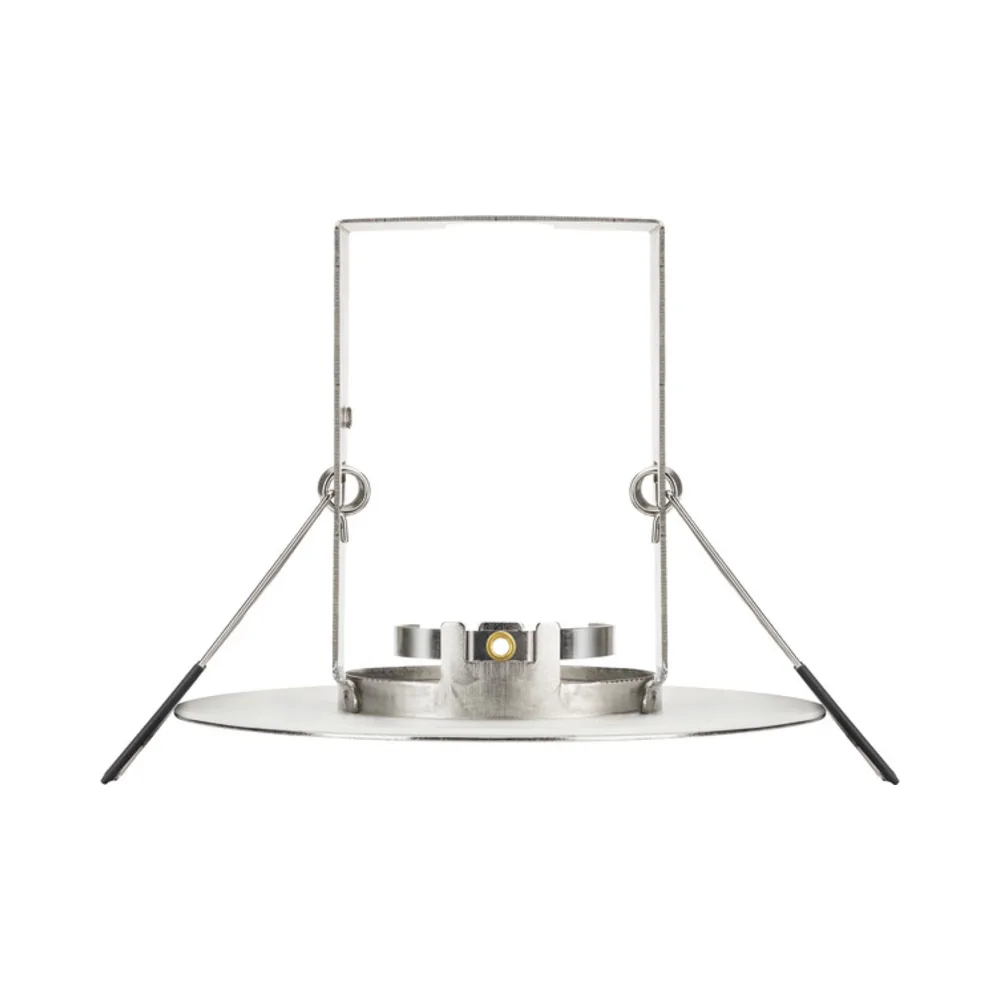

The Integral ILDLFR70D014 includes a factory-fitted insulation guard designed to accommodate suitable ceiling insulation while maintaining the installation conditions required around the GU10 lamp.
This eliminates the need to purchase a separate insulation guard and makes the fitting convenient for refurbishment projects, loft conversions and home extensions.
Its 83mm depth includes the integrated guard, so installers should confirm sufficient ceiling void clearance before fitting.
110mm Wide Bezel for 70-100mm Ceiling Cut-Outs
Existing downlights often leave openings that are too large for conventional replacement fittings. The Evofire Maxi 110 offers a wider trim that accommodates ceiling cut-outs between 70mm and 100mm.
The wide bezel can conceal appropriately sized irregular openings, reducing the need for additional cosmetic repairs where the surrounding ceiling remains secure.
This is especially useful when upgrading recessed lighting in older homes and renovation projects.
Satin Nickel Finish and Ultra-Slim 1mm Bezel
The satin nickel finish provides a softer, brushed-metal appearance compared with polished chrome. It works particularly well with brushed nickel taps, switches, door handles and other matching interior hardware.

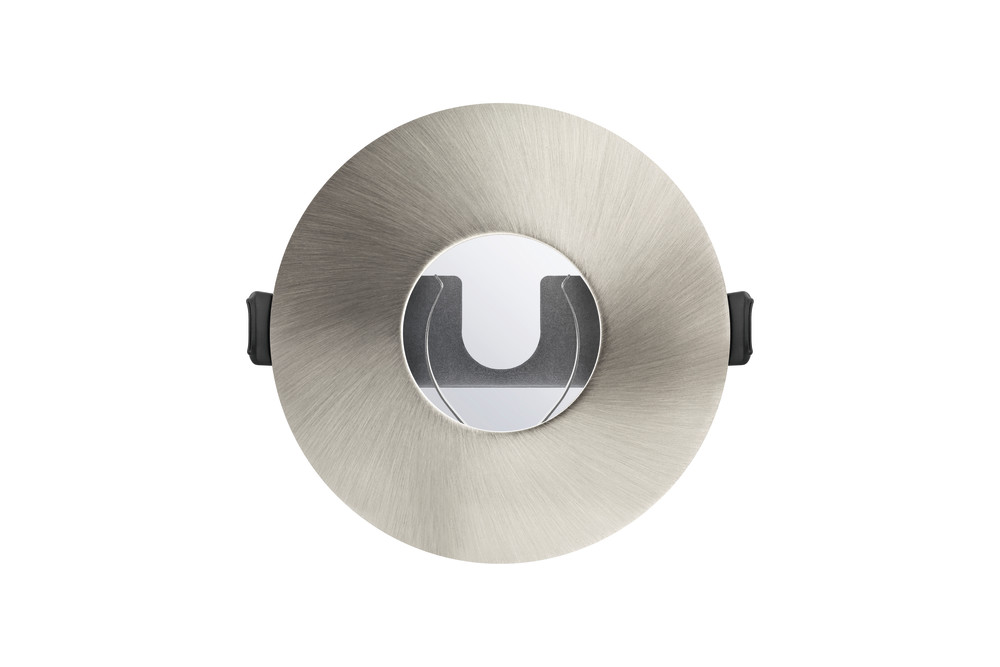

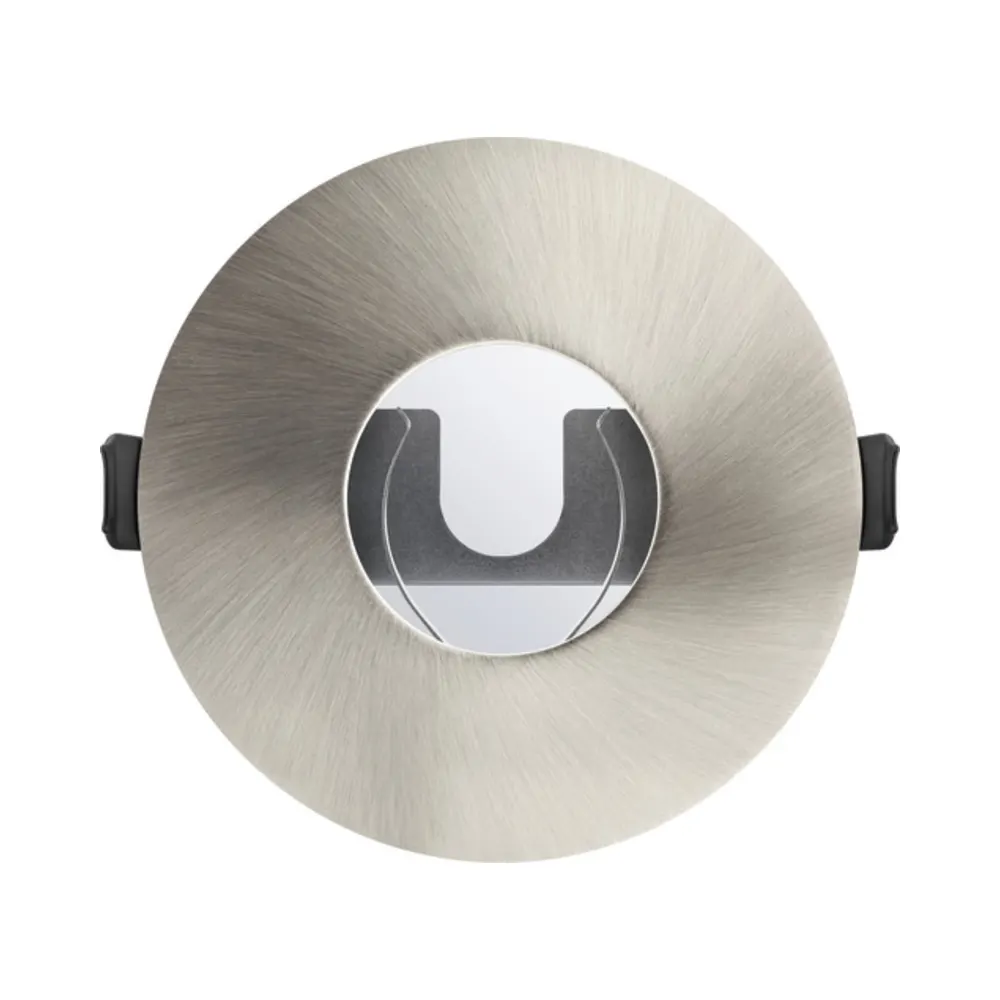

Despite its wide 110mm diameter, the fitting features an ultra-thin 1mm blend-in bezel that creates a clean, understated appearance against the ceiling.
IP65 Fire-Rated Protection
The Integral Evofire Maxi 110 features IP65 protection, making it suitable for appropriately specified bathroom locations, kitchens and other indoor areas where moisture resistance is important.
Its fire-rated construction provides 30, 60 and 90-minute fire resistance in specified ceiling constructions, tested in accordance with BS 476 Part 21:1987.
The fitting also meets the manufacturer’s stated requirements for air tightness under Building Regulations Parts C and L and resistance to sound under Part E.
Always install in accordance with the manufacturer’s instructions and relevant electrical regulations.
Canless Construction and Improved LED Cooling
The Evofire range uses intumescent fire protection rather than a conventional large metal canister, allowing a more ventilated design around the replaceable LED lamp.
Integral LED states that compatible lamps installed in Evofire fittings can operate up to 10°C cooler compared with traditional can-style fire-rated downlights.
Improved heat dissipation helps reduce thermal stress on the LED lamp and can support longer operating life.
Compatible GU10 LED Lamps
The Integral ILDLFR70D014 is supplied with a GU10 lamp holder, but the LED lamp must be purchased separately. Select a suitable colour temperature and dimming option from these Integral GU10 lamps available at Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – ideal for relaxing bedroom and living room lighting.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – suitable for kitchens, hallways and general interior lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – offers a crisp white appearance for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – provides a warmer light appearance as brightness is reduced.
Ensure the selected GU10 lamp is suitable for the fitting’s maximum permitted wattage, dimensions and insulation guard arrangement. Use a compatible LED dimmer where required.
Key Features
- Evofire Maxi 110 fixed recessed downlight
- Integrated insulation guard included
- Satin nickel finish
- 110mm wide outer bezel
- 70-100mm compatible ceiling cut-out
- Ultra-slim 1mm blend-in bezel
- IP65 ingress protection
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Improved ventilation around compatible GU10 lamps
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Maxi 110
- Manufacturer Part Number: ILDLFR70D014
- Quick Order Code: 724333
- EAN: 5055788236450
- Product Type: Fire-Rated Recessed Downlight
- Configuration: Fixed
- Finish: Satin Nickel
- Shape: Round
- Construction: Pressed Steel and Glass
- Overall Diameter: 110mm
- Ceiling Cut-Out: 70-100mm
- Fitting Depth: 83mm
- Product Weight: 216g
- Bezel Thickness: 1mm
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Insulation Guard: Integrated
- Lamp Holder: GU10 Supplied
- Mounting: Recessed Ceiling
- Manufacturer Warranty: 7 Years
- LED Lamp Included: No
Where Is This Downlight Most Useful?
The ILDLFR70D014 is a particularly practical solution where existing ceiling openings, insulation and decorative finish must all be considered.
- Replacing older downlights with 70-100mm cut-outs
- Insulated ceiling voids and loft conversions
- Residential extensions and renovation projects
- Bathrooms with satin nickel or brushed-metal accessories
- Kitchens and utility rooms
- Living rooms, bedrooms and hallways
- Hotels and commercial interiors
Important Installation Considerations
The integrated insulation guard increases the fitting depth to 83mm. Check the available ceiling void and any nearby joists, pipes or electrical cables before installation.
Suitable insulation materials, lamp wattage and installation clearances must follow Integral LED’s instructions. The applicable fire rating also depends on the tested ceiling construction.
Where an insulation guard is not required, the Integral ILDLFR70D016 offers a shallower 38mm alternative with the same satin nickel finish and 110mm bezel.
Order Integral Evofire Maxi Downlights from Electrical4Less
Choose the Integral ILDLFR70D014 Evofire Maxi 110 for fire-rated recessed lighting where a wide satin nickel bezel and built-in insulation guard are required.
Order from Electrical4Less and select a compatible Integral GU10 LED lamp separately to complete your installation.
