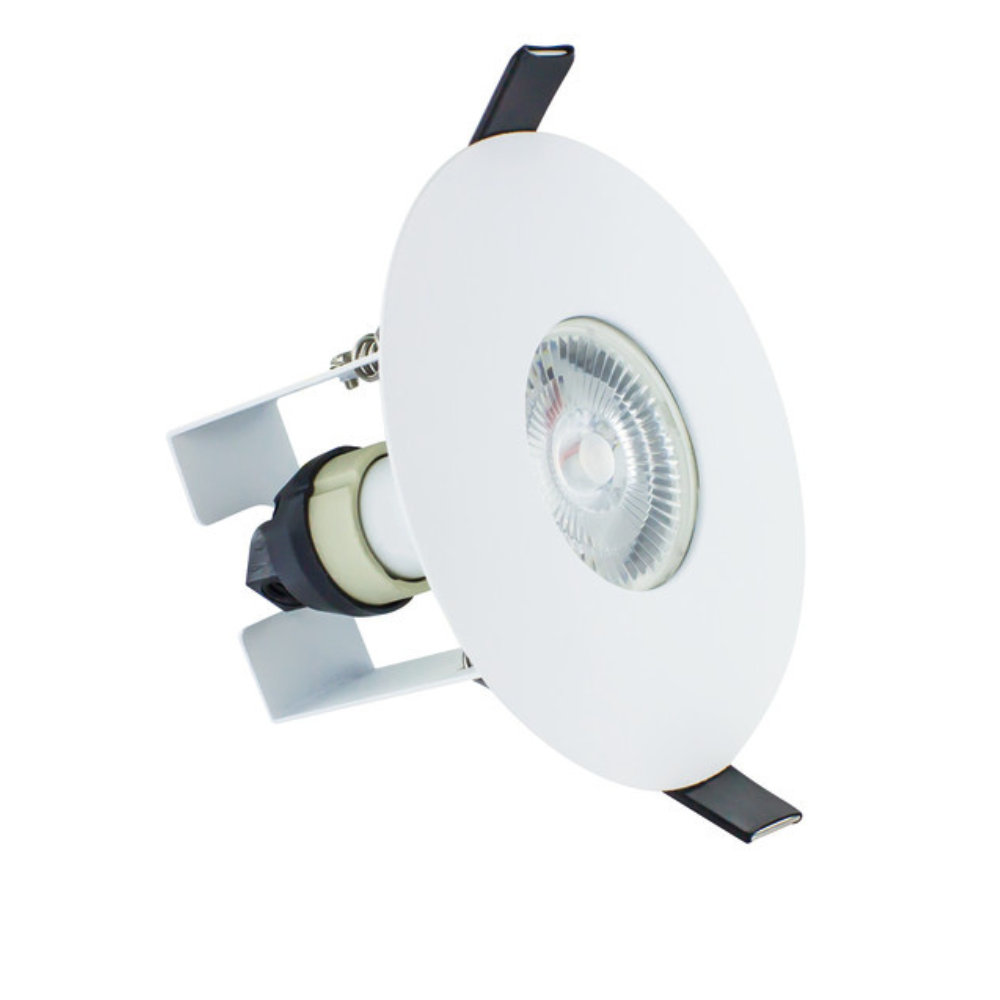

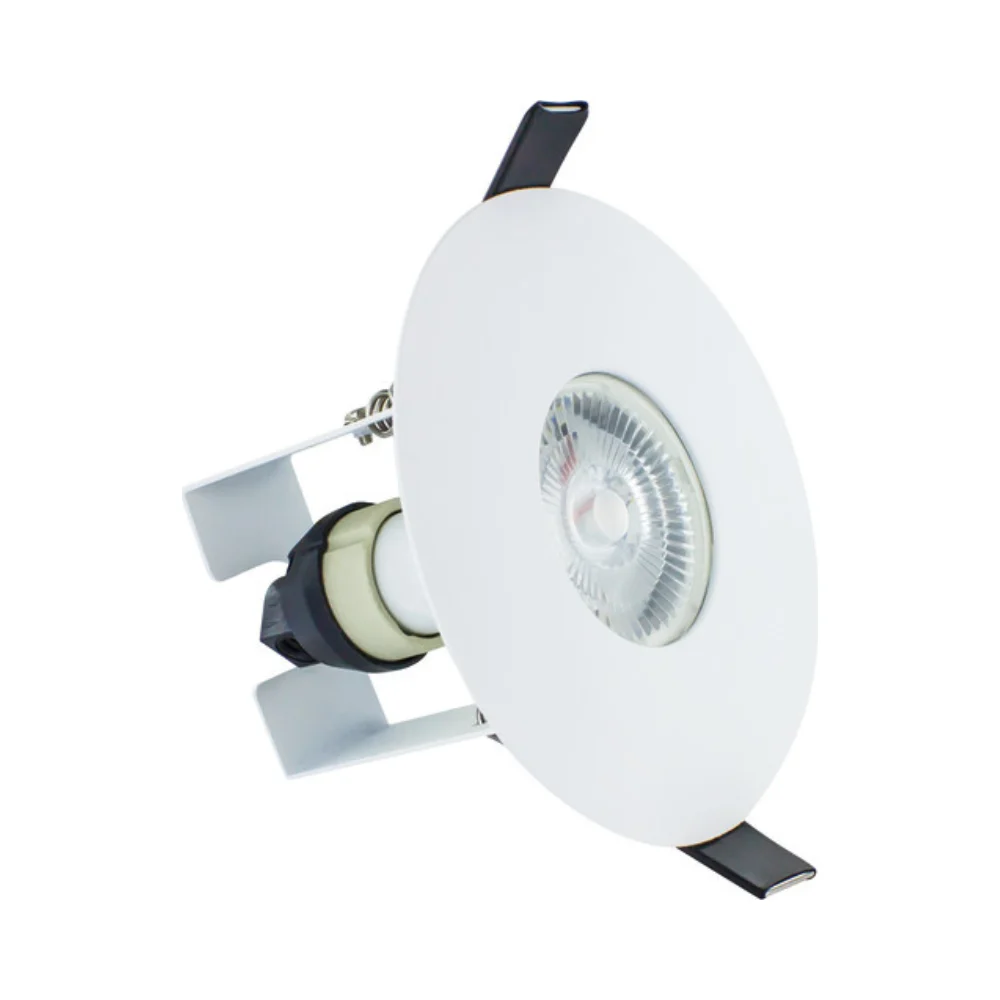

Integral ILDLFR70D013 Evofire Maxi 110 IP65 GU10 Downlight with Insulation Guard
The Integral ILDLFR70D013 Evofire Maxi 110 is a fixed fire-rated GU10 downlight designed for larger ceiling cut-outs between 70mm and 100mm. Featuring a wide 110mm matt white bezel, integrated insulation guard and IP65 protection, this fitting is particularly suitable for lighting upgrades where ceiling insulation and existing cut-out sizes need to be considered.
Unlike standard Evofire downlights, this model combines an extra-wide trim with a built-in insulation guard. Its slim 1mm bezel provides a discreet ceiling finish, while its canless fire-rated construction improves ventilation around compatible GU10 LED lamps.

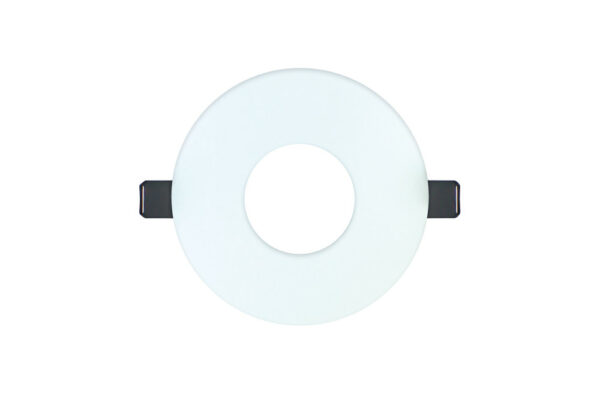

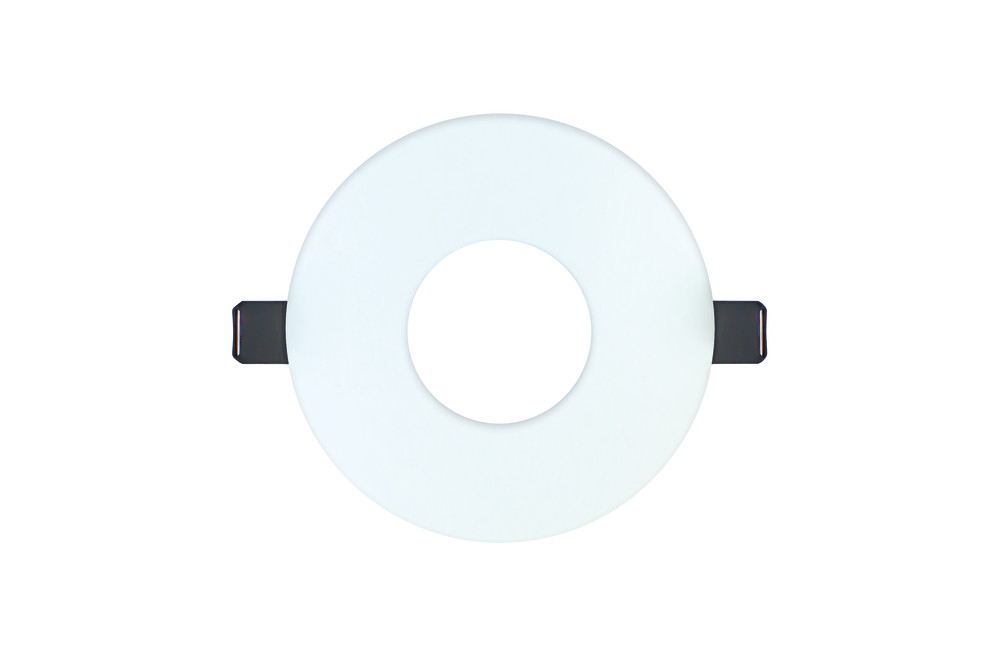

110mm Wide Bezel for 70-100mm Ceiling Cut-Outs
Replacing older downlights can be challenging when existing ceiling openings are larger than the cut-outs required for modern fittings. The Integral Evofire Maxi 110 addresses this with a generous 110mm overall diameter and compatibility with cut-outs ranging from 70mm to 100mm.
The wider bezel can cover suitably sized uneven openings and reduce the need for cosmetic ceiling repairs, provided the surrounding ceiling remains sound and offers secure support.
- 110mm overall bezel diameter
- Compatible with 70-100mm ceiling cut-outs
- Useful for replacing older, larger downlights
- Helps conceal uneven or oversized ceiling openings
- Ultra-slim 1mm matt white bezel
This makes the ILDLFR70D013 particularly useful for refurbishment work in older properties, including homes with existing lath-and-plaster ceilings where the installation method is suitable.

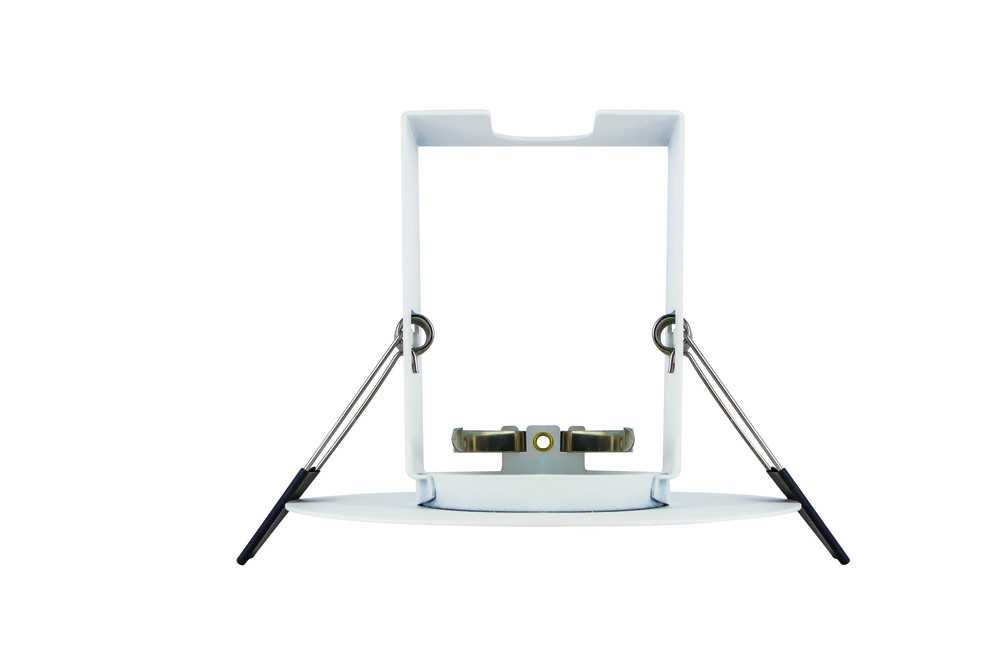

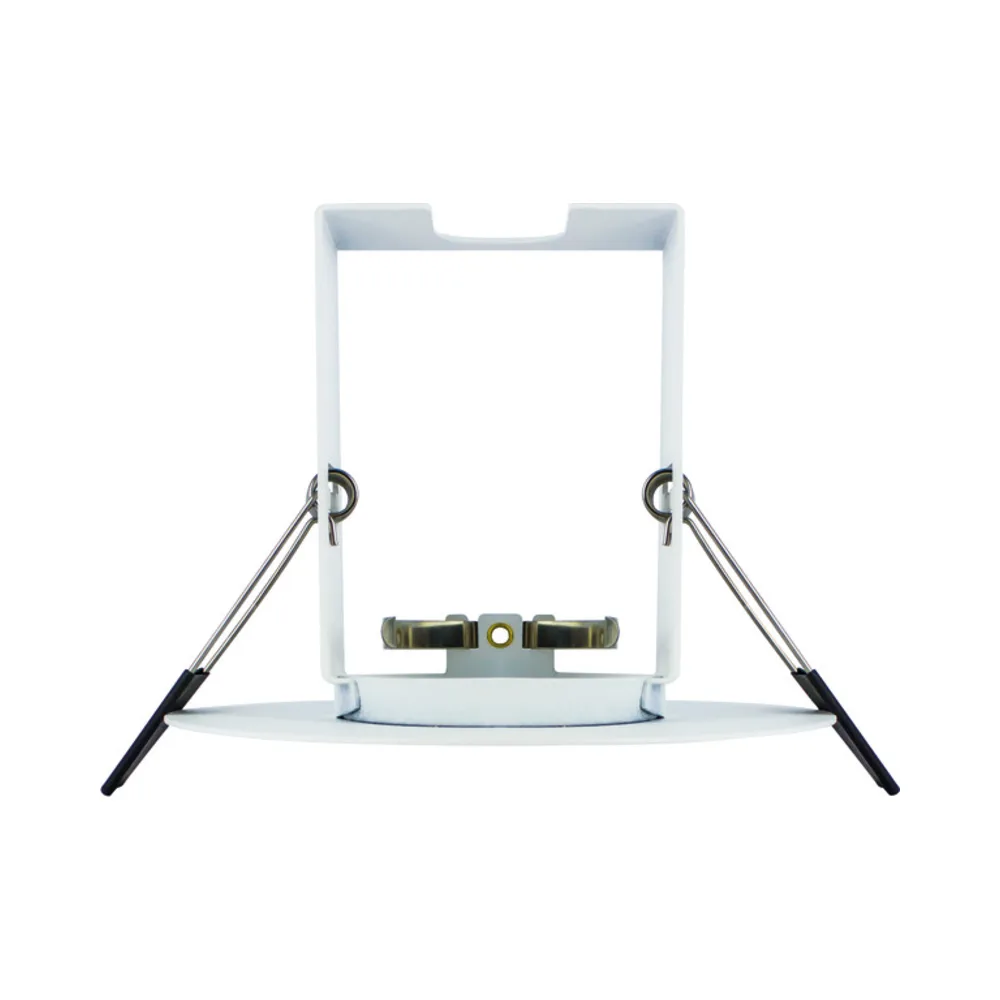

Integrated Insulation Guard
A key advantage of the Integral ILDLFR70D013 is its factory-fitted insulation guard, which is included as part of the downlight rather than supplied as an optional accessory.
The guard provides a protective enclosure around the GU10 lamp area, helping maintain the required separation from suitable loft insulation while allowing appropriate ventilation.
This makes the fitting a practical choice for insulated ceiling voids, loft conversions and energy-efficient residential refurbishment projects.
- Built-in insulation guard included
- Designed for appropriately specified insulated ceiling installations
- Helps maintain ventilation around the GU10 lamp
- No additional insulation guard required
- Suitable for new installations and lighting replacements
Always follow Integral LED’s installation instructions regarding permitted insulation materials, lamp wattage and ceiling clearances.
Fire-Rated Canless Evofire Construction
The Evofire range uses intumescent fire protection rather than relying on a conventional bulky metal canister to achieve its tested fire resistance.
The Integral ILDLFR70D013 is rated for 30, 60 and 90-minute fire protection in specified ceiling constructions, tested in accordance with BS 476 Part 21:1987.
The fitting’s pressed steel and glass construction combines structural durability with the fire protection required for suitable domestic and commercial ceiling installations.
Fire-rating performance depends on the type of ceiling and correct installation in accordance with the manufacturer’s test evidence.
IP65 Protection with Matt White Finish
The Integral Evofire Maxi 110 features an IP65-rated front, providing protection against dust and water jets when correctly installed.
This makes the downlight suitable for appropriately specified bathroom locations, kitchens, utility rooms and other environments requiring moisture-resistant recessed lighting.
Its matt white powder-coated finish complements light-coloured ceilings, while the ultra-thin 1mm bezel helps minimise the visual impact of the wider trim.
Improved Cooling for Replaceable GU10 Lamps
The Evofire design avoids enclosing the GU10 LED lamp within a large traditional metal canister. This supports improved airflow and helps reduce heat build-up around the lamp.
Integral LED states that compatible lamps installed in Evofire fittings can operate up to 10°C cooler compared with conventional can-style fire-rated downlights.
Better ventilation can support longer LED lamp life and help maintain reliable performance during everyday use.
Compatible GU10 LED Lamps
The Integral ILDLFR70D013 is supplied with a GU10 lamp holder, but the LED lamp is sold separately. This allows electricians and homeowners to select the required colour temperature and dimming characteristics for their installation.
Explore these Integral GU10 LED lamps from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – suitable for relaxing lighting in bedrooms, lounges and dining areas.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile option for kitchens, hallways and general household lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white light appearance for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – creates a warmer light appearance as brightness is reduced.
Before choosing a lamp, check its dimensions, wattage and suitability for use with the integrated insulation guard. A compatible LED dimmer is required for dimming applications.
Key Features
- Integral LED Evofire Maxi 110 range
- Fixed recessed GU10 downlight
- Extra-wide 110mm diameter bezel
- 70-100mm compatible ceiling cut-out
- Built-in insulation guard included
- Matt white powder-coated finish
- Ultra-slim 1mm blend-in bezel
- IP65 ingress protection
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Improved airflow around compatible GU10 LED lamps
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Maxi 110
- Manufacturer Part Number: ILDLFR70D013
- Quick Order Code: 668625
- EAN: 5055788236429
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Matt White
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 110mm
- Ceiling Cut-Out: 70-100mm
- Fitting Depth: 83mm
- Bezel Thickness: 1mm
- Product Weight: 216g
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Part C and Part L
- Resistance to Sound: Part E
- Lamp Holder: GU10 Included
- Insulation Guard: Integrated
- Mounting: Recessed Ceiling
- Manufacturer Warranty: 7 Years
- LED Lamp Included: No
83mm Depth – Check Ceiling Clearance
Because this Evofire Maxi model incorporates an insulation guard, its overall fitting depth is 83mm.
Installers should check the available ceiling void before ordering, particularly when replacing shallower downlights or working beneath joists and other obstructions.
For installations where an insulation guard is not required, the Integral ILDLFR70D015 Evofire Maxi offers a shallower alternative with the same 110mm bezel and 70-100mm cut-out compatibility.
Ideal Applications
- Replacing older downlights with larger ceiling openings
- Insulated ceiling installations
- Loft conversions and home extensions
- Period property lighting refurbishments
- Bathrooms and shower rooms, subject to installation requirements
- Kitchens and utility rooms
- Living rooms, bedrooms and hallways
- Hotels, offices and commercial premises
- New-build and renovation projects
Why Choose the Evofire Maxi 110 with Insulation Guard?
The Integral ILDLFR70D013 combines two useful installation features rarely found together in standard recessed downlights: a wide bezel accommodating 70-100mm cut-outs and an integrated insulation guard.
These features are particularly beneficial during refurbishment projects where existing ceiling openings must be reused and insulation is present above the fitting.
Combined with its IP65 rating, fire-rated construction and replaceable GU10 lamp design, this Evofire Maxi fitting provides a versatile solution for professional lighting installations.
