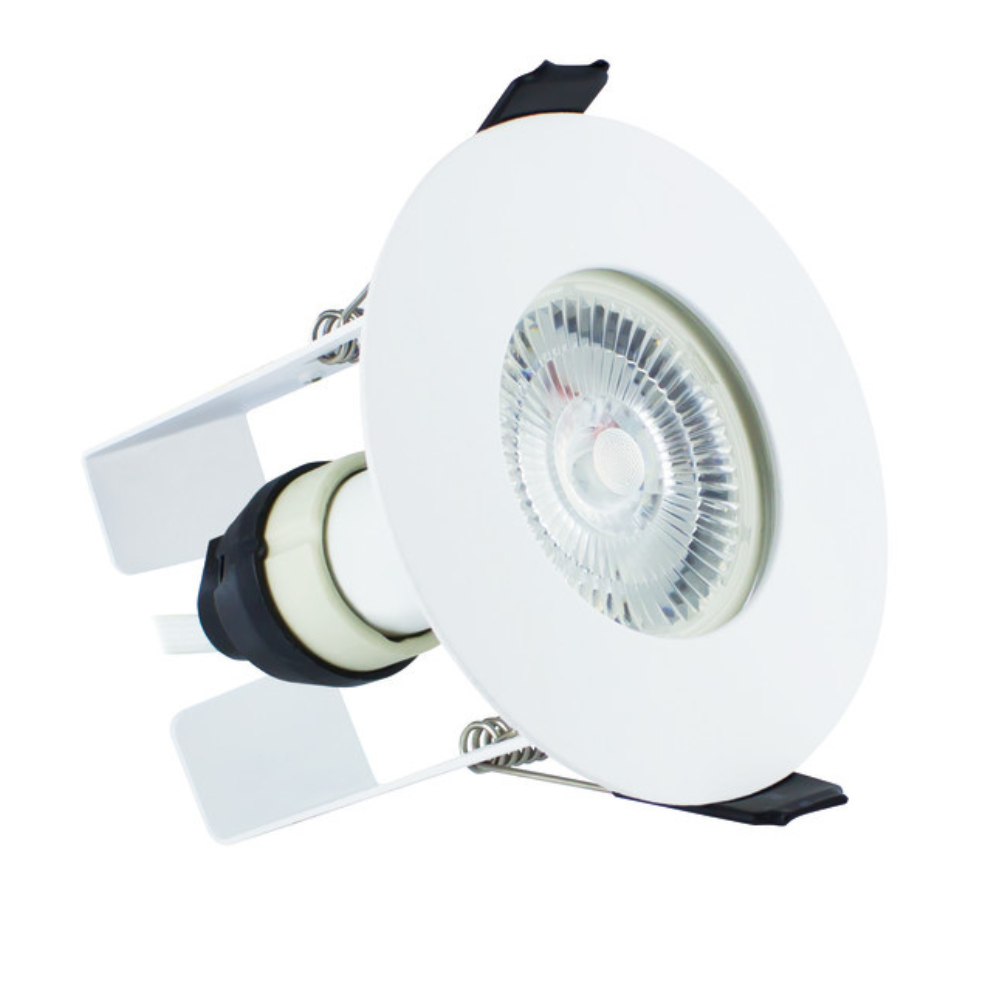

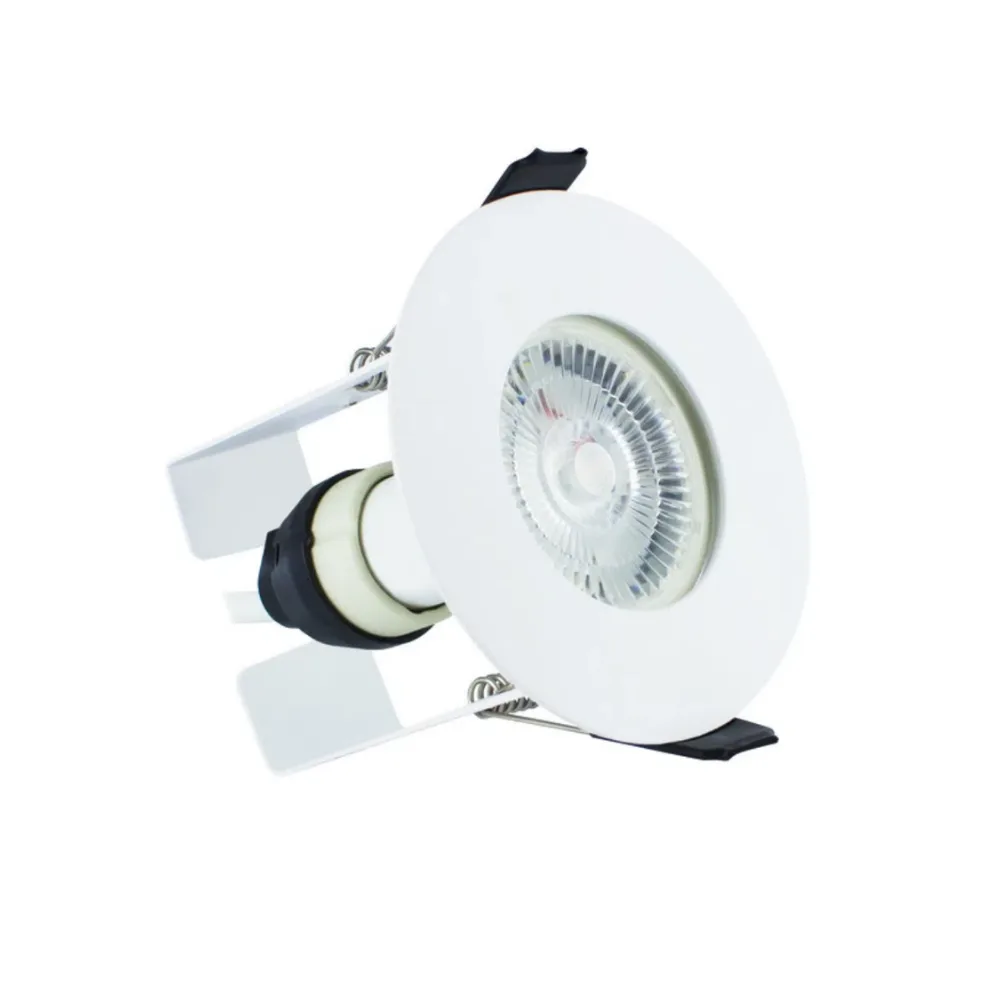

Integral ILDLFR70D012 Evofire 85 IP65 White Downlight with Insulation Guard – No GU10 Holder
The Integral ILDLFR70D012 is a white Evofire 85 fire-rated downlight featuring an integrated insulation guard, ultra-slim 1mm bezel and IP65 front protection. Designed for a 70mm ceiling cut-out, it provides a practical recessed lighting solution for suitably insulated ceiling installations.

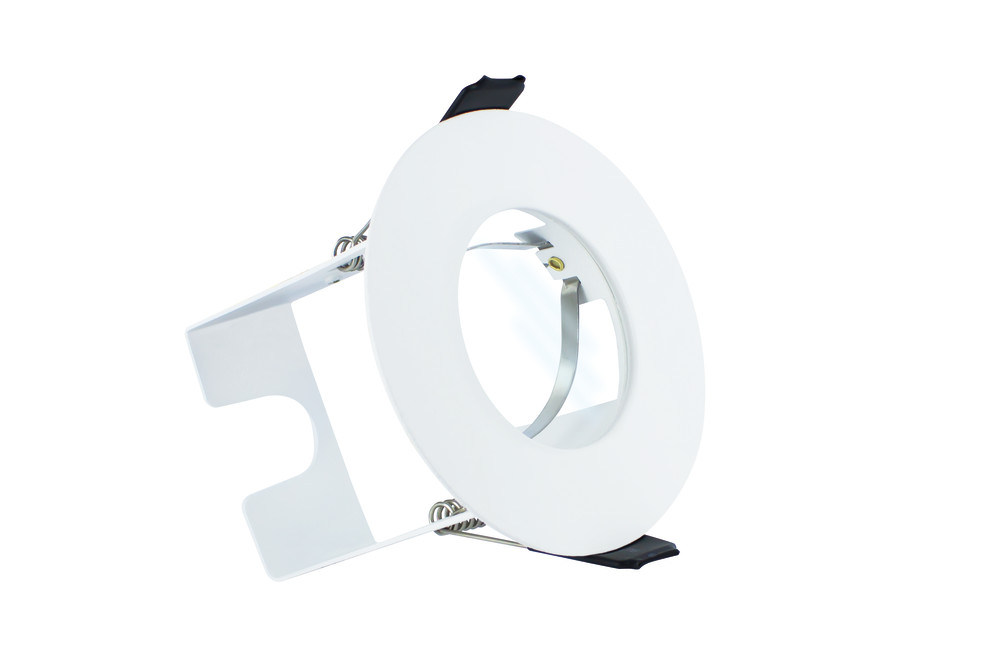

Unlike most standard Evofire downlights, the Integral ILDLFR70D012 is supplied without a GU10 lamp holder. This makes it suitable for installations where a compatible holder and connection arrangement will be selected separately. Both the lamp holder and LED lamp must be purchased separately.
Important: GU10 Holder Not Included
This model is supplied without a GU10 lamp holder, and the LED lamp is also not included.
To complete a GU10 lighting installation, a suitable GU10 holder and compatible LED lamp must be purchased separately.
- Fire-rated downlight fitting included
- Integrated insulation guard included
- GU10 lamp holder not included
- GU10 LED lamp not included
- Compatible electrical connections must be installed according to manufacturer instructions
Integral LED offers the ILDLA001 GU10 lamp holder with loop-in/loop-out terminal box and 300mm cable as a separate accessory. Check compatibility and installation requirements before ordering.

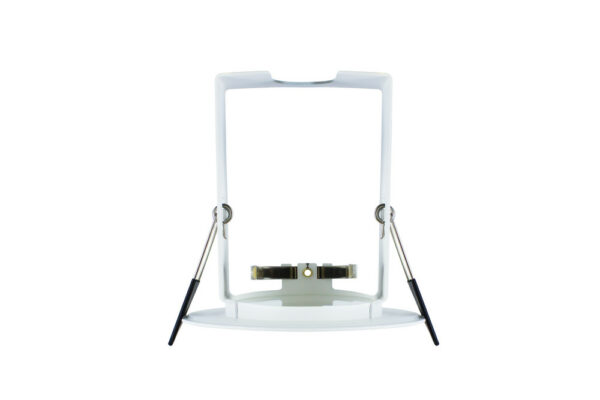

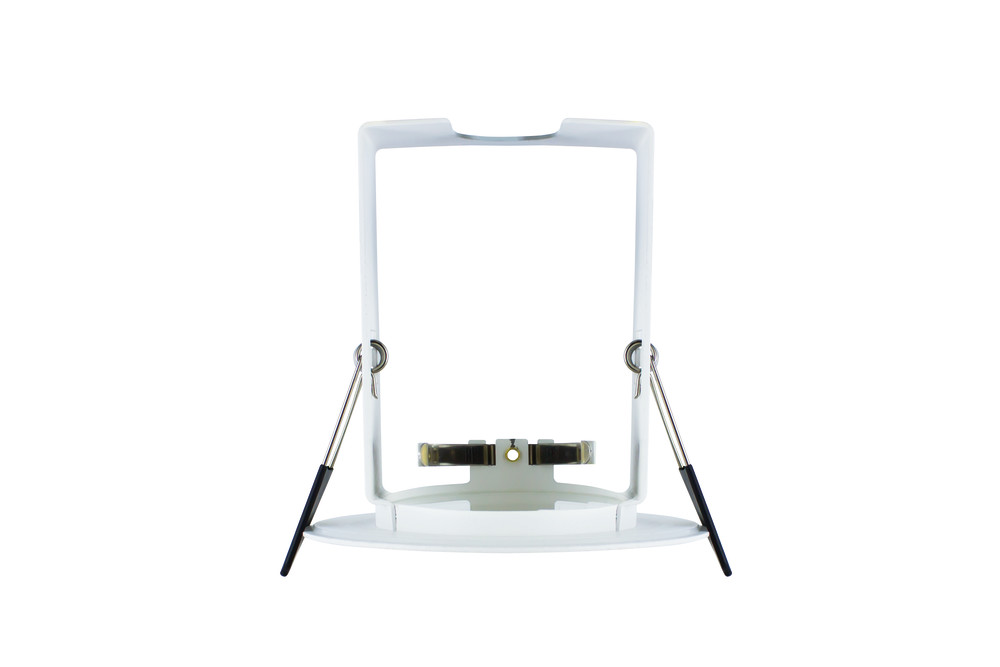

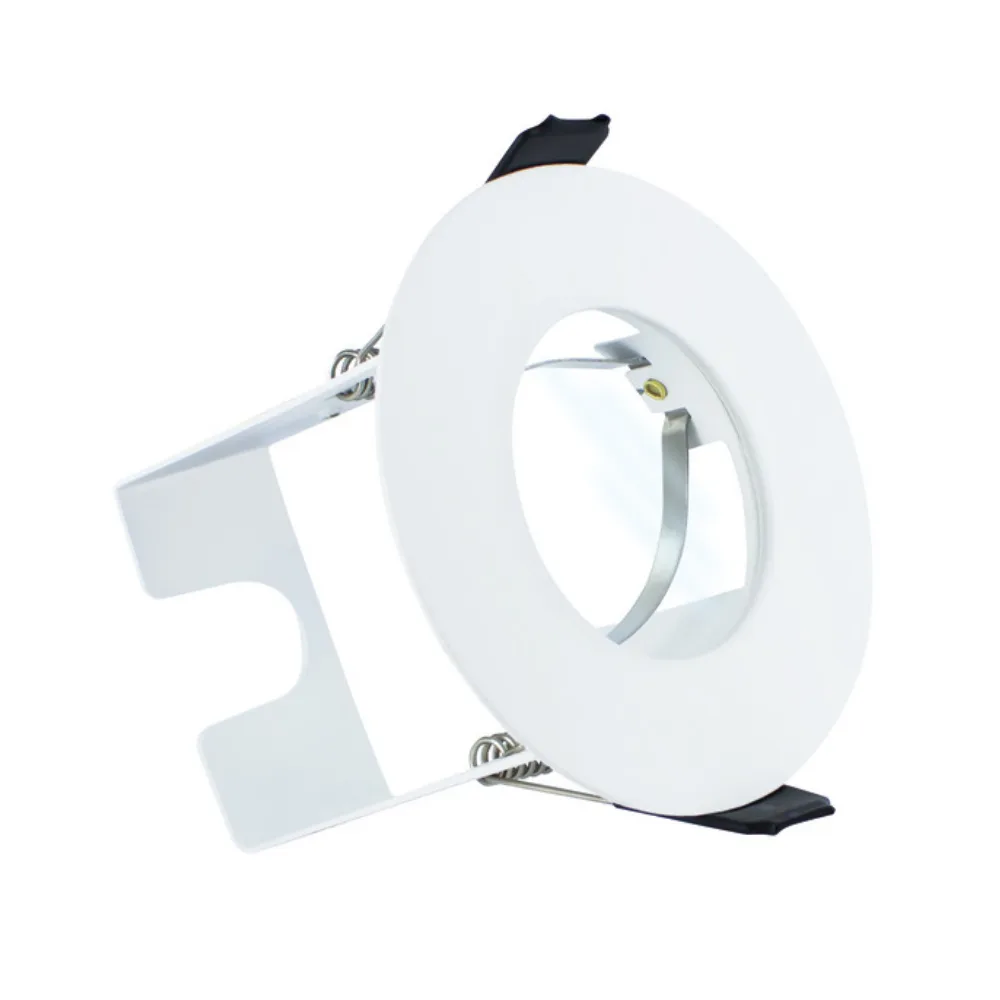

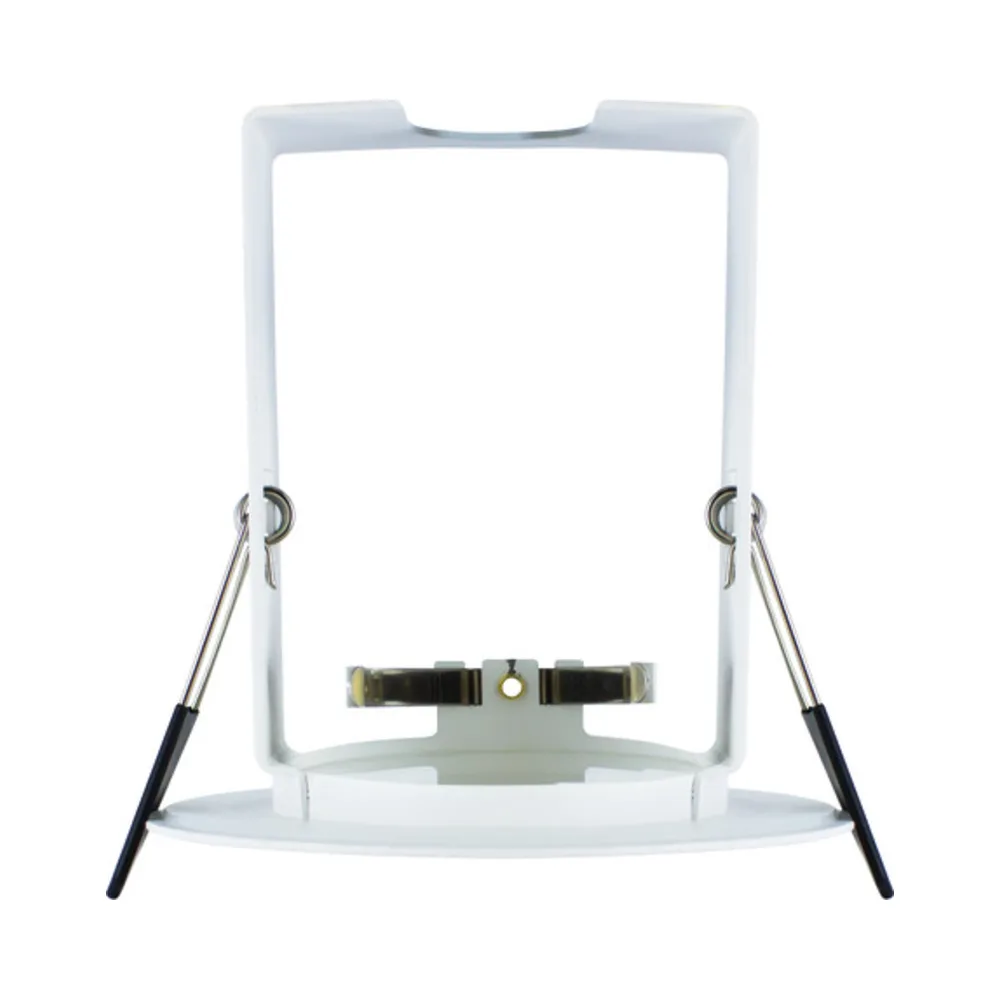

Integrated Insulation Guard for Insulated Ceilings
The Integral ILDLFR70D012 includes a factory-fitted insulation guard, designed to maintain appropriate space around the lamp when suitable ceiling insulation is present.
This makes it particularly useful for loft conversions, home extensions and insulated ceiling voids where conventional open-back fittings require additional insulation clearance or protection.
The guard allows suitable loft insulation to be placed over the fitting in accordance with Integral LED’s installation instructions.

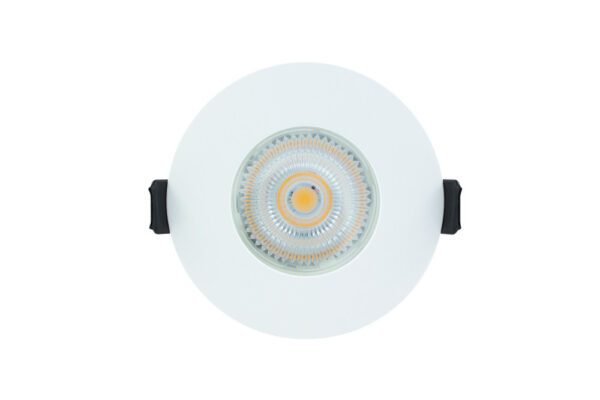

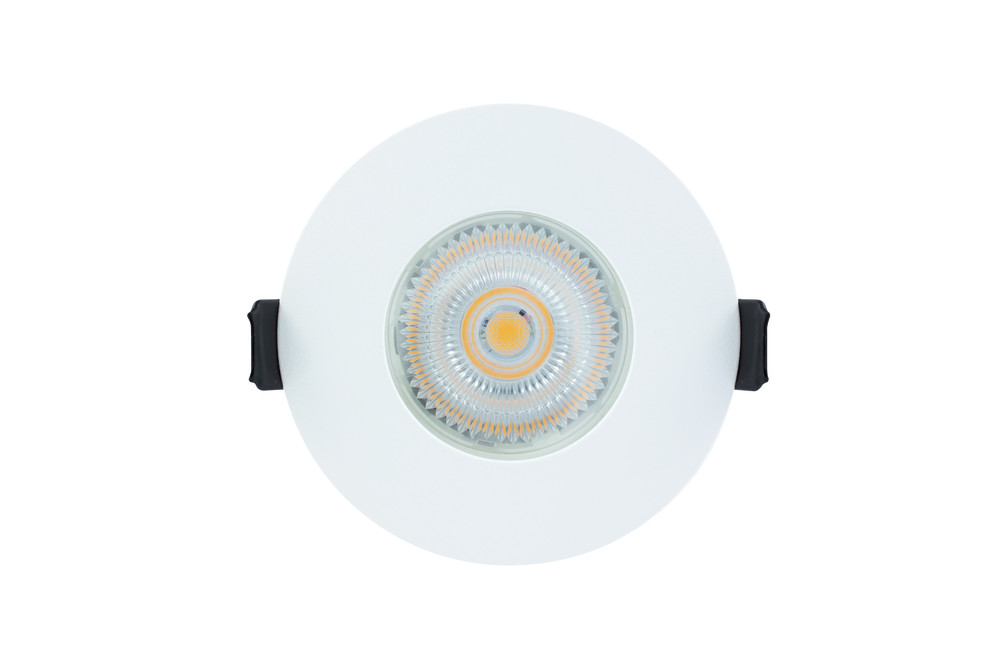

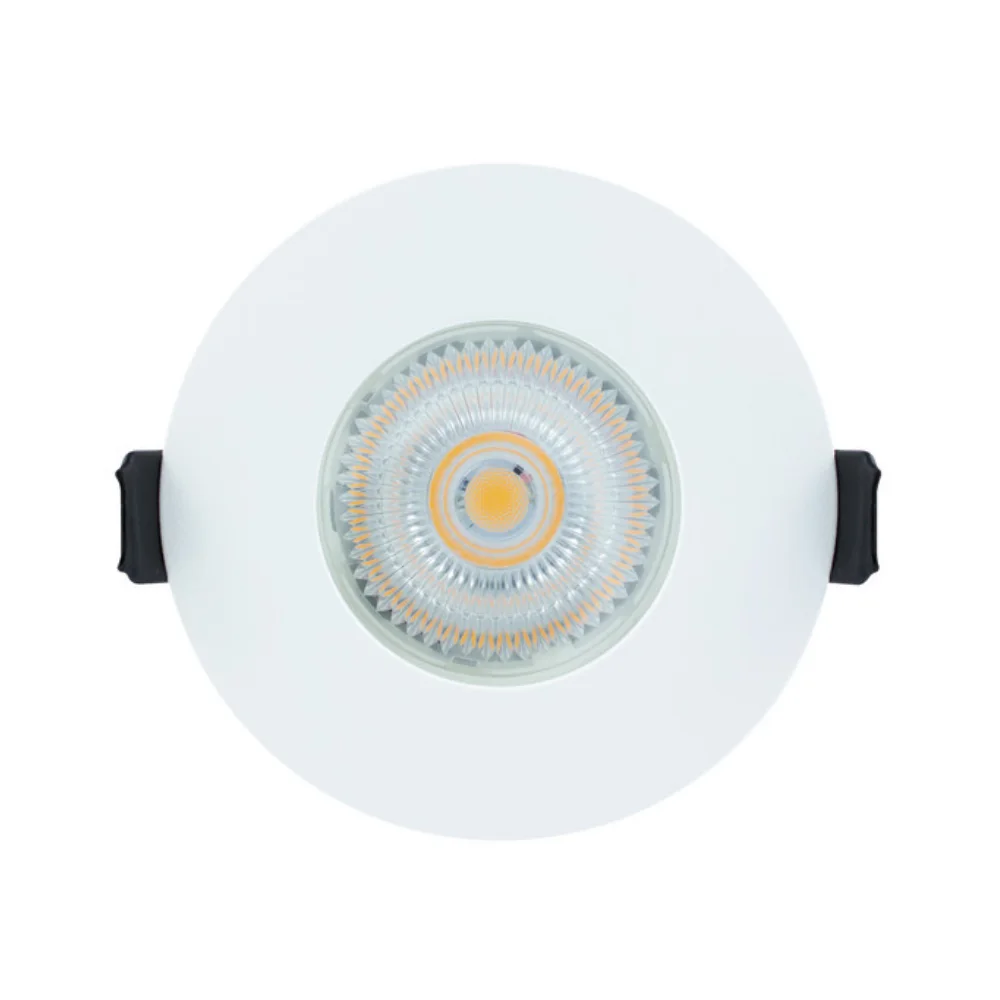

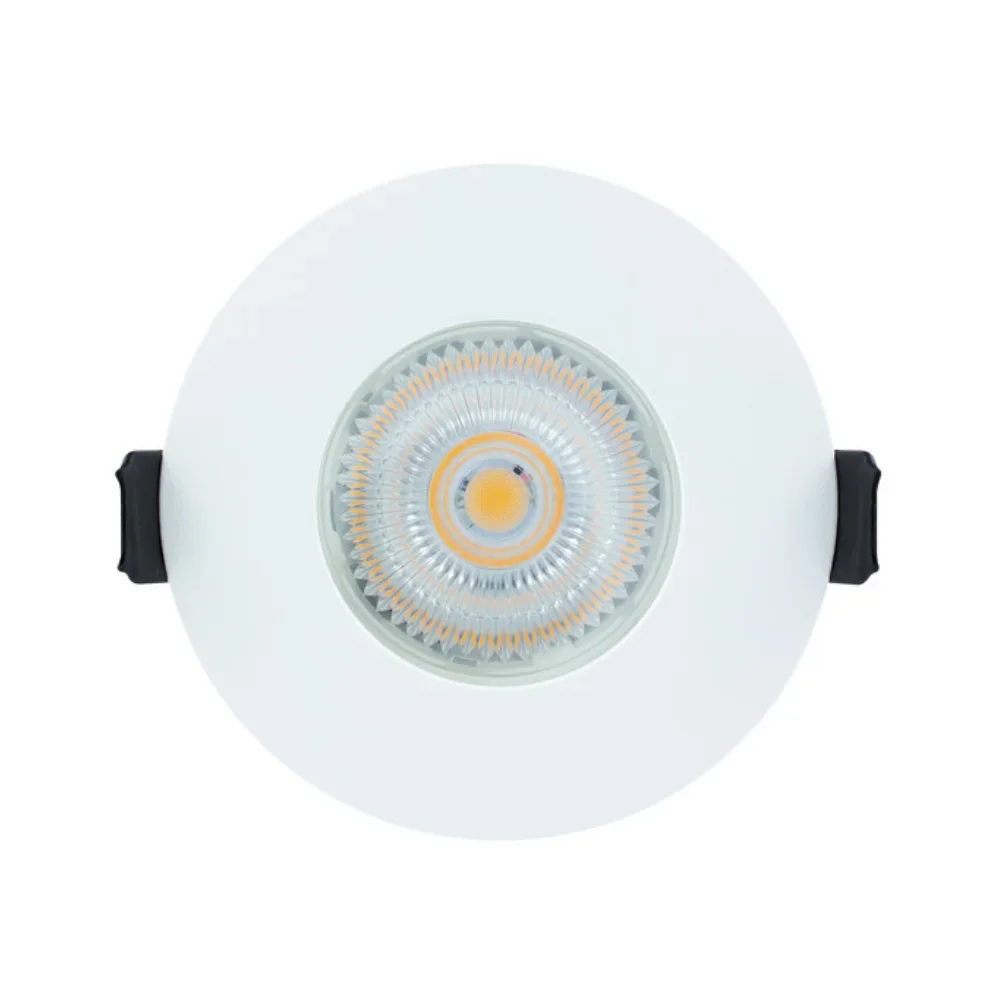

Ultra-Slim 1mm White Bezel
The matt white powder-coated finish offers a discreet appearance against light-coloured ceilings, making this Evofire downlight suitable for contemporary homes and commercial interiors.
Its ultra-thin 1mm blend-in bezel is designed to sit almost flush against the ceiling, providing a minimalist finish without the bulk of traditional recessed fire-rated downlights.
With an 85mm overall diameter and 70mm ceiling cut-out, it fits standard recessed lighting installations where the specified opening is available.
Canless Fire-Rated Evofire Technology
The Evofire range uses an innovative intumescent fire protection system instead of relying on a conventional bulky metal enclosure.
The Integral ILDLFR70D012 provides 30, 60 and 90-minute fire resistance in specified ceiling constructions, tested in accordance with BS 476 Part 21:1987.
Its construction helps maintain the applicable fire performance of suitable ceilings when correctly installed.
Always consult Integral LED’s installation instructions and fire test evidence for the relevant ceiling construction.
IP65 Front Protection for Bathrooms and Kitchens
The Integral Evofire downlight features IP65 protection at the exposed front, offering resistance to dust ingress and water jets when correctly installed.
This makes it suitable for appropriately specified bathroom locations, kitchens, utility rooms and other interiors where moisture-resistant lighting is required.
The recessed side is rated IP20. Always follow the applicable bathroom-zone requirements and current electrical installation regulations.
Improved Airflow and LED Lamp Cooling
Traditional enclosed fire-rated downlights can restrict airflow around LED lamps, leading to increased operating temperatures.
Evofire’s ventilated construction allows heat generated by compatible LED lamps to dissipate more effectively.
Integral LED reports that compatible lamps can operate up to 10°C cooler in Evofire fittings compared with conventional can-style fire-rated downlights.
Lower operating temperatures can help reduce thermal stress on the lamp and support longer operating life.
Compatible GU10 LED Lamps
Once a suitable GU10 lamp holder has been installed, the Integral ILDLFR70D012 can be used with compatible GU10 LED lamps selected to suit the desired colour temperature, brightness and dimming requirements.
The following Integral GU10 lamps are available separately from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – suitable for comfortable ambient lighting in bedrooms and living rooms.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile choice for kitchens, hallways and general interior lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – produces a warmer light appearance as brightness is reduced.
Check the selected lamp’s physical dimensions, wattage and compatibility with the integrated insulation guard. A compatible LED dimmer is required for dimming applications.
Key Features
- Integral LED Evofire 85 range
- Fixed recessed fire-rated downlight
- Matt white powder-coated finish
- Integrated insulation guard included
- Supplied without GU10 lamp holder
- Ultra-slim 1mm blend-in bezel
- 85mm overall diameter
- 70mm ceiling cut-out
- 83mm fitting depth
- IP65 front protection
- IP20 recessed-side rating
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Improved ventilation around compatible LED lamps
- Pressed steel and glass construction
- 7-year manufacturer warranty
- GU10 holder and LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D012
- Quick Order Code: 142473
- EAN: 5055788228943
- Product Type: Fire-Rated Recessed Downlight
- Configuration: Fixed
- Finish: Matt White
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 83mm
- Product Weight: 148g
- Bezel Thickness: 1mm
- Front IP Rating: IP65
- Back/Recessed Side IP Rating: IP20
- Fire Rating: 30, 60 and 90 Minutes (Subject to Ceiling Construction)
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Insulation Guard: Integrated
- GU10 Lamp Holder: Not Included
- Compatible Holder Accessory: Integral ILDLA001 (Sold Separately)
- Mounting: Recessed Ceiling
- CE and RoHS: Yes
- Manufacturer Warranty: 7 Years
- LED Lamp Included: No
83mm Installation Depth and Ceiling Insulation
The Integral ILDLFR70D012 has an 83mm overall depth due to the integrated insulation guard. Installers should check the available ceiling void before ordering, particularly where joists, pipework or existing cables restrict the installation space.
The insulation guard is designed for compatible insulation arrangements only. Follow the manufacturer’s guidance regarding permitted insulation materials, lamp selection and ventilation.
Ideal Applications
- Insulated ceiling installations
- Loft conversions and residential extensions
- Bathrooms and shower rooms, subject to installation requirements
- Kitchens and utility rooms
- Living rooms and bedrooms
- Hallways and corridors
- Residential refurbishment projects
- Offices and commercial interiors
- Projects requiring a separately selected GU10 holder
Why Choose the Integral Evofire Without GU10 Holder?
The Integral ILDLFR70D012 is particularly useful where an installer requires a white fire-rated recessed fitting with an integrated insulation guard but prefers to source a suitable GU10 holder separately.
Its IP65-rated front, tested fire resistance and slim 1mm bezel offer the familiar advantages of the Evofire range while providing flexibility over the separately supplied lamp holder.
For installations requiring a similar white Evofire fitting with both insulation guard and GU10 holder included, consider the Integral ILDLFR70D003.
Order Integral Evofire Downlights from Electrical4Less
Choose the Integral ILDLFR70D012 Evofire 85 for a white fire-rated downlight with integrated insulation protection and no GU10 holder supplied.
Order online from Electrical4Less and purchase the appropriate GU10 lamp holder and compatible LED lamp separately to complete the installation.
