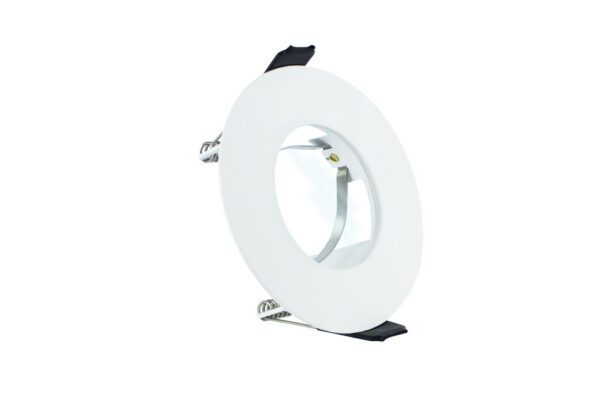

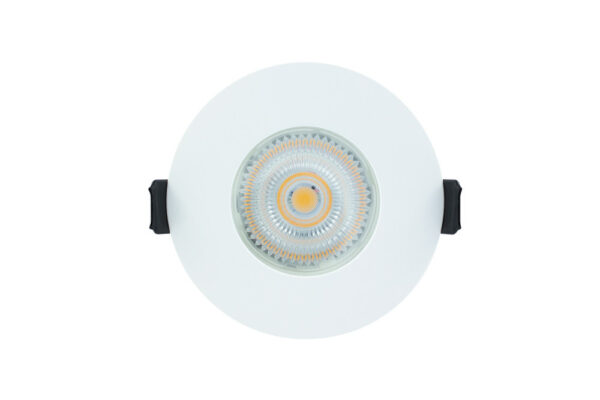

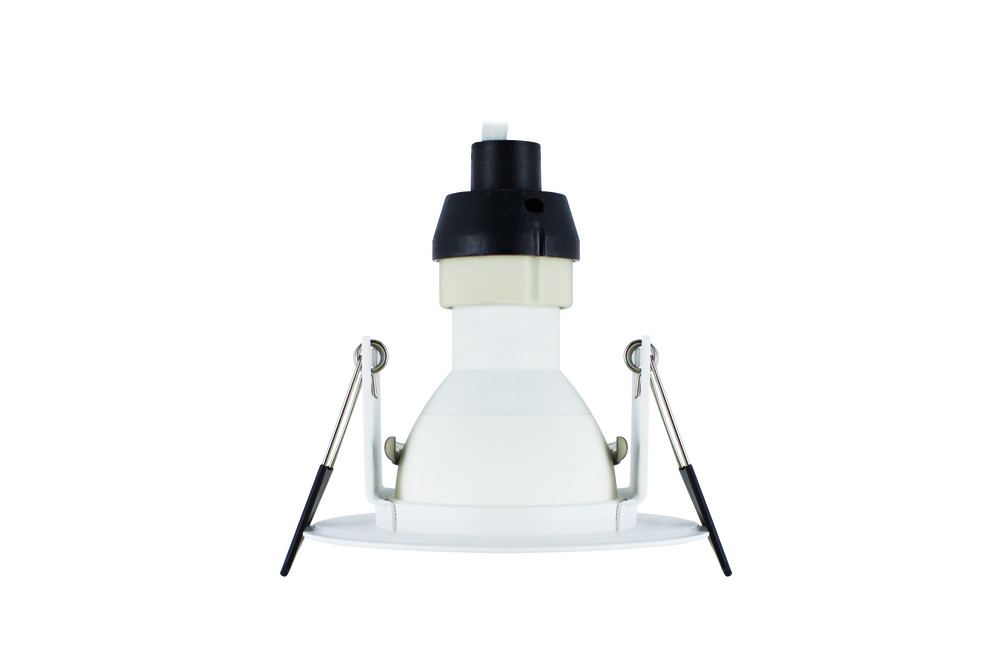

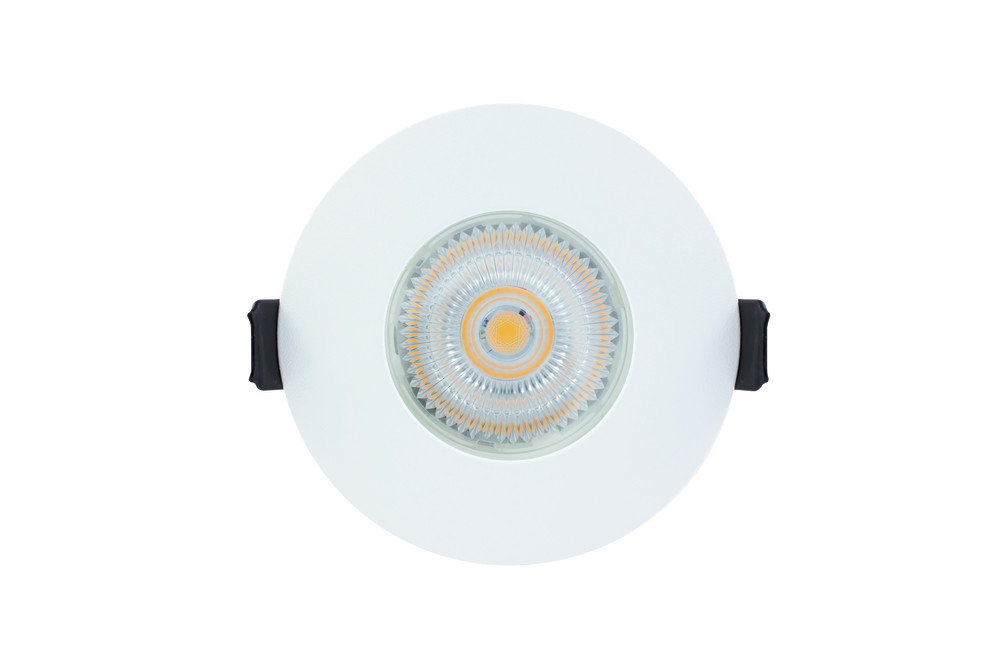

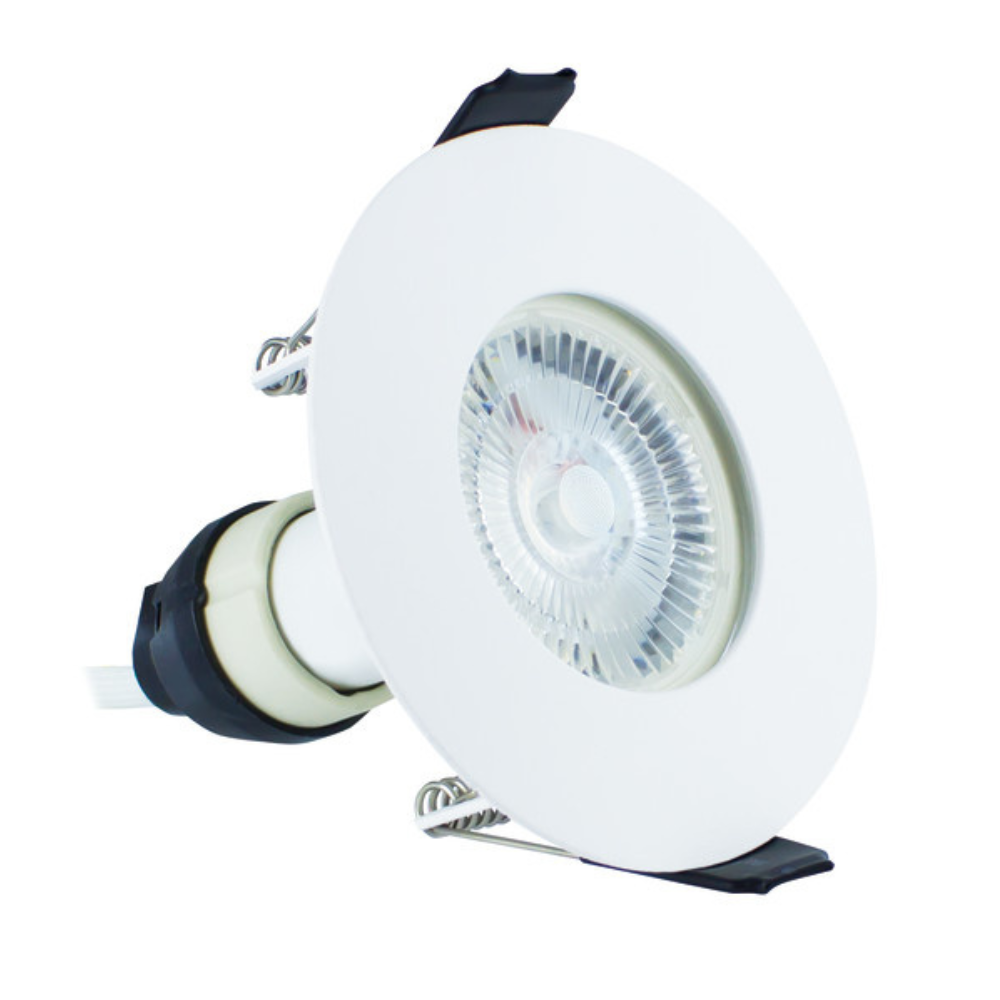

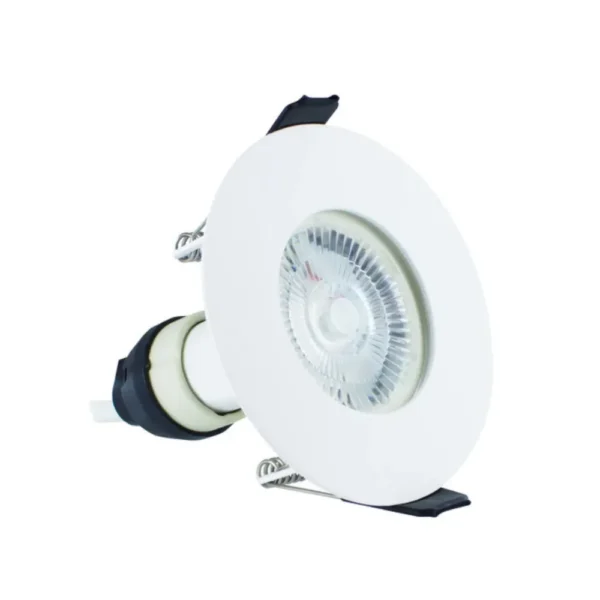

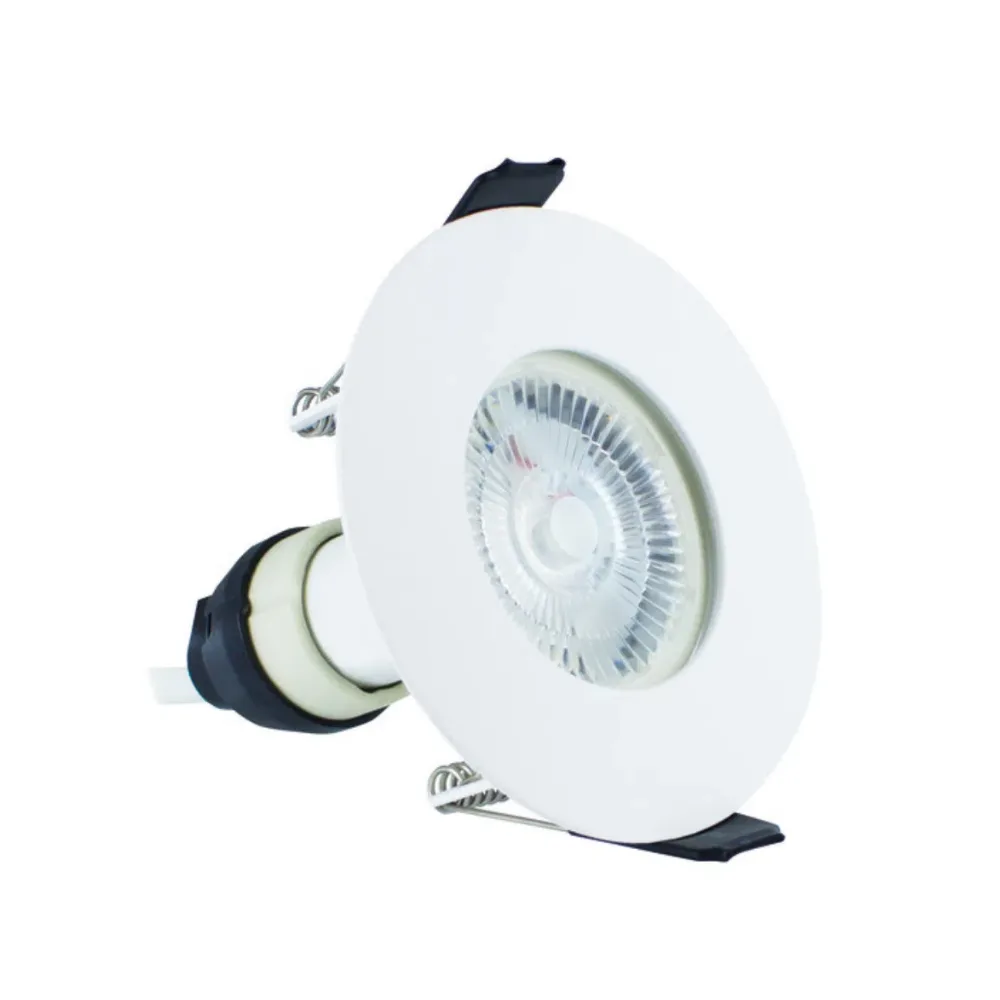

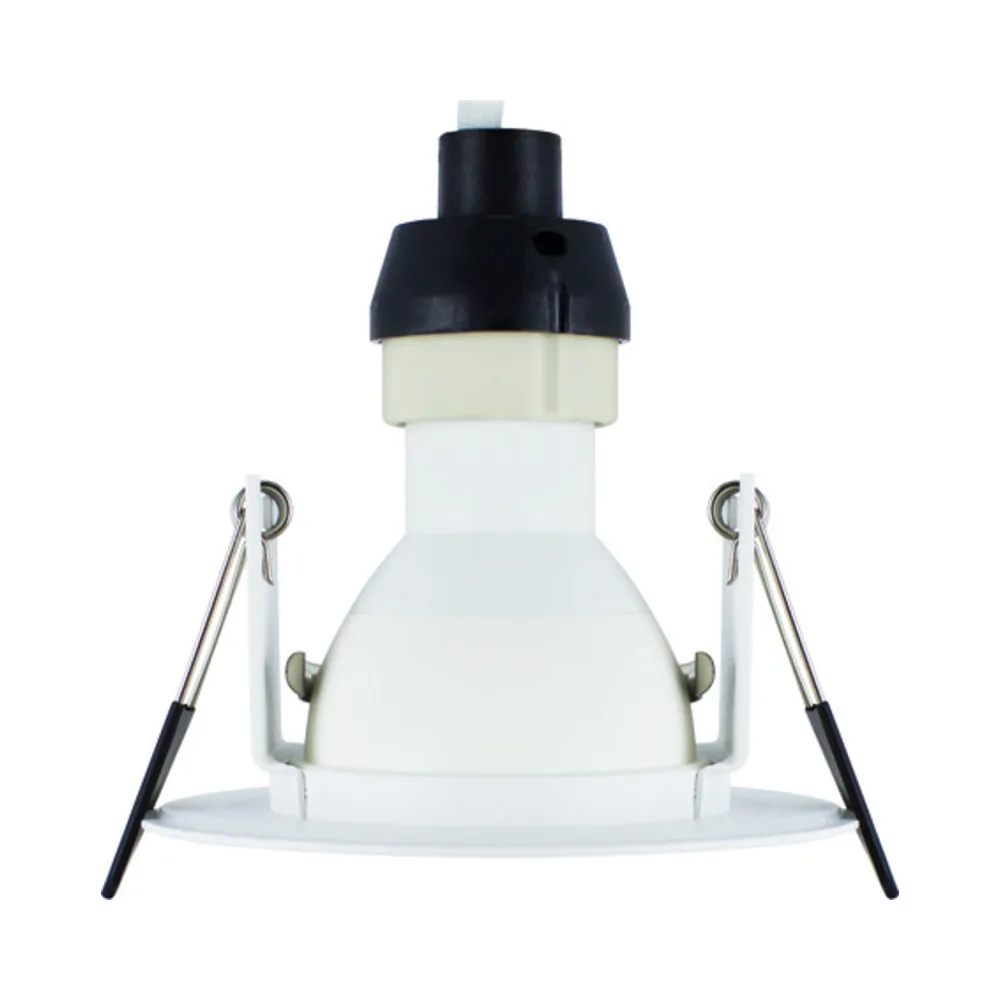

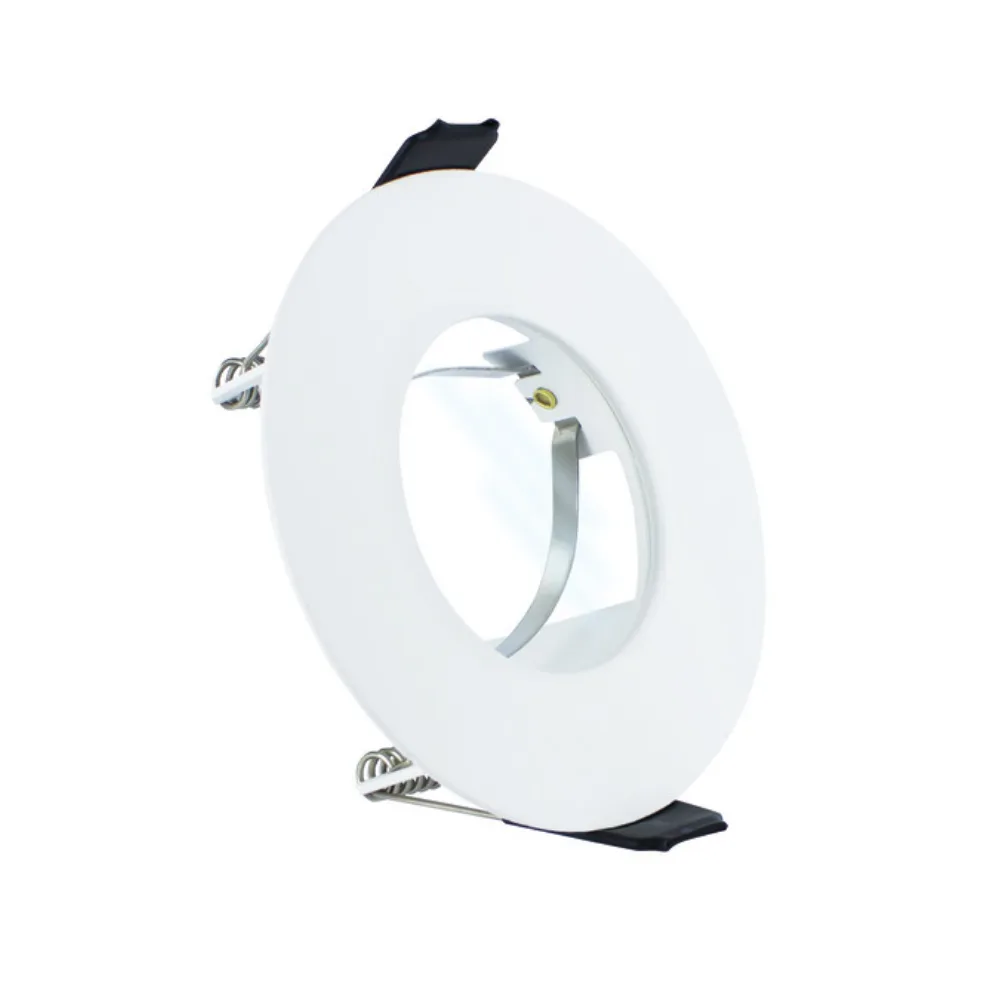

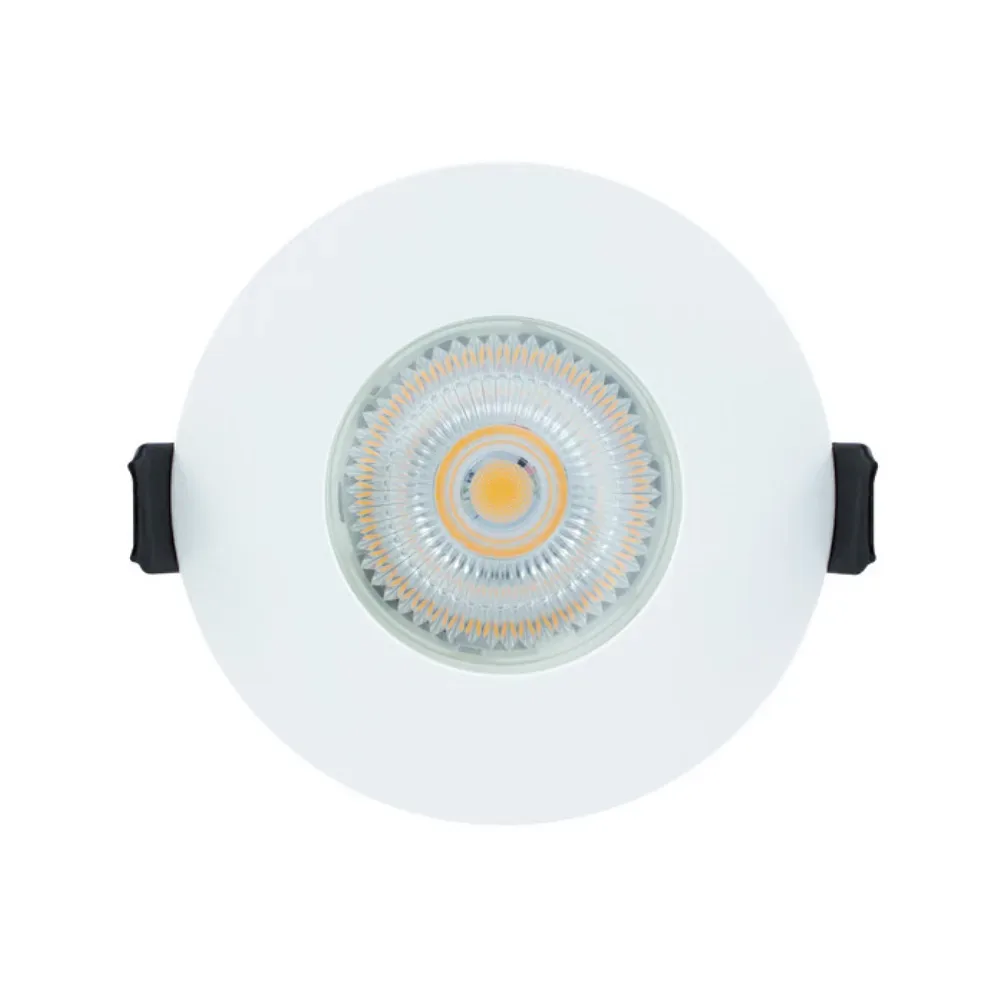

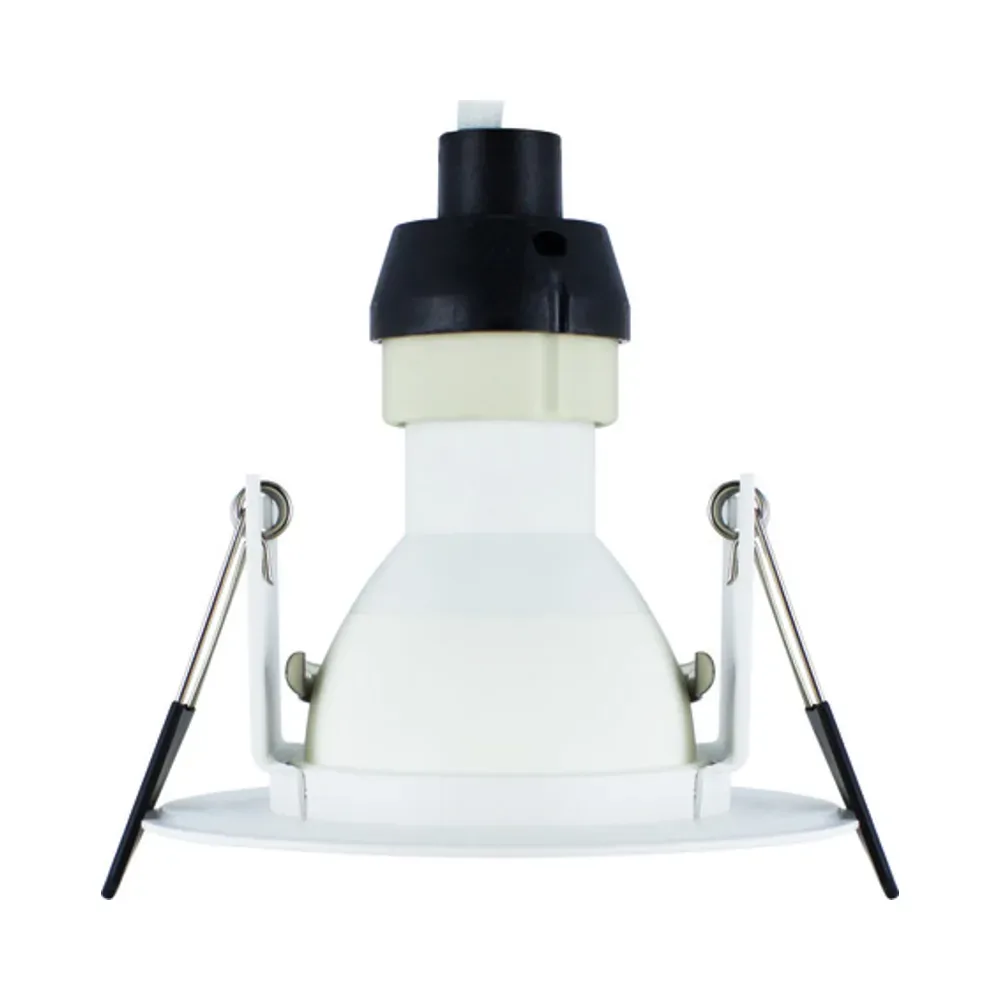

Integral ILDLFR70D011 Evofire 85 IP65 White Fire Rated Downlight – No GU10 Holder
The Integral ILDLFR70D011 is a white fire-rated recessed downlight from the Evofire 85 range, featuring an ultra-slim 1mm bezel, shallow 39mm depth and IP65 front protection. Designed for a 70mm ceiling cut-out, this fixed fitting offers a compact solution for domestic and commercial lighting installations.
Unlike the standard Evofire models supplied with a GU10 lamp holder, the Integral ILDLFR70D011 is supplied without one. This allows installers to select an appropriate compatible lamp holder and connection arrangement separately. The fitting also does not include an insulation guard or LED lamp.
Important – No GU10 Lamp Holder Included
The Integral ILDLFR70D011 is supplied as a fire-rated downlight fitting only, without a GU10 lamp holder or LED light source.
A suitable lamp holder must be purchased separately before the fitting can be used with a compatible GU10 LED lamp.
- Fire-rated recessed downlight fitting supplied
- GU10 lamp holder not included
- LED lamp not included
- Insulation guard not included
- Compatible lamp holder and electrical connections required separately
This configuration is particularly useful for professional installers who prefer to select the lamp holder and connection accessories separately according to their installation requirements.
Shallow 39mm Design for Restricted Ceiling Spaces
One of the main advantages of the Integral ILDLFR70D011 is its shallow 39mm construction, which can be useful when working in restricted ceiling voids.
Its canless design avoids the large metal enclosure traditionally associated with fire-rated recessed downlights, helping reduce the physical depth of the fitting.
- 39mm fitting depth
- 70mm ceiling cut-out
- 85mm overall diameter
- Ultra-slim 1mm bezel
- Fixed recessed installation
Additional space may be required for the separately purchased lamp holder, electrical connections and ventilation. Always check the manufacturer’s installation clearances before fitting.
Ultra-Slim 1mm White Bezel
The Integral Evofire white downlight features a clean powder-coated finish designed to blend naturally into light-coloured ceilings.
Its ultra-thin 1mm bezel creates a discreet, almost flush appearance, making the fitting particularly suitable for contemporary residential interiors, offices and other areas where unobtrusive recessed lighting is preferred.
The round 85mm diameter provides a neat finish around the standard 70mm ceiling opening.
Canless Fire-Rated Evofire Technology
The Integral ILDLFR70D011 uses Evofire’s innovative intumescent fire protection rather than a conventional enclosed metal canister.
The fitting provides 30, 60 and 90-minute fire resistance in specified ceiling constructions, tested in accordance with BS 476 Part 21:1987.
This design helps maintain the fire performance of appropriately specified ceilings while allowing improved airflow around compatible LED lamps.
The applicable fire rating depends on the tested ceiling construction and correct installation in accordance with Integral LED’s instructions.
Improved Airflow for LED Lamp Cooling
The open-back Evofire construction helps reduce heat accumulation around compatible LED lamps.
Traditional enclosed fire-rated downlights can restrict airflow, causing lamps to operate at higher temperatures. Integral LED states that suitable LED lamps installed in Evofire fittings can operate up to 10°C cooler than in conventional can-style alternatives.
Improved ventilation can help reduce thermal stress on LED components and support longer lamp life.
IP65 Front Protection for Bathrooms and Kitchens
The Integral ILDLFR70D011 features IP65 protection at the exposed front of the downlight when correctly installed.
This provides resistance to dust ingress and water jets, making the fitting suitable for appropriately specified bathroom locations, kitchens, utility rooms and other indoor spaces where moisture protection is required.
Installation must comply with the relevant bathroom-zone requirements, electrical regulations and manufacturer’s instructions.
Compatible GU10 LED Lamps – Holder Required Separately
Once a suitable compatible GU10 holder has been installed, the Integral ILDLFR70D011 can be used with an appropriate GU10 LED lamp.
The following Integral GU10 LED lamps are available separately from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – suitable for warm ambient lighting in bedrooms, lounges and dining rooms.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile choice for kitchens, hallways and general interior lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for workspaces, bathrooms and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – creates a warmer light appearance as brightness is reduced.
The fitting is designed for compatible LED lamps only. Check the maximum permitted lamp wattage, physical dimensions and installation requirements before use. A suitable LED dimmer is required for dimming applications.
Optional Downlight Adapter for Larger Cut-Outs
For replacement projects where the existing ceiling opening is larger than 70mm, a compatible round Evofire adapter ring may be used to accommodate suitable cut-outs up to 100mm.
Always confirm the adapter is approved for use with the ILDLFR70D011 and that the ceiling provides adequate support for the completed installation.
Key Features
- Integral LED Evofire 85 range
- Fixed fire-rated recessed downlight
- White powder-coated finish
- Ultra-slim 1mm blend-in bezel
- 85mm overall diameter
- 70mm ceiling cut-out
- Shallow 39mm fitting depth
- IP65 front protection
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Open construction for improved LED lamp ventilation
- Durable pressed steel and glass construction
- GU10 lamp holder not included
- Insulation guard not included
- LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D011
- EAN: 5055788228905
- Product Type: Fire-Rated Recessed Downlight
- Configuration: Fixed
- Finish: White
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 39mm
- Product Weight: 130g
- Bezel Thickness: 1mm
- IP Rating: IP65 Front
- Fire Rating: 30, 60 and 90 Minutes (Subject to Ceiling Construction)
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Compliant with Parts C and L
- Resistance to Sound: Compliant with Part E
- Lamp Holder: Not Included
- LED Lamp: Not Included
- Insulation Guard: Not Included
- Mounting: Recessed Ceiling
- Application: Indoor Residential and Commercial Lighting
Important Ceiling Insulation Requirements
The Integral ILDLFR70D011 does not include an insulation guard and must not be covered directly with ceiling insulation unless a suitable manufacturer-approved guard is fitted.
Integral LED’s Evofire installation guidance specifies minimum clearances of 50mm above unguarded fittings and 50mm from joists. Follow the latest instructions applicable to the selected lamp holder and installation.
Where a built-in insulation guard is required, the Integral ILDLFR70D012 provides an alternative white Evofire fitting without a GU10 holder, featuring an integrated guard and an overall depth of 83mm.
Ideal Applications
- Custom GU10 lighting installations
- Projects where the lamp holder is selected separately
- Bathrooms and shower rooms, subject to installation requirements
- Kitchens and utility rooms
- Living rooms and bedrooms
- Hallways and corridors
- Offices and commercial premises
- Residential refurbishment projects
- Ceilings with limited available installation depth
Why Choose the Evofire Without GU10 Holder?
The Integral ILDLFR70D011 provides the advantages of a fire-rated Evofire recessed fitting while allowing the installer to source a suitable lamp holder separately.
Its shallow 39mm construction is particularly useful where a compact fitting is required, while the IP65 front protection and ultra-slim bezel make it an attractive option for modern lighting installations.
For customers who prefer a similar white Evofire fitting supplied with a GU10 holder, the Integral ILDLFR70D001 offers the standard holder-included alternative.
Order Integral Evofire Downlights from Electrical4Less
Choose the Integral ILDLFR70D011 Evofire 85 for a white fire-rated recessed downlight supplied without a GU10 holder or insulation guard.
Order online from Electrical4Less and purchase a suitable compatible lamp holder and GU10 LED lamp separately to complete your installation.
