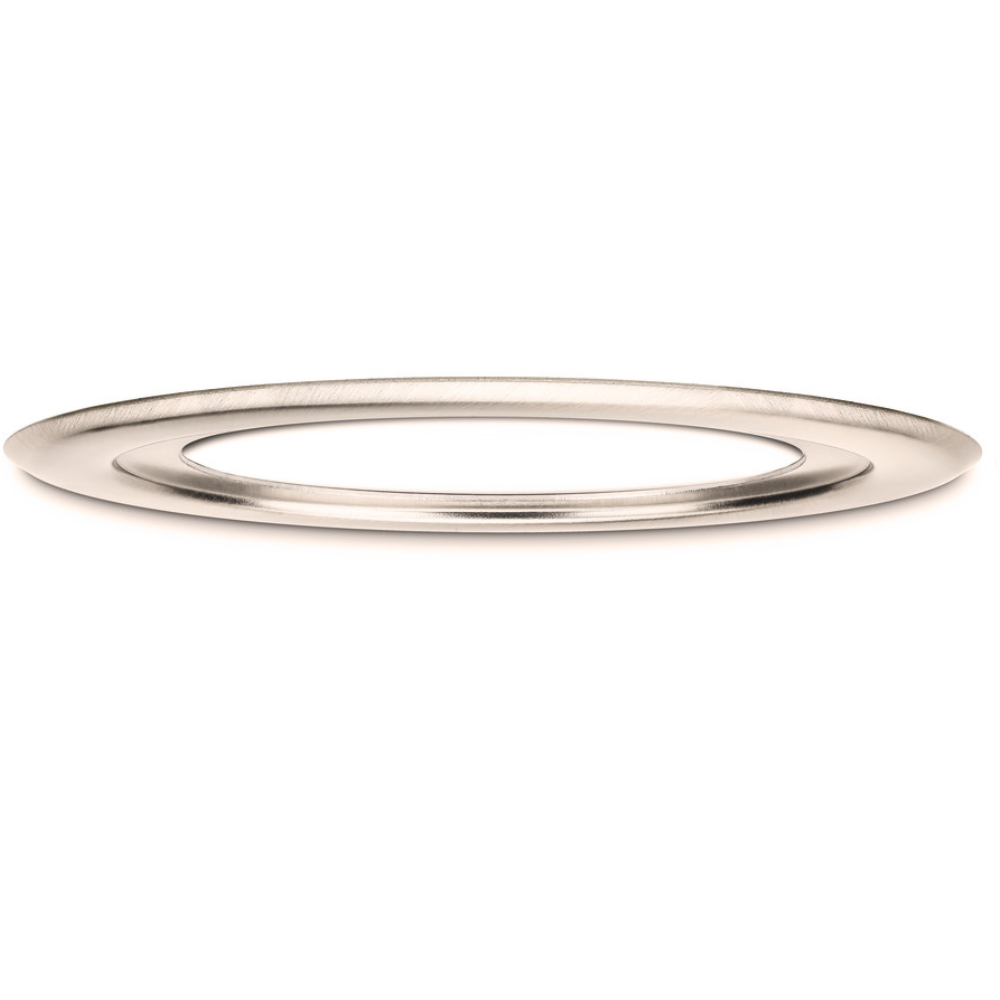

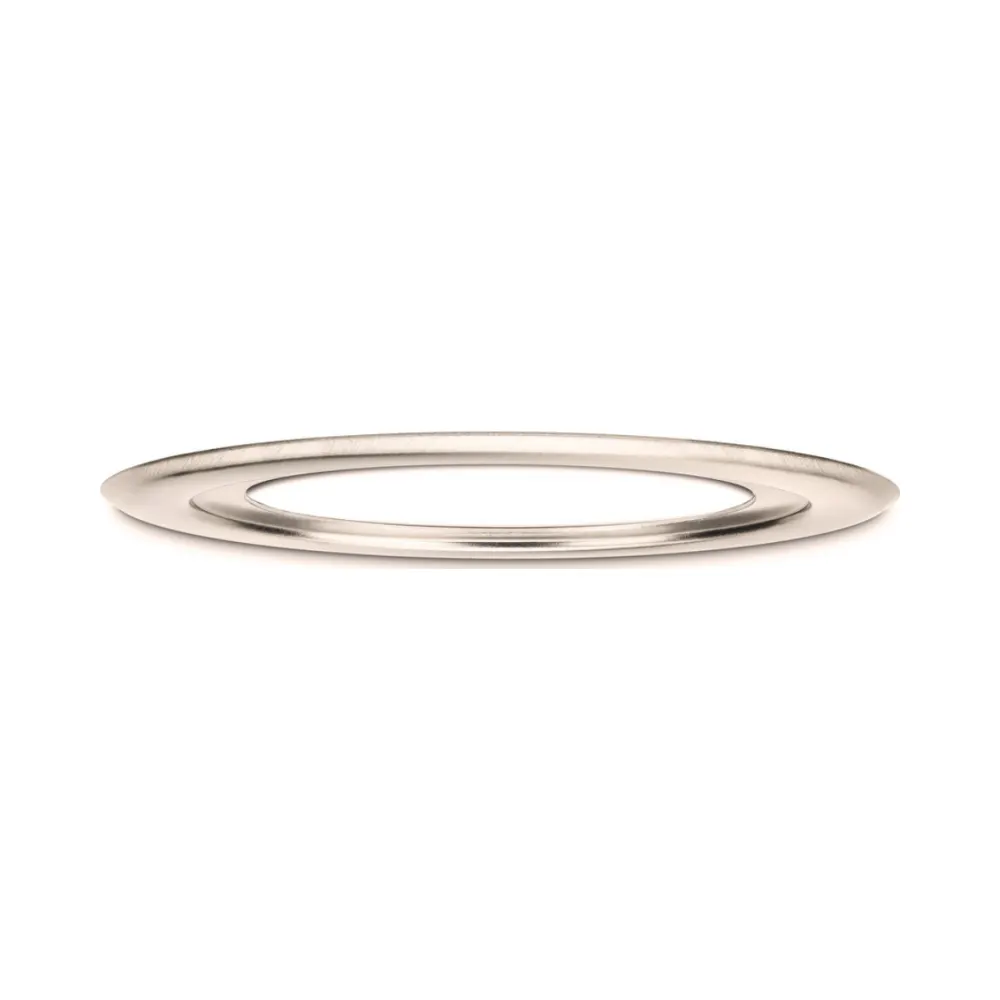

Integral ILDLFR70D006 Evofire Satin Nickel Downlight Adapter Ring 70-100mm
The Integral ILDLFR70D006 is a satin nickel downlight adapter ring designed for compatible round Integral Evofire fire-rated downlights. It allows fittings originally designed for a 70mm ceiling cut-out to be installed in larger openings measuring up to 100mm, offering a convenient solution for recessed lighting replacements.
With its 110mm overall diameter, slim 3mm profile and durable pressed steel construction, the Integral ILDLFR70D006 helps achieve a neat ceiling finish without unnecessary alterations to existing openings. Its satin nickel coating complements brushed-metal electrical accessories and contemporary interiors.
70-100mm Ceiling Cut-Out Compatibility
Replacing older recessed downlights can be challenging when the existing ceiling opening is too large for a modern 70mm fitting. The Evofire satin nickel adapter provides additional coverage, allowing compatible round downlights to be installed in suitable openings between 70mm and 100mm.
This makes it particularly useful for electricians working on refurbishment projects where existing ceiling cut-outs need to be reused.
- Accommodates 70-100mm ceiling cut-outs
- 110mm overall adapter diameter
- Designed for selected round 70mm Evofire downlights
- Helps conceal suitably sized oversized or irregular openings
- Reduces the need for cosmetic ceiling repairs in suitable installations
The surrounding ceiling must remain structurally sound and provide secure support for the completed downlight installation.
Satin Nickel Finish for Coordinated Interiors
The satin nickel finish provides a softer metallic appearance than polished chrome, making this adapter an attractive choice for interiors featuring brushed nickel accessories.
It can complement satin nickel downlights, switches, sockets, door handles, bathroom fittings and kitchen hardware.
The understated finish works particularly well in contemporary residential interiors, modern bathrooms and commercial premises where a coordinated appearance is important.
Slim 3mm Pressed Steel Construction
The Integral Evofire adapter is manufactured from toughened pressed steel with a powder-coated satin nickel finish.
Despite increasing the visible coverage around the downlight, the adapter has a depth of only 3mm, helping preserve a neat, low-profile appearance against the ceiling.
Its lightweight construction makes it a practical accessory for recessed lighting refurbishment work.
Maintains Compatible Evofire Fire Ratings
Integral LED confirms that compatible Evofire downlights can retain their tested 30, 60 and 90-minute fire ratings when installed with the appropriate adapter ring.
This allows the specified downlight to be fitted into a larger ceiling opening without automatically sacrificing the tested fire protection of the complete assembly.
The adapter itself is not an independently fire-rated luminaire. Fire performance depends on the compatible Evofire fitting, approved ceiling construction and correct installation.
IP65 Protection with Compatible Downlights
When used with a suitable IP65-rated Evofire downlight, the ILDLFR70D006 allows the completed fitting to maintain its specified ingress protection performance.
This makes it useful for appropriately specified recessed lighting installations in kitchens, bathrooms and other indoor locations requiring moisture protection.
The adapter does not provide IP65 protection independently. Always follow the manufacturer’s fitting compatibility and bathroom installation requirements.
Compatible Integral Evofire Downlights
The Integral ILDLFR70D006 is intended for selected round Evofire fire-rated downlights designed for a standard 70mm ceiling cut-out.
It can be particularly useful when fitting a compatible satin nickel Evofire downlight into an existing larger ceiling opening.
Compatible Evofire products include selected fixed round models, subject to the manufacturer’s instructions and applicable fire-rating approval.
Before purchasing, check the exact Evofire model and ceiling cut-out dimensions to ensure that the adapter is suitable.
Please note that this product is an adapter ring only. The downlight, GU10 holder and LED lamp are not included.
Key Features – Integral ILDLFR70D006
- Integral LED Evofire downlight accessory
- Satin nickel powder-coated finish
- 70-100mm ceiling cut-out compatibility
- 110mm overall diameter
- Slim 3mm adapter depth
- Durable toughened pressed steel construction
- Designed for selected round Evofire downlights
- Ideal for replacing older recessed lighting
- Helps conceal larger existing ceiling openings
- Maintains applicable fire ratings with compatible Evofire fittings
- Supports IP65 installations with compatible downlights
- Suitable for residential and commercial interior applications
- 7-year manufacturer warranty
- Downlight and LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85 Accessories
- Manufacturer Part Number: ILDLFR70D006
- Quick Order Code: 137131
- EAN: 5055788228592
- Product Type: Downlight Adapter Ring / Bezel Extender
- Finish: Satin Nickel
- Coating: Powder-Coated
- Material: Toughened Pressed Steel
- Shape: Round
- Overall Diameter: 110mm
- Compatible Ceiling Cut-Out: 70-100mm
- Product Depth: 3mm
- Approximate Weight: 45g
- Mounting: Recessed Downlight Accessory
- Application: Indoor General Lighting
- Compatible Range: Selected Round Integral Evofire Downlights
- Fire Rating: Maintains Compatible Fitting’s Tested 30/60/90-Minute Rating
- IP Rating: Maintains IP65 with Compatible Evofire Fittings
- CE and RoHS: Yes
- Manufacturer Warranty: 7 Years
- Downlight Included: No
- GU10 Lamp Holder Included: No
- LED Lamp Included: No
Ideal Applications – Integral ILDLFR70D006
The Integral ILDLFR70D006 is particularly useful where a compatible Evofire downlight must be fitted into an existing ceiling opening larger than 70mm.
- Replacing older recessed downlights
- Adapting suitable 70-100mm ceiling openings
- Residential refurbishment and renovation projects
- Period properties with existing downlight cut-outs
- Bathrooms featuring satin nickel accessories
- Kitchens and utility rooms
- Living rooms, bedrooms and hallways
- Offices and commercial premises
- Hotels and hospitality interiors
Important Installation Information
The Integral ILDLFR70D006 is an adapter ring only. It does not contain electrical connections, a GU10 lamp holder, LED lamp or complete fire-rated downlight.
Use only with approved compatible Evofire fittings and follow Integral LED’s installation instructions.
Fire and IP ratings apply to the correctly assembled compatible downlight installation, not to the empty adapter ring.
The ceiling opening must be within the specified range, and the surrounding surface must be capable of securely supporting the completed fitting.
Why Choose the Evofire Satin Nickel Adapter?
The Integral ILDLFR70D006 offers a convenient solution for replacing older recessed lighting without unnecessarily enlarging or repairing suitably sized ceiling openings.
Its 110mm outer diameter provides additional coverage, while the slim 3mm profile and satin nickel finish help maintain a professional appearance alongside matching interior accessories.
Order Integral Evofire Accessories from Electrical4Less
Choose the Integral ILDLFR70D006 satin nickel downlight adapter ring for compatible Evofire installations requiring a 70-100mm ceiling cut-out range.
Order online from Electrical4Less and purchase the appropriate Evofire fire-rated downlight and GU10 LED lamp separately to complete your installation.
