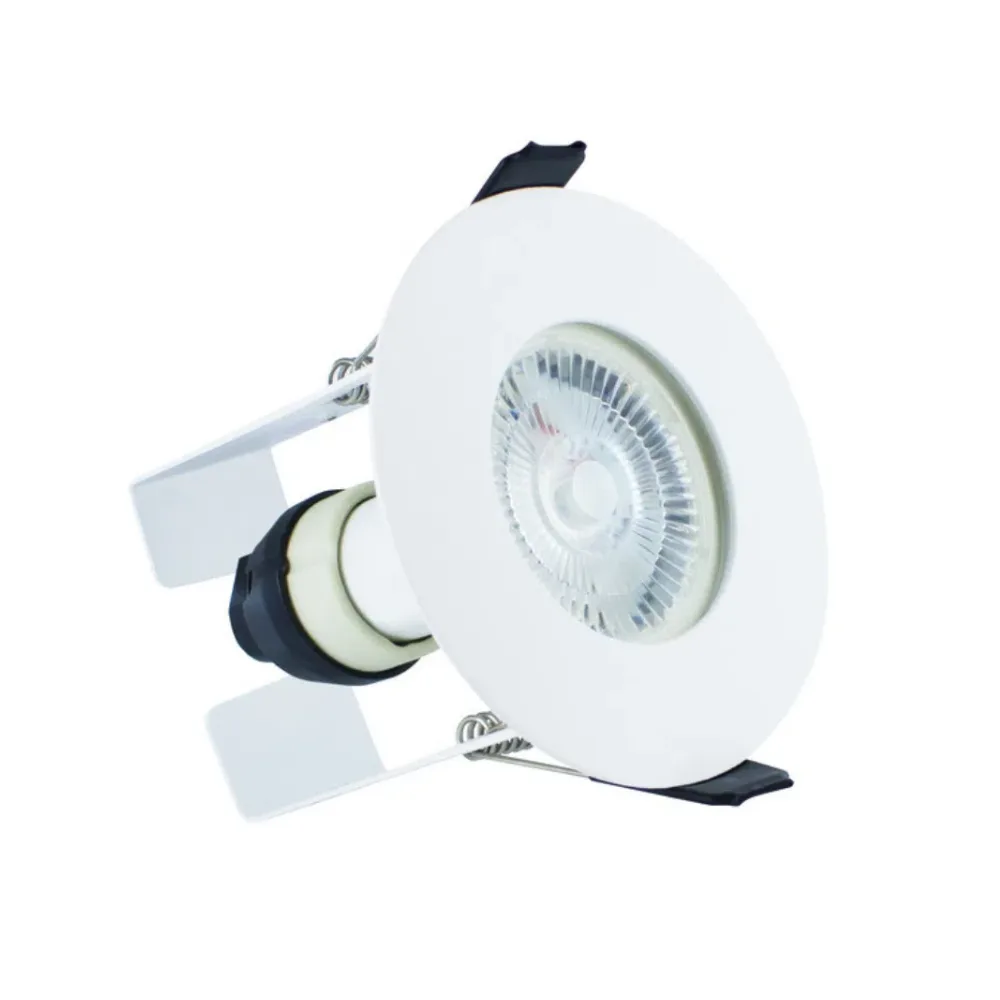

Integral ILDLFR70D003 Evofire IP65 Fire Rated GU10 Downlight with Insulation Guard
The Integral ILDLFR70D003 is a matt white Evofire fire-rated GU10 downlight designed for installations where ceiling insulation, fire protection and a discreet finish are important. Featuring a built-in insulation guard, this model allows suitable loft insulation to be installed over the fitting in accordance with the manufacturer’s instructions.
With its ultra-slim 1mm bezel, IP65 protection and 30, 60 and 90-minute fire rating, the Integral ILDLFR70D003 offers a practical recessed lighting solution for domestic and commercial properties.

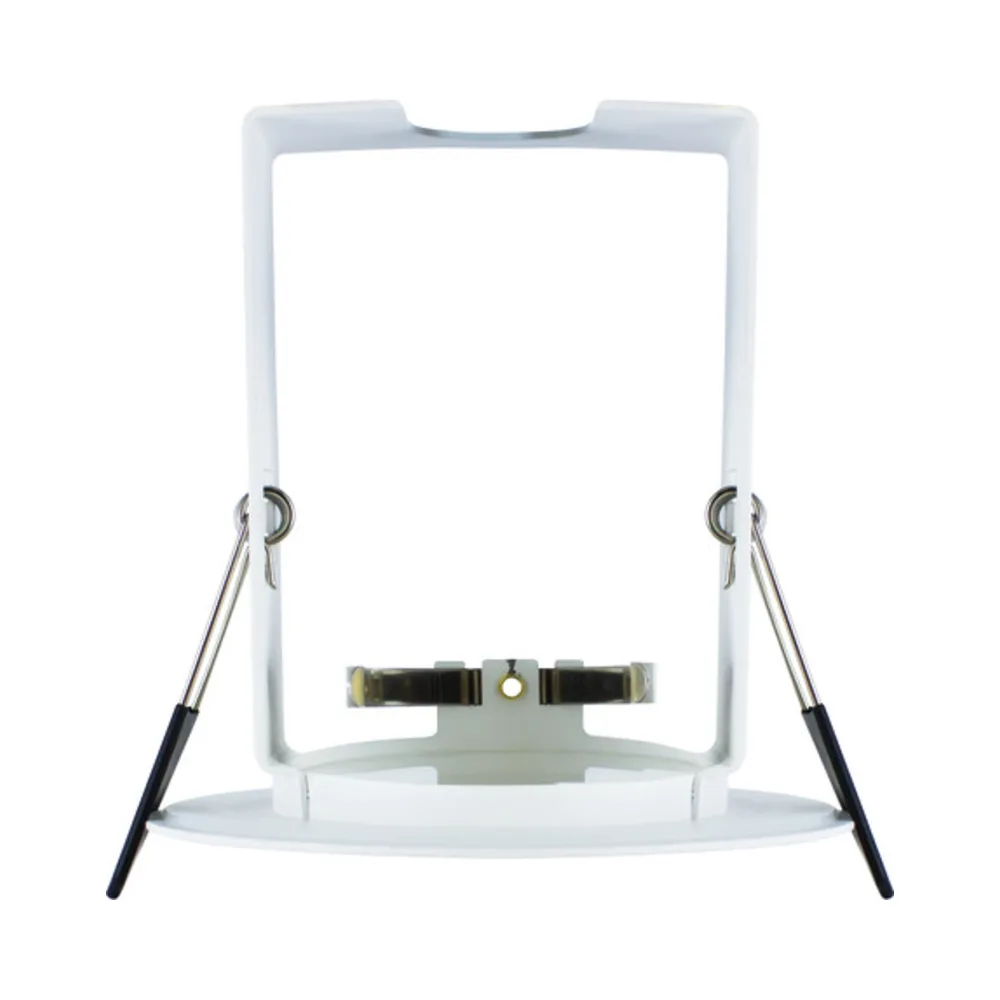

Built-In Insulation Guard
The main advantage of this Evofire model is its integrated insulation guard. Unlike standard open-back downlights, the guard helps maintain the necessary separation between ceiling insulation and the GU10 lamp, making it particularly useful in insulated ceiling voids.
- Built-in insulation guard for suitable loft insulation
- Designed for use in insulated ceilings
- Helps maintain appropriate ventilation around the lamp
- Suitable for loft conversions and refurbishment projects
- Reduces the need for a separate insulation protection accessory
Always follow the manufacturer’s instructions regarding compatible insulation materials, lamp wattage and installation clearances.
Canless Fire-Rated Technology
The Integral Evofire range uses innovative intumescent fire protection rather than relying on a large traditional metal canister. This creates a more compact fitting while maintaining tested fire resistance.
The ILDLFR70D003 is rated for 30, 60 and 90-minute fire protection, helping preserve the fire resistance of appropriately specified ceiling constructions.
Its ventilated design also helps reduce heat build-up around compatible LED lamps, supporting efficient operation and lamp longevity.

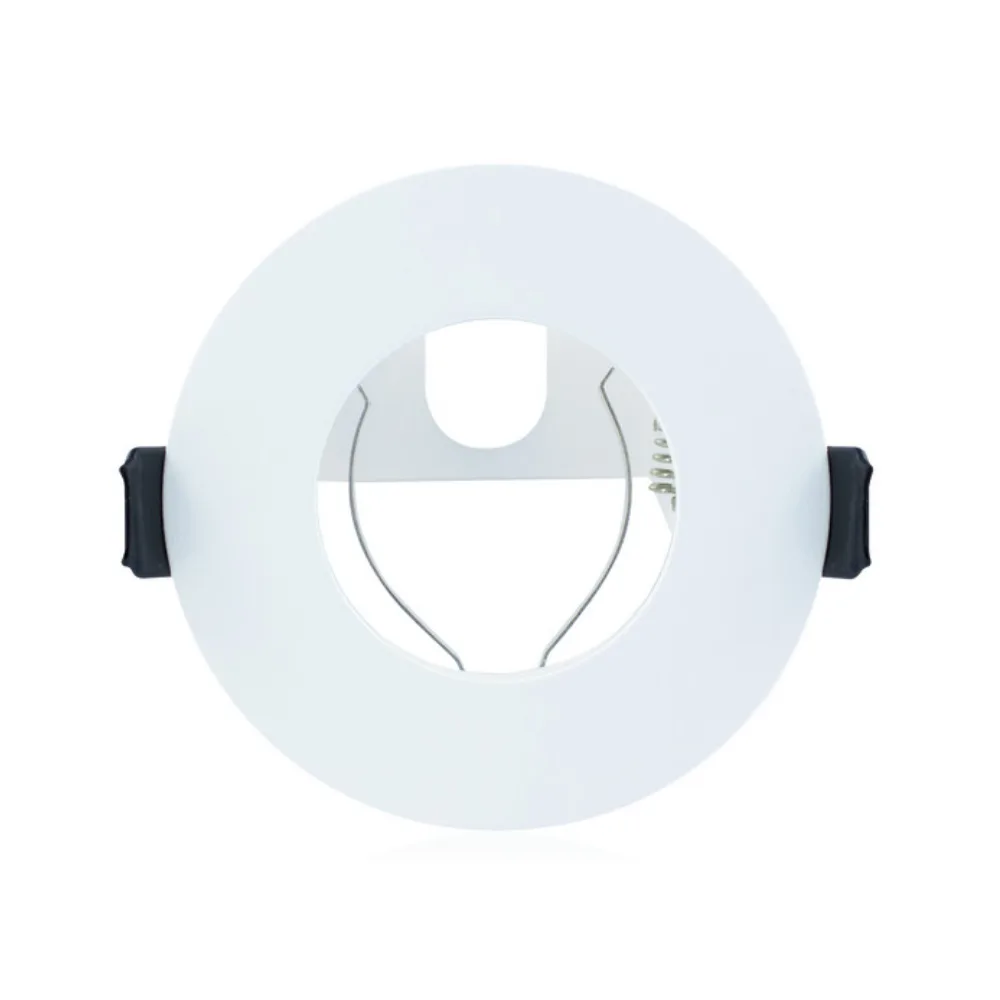

Ultra-Slim 1mm Matt White Bezel
The matt white powder-coated finish provides a clean, understated appearance that blends naturally into white ceilings.
With an overall diameter of 85mm and a 70mm ceiling cut-out, this Evofire downlight is suitable for contemporary interiors where a minimal recessed fitting is preferred.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR70D003 Evofire downlight features an IP65-rated front, providing protection against dust and water jets when correctly installed.
This makes it suitable for appropriately specified bathroom locations, kitchens, utility rooms and other interior spaces where moisture resistance is important.
Compatible GU10 LED Lamps
The Integral ILDLFR70D003 uses a replaceable GU10 LED lamp, allowing you to choose the preferred light colour and brightness for each room. The fitting is supplied with a GU10 lamp holder, but the LED lamp is sold separately.
Choose from these Integral LED GU10 lamp options available at Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates a warm, relaxing atmosphere for bedrooms and living rooms.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – suitable for kitchens, hallways and everyday residential lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for task lighting and contemporary interiors.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – produces warmer light as the lamp is dimmed, creating a comfortable evening atmosphere.
Check the lamp dimensions, wattage and compatibility with the insulation-guard fitting before installation. Where dimming is required, use a suitable LED dimmer.
Key Features
- Integral LED Evofire fire-rated downlight
- Integrated insulation guard
- Matt white powder-coated finish
- Ultra-slim 1mm blend-in bezel
- 30, 60 and 90-minute fire-rated construction
- IP65-rated front
- Canless intumescent fire protection
- Replaceable GU10 LED lamp design
- Loop-in/loop-out piano-key terminal block
- Suitable for domestic and commercial installations
- GU10 lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire
- Manufacturer Part Number: ILDLFR70D003
- Product Type: Fire-Rated Recessed Downlight
- Insulation Guard: Integrated
- Finish: Matt White
- Material: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 39mm
- Weight: 173g
- Bezel Thickness: 1mm
- Lamp Holder: GU10
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Part C and Part L
- Resistance to Sound: Part E
- Mounting: Recessed Ceiling
- Lamp Included: No
Ideal Applications
The Integral ILDLFR70D003 is particularly suitable for projects where ceiling insulation and recessed lighting need to work together.
- Insulated ceiling voids and loft spaces
- Loft conversions and home extensions
- Bathrooms and shower rooms
- Kitchens and utility rooms
- Living rooms and bedrooms
- Hallways and corridors
- New-build residential properties
- Commercial refurbishments
Why Choose the Evofire Insulation Guard Model?
Choosing the correct fire-rated downlight is particularly important where ceiling insulation is present. The Integral ILDLFR70D003 combines a purpose-designed insulation guard with the benefits of the Evofire canless system.
Its matt white 1mm bezel provides a discreet appearance, while the replaceable GU10 lamp gives installers flexibility over colour temperature and dimming preferences.
For projects requiring a fire-rated IP65 downlight with integrated insulation protection, this Evofire model provides a convenient all-in-one solution.
