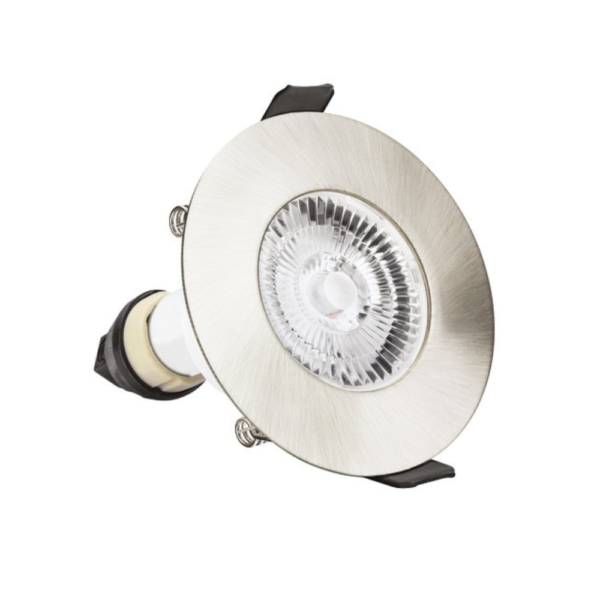

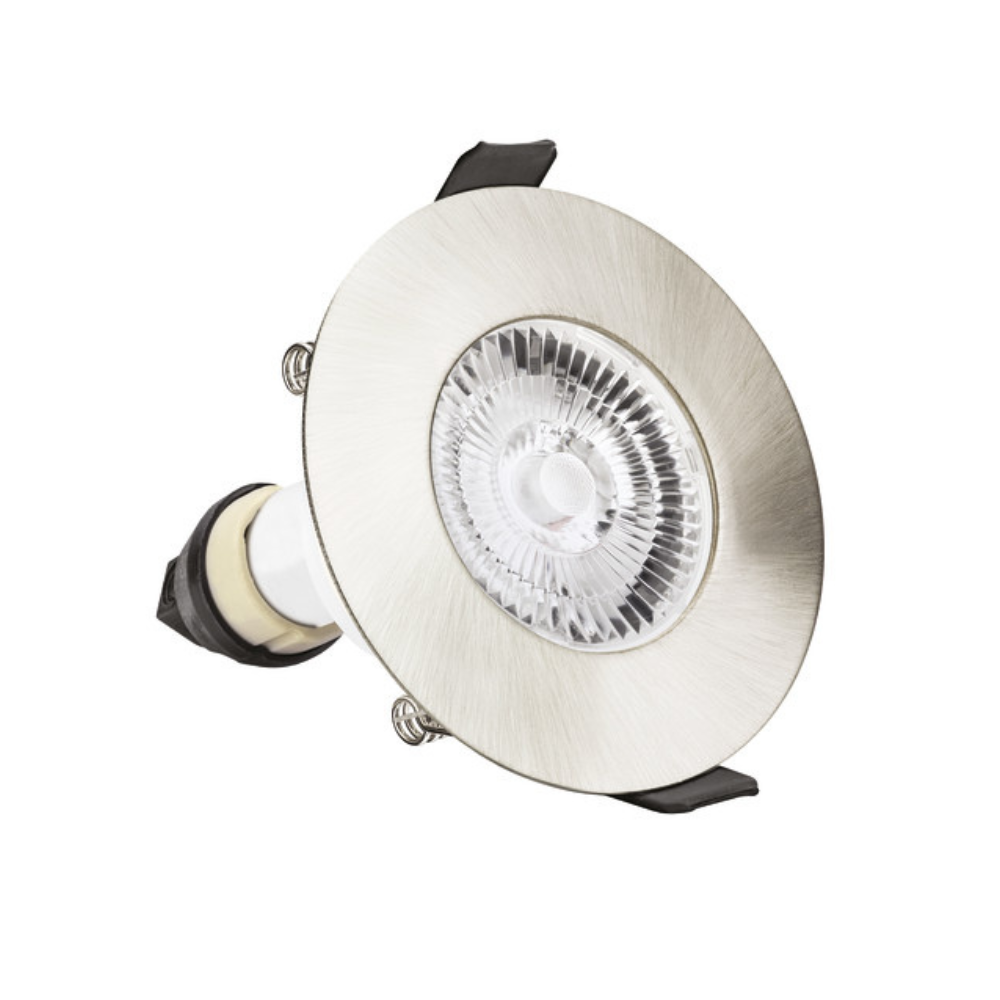

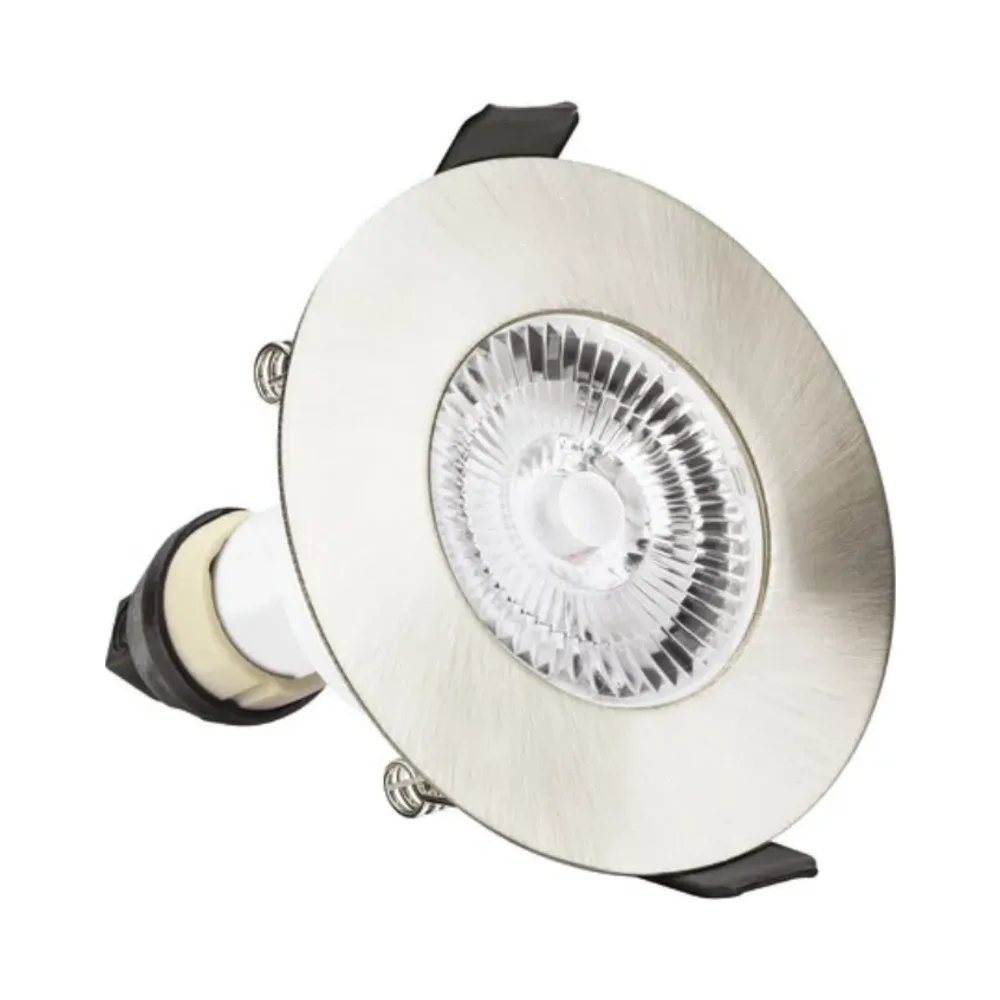

Integral ILDLFR70D002 Evofire 85 Satin Nickel IP65 Fire Rated GU10 Downlight
The Integral ILDLFR70D002 is a fixed fire-rated GU10 downlight from the Evofire 85 range, featuring a satin nickel finish, ultra-slim 1mm bezel and shallow 39mm construction. Designed for a 70mm ceiling cut-out, it provides discreet recessed lighting for domestic and commercial interiors.
Its IP65-rated front makes it suitable for appropriately specified bathroom and kitchen installations, while the open-back Evofire construction helps improve ventilation around compatible GU10 LED lamps.

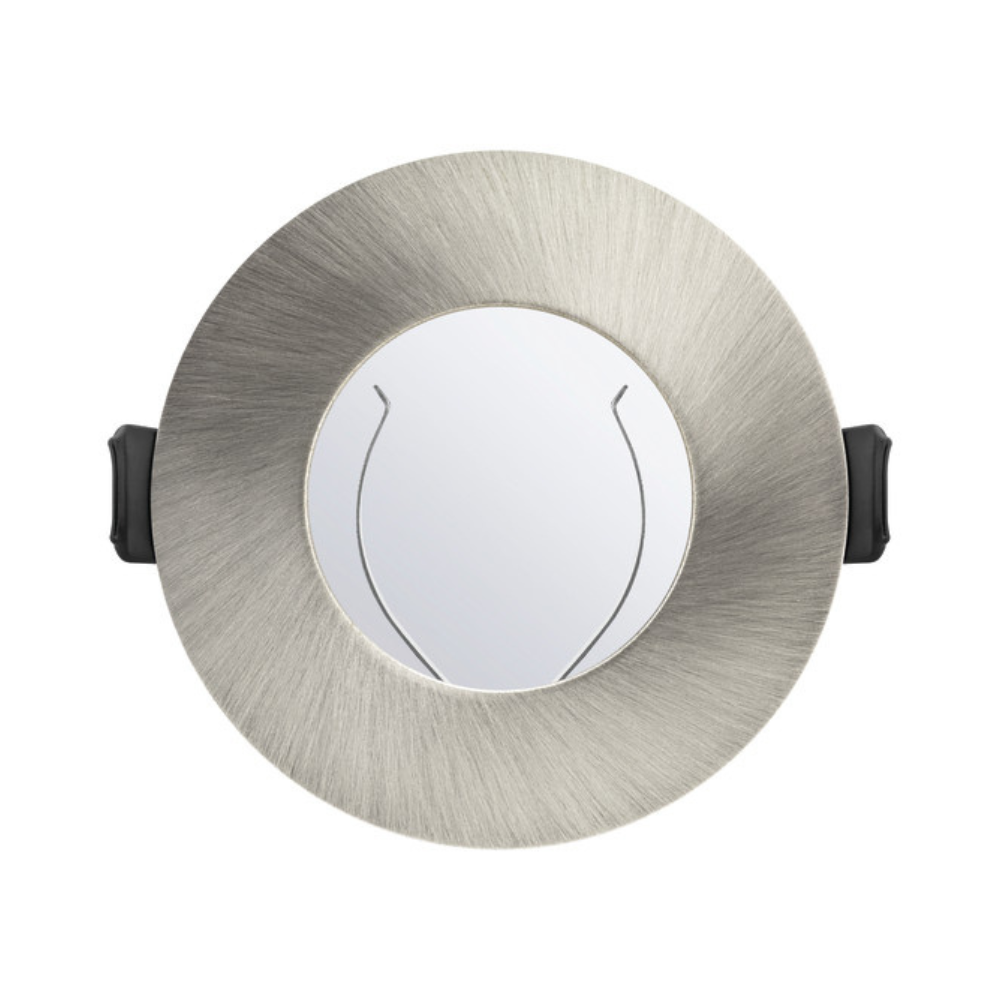

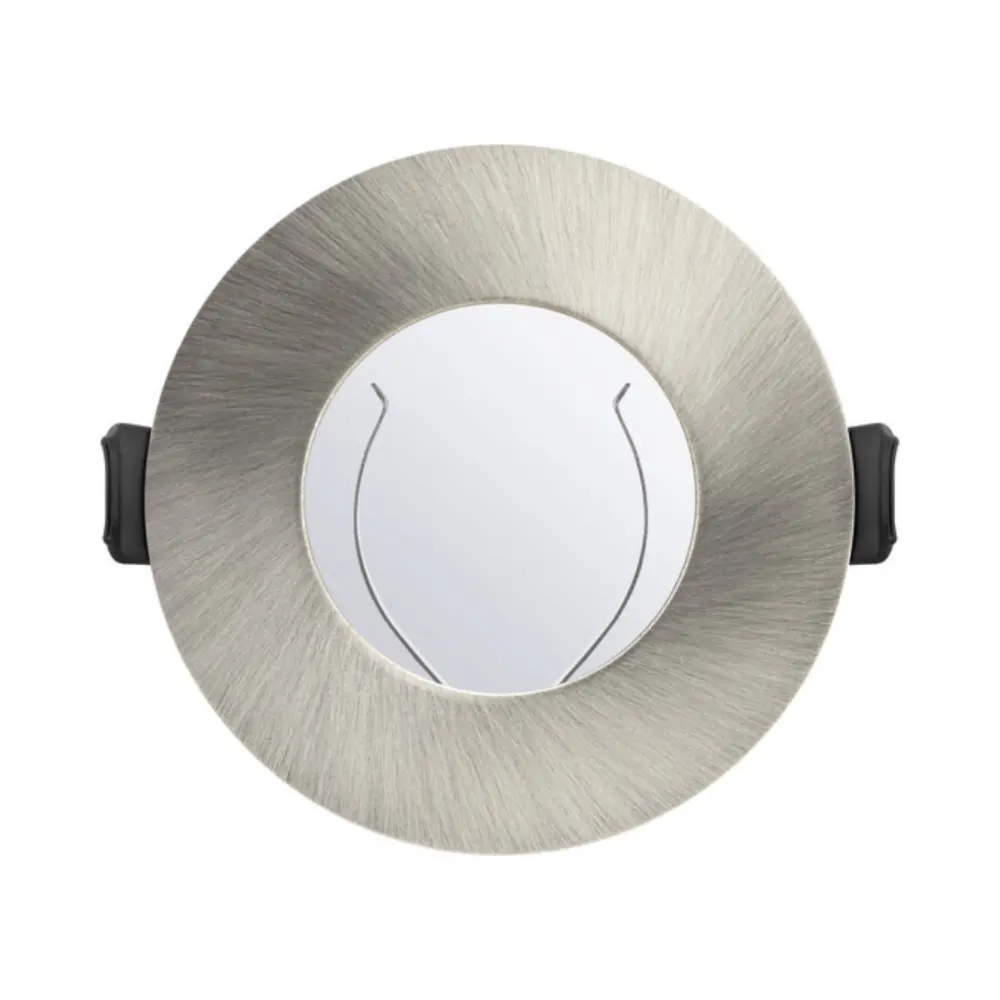

Satin Nickel Finish with Ultra-Slim 1mm Bezel
The Integral Evofire satin nickel downlight offers a subtle brushed-metal appearance that complements modern bathrooms, kitchens and contemporary interiors.
Unlike highly reflective polished chrome, satin nickel provides a softer metallic finish that coordinates particularly well with brushed nickel switches, door handles, taps and other decorative accessories.
The ultra-thin 1mm blend-in bezel sits almost flush against the ceiling, giving the fitting a neat appearance without the bulk of conventional recessed downlights.

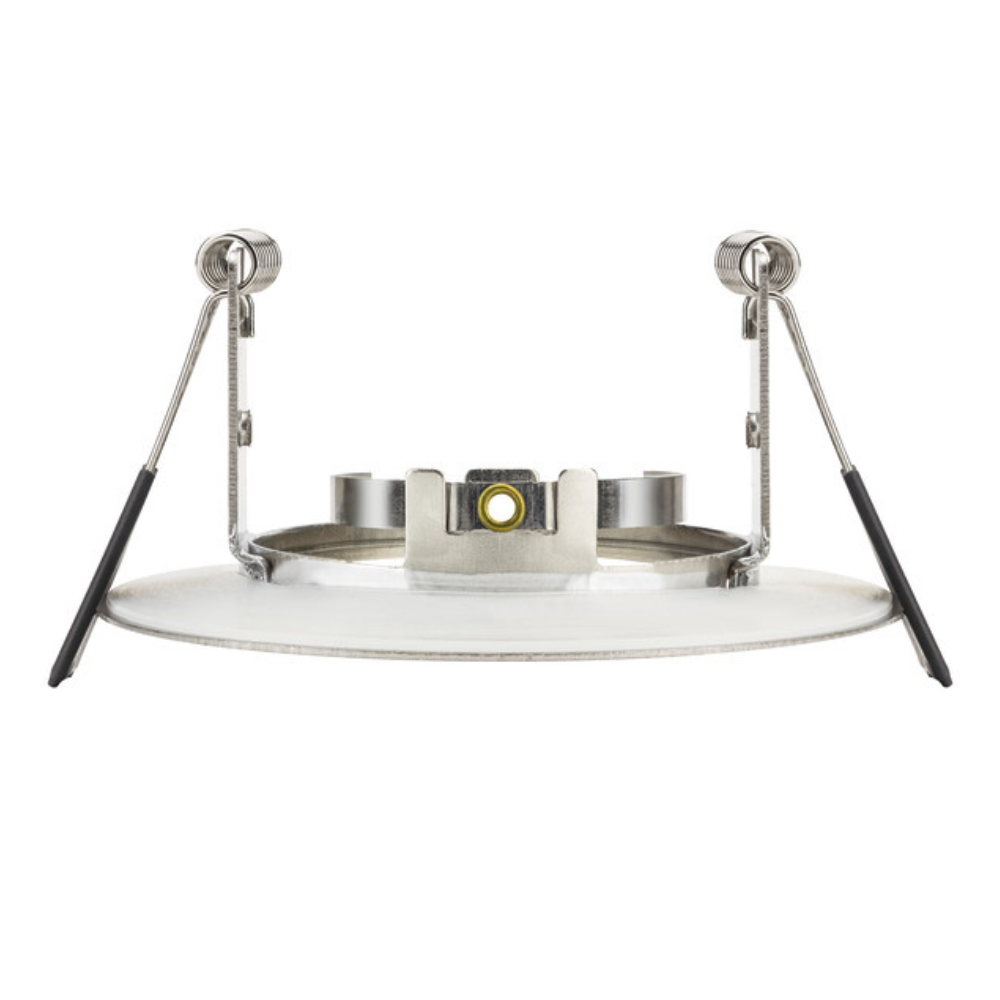

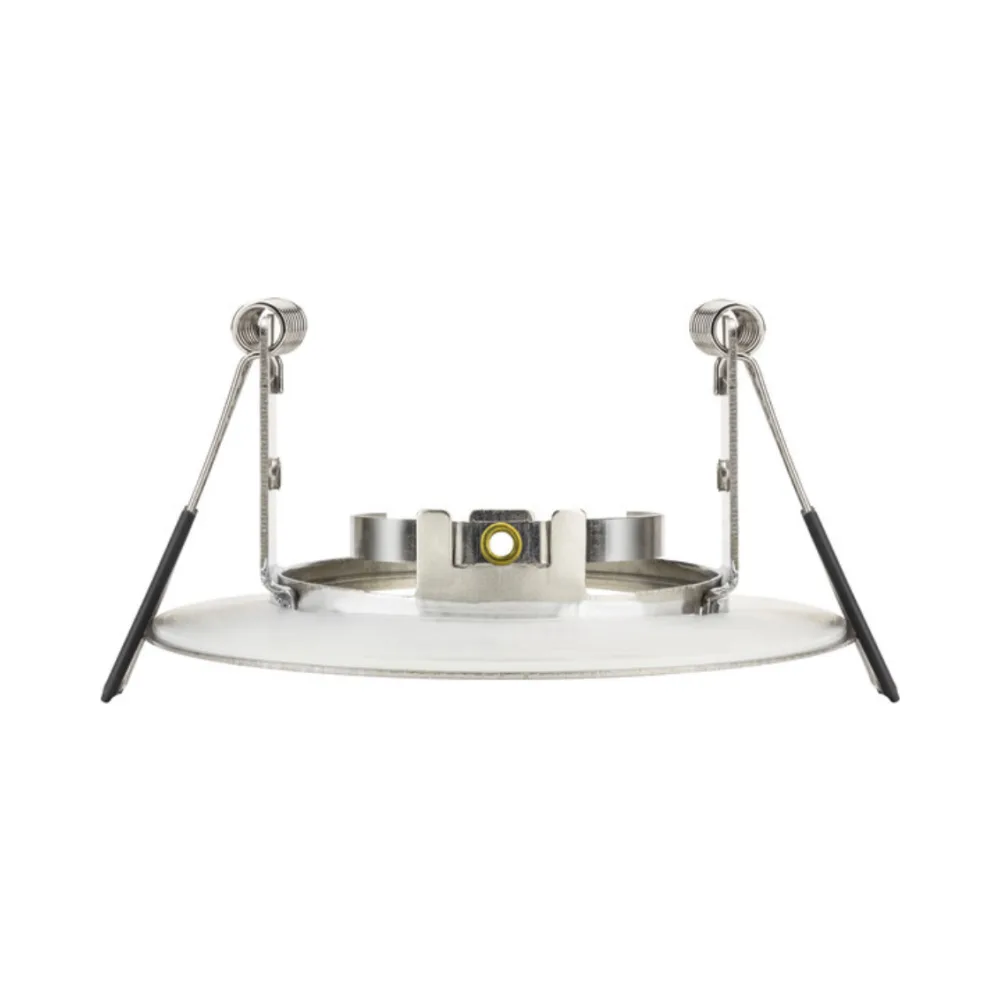

Shallow 39mm Depth for Restricted Ceiling Spaces
The Integral ILDLFR70D002 features a compact 39mm fitting depth, making it a practical option where available ceiling void space is restricted.
Its canless construction avoids the large metal enclosure found on many traditional fire-rated downlights, helping simplify installation where sufficient space and ventilation are available.
- 39mm shallow fitting depth
- 70mm ceiling cut-out
- 85mm overall diameter
- Ultra-slim 1mm bezel
- Fixed recessed mounting
Always check the manufacturer’s requirements for ceiling clearance, lamp dimensions and ventilation before installation.

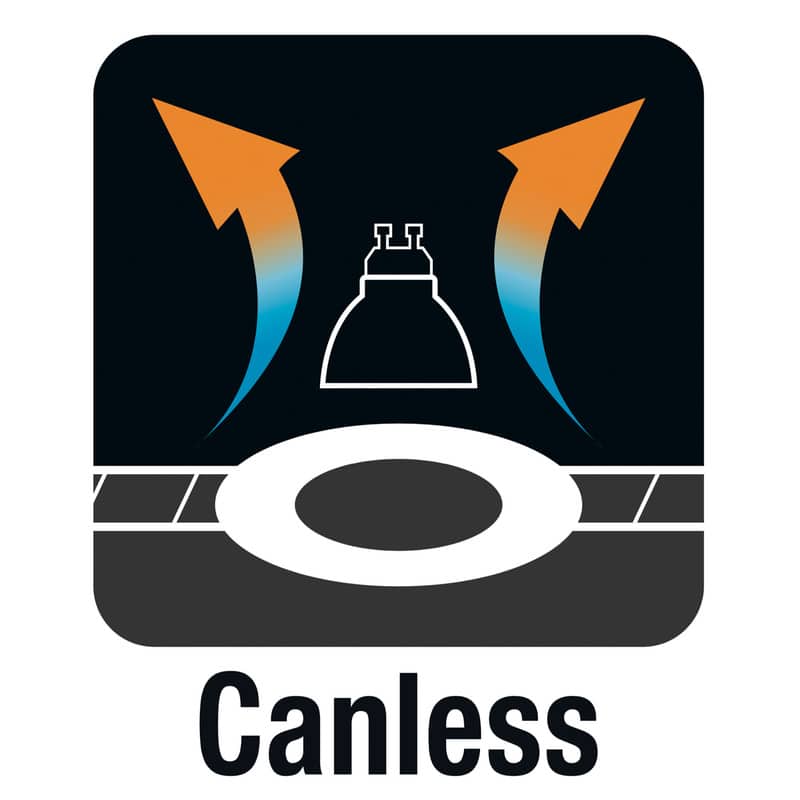

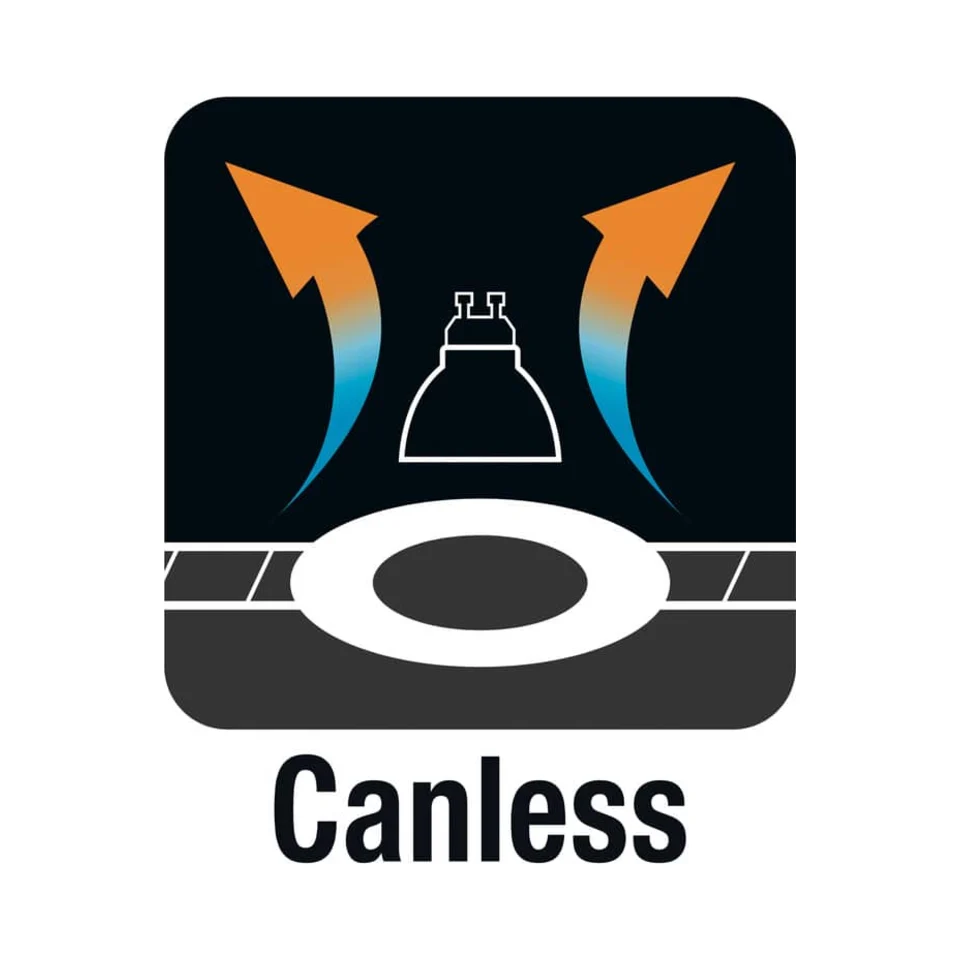

Canless Fire-Rated Evofire Technology
The Evofire range uses an intumescent fire protection system rather than a traditional enclosed metal canister.
The Integral ILDLFR70D002 has been tested for 30, 60 and 90-minute fire resistance in specified ceiling constructions in accordance with BS 476 Part 21:1987.
The applicable fire rating depends on the ceiling construction and correct installation.
Improved Cooling for GU10 LED Lamps
The fully open Evofire design allows heat generated by the GU10 LED lamp to dissipate more effectively than in traditional enclosed fire-rated downlights.
Integral LED states that compatible lamps can operate up to 10°C cooler in Evofire fittings compared with conventional can-style alternatives.
Improved ventilation can reduce thermal stress on the lamp and help support longer LED operating life.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR70D002 features an IP65-rated front, providing protection against dust ingress and water jets when correctly installed.
This makes it suitable for appropriately specified bathroom locations, kitchens, utility rooms and other indoor spaces where moisture resistance is required.
Always follow the relevant bathroom-zone requirements, electrical regulations and Integral LED installation instructions.
Compatible GU10 LED Lamps
The Integral ILDLFR70D002 is supplied with a GU10 lamp holder, but the LED lamp is sold separately. Customers can choose the required light colour, brightness and dimming characteristics for their installation.
Explore these Integral GU10 LED lamps available from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – ideal for warm, comfortable lighting in bedrooms and living rooms.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – suitable for kitchens, hallways and general interior lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – provides a crisp white appearance for bathrooms, workspaces and task lighting.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – creates a warmer light appearance as brightness is reduced.
Use a GU10 LED lamp with a maximum permitted wattage of 10W. Check the lamp dimensions and compatibility before installation. A suitable LED dimmer is required when dimming is needed.
Key Features
- Integral LED Evofire 85 range
- Fixed fire-rated GU10 downlight
- Satin nickel powder-coated finish
- Ultra-slim 1mm blend-in bezel
- 85mm overall diameter
- 70mm ceiling cut-out
- Shallow 39mm fitting depth
- IP65 front protection
- 30, 60 and 90-minute fire rating
- Canless intumescent fire protection
- Open design for improved lamp ventilation
- Pressed steel and glass construction
- Loop-in/loop-out piano-key terminal block
- GU10 lamp holder supplied
- 7-year manufacturer warranty
- GU10 LED lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire 85
- Manufacturer Part Number: ILDLFR70D002
- Quick Order Code: 136029
- EAN: 5055788228387
- Product Type: Fire-Rated Recessed GU10 Downlight
- Configuration: Fixed
- Finish: Satin Nickel
- Shape: Round
- Material: Pressed Steel and Glass
- Overall Diameter: 85mm
- Ceiling Cut-Out: 70mm
- Fitting Depth: 39mm
- Product Weight: 138g
- Bezel Thickness: 1mm
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes (Subject to Ceiling Construction)
- Fire Test Standard: BS 476 Part 21:1987
- Air Tightness: Parts C and L
- Resistance to Sound: Part E
- Lamp Holder: GU10 Supplied
- Maximum GU10 LED Wattage: 10W
- Insulation Guard: Not Included
- Mounting: Recessed Ceiling
- CE and RoHS: Yes
- Manufacturer Warranty: 7 Years
- GU10 LED Lamp Included: No
Ceiling Insulation Requirements
The Integral ILDLFR70D002 does not include an integrated insulation guard. Ceiling insulation must not be placed directly over the fitting unless a suitable manufacturer-approved protective arrangement is used.
Where an integrated insulation guard is required, the Integral Evofire range offers deeper guarded alternatives in matching finishes. Always check the available ceiling void and product compatibility before ordering.
Ideal Applications
- Modern bathrooms and shower rooms
- Kitchens with satin nickel accessories
- Living rooms and bedrooms
- Hallways and corridors
- Offices and commercial premises
- Hotels and hospitality interiors
- Residential refurbishment projects
- New-build lighting installations
- Ceilings with restricted installation depth
Why Choose the Integral Evofire Satin Nickel Downlight?
The Integral ILDLFR70D002 combines the refined appearance of a satin nickel finish with the practical benefits of a shallow 39mm construction, slim 1mm bezel and tested fire resistance.
Its replaceable GU10 lamp design gives installers flexibility when choosing colour temperature and brightness, while the IP65-rated front makes it suitable for a range of appropriately specified indoor lighting applications.
