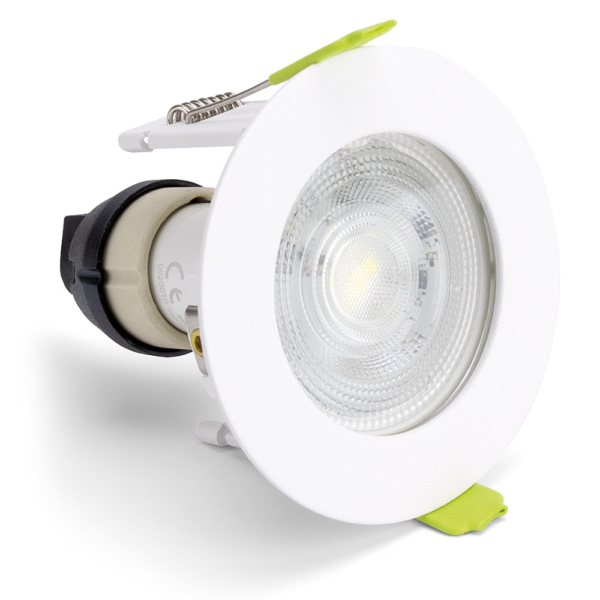

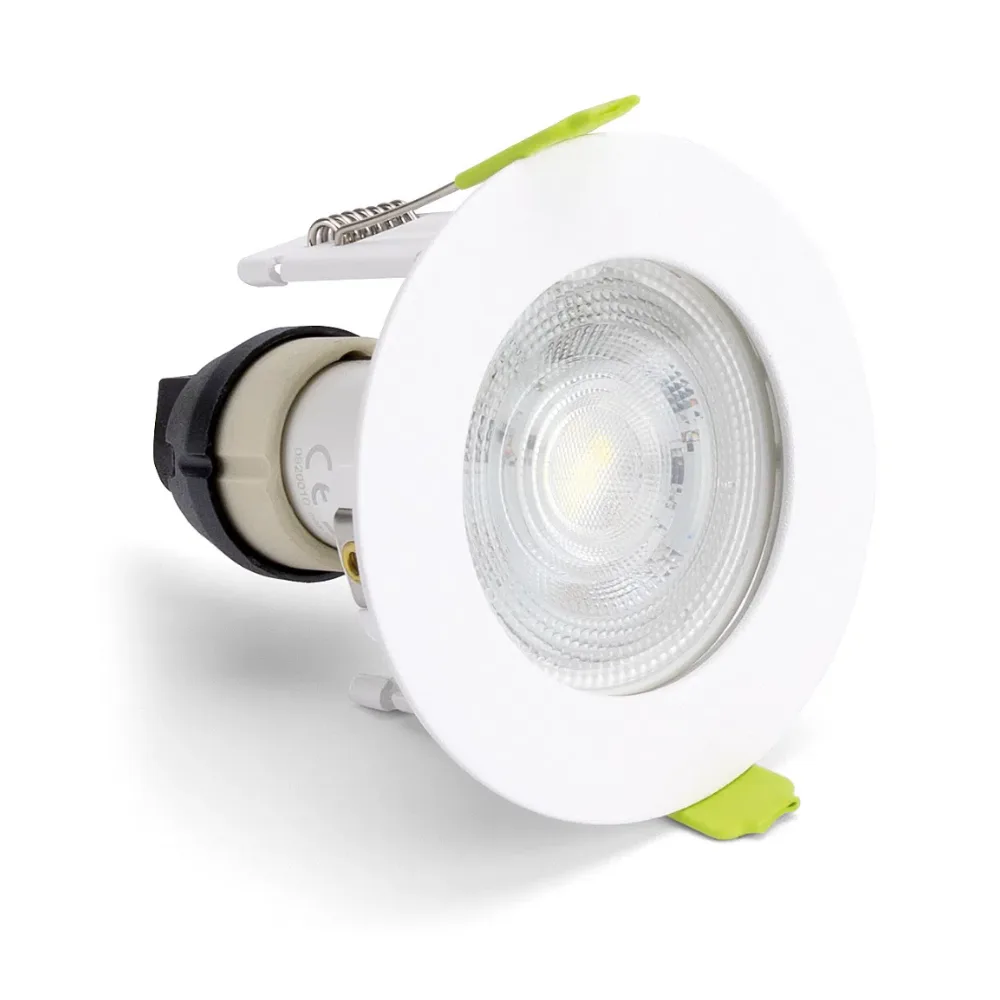

Integral ILDLFR60D104 Evofire Mini Fire Rated IP65 GU10 Downlight
The Integral ILDLFR60D104 is a compact, fire-rated GU10 downlight from the Integral LED Evofire Mini range. Designed for installations where a smaller, less noticeable ceiling fitting is preferred, it features a 72mm overall bezel diameter and a 60mm ceiling cut-out.
With its ultra-slim 1mm matt white bezel, IP65-rated front and 30, 60 and 90-minute fire protection, this miniature recessed downlight offers a practical solution for bathrooms, kitchens, hallways and other residential or commercial interiors.

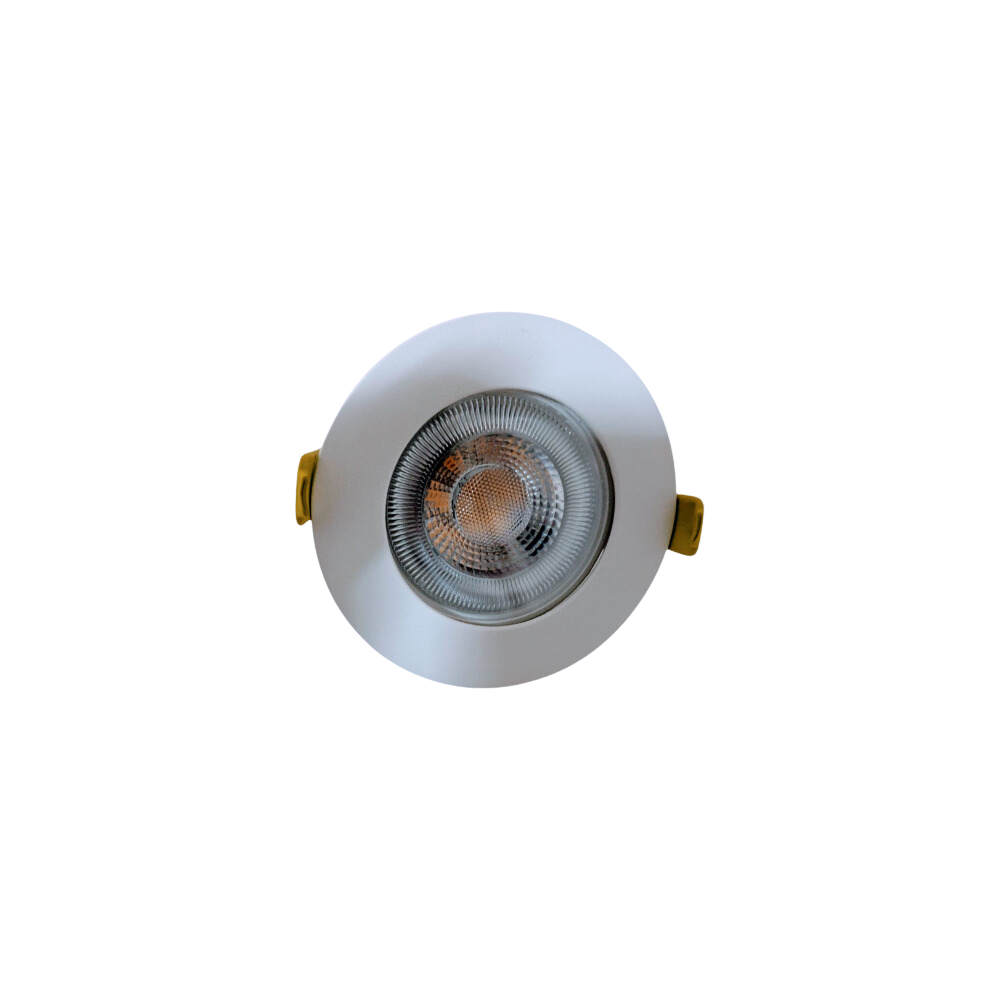

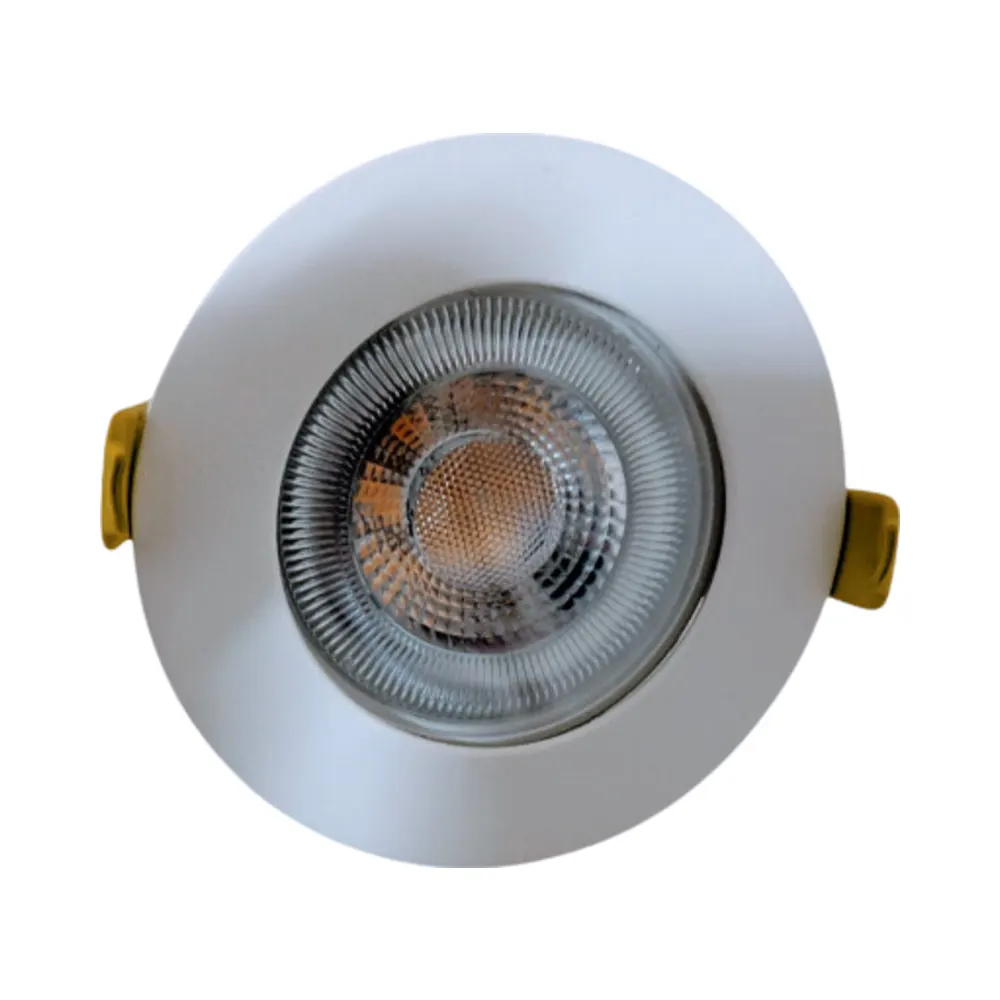

Evofire Mini Trim – Compact 72mm Bezel
The standout feature of the Integral ILDLFR60D104 is its miniature trim, which provides a more discreet appearance than conventional GU10 downlights.
Its 72mm overall diameter is just 12mm greater than the required ceiling cut-out, leaving a narrow visible border around the fitting. The 1mm bezel thickness further reduces its visual impact.
- Mini trim fixed recessed downlight
- 72mm overall bezel diameter
- 60mm ceiling cut-out
- Ultra-slim 1mm bezel
- Matt white finish for discreet ceiling integration
This compact design is especially useful in modern interiors where multiple downlights are installed and a clean, consistent ceiling appearance is important.

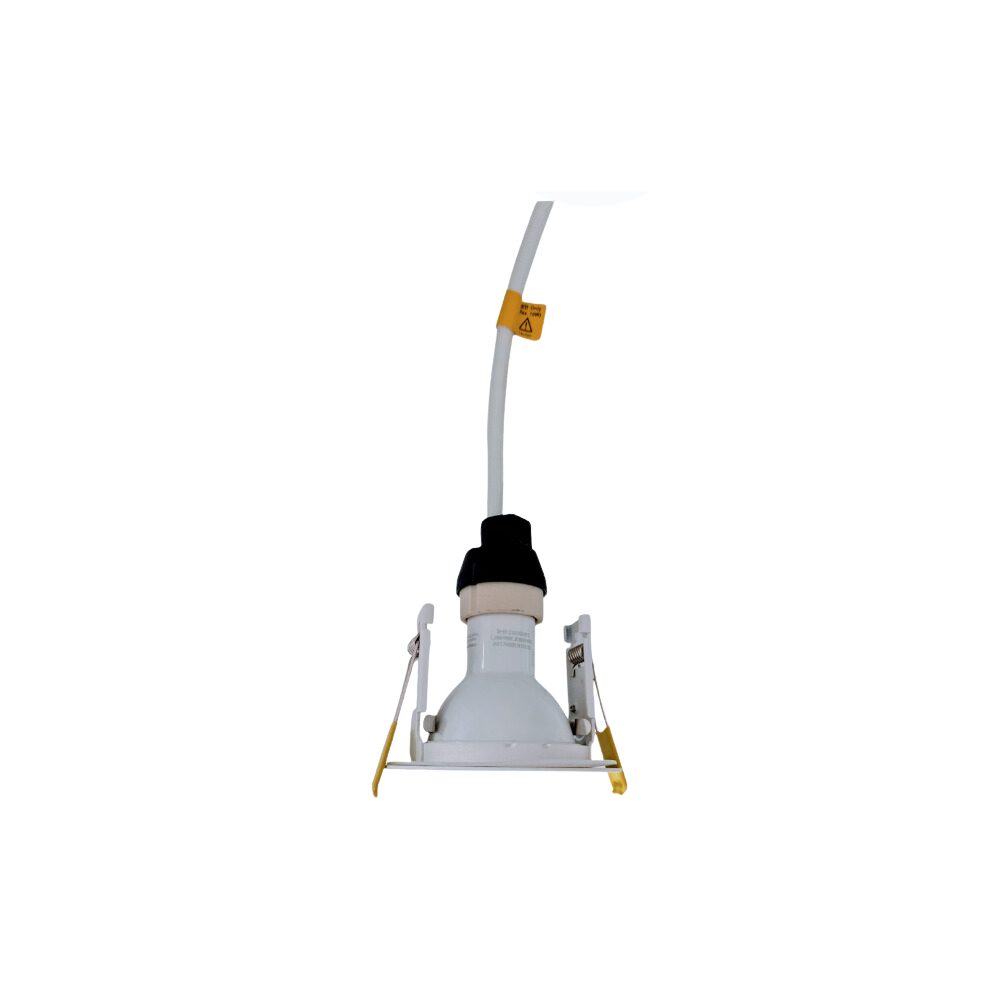

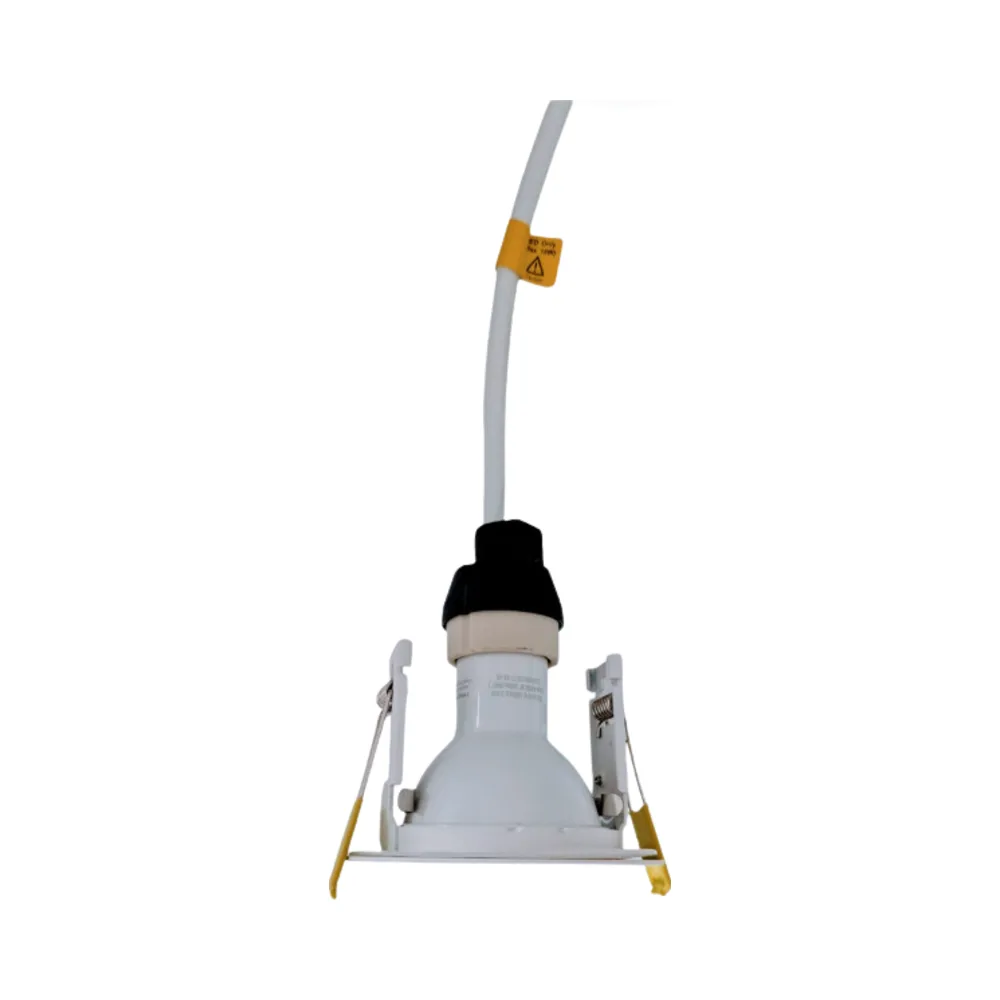

Canless Fire-Rated Construction
Instead of using a large metal enclosure, the Integral Evofire Mini incorporates intumescent fire protection within its compact construction.
The fitting is fire rated for 30, 60 and 90 minutes in appropriately specified timber-joist ceiling constructions, helping maintain the fire resistance of the ceiling following installation.
Its open construction also promotes airflow around the GU10 LED lamp, helping reduce heat build-up compared with traditional enclosed fire-rated downlights.
Improved Airflow Around LED Lamps
The Evofire range is designed to allow LED lamps to operate at lower temperatures. According to the stated Evofire design benefits, the open construction can help lamps run up to 10°C cooler than traditional enclosed fittings.
Better ventilation can contribute to more favourable operating conditions for compatible GU10 LED lamps, particularly where downlights are used regularly.
IP65 Protection for Bathrooms and Kitchens
The Integral ILDLFR60D104 features an IP65-rated front, providing protection against dust and water jets when correctly installed.
This makes it suitable for appropriately specified bathroom locations and other areas where a moisture-resistant recessed fitting is required.
The compact matt white bezel also makes it an attractive option for kitchens, utility rooms and contemporary living spaces.
Compatible GU10 LED Lamps
The Integral ILDLFR60D104 uses a replaceable GU10 LED lamp, allowing you to choose the colour temperature and dimming characteristics that best suit your lighting project.
The LED lamp is sold separately. Explore the following Integral GU10 options available from Electrical4Less:
- Integral ILGU10DC109 – 2700K Very Warm White Dimmable GU10 Lamp – creates comfortable, warm lighting for bedrooms and living rooms.
- Integral ILGU10DD120 – 3000K Warm White 5.7W Dimmable GU10 Lamp – a versatile choice for kitchens, hallways and general interior lighting.
- Integral ILGU10DE110 – 4000K Cool White Dimmable GU10 Lamp – suitable for brighter-looking task lighting and modern interiors.
- Integral ILGU10DC121 – WarmTone Dimmable GU10 LED Lamp – provides a warmer light appearance as the lamp is dimmed.
When choosing a GU10 lamp for this miniature fitting, check its dimensions, wattage and compatibility with the downlight. If dimming is required, use a compatible LED dimmer.
Key Features
- Integral LED Evofire Mini range
- Miniature fixed recessed downlight
- Matt white finish
- Ultra-slim 1mm bezel
- 60mm ceiling cut-out
- Compact 72mm overall bezel diameter
- 30, 60 and 90-minute fire rating
- IP65-rated front
- Canless intumescent fire protection
- Open design for improved lamp ventilation
- Replaceable GU10 LED lamp
- GU10 lamp sold separately
Technical Specifications
- Brand: Integral LED
- Range: Evofire Mini
- Manufacturer Part Number: ILDLFR60D104
- Product Type: Mini Fire-Rated Recessed Downlight
- Design: Mini Trim Fixed
- Finish: Matt White
- Material: Fire-Rated Steel and Tempered Glass
- Overall Diameter: 72mm
- Ceiling Cut-Out: 60mm
- Bezel Thickness: 1mm
- Lamp Type: GU10 LED
- IP Rating: IP65
- Fire Rating: 30, 60 and 90 Minutes
- Mounting: Recessed Ceiling
- Lamp Included: No
Ideal Applications
The compact Integral Evofire Mini IP65 downlight is suitable for residential and commercial lighting schemes where small ceiling fittings are preferred.
- Bathrooms and shower rooms
- Kitchens and utility rooms
- Bedrooms and living rooms
- Hallways and corridors
- Hotel rooms and hospitality interiors
- Offices and commercial premises
- Modern refurbishment projects
- Ceilings requiring a discreet miniature trim
Why Choose the Integral Evofire Mini?
The Integral ILDLFR60D104 combines the compact appearance of a miniature recessed downlight with the fire protection and ventilation advantages of the Evofire range.
Its 60mm cut-out and 72mm matt white bezel make it particularly appealing where a standard-sized downlight would appear too prominent.
The replaceable GU10 lamp design also gives users flexibility when selecting brightness, colour temperature and dimming performance.
Order Integral Evofire Mini Downlights from Electrical4Less
Choose the Integral ILDLFR60D104 Evofire Mini for a discreet fire-rated lighting installation. Order online from Electrical4Less and select your preferred compatible GU10 LED lamps separately.
