The IDEAL 61-415 Fork Meter measures up to 200A AC/DC with True RMS accuracy. Features TightSight dual display, 19mm split jaw, built-in flashlight and CAT IV 600V / CAT III 1000V safety ratings.

IDEAL 61-415 Fork Meter – 200A AC/DC TRMS TightSight Split Jaw Meter

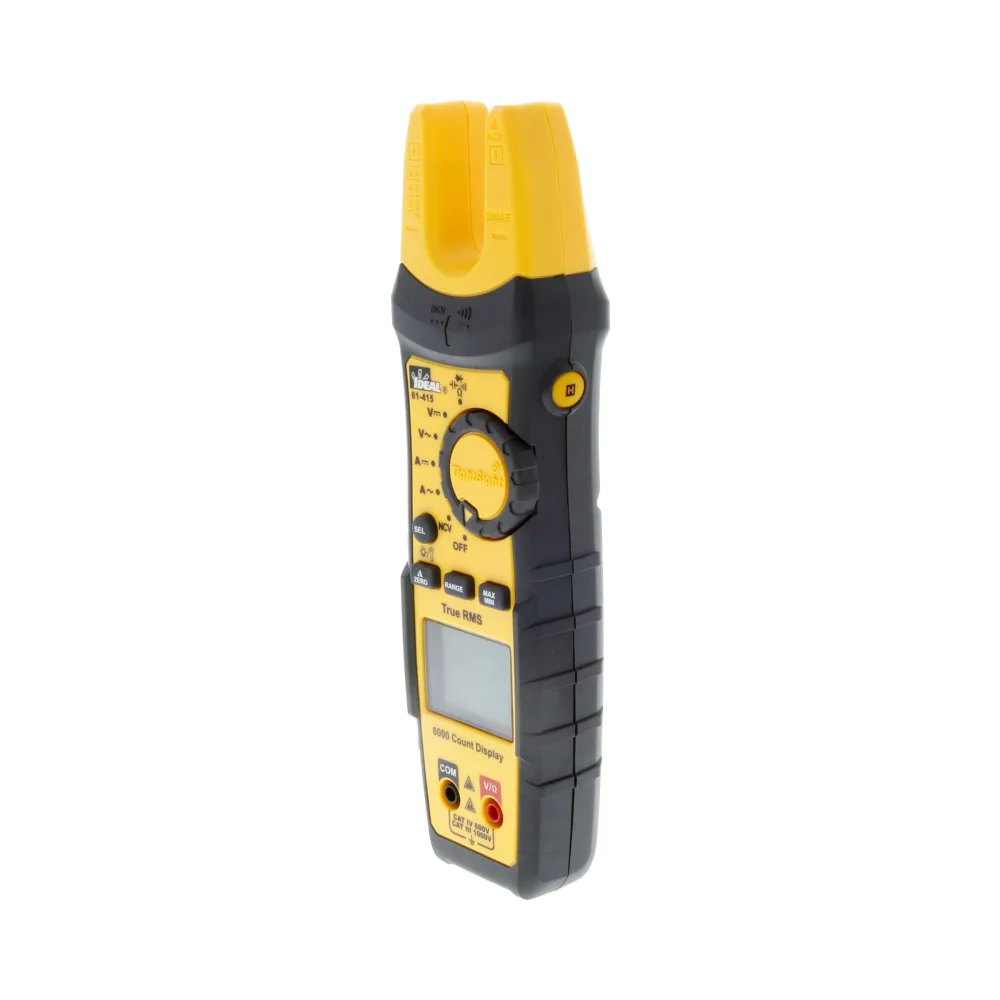

The IDEAL 61-415 Fork Meter is a professional 200A AC/DC True RMS electrical testing instrument featuring IDEAL’s patented TightSight technology. Designed for electricians and maintenance engineers, this split jaw meter measures AC and DC current up to 200A and AC/DC voltage up to 1000V using the supplied test leads.

With a 19mm split jaw opening, dual backlit LCD displays and integrated flashlight, the IDEAL 61-415 makes electrical testing more convenient in distribution boards, control panels and poorly illuminated working areas. Its CAT IV 600V / CAT III 1000V safety ratings make it suitable for appropriately rated electrical measurement applications.

Key Features of the IDEAL 61-415 Fork Meter

  • 200A AC/DC current measurement: Measure current using the split jaw without disconnecting the conductor.
  • True RMS technology: Accurate AC measurements on non-linear electrical loads.
  • TightSight dual display: Patented bottom-mounted display provides improved visibility when measuring in awkward positions.
  • 19mm jaw opening: Compact split jaw design for measuring individual conductors.
  • 1000V AC/DC voltage measurement: Measure voltage using the supplied test leads.
  • CAT IV 600V / CAT III 1000V: High electrical measurement safety ratings.
  • Integrated flashlight: Illuminates the working area in low-light conditions.
  • Non-contact voltage detection: NCV function for detecting AC voltage presence from 40V to 600V.
  • Auto-ranging: Convenient measurement range selection.
  • MIN/MAX and Data Hold: Capture and retain electrical readings.
  • Additional functions: Resistance, continuity, capacitance and diode testing.

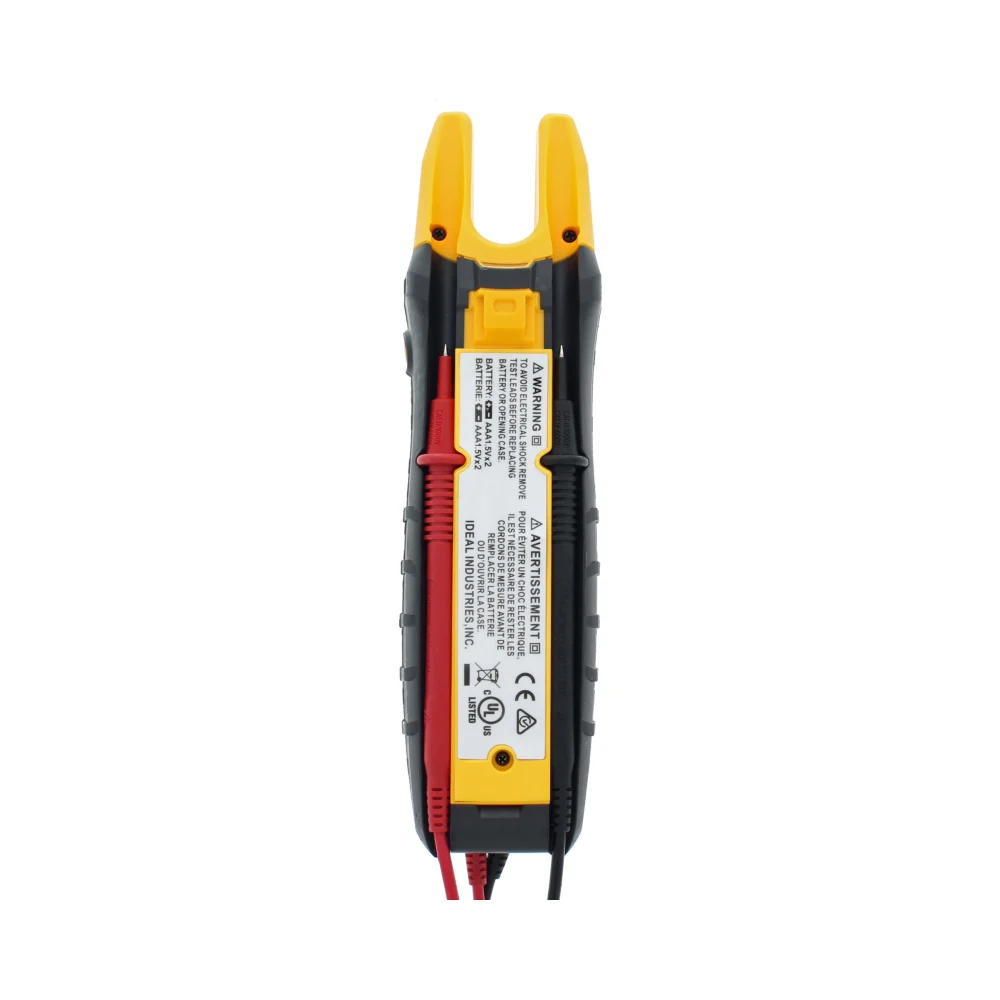

  • Probe holders: Integrated test probe storage for convenient operation.

IDEAL TightSight Technology

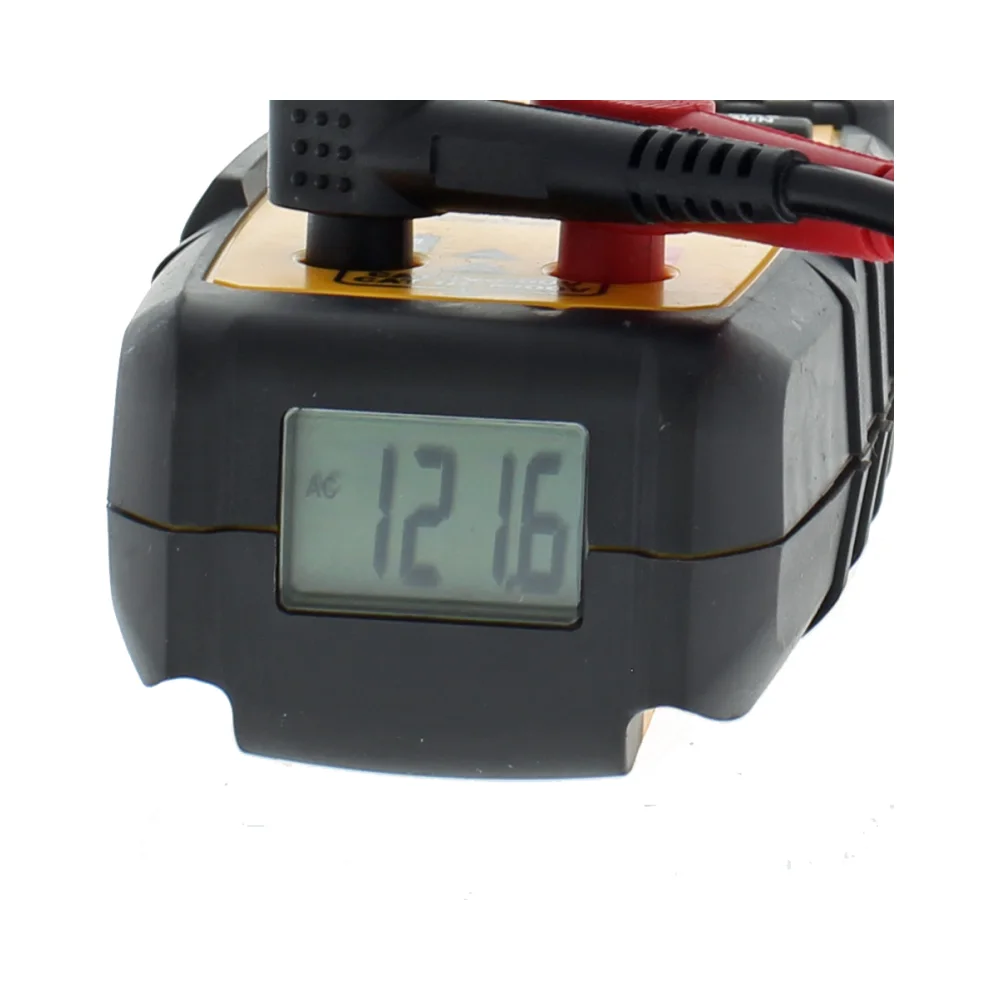

The IDEAL TightSight display is positioned at the bottom of the instrument, allowing electricians to read measurements without relying solely on the main display. This is particularly useful when the meter is positioned inside distribution boards or other restricted working areas.

Both displays feature backlighting, while the integrated flashlight helps illuminate cables and terminals during inspection and testing.

Technical Specifications

Manufacturer IDEAL Electrical
Manufacturer Part Number 61-415
Product Type TRMS Split Jaw Fork Meter
AC Current Range Up to 200A
DC Current Range Up to 200A
AC Voltage Range Up to 1000V
DC Voltage Range Up to 1000V
Jaw Opening 19mm (0.75 inch)
Measurement Technology True RMS

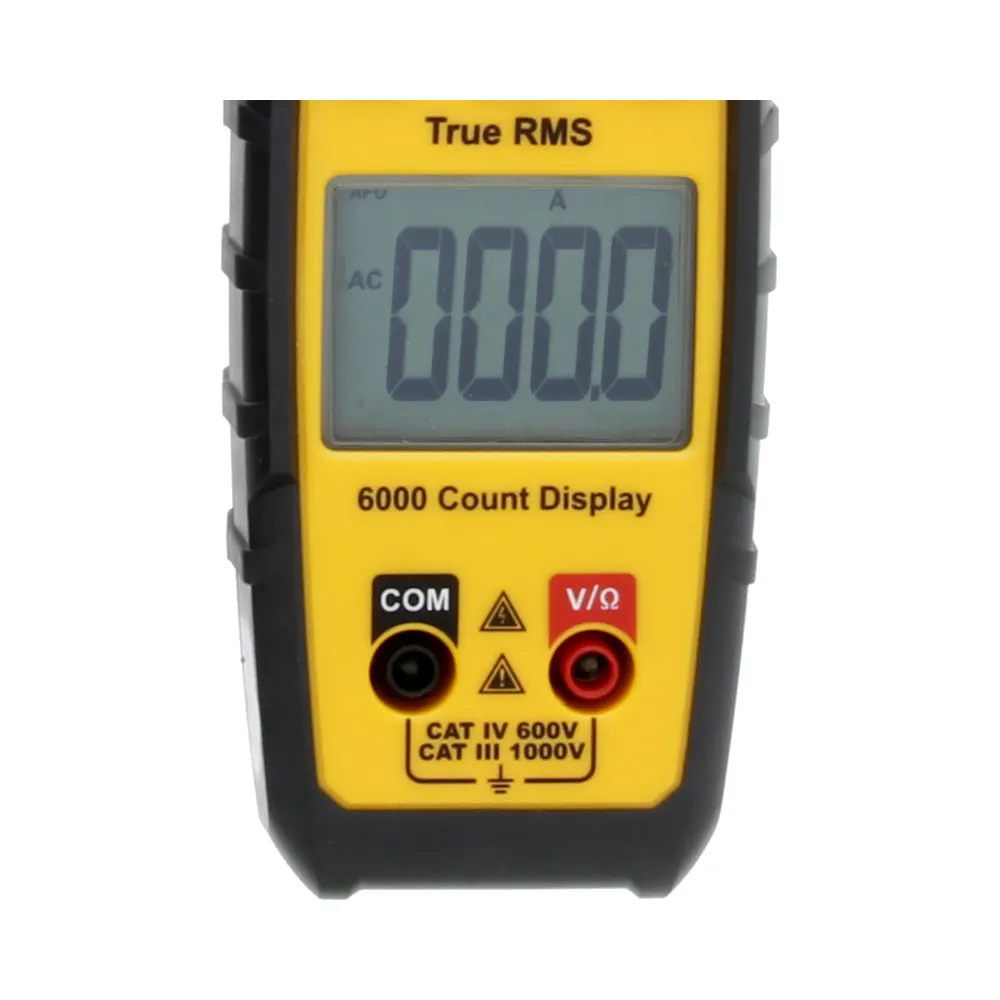

Display Dual Backlit LCD, 6000 Count
Safety Rating CAT IV 600V / CAT III 1000V
NCV Detection 40V–600V AC
Resistance Measurement Up to 60MΩ

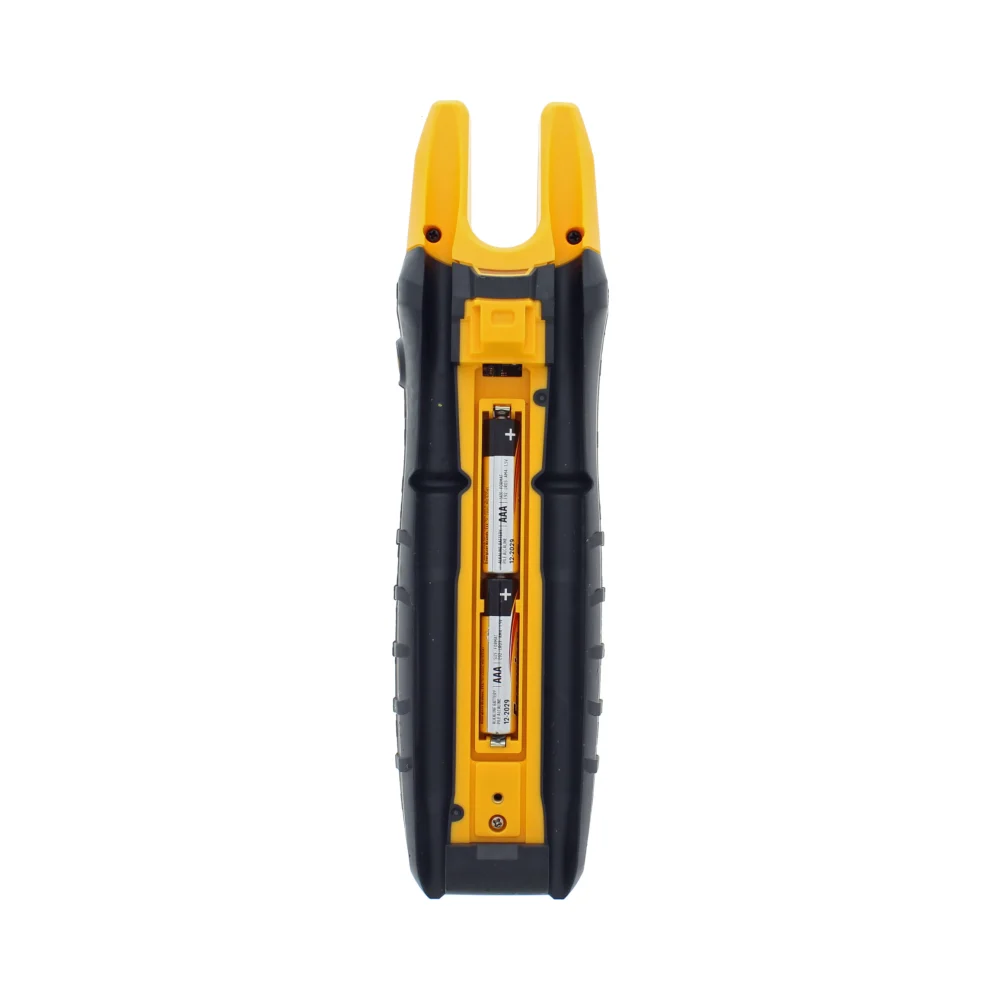

Power Supply 2 x 1.5V AAA Batteries
Auto Power Off Yes
Flashlight Integrated LED

Electrical Testing Applications

The IDEAL 61-415 Fork Meter is suitable for professional electrical testing and fault-finding, including:

  • AC/DC current measurement on individual conductors
  • Electrical distribution board inspections
  • Commercial and industrial electrical maintenance
  • Control panel testing and troubleshooting
  • HVAC electrical system diagnostics
  • Voltage, resistance and continuity checks

What’s Included?

  • 1 x IDEAL 61-415 TightSight Split Jaw Fork Meter
  • 1 x Set of Test Leads
  • 2 x 1.5V AAA Batteries
  • 1 x Soft Carry Case
  • Instruction Manual

Why Choose the IDEAL 61-415?

Combining AC/DC current measurement, True RMS accuracy and the innovative TightSight display, the IDEAL 61-415 Fork Meter is a practical instrument for electricians who require reliable measurement capabilities in a compact format.

The combination of dual backlit displays, a built-in flashlight and a 19mm jaw opening makes it particularly useful for electrical testing where working space and visibility are limited.
