Hager VME113SPD Consumer Unit Kit with 9 Type A RCBOs
Design Evo 13 Way Consumer Unit with Type 2 SPD, RCBOs and Meter Tails Gland

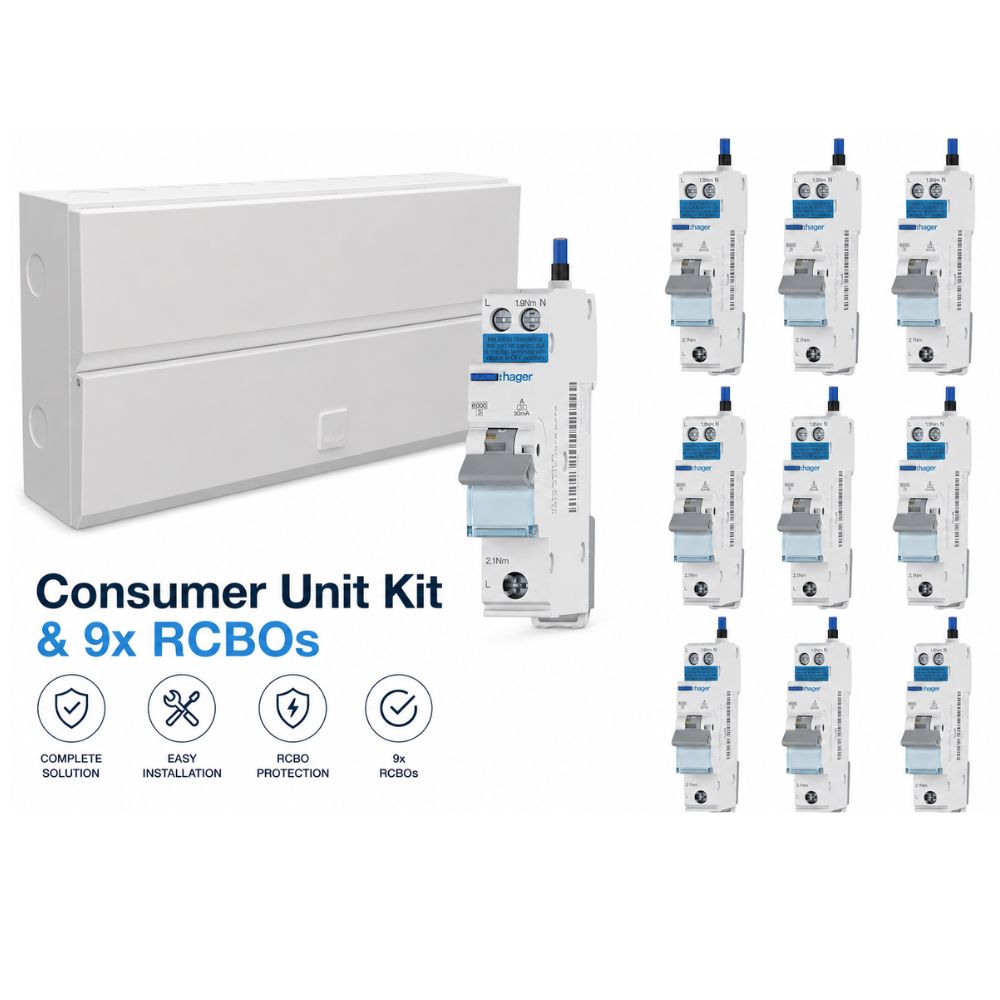

The Hager VME113SPD Consumer Unit Kit combines the Hager Design Evo 13 way metal consumer unit with 9 Hager ADB 6kA Type A Curve B RCBOs. It also includes a factory-fitted single module Type 2 SPD, free Partex meter tails gland and 4 solid DIN rail blanks.
Designed for modern domestic installations, the kit provides individual RCBO protection across 9 circuits while retaining additional usable ways. The included RCBOs are supplied in our standard default configuration unless you request a different combination of available Curve B ratings when ordering.
Important – RCBO Selection and Default Configuration
This kit is supplied with our standard selection of 9 Hager ADB 6kA Type A Curve B RCBOs unless you request a different amperage combination.
If you require different RCBO ratings, please add your required combination to the order notes at checkout or WhatsApp us with your order number immediately after placing your order.
If no alternative RCBO requirements are received, the default configuration shown below will be dispatched.
Default RCBO Configuration
- 2 × B6A Type A Bi-Directional RCBOs
- 2 × B16A Type A Bi-Directional RCBOs
- 2 × B20A Type A Bi-Directional RCBOs
- 3 × B32A Type A Bi-Directional RCBOs
Alternative Hager ADB Curve B RCBO ratings of 6A, 10A, 16A, 20A, 25A, 32A, 40A, 45A and 50A can be requested, subject to availability.
Please note: Hager ADB RCBOs rated from 6A to 32A are bi-directional. The 40A, 45A and 50A RCBOs are uni-directional, but they can still be included within this kit if requested.
View the full Hager RCBOs for Consumer Units. The linked range includes both B Curve and C Curve devices; however, this populated kit is supplied with Curve B RCBOs only. C Curve RCBOs are not included within the kit price.
Hager VME113SPD Consumer Unit Kit – What’s Included
- 1 × Hager VME113SPD Design Evo Consumer Unit
13 usable ways in a metal enclosure with main switch incomer and factory-fitted Type 2 surge protection. - 9 × Hager ADB 6kA Type A Curve B RCBOs
Supplied in our standard RCBO configuration unless alternative available Curve B amperage ratings are requested when ordering. - Factory-Fitted Single Module Type 2 SPD
Compact surge protection arrangement designed to maximise the available outgoing ways. - Free Meter Tails Gland
Includes a Partex DTGM32TKL-LG Meter Tails Gland for neat and secure incoming meter tails cable entry. - 4 × Solid DIN Rail Blanks
Included for unused ways and a professional installation finish.
Product Overview
The Hager VME113SPD Consumer Unit Kit is based on the Design Evo range and provides 13 usable ways within a single-row metal enclosure. The main switch arrangement, top-mounted terminal rail and quick-release DIN rail system are designed to support efficient installation and cable management.
The factory-fitted single module Type 2 SPD provides surge protection while minimising the space required inside the board. Nine Hager ADB Type A Curve B RCBOs provide individual overload, short-circuit and residual current protection for outgoing circuits.
Key Features
- 13 usable ways
- 9 Hager ADB 6kA Type A Curve B RCBOs included
- Default RCBO mix: 2×6A, 2×16A, 2×20A and 3×32A
- Alternative Curve B amperages can be requested when ordering
- 6A–32A ADB RCBOs are bi-directional
- 40A, 45A and 50A ADB RCBOs are uni-directional and can be requested within the kit
- Factory-fitted single module Type 2 SPD
- Maximum SPD discharge current: 40kA
- Main switch disconnector incomer
- Free Partex meter tails gland included
- 4 solid DIN rail blanks included
- Metal enclosure
- Multiple cable entry points
- Quick-release DIN rail system
- Top-mounted terminal rail
Technical Specifications – Hager VME113SPD Consumer Unit Kit
- Model: VME113SPD
- Range: Hager Design Evo
- Usable ways: 13
- RCBO quantity: 9
- RCBO range: Hager ADB
- RCBO type: Type A, Curve B
- RCBO breaking capacity: 6kA
- Available Curve B ratings: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 45A and 50A
- Bi-directional RCBO ratings: 6A, 10A, 16A, 20A, 25A and 32A
- Uni-directional RCBO ratings: 40A, 45A and 50A
- Residual current rating: 30mA
- SPD: Type 2, single module
- Maximum discharge current: 40kA
- Rated voltage: 230V AC, 50Hz
- Impulse withstand voltage: 4kV
- Protection rating: IP2XC
- System compatibility: TN-C-S, TN-S and TT
- Meter tails gland: Partex DTGM32TKL-LG included
- Dimensions: 204 × 364 × 102.5mm
- Consumer unit standard: BS EN 61439-3
Hager Type 2 SPD
For more information about the surge protection device used within this consumer unit, view the Hager VMES02SPD Consumer Unit Surge Protection Device.
Why Choose the Hager VME113SPD Consumer Unit Kit?
The Hager VME113SPD Consumer Unit Kit combines a practical Design Evo enclosure, 9 Hager ADB Type A Curve B RCBOs and factory-fitted Type 2 surge protection in one convenient package.
The standard RCBO configuration makes ordering quicker while still allowing electricians to request alternative available Curve B ratings. If no alternative RCBO requirements are provided, the default configuration of 2×6A, 2×16A, 2×20A and 3×32A will be dispatched.
