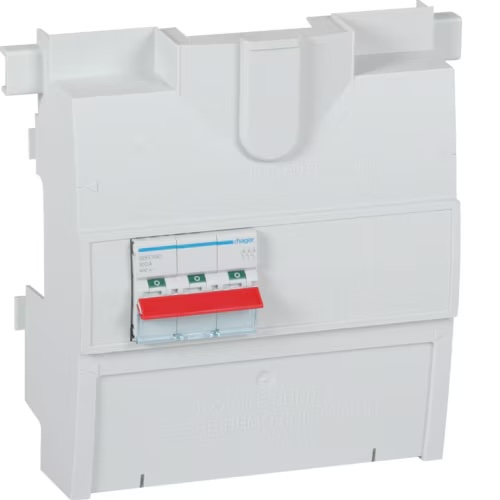

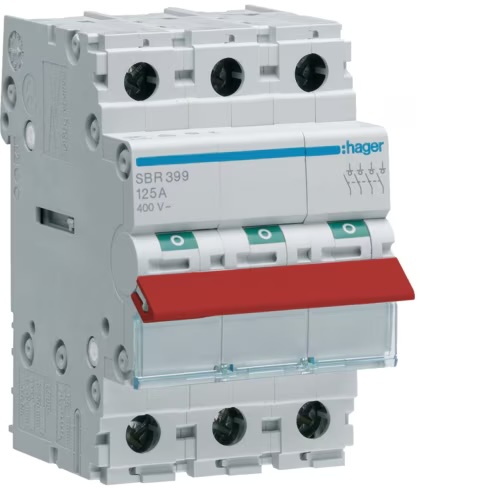

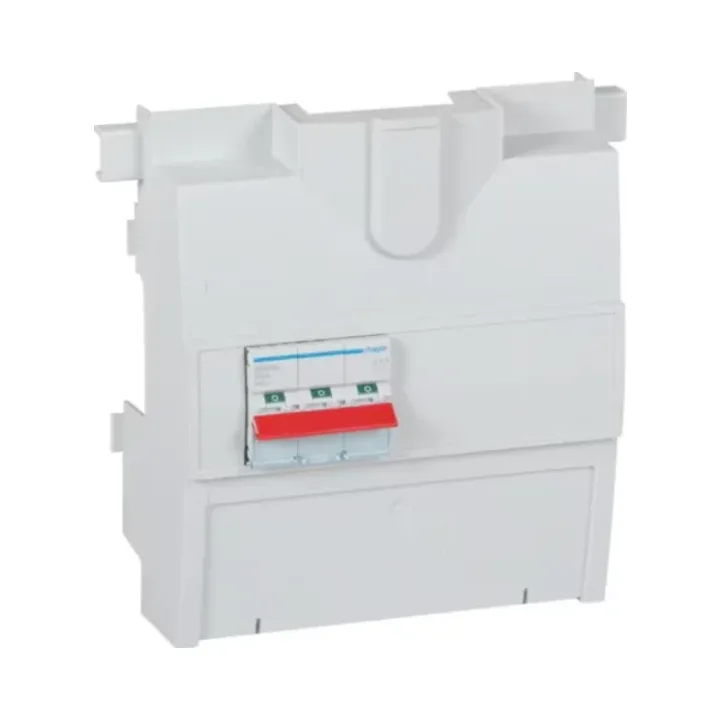

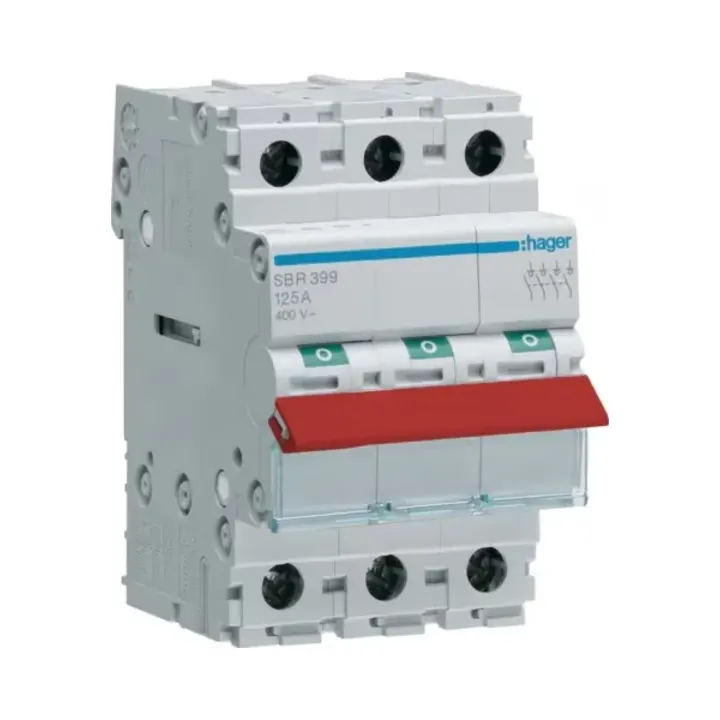

Hager JK11253S 125A 3 Pole Mains Switch Incomer Kit
Hager’s Type B distribution boards are designed to help electrical installaers meet the challenges of a modern installation. They are available in both 125A and 250A ratings.
Ease of metering
You can install a meter next to the incoming device in the 125A board. Dual metered boards are also available. Another option is to install a surge protection device.
Simple cable entry
Trunking and cable entry facility means there is no need to use paxolin. Cable protection is built into the endplate cable entry.
Transparent IP2X neutral cover allows for ease of cable installation. Screws fully turned down for easy and fast cabling.
Earth terminal cabling
Earth terminal bars are mounted offset to neutral terminal bars and angled towards the installer for easy cable installation. The screws are fully turned down for simple and fast cabling.
18 and 36 module DIN rail extension boxes are available. No spacers required to mount boards, cableways or extension boxes. Boxes can be mounted at the top or to either side of the board.
The 17th Edition plus a demand for more metering and control devices have changed the nature of sub and final distribution in commercial projects.
The 17th Edition wiring regulations means that commercial installations need more design and planning for the final circuit configuration. In most cases more of the final circuits will need RCD protection.
Many of these installations will contain equipment that is likely to have a small earth leakage – multiple PCs and printers for instance. This may mean that you need to install more circuits for socket outlets and protect each with individual RCBOs.
As a nation we are more aware of energy consumption. Most if not all commercial properties now demand a metering strategy at the design stage so that building end users can monitor where energy is being used.
In addition, DIN rail mounted control devices such as time switches, lighting dimmers and twilight switches are becoming increasingly popular. On a more complex level many building automation systems also operate by controlling the final circuits.
All of these factors affect the installation of distribution boards. Our new range of type B boards meets these needs.
• Multiple incomer choices for 125A and 250A boards
• Optimal cabling space
• Earth and neutral bars positioned for easier cabling
• Screws on earth and neutral bars need less turns to fit cable
• Unique trunking entry system – no need for paxolin
• Metering fitted next to incomer / within board
• Wide range of extension boxes for side, top and bottom
• No spacers needed to mount boards, cableways or extension boxes
• Removable door and front cover for ease of fitting
• 100A tap off for board extensions or MCB
