Description
Multi-Function Time Switch 4 Channels Bluetooth

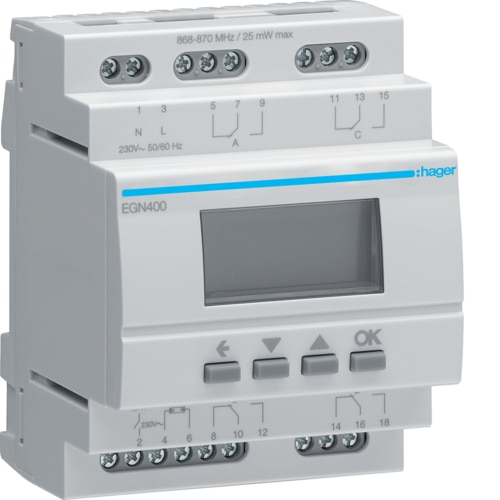

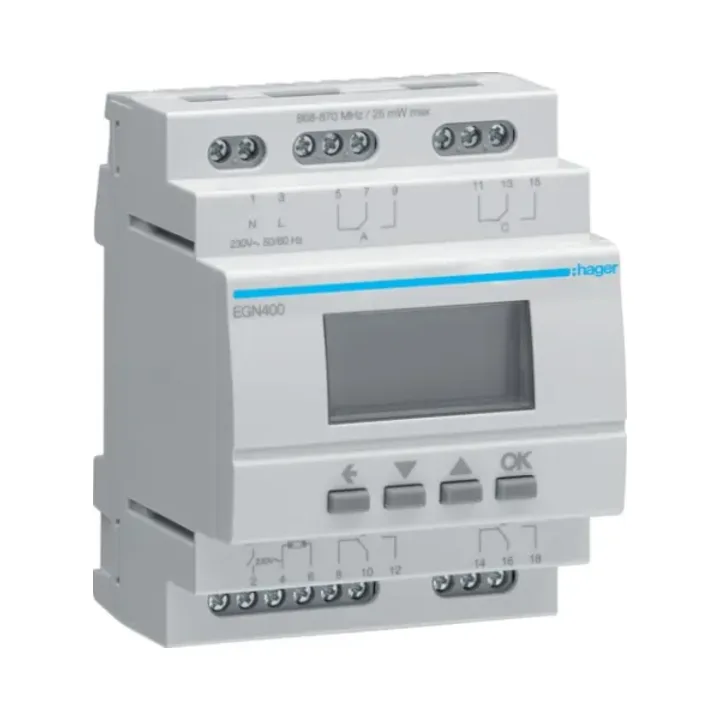

Hager EGN400
The Hager EGN400 is a 4-channel multi-function time switch equipped with Bluetooth connectivity for remote programming. Designed for advanced lighting control, it features precise brightness measurement (1-2000 Lux), making it suitable for a range of fluorescent and incandescent lighting applications. With a 10-year supply failure reserve, this time switch ensures reliability and long-term use, perfect for complex lighting and control setups.
Key Features of Hager EGN400 Time Switch
- Bluetooth Enabled: Allows for convenient remote programming.
- 4 Channels: Supports flexible, multi-zone control.
- Brightness Measurement: Accurate 1-2000 Lux range for optimal lighting adjustment.
- Power Reserve: 10-year supply failure reserve for consistent performance.
- Wide Compatibility: Compatible with both fluorescent and incandescent lighting.
Technical Specifications
- Voltage: 230 V AC
- Power Consumption: 500 mW
- Connection: Screw terminal; flexible conductor 0.2-2.5mm², rigid cable 0.2-4mm²
- Dimensions: 61.6 mm (depth) x 90 mm (height) x 70 mm (width)
- Shortest Switching Time: 1 minute
