Description

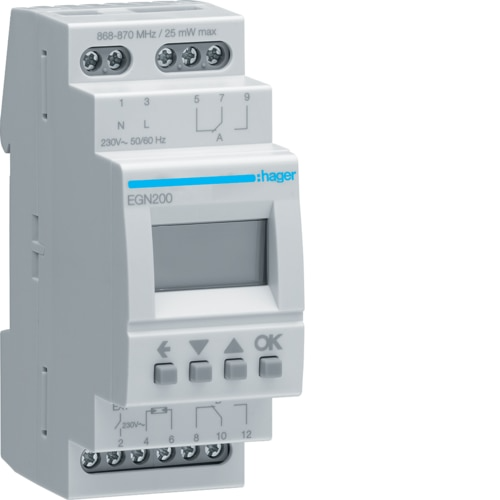

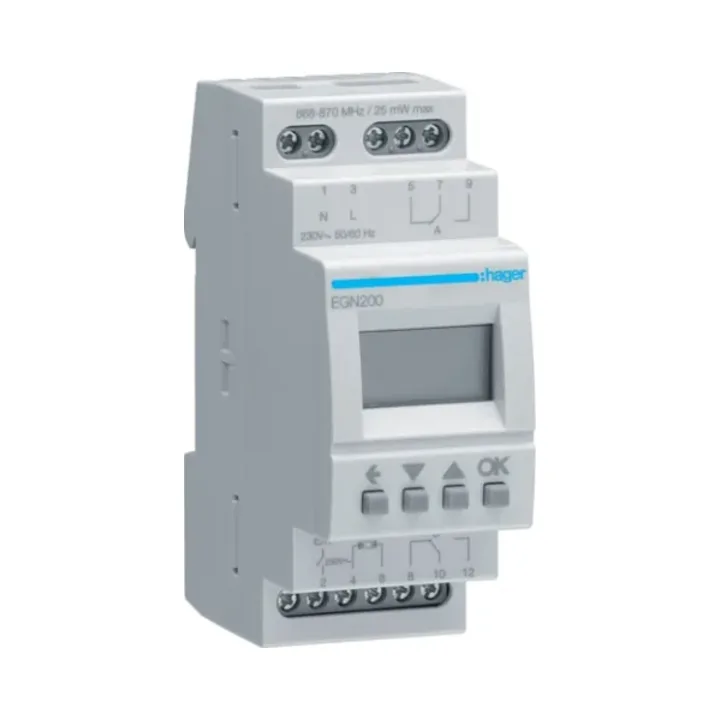

Multi-Function Time Switch 2 Channels Bluetooth
Hager EGN200
The Hager EGN200 Multi-Function Time Switch offers 2-channel control with versatile programming options, ideal for automation in lighting, heating, or other systems. Equipped with Bluetooth for easy configuration via mobile devices, it supports remote management, enhancing flexibility and user convenience.
Key Features of the Hager EGN200 Time Switch
- 2 Channels: Dual-channel operation for managing multiple devices.
- Bluetooth Connectivity: Allows programming and adjustments via mobile apps.
- Wide Brightness Range: Supports brightness control with a measurement range from 1 to 2000 Lux.
- High Power Capacity: Suitable for incandescent (2300 W) and fluorescent (up to 1000 W) lighting systems.
- Energy Efficiency: Low power consumption with a supply failure reserve lasting up to 10 years.
Technical Specifications
- Voltage: 230V AC supply
- Switching Interval: Minimum 1-minute intervals
- Dimensions: 61.6 mm depth, 90 mm height, and 35.8 mm width
- Connection Capacity: Flexible conductors (0.2–2.5mm²) and rigid cables (0.2–4mm²)
- Operating Temperature: -5°C to +45°C
This time switch is perfect for applications requiring reliable and flexible automation, with Bluetooth connectivity adding a modern touch for easy access and control.
