Description

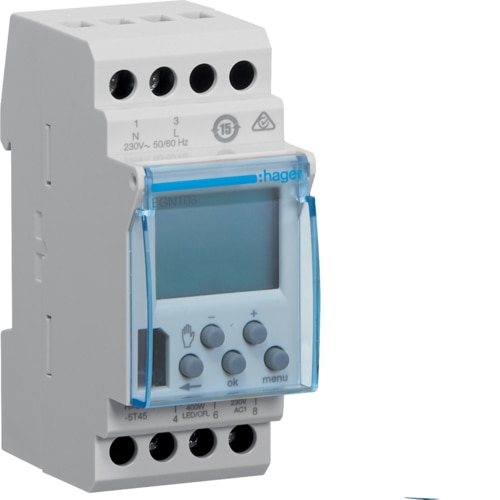

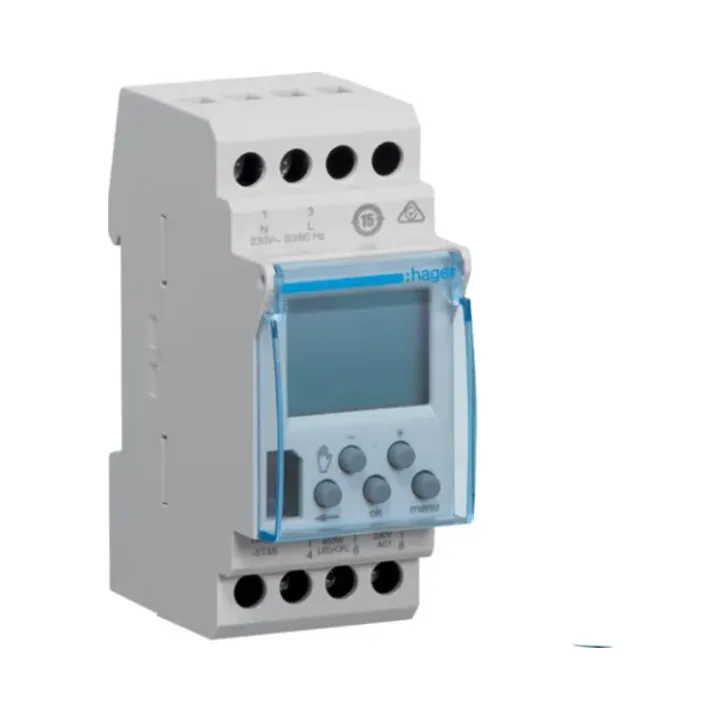

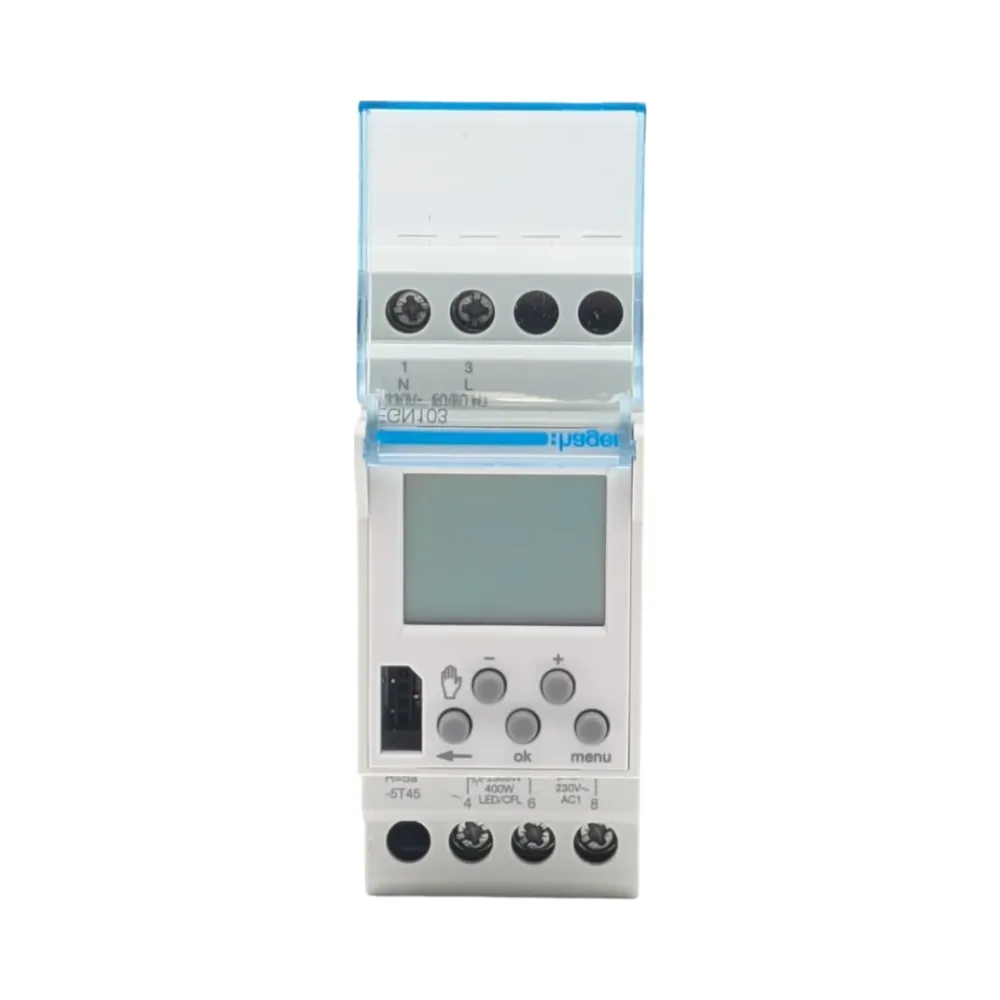

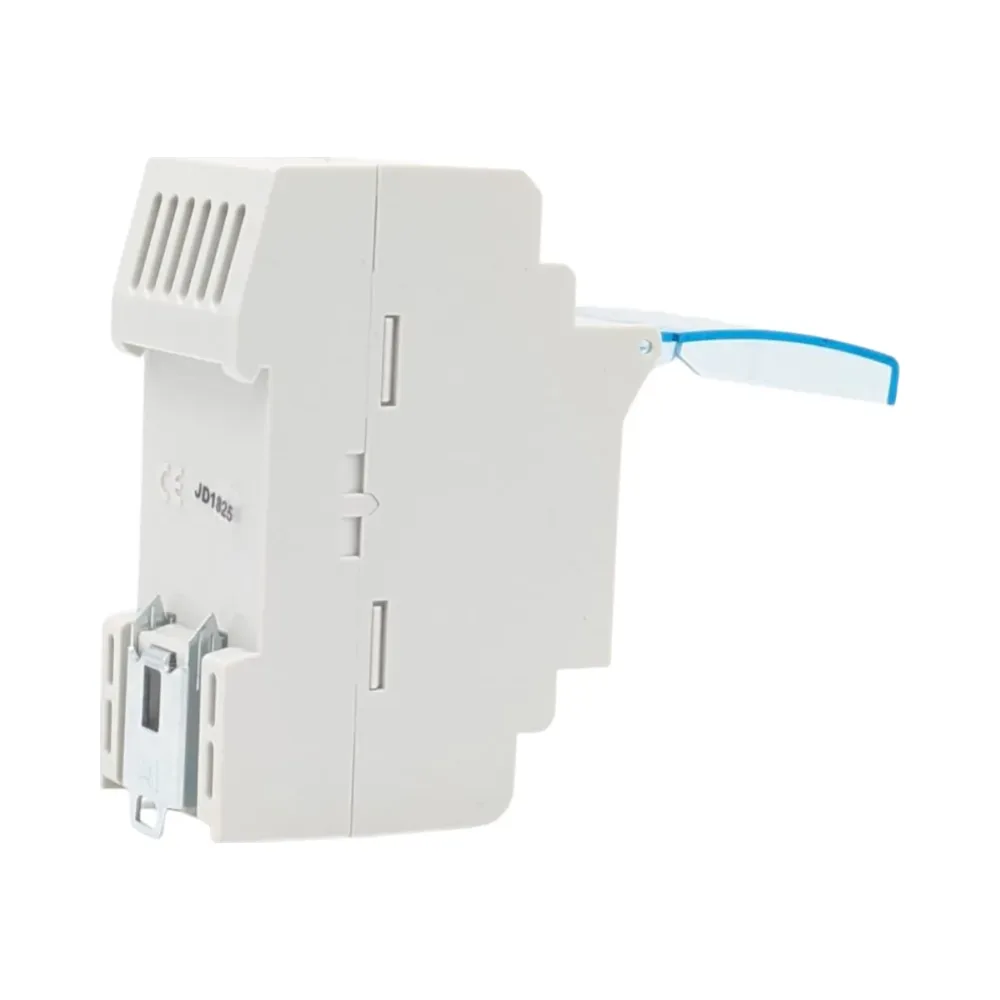

1 Channel Digital Time Switch Weekly Cycle
Hager EGN103
The Hager EGN103 1 Channel Digital Time Switch is a reliable weekly cycle timer, designed to automate switching schedules for a range of applications. With a programmable weekly schedule and a high degree of accuracy, this digital time switch ensures your systems operate efficiently according to your timing preferences.
Key Features of Hager EGN103 Digital Time Switch
- Weekly Programmable Schedule: Allows precise control over weekly on/off schedules, ideal for applications such as lighting and heating systems.
- High Load Capacity: Supports up to 2300W for incandescent bulbs and 400W for fluorescent parallel lamps.
- Long Supply Failure Reserve: A built-in 5-year power reserve keeps your programmed schedule intact even during power interruptions.
- User-Friendly Digital Interface: Offers easy-to-use programming for flexible time management.
Technical Specifications
- Voltage: Rated at 230V AC
- Power Consumption: Only 0.39 VA in standby, 350 mW during operation
- Switching Accuracy: ±1.5 seconds per 24 hours
- Shortest Switching Time: 1 minute
- Connection Capacity: Supports flexible conductors from 1–6mm² and rigid cables from 1.5–10mm²
- Dimensions: Depth 61.6 mm, Height 90 mm, Width 35.8 mm
Why Choose the Hager EGN103 Digital Time Switch?
The Hager EGN103 time switch is perfect for automating weekly routines, providing accurate and reliable switching control. With easy programming and high efficiency, this digital switch is ideal for residential or light commercial applications.
